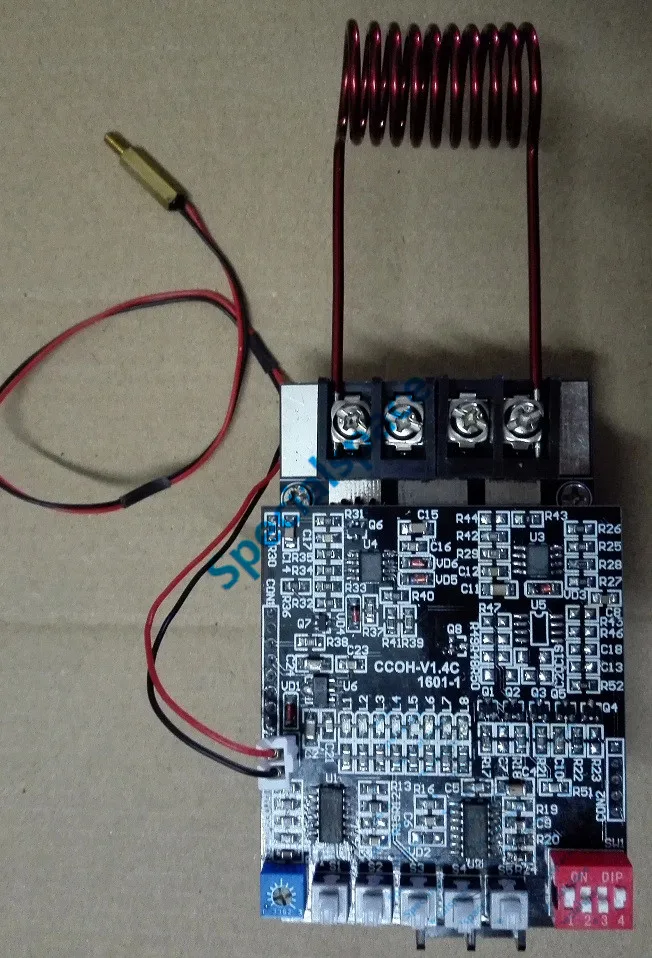

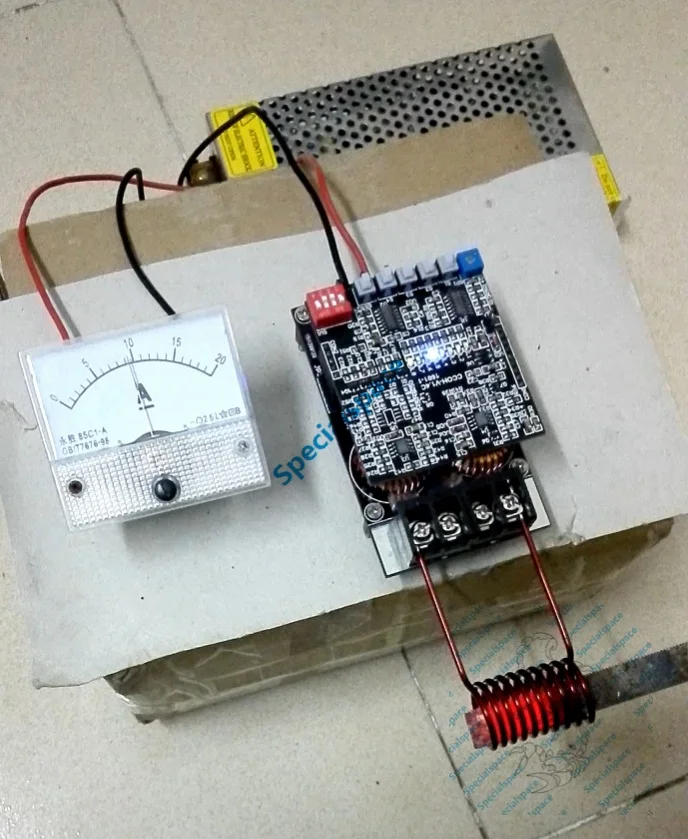

To work continuously, the copper tube must be made of heating coil and cooled by water!!!The coil is only used for testing. Not necessarily for practical needs!

This set of plates can be heated by induction or high pressure.

1, input useDC 7V~13.5V, current &ge, 10A power supply. Do not use batteries and unprotected power! The current is about 12A or the voltage is about 13.8V to start power failure protection.

2.Maximum current10A, maximum power 120W (12V power supply)

3.Standby current ≤ 10mA(power supply12V, when not heated.)

4.It is necessary to make sure that the wiring is correct.Load (heating coil)Turn on the electricity!It is necessary to connect the load to power again, not empty.

5.at presenttemperature controlIt is not suitable for solid objects, such as iron blocks, steel pipes, etc. It is suitable for liquid objects, such as water, etc. Temperature control probe can not contact corrosive objects.When constant temperature heating is not required, the temperature control probe can be separated from the object to be heated or the temperature sensor can be inserted. When the power supply is sufficient, the heating is very fast.There will be delays and errors in temperature detection.Mind not to shoot!Delay 2~5 seconds, error ± 2 C.

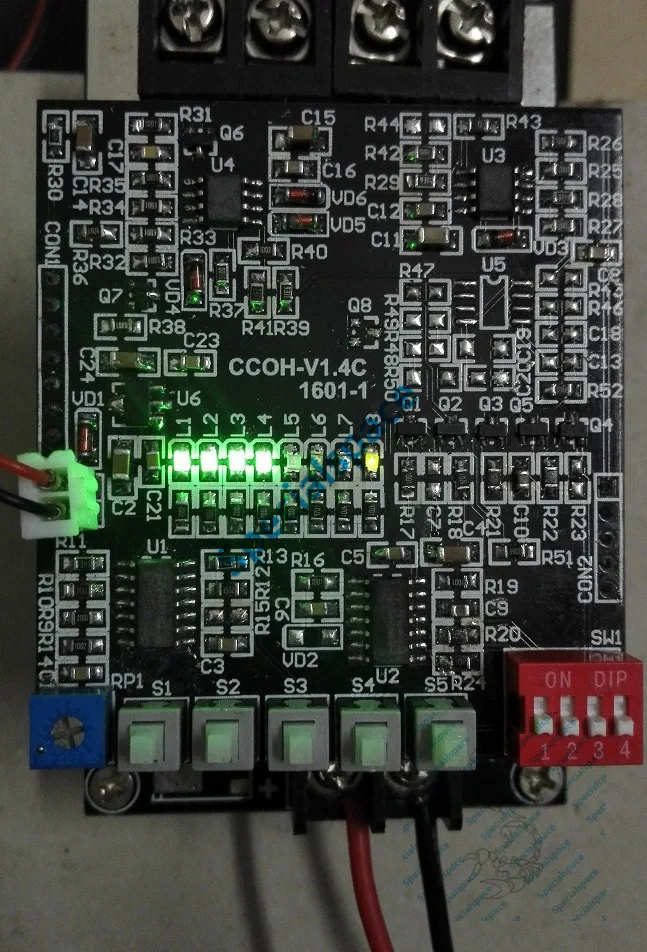

6.Four gearTemperature control, automatic temperature control after setting temperature. (stop heating at higher than set temperature, restart heating below set temperature) temperature control default.40Centigrade, 60Centigrade, 80Centigrade,100At this temperature, we need other temperatures, please contact Wangwang!

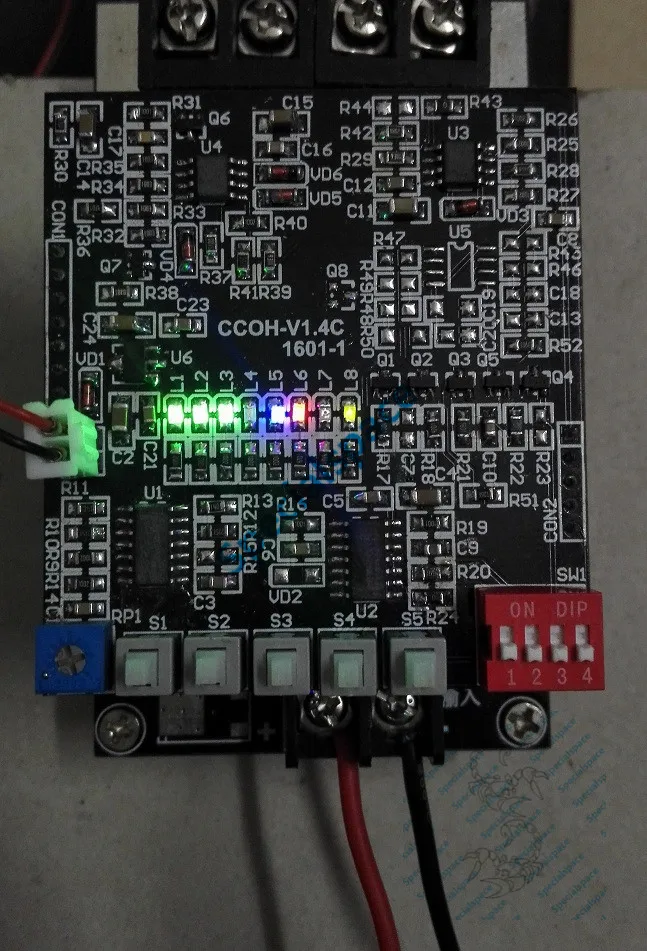

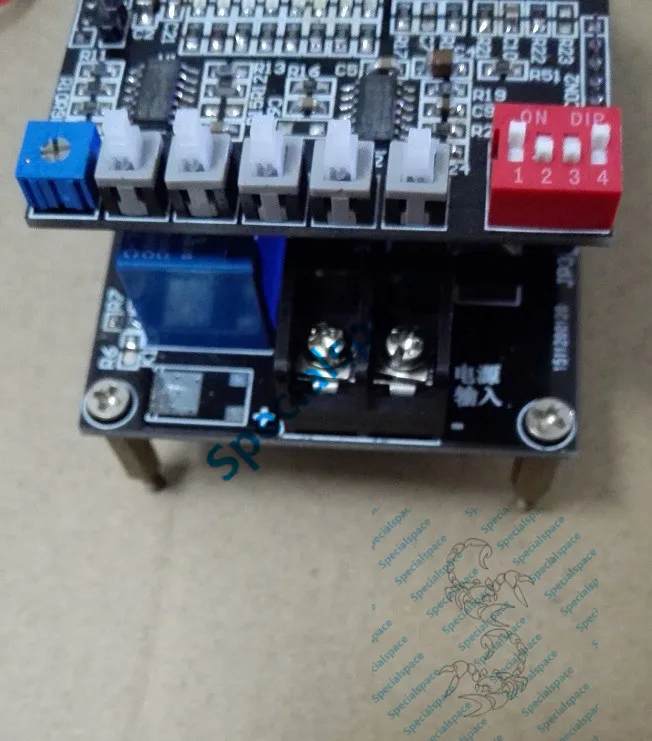

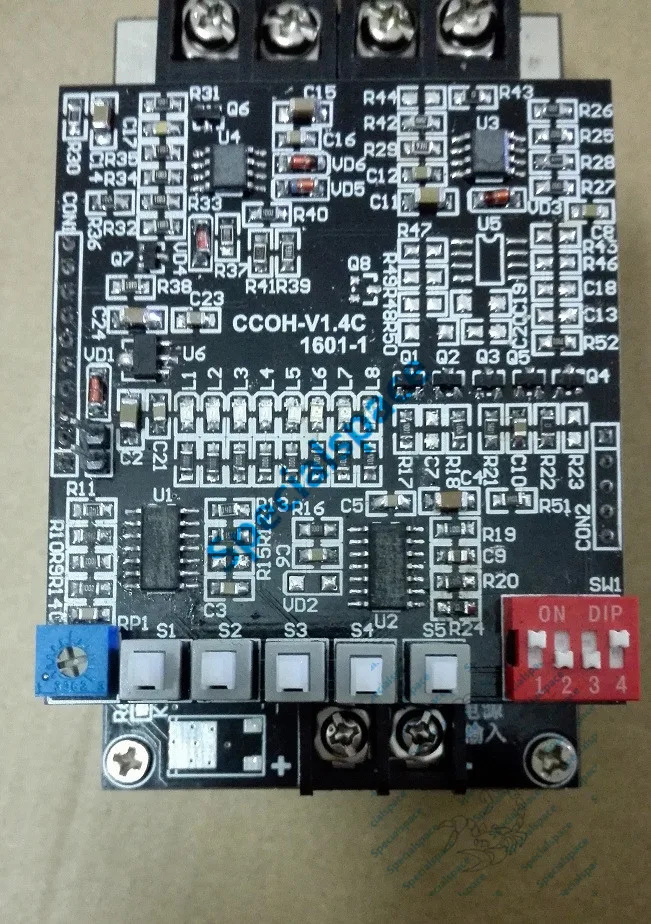

7, the underlying PCB board size: 99.06mm*58.04mm*1.6mm
