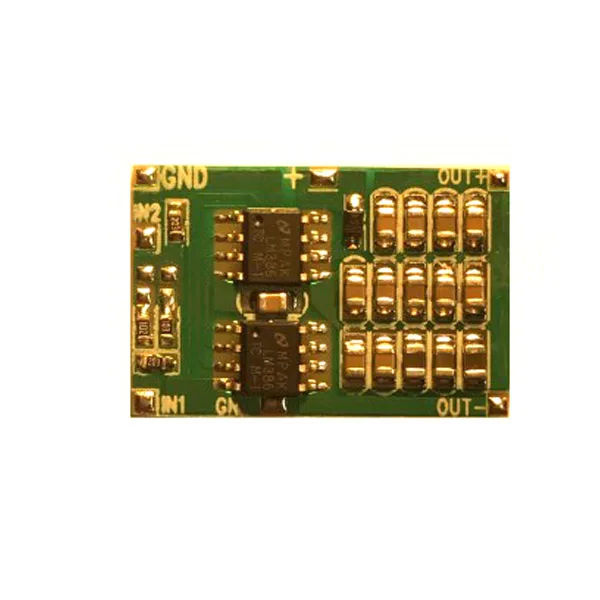

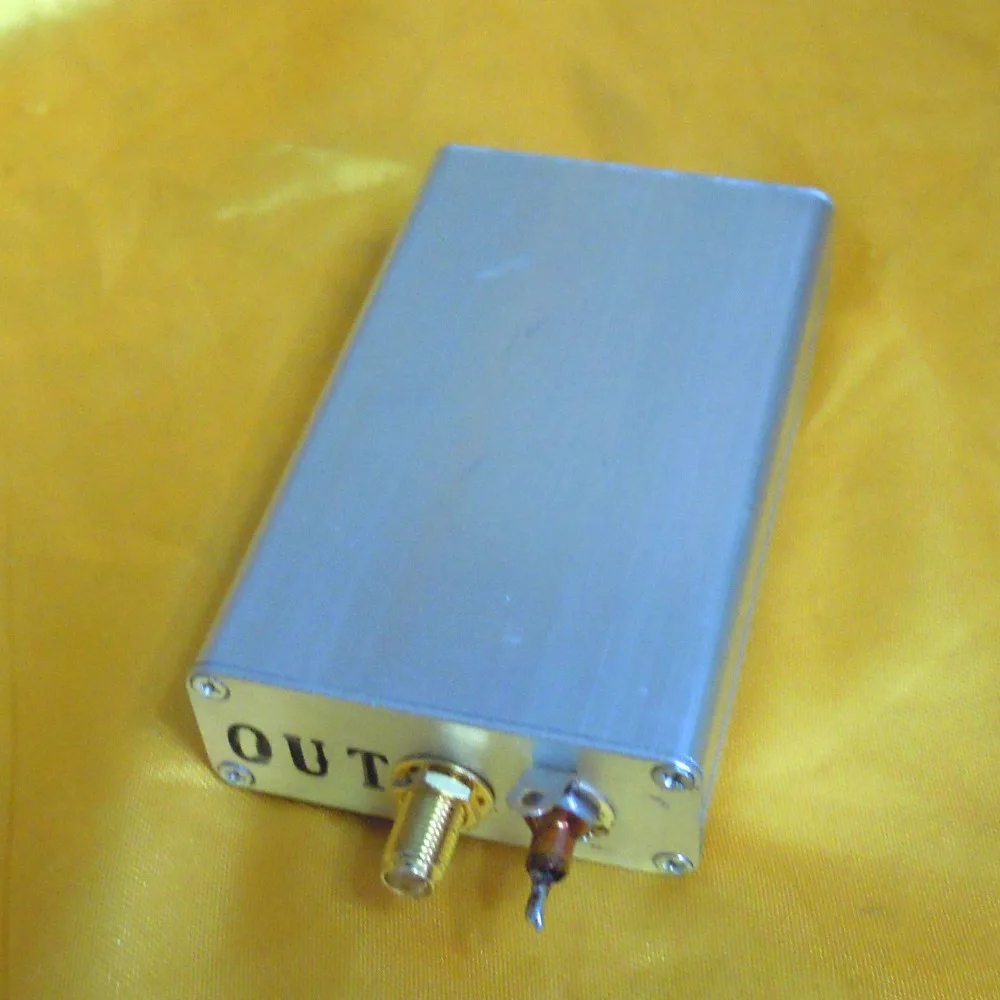

DC 12V 8A Dual Way Automatic Transfer Switch Contr...US $6.50 DC 3V~12V 5V 6V 9V Dual LM386 BTL Bridge Audio Pow...US $0.91 1M-1000MHz 3.5W POWER Amplifier HF FM VHF UHF FM T...US $39.98 DC 5V-12V Step up to 300V-1200V High Voltage DC-DC...US $6.74 14S 48V 40A/60A 18650 Lithium battery smart protec...US $5.85 Professional 60 segment LED Audio digital Display ...US $27.89 Battery Monitor 8-80V 50A 100A 350A Capacity Teste...US $22.31 50-1200MHz 1.2GHz 0.5w power amplifier linear AMP ...US $23.24 Low Noise LNA 0.05-4G NF=0.6dB Wideband Amplifier ...US $16.36 (DC 0V-200V 50A) Dual LED Digital Voltmeter Ammete...US $7.06

end

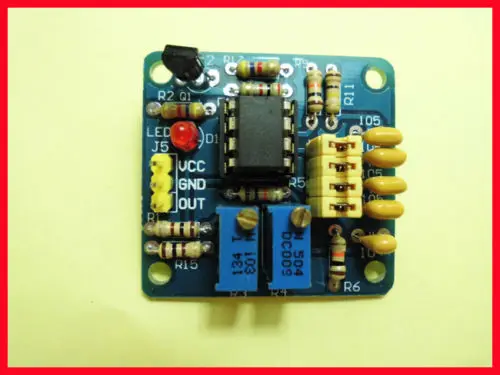

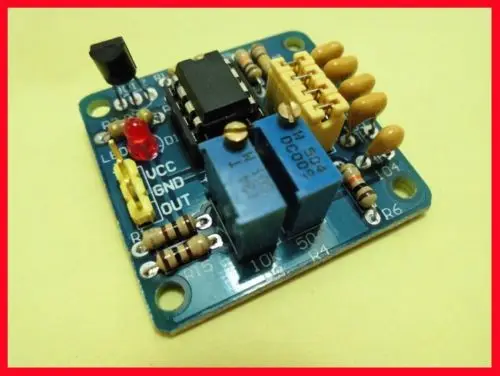

 NE555 Pulse Module LM358 Duty Cycle And Frequency Adjustable Module
    　   Description: Features:

1. Size: 3.5CM * 4.6CM
1. the main chip: LM358;
Input voltage: 5V-12VDC.
3. the input current: ≥ 100MA;
4. the output amplitude: close to the input voltage;
5. the frequency adjustment range: 0.07HZ-2KHZ (also cycle in about 0.45ms to 15s);
6, duty cycle adjustment range: 0% to 100% (High / cycle);
7, Output Current: strip 9012 transistor drive capability is strong, about 500MA output current, the output can directly drive
small relays or small motors;
Frequency adjustment methods:
The board has four the shorting cap can select the frequency:
Inserted 0 short-circuit cap, the longest cycle upwards to 0.3 s;
Inserted one short-circuit cap, the longest cycle can be adjusted to about 4s;
Inserted two short-circuit cap, the longest cycle can be adjusted to about 7s;
Inserted three short-circuit cap, the longest cycle can be adjusted to about 10s;
Inserted four short-circuit cap, the longest cycle can be adjusted to about 15s;


Package Contents
100% Brand New
1 X NE555 Pulse Module LM358 Duty Cycle And Frequency Adjustable Module
