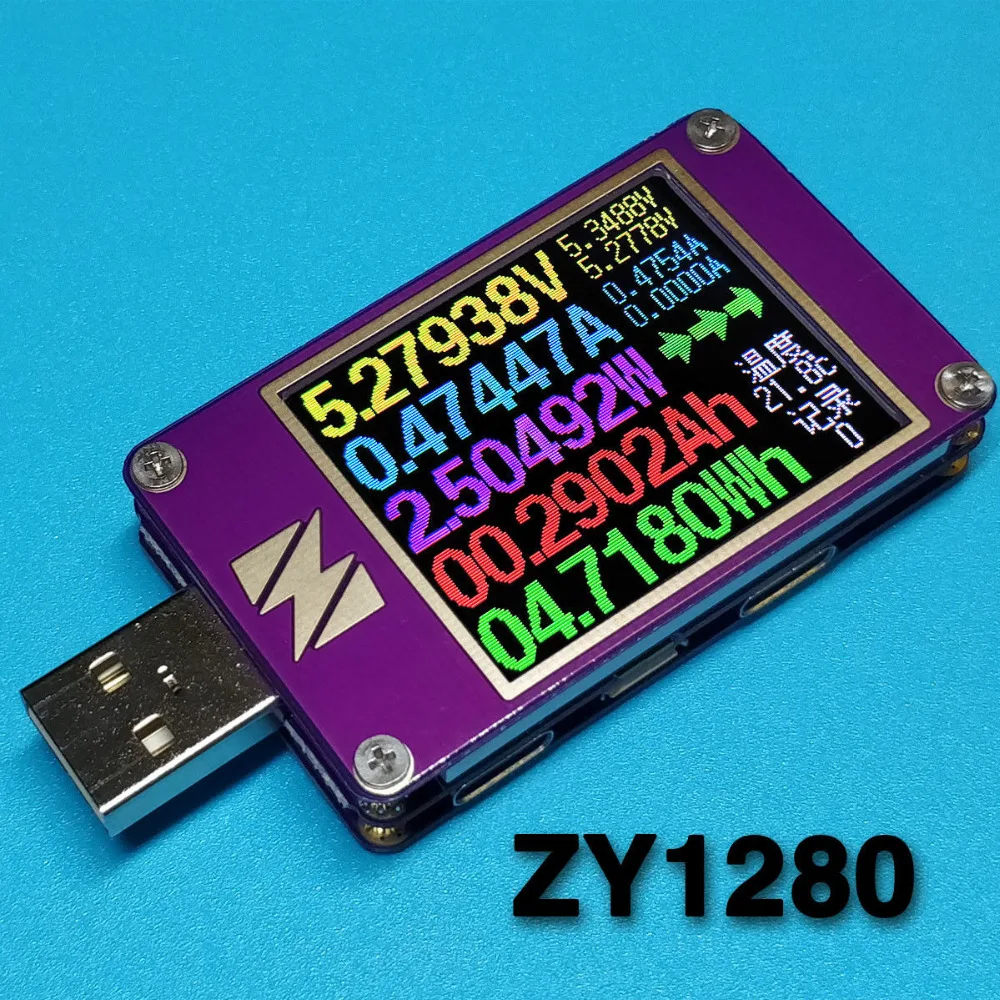

ZY1280 USB Current Voltage Capacity Fast Charge QC4 PD3.0 MFI PPS Test
    　   Description: Features:

! ! safety warning! ! This type of tester has multiple input and output ports. All interfaces are connected in parallel. Only one input and one output are allowed to be connected at the same time. Some model testers support high-voltage fast charging. When the high voltage is triggered, there will be high voltage on the input and output ports. Do not connect any equipment with insufficient voltage resistance. Please confirm that the voltage is correct and then access the equipment. This will result in problems including but not limited to burning mobile phones, burning equipment, burning adapters, etc. This shop does not bear any responsibility!

Big screen purple gold ZY1280 open to sell! A new generation of high-end flagship USB watch!

Contains all the features of 1276. The new features are as follows:
10 times the CPU processing power of ZY1276!
1.8-inch ultra-narrow frame large color screen, the screen is bigger but the size is not much!
Display more with the screen More curves!
Independent MicroUSB power supply interface, 0V starting test!
USB upgrade USB connected computer drawing curve PD capture DIY full screen boot screen!
New current voltage power maximum and minimum value display!
Added AUTO protocol to detect QC4 and PPS display!

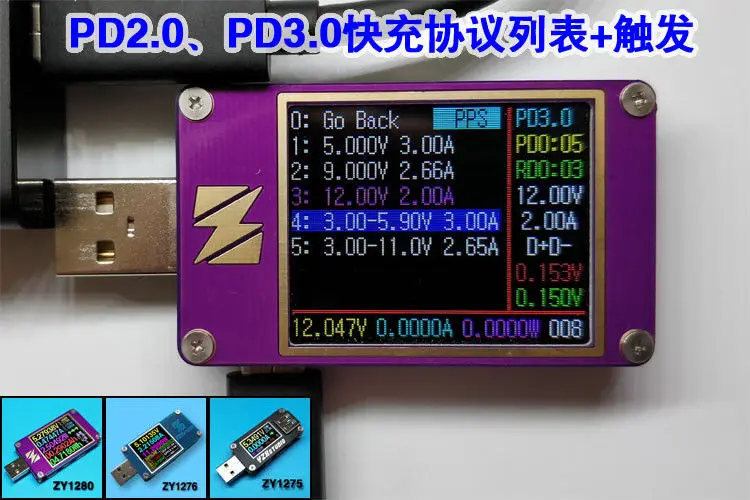

Added QC4-PPS protocol 0.02V step trigger!
Add QC to PD function!
The new large blue table ZY1276Plus enhanced tester to start selling! Do not increase the amount of increase!
Mass delivery arrives on the same day! 0.01mA current resolution! Chinese and English bilingual interface!
Type-C PowerDelivery trigger detection scam monitoring packet capture without direct inclusion!
It is not necessary to directly measure the E-Marker line with PD power!

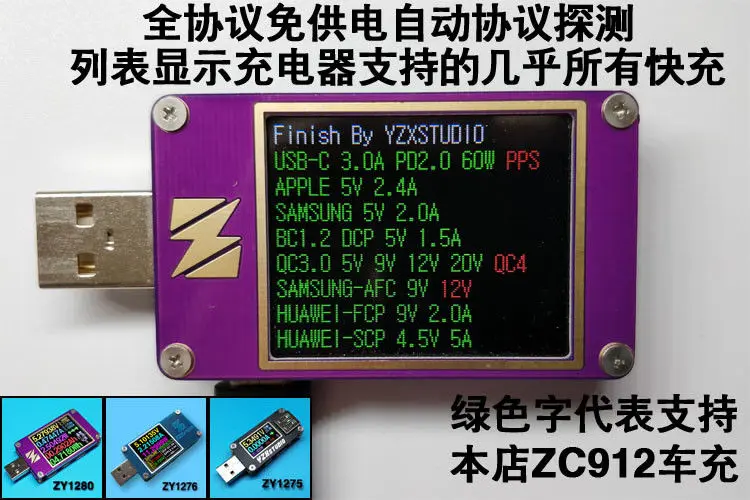

QC2.0 QC3.0 QC4 FCP SCP AFC PD2.0 PD3.0 PPS VOOC DASH
The full protocol fast charge triggers detection scams!
Senior enthusiasts recommend USB test artifact!




Contains all the features of ZY 1276. The new features are as follows:
10 times the CPU processing power of ZY1276!
1.8-inch ultra-narrow frame large color screen, the screen is bigger but the size is not much!
Display more with the screen More curves!
Independent MicroUSB power supply interface, 0V starting test!
USB upgrade USB connected computer drawing curve PD capture DIY full screen boot screen!
New current voltage power maximum and minimum value display!
Added AUTO protocol to detect QC4 and PPS display!
Added QC4-PPS protocol 0.02V step trigger!
Add QC to PD function!

Features:

1. size: 57*35*12mm
2. LCD: 1.8 inch TFT
3.LCD resolution: 160*128

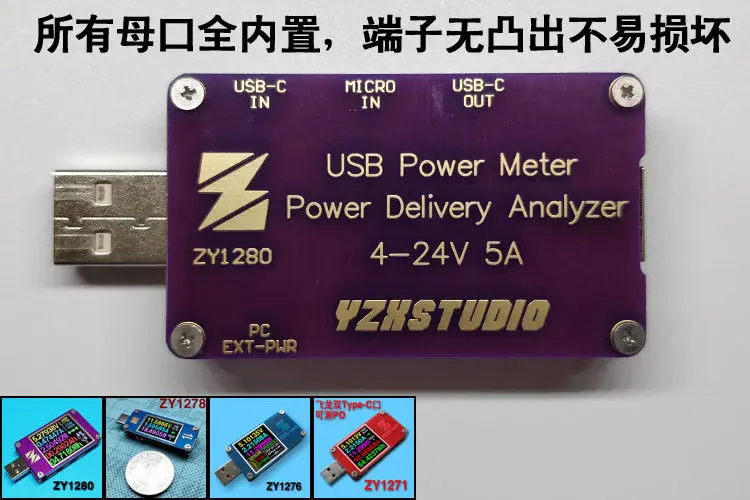

4.input port: A male,M female,C female
5.Output: A female, C femal.
6.connect pc port: MircoUSB
7.support : Fast charge trigger, PD trigger, PD pass through,

Other performance parameters:

Weight: Containing iron box about 60g, bare metal 10-30g
Voltage range: 3.5-24V, limit voltage 28V
Voltage resolution: 0.0001V (18bit), some models open 1.28 seconds to 0.00001V
Current range: continuous positive and negative 0-5A, with display current direction
Current resolution: 0.0001A (18bit), some models open 1.28 seconds to 0.00001A
Refresh rate: ordinary interface 0.36 seconds / times, high-speed interface 10FPS
Capacity range: 0-99999Ah 0-99999Wh
Capacity resolution: 0.0001Ah 0.0001Wh (0.1mAh 0.1mWh)
Time range: 1000 hours, accurate to 1 second

Package Contents
100% Brand New
1 x ZY1280 USB Current Voltage Capacity Fast Charge QC4 PD3.0 MFI PPS Test
