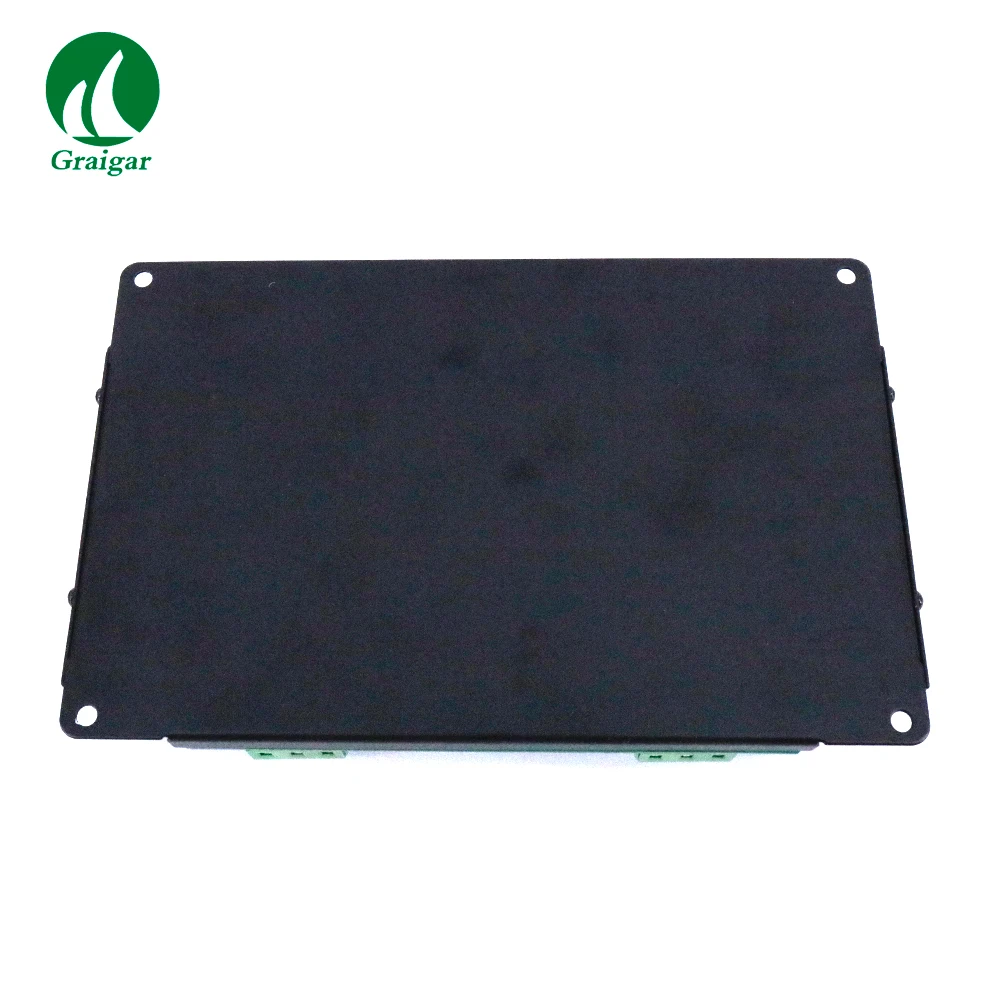

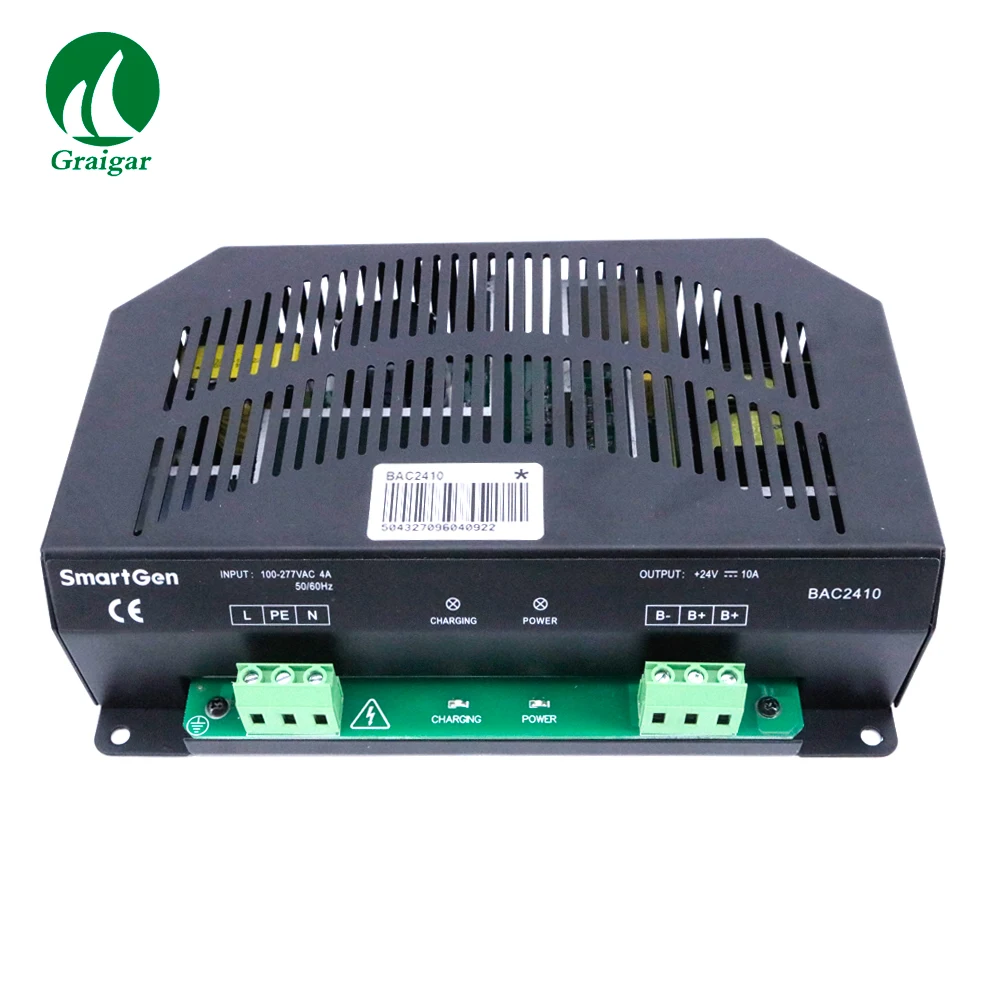

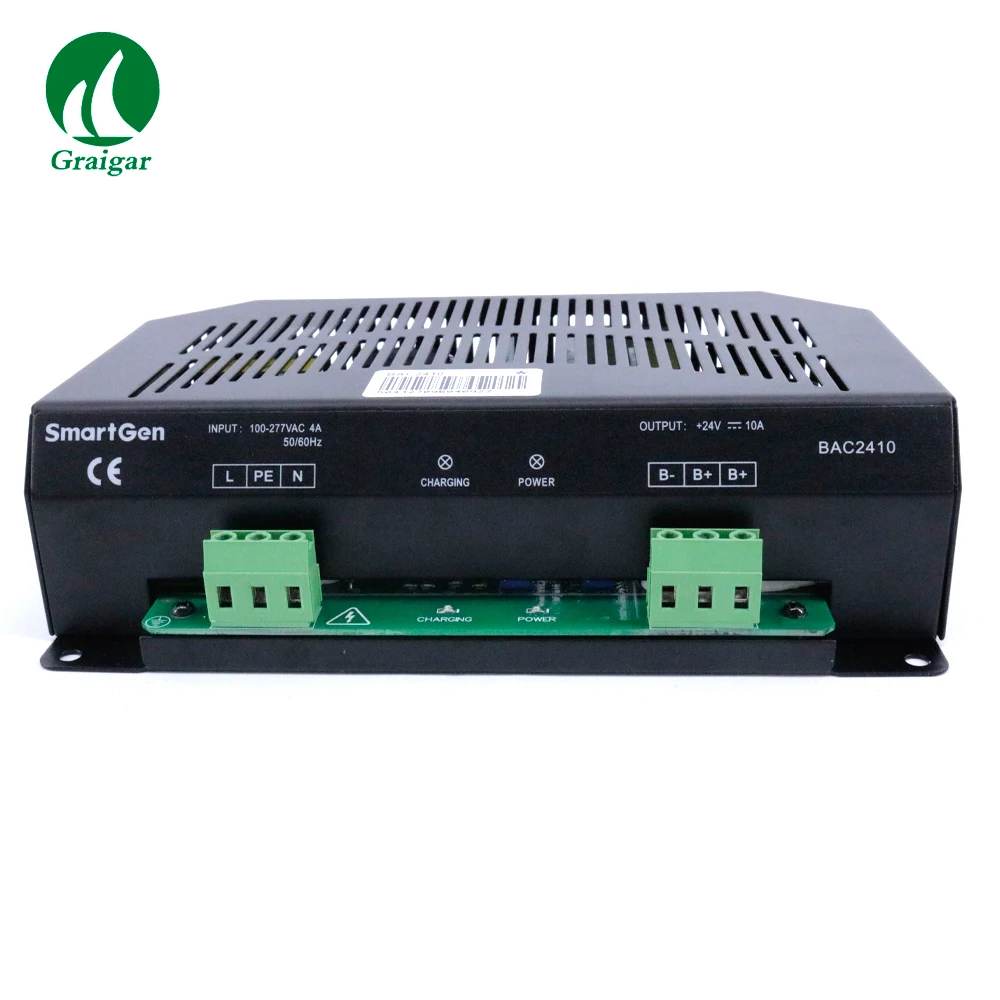

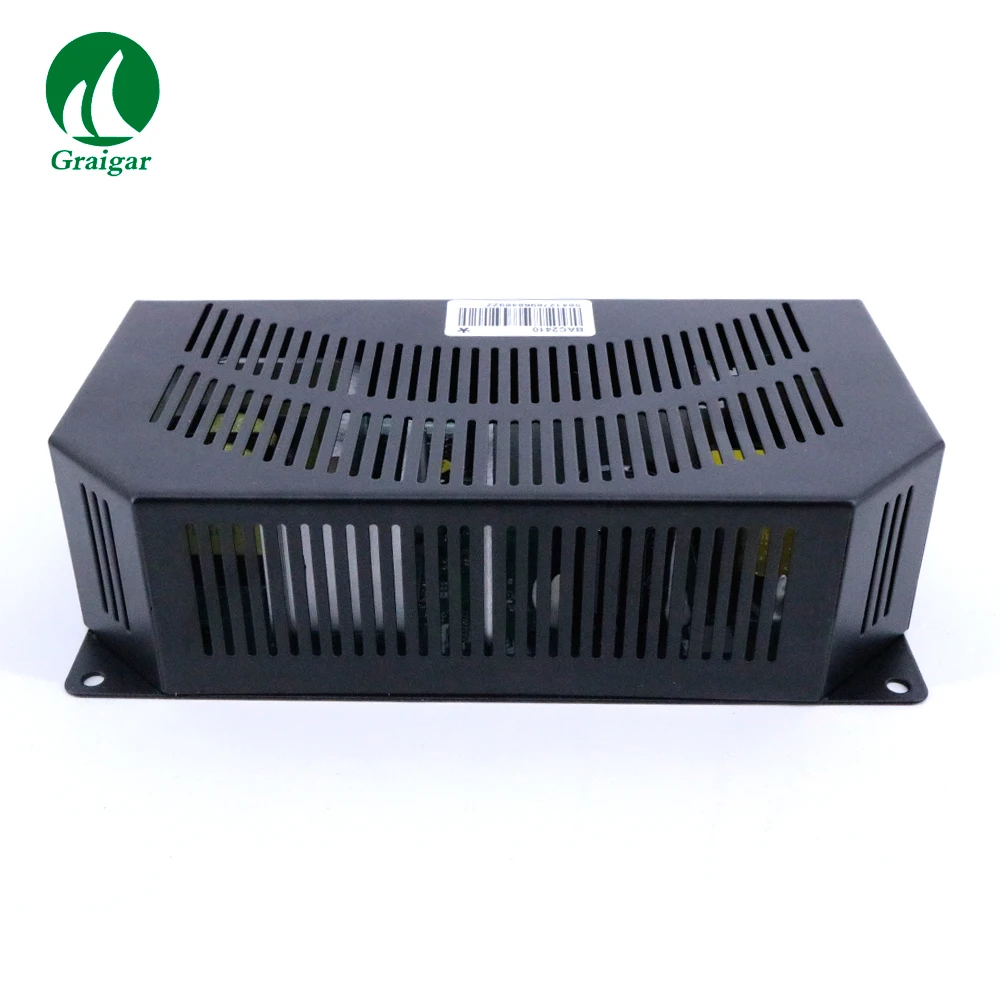

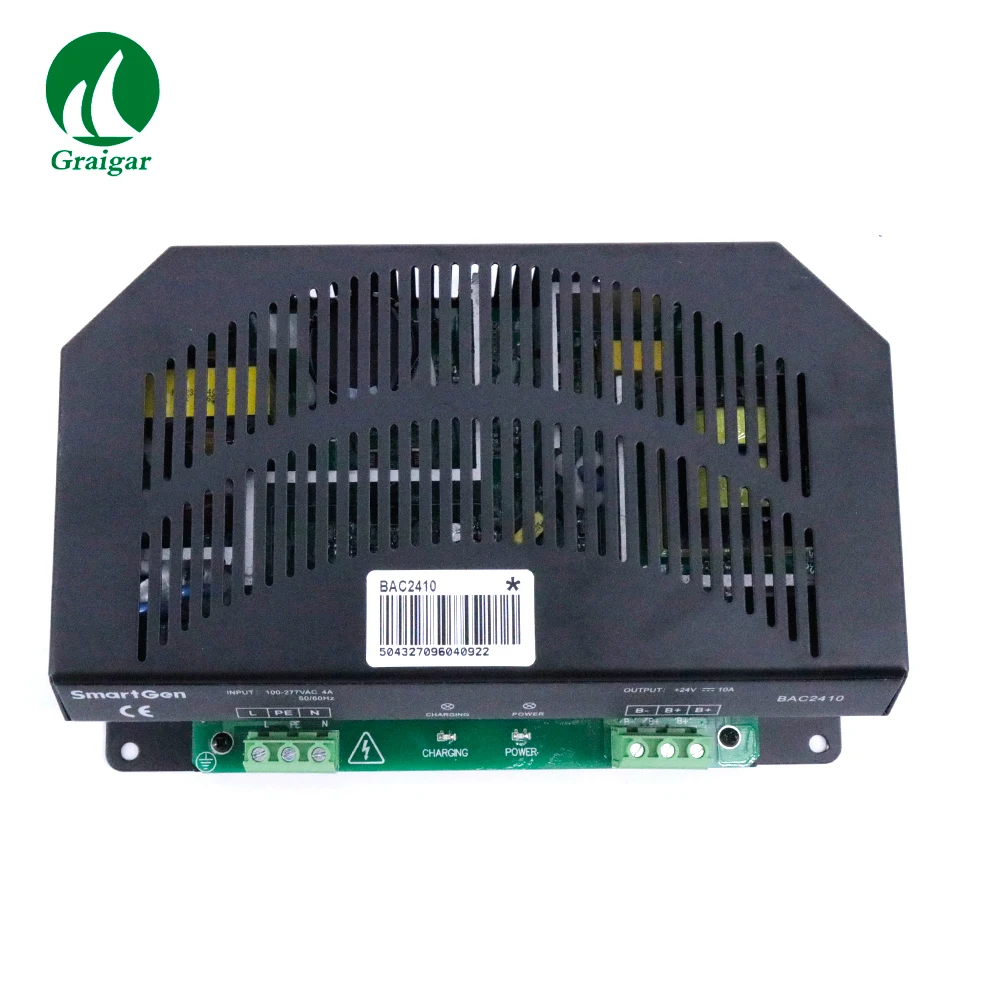

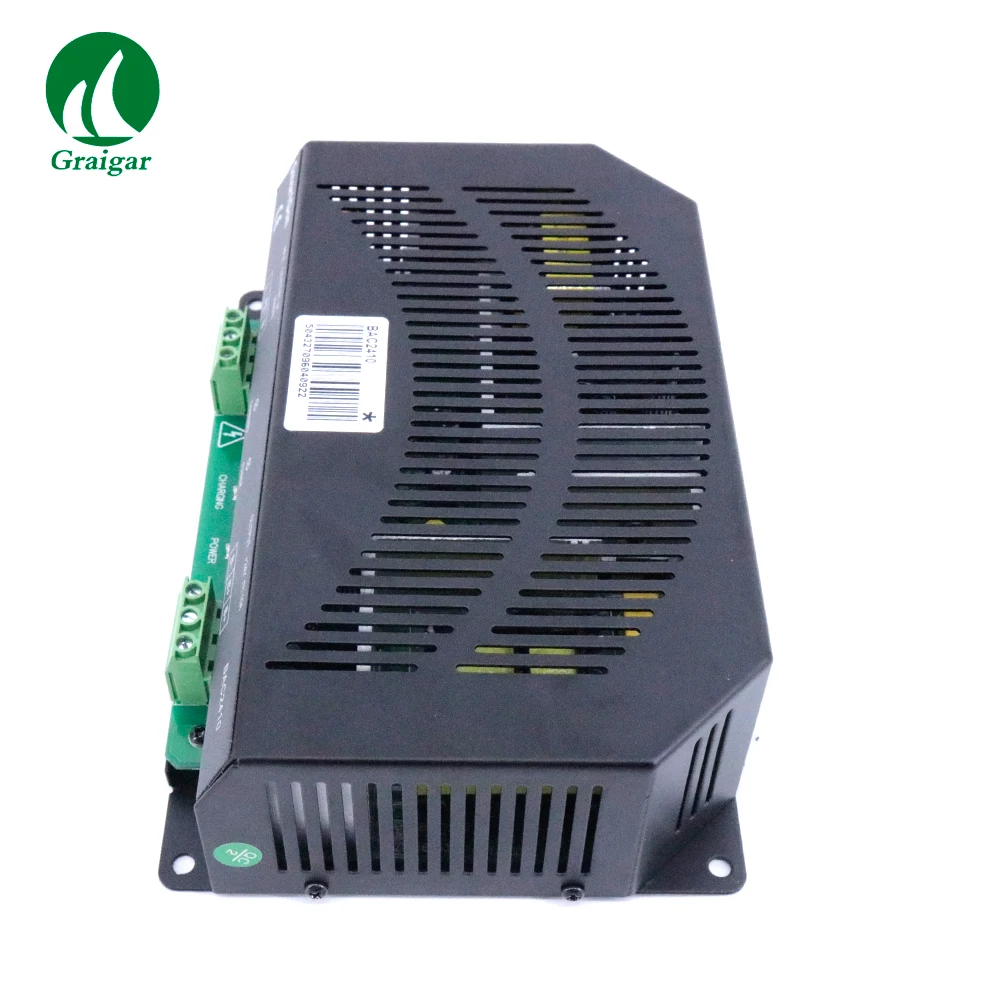

 BAC2410 Auto Battery Charger 24V  Fit with up-to-date Power Supply Device Float Charger

PERFORMANCE AND CHARACTERISTICS

1.Switch power supply structure, wide input alternating voltage range, small size, light weight, high efficiency rate;

2.Automatic two-stage charging process (first constant current, then constant voltage) carried out according to storage battery charging characteristics to prevent overcharging and significantly prolong battery lifetime;

3.Built-in PFC circuit can calibrate the power factor above 0.99;

4.Built-in current protective circuit, which can give effective protection when output over current, short-circuit or reverse connection occurs. Regard power lamp or charge lamp fast blinking as alarm.

5.Suitable for 24V storage battery and the rated current is 10A;

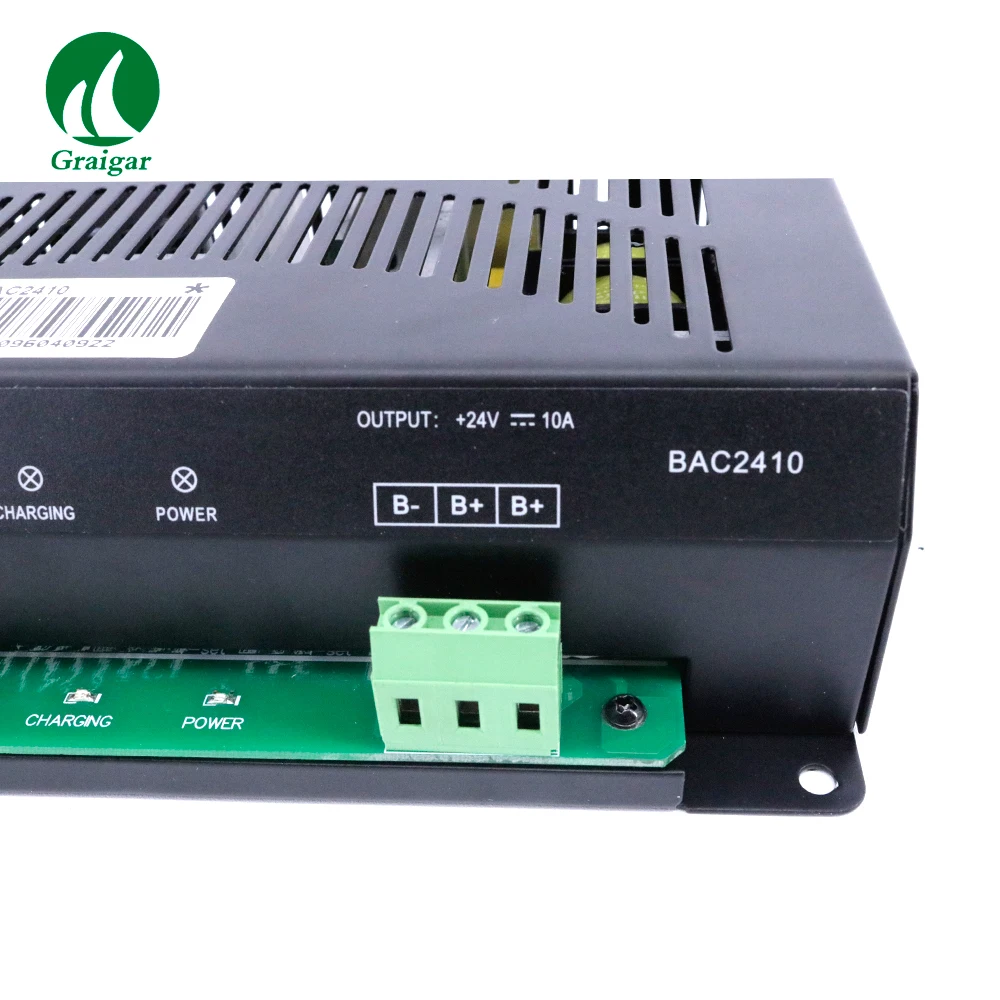

6.LED display: Power indication (Green light) and charging indication (Red light);

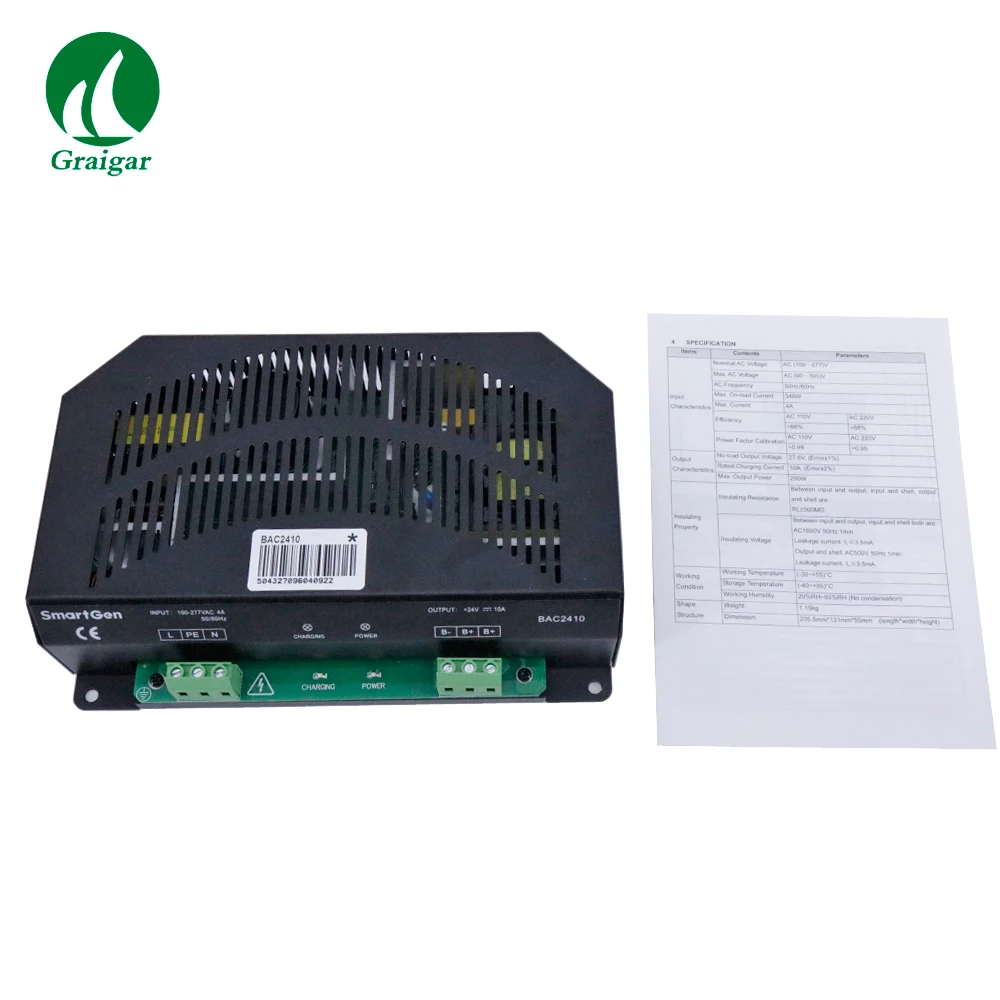

SPECIFICATION

           Items

           Contents

                                 Parameters

Input Characteristics

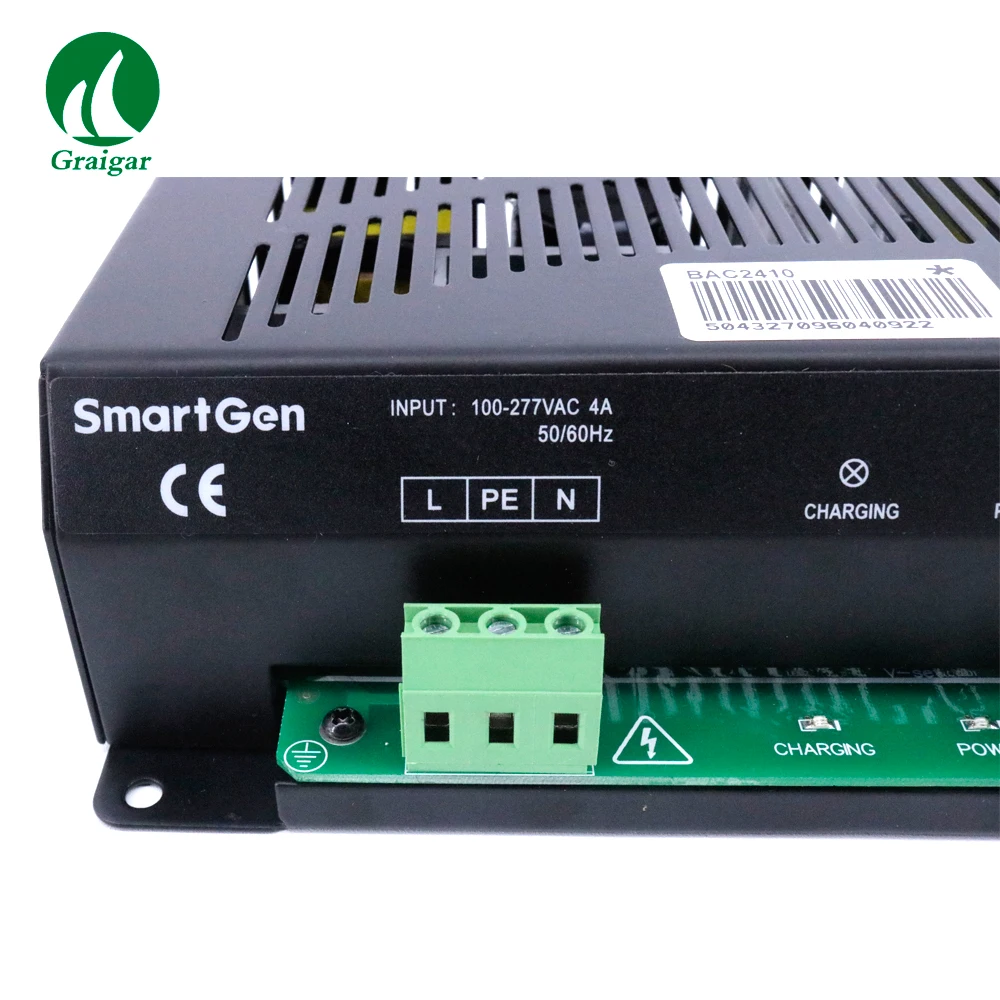

Nominal AC Voltage

AC (100-277)V

Max. AC Voltage

AC (90-305)V

AC Frequency

50Hz/60Hz

Max. On-load Current

340W

Max. Current

4A

Efficiency

AC 110V

AC 220V

>86%

>88%

Power Factor Calibration

AC 110V

AC 220V

>0.99

>0.95

Output Characteristics

No-load Output Voltage

27.6V, (Error±1%)

Rated Charging Current

10A, (Error±2%)

Max. Output Power

290W

Insulating Property

Insulating Resistance

Between input and output, input and shell, output and shell are:

RL≥500MΩ

Insulating Voltage

Between input and output, input and shell both are:

AC1600V 50Hz 1min

Leakage current: IL<=3.5mA

Output and shell: AC500V 50Hz 1min

Leakage current: IL<=3.5mA

Working Condition

Working Temperature

(-30~+55)°C

Storage Temperature

(-40~+85)°C

Working Humidity

20%RH~93%RH (No condensation)

Shape Structure

Weight

1.15kg

Dimension

205.5mm*131mm*55mm  (length*width*height)
