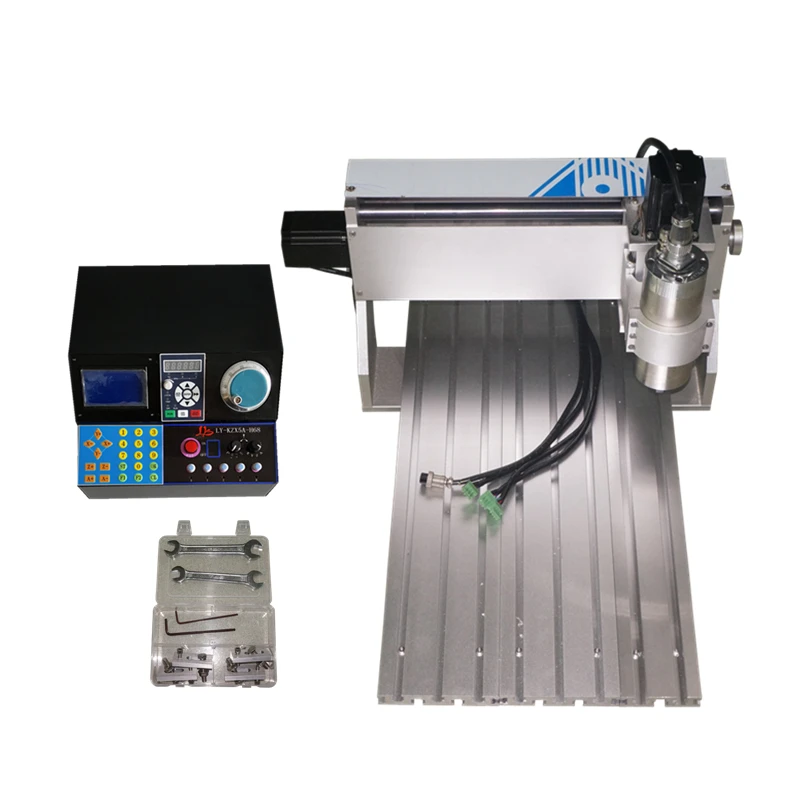

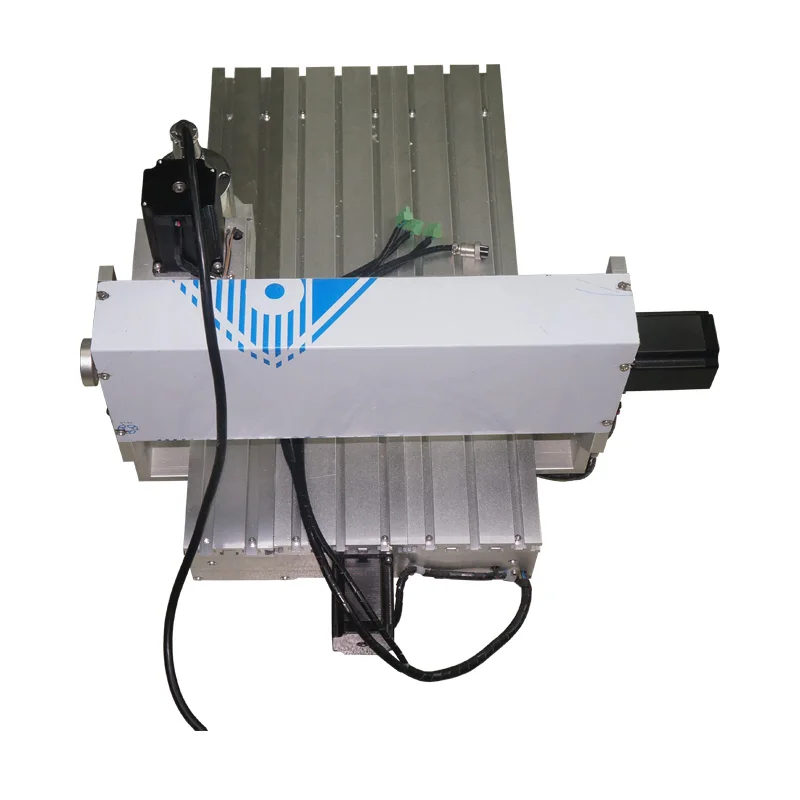

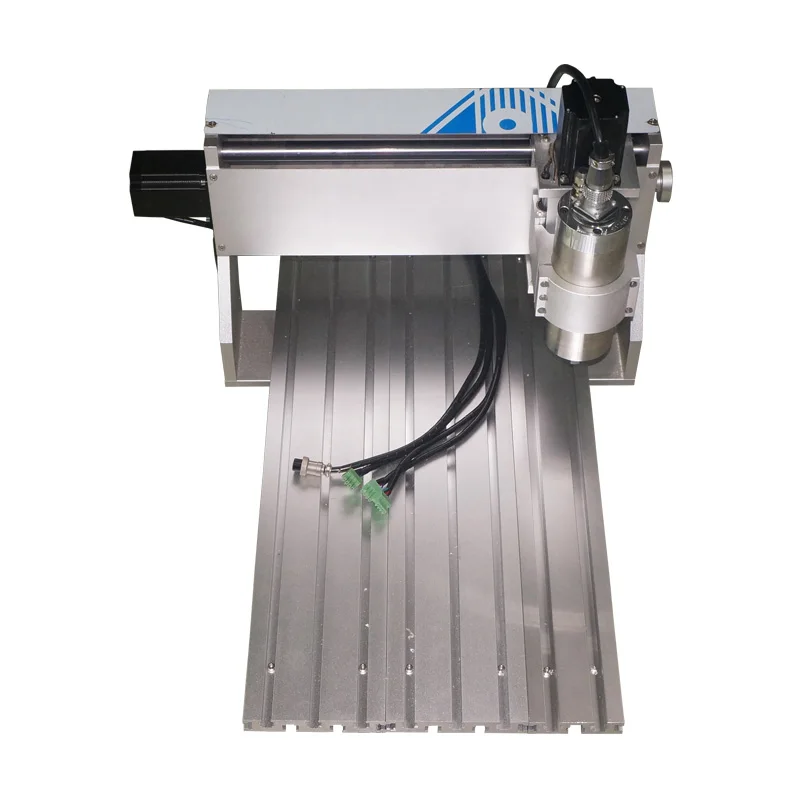

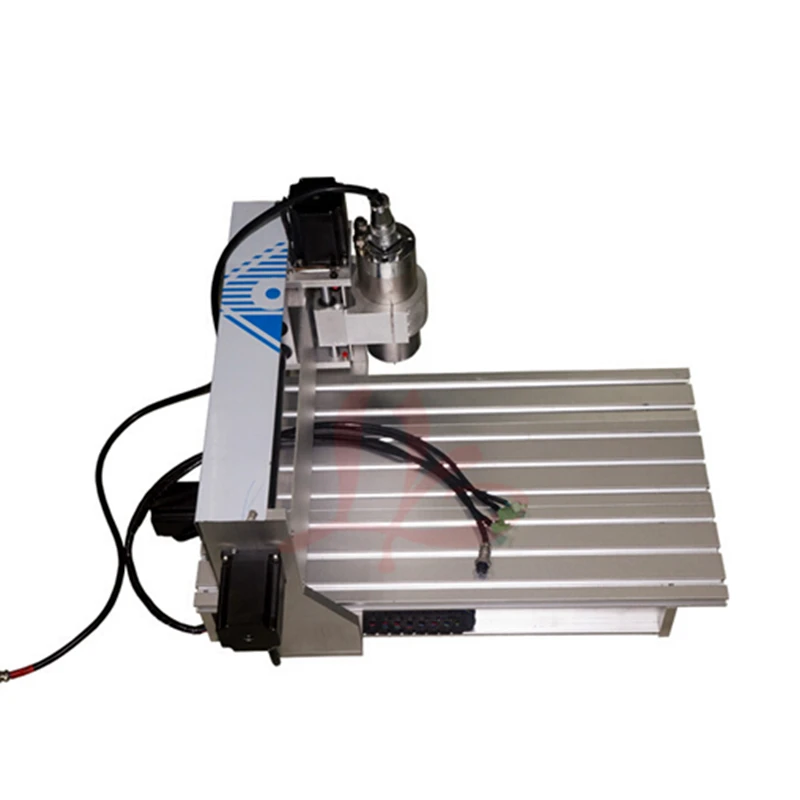

3axis 6040 cnc router ( 800W spindle ) cnc engraver engraving / wood carving router / PCB milling machine mach3

Introduction

This is a very good era,in the past we only can see the CNC machine equipment in factory, but now, the CNC equipment has been into our lives;

Whether you are a small or medium enterprises managers, project engineers, CNC enthusiast or artists, related students, there are something on this machine will attract you;

It can help you to save labor, improve production and processing efficiency, make more profit.

It can help you to make prototype products quickly, shorten the design cycle.

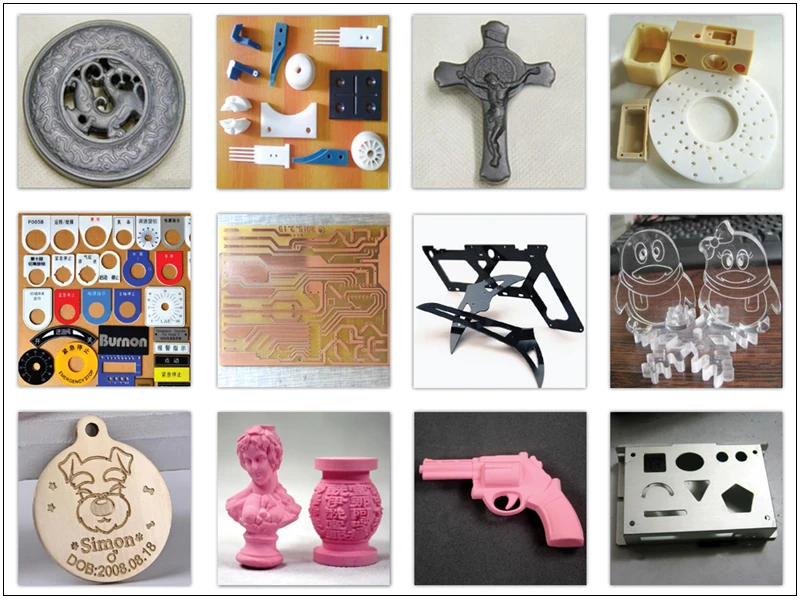

It can help you processing a lot of parts, whether you are modeling or home decoration or creative DIY.

It can help you intuitively to learn CNC knowledge. And testing learning outcomes in real time.

Warranty:

Russia Buyes FREE TAX!!!

More Precise Stepping Motor

The engraving process is visible as controlled by computer

Simple operation and installation

1 year machine part and 6 months electrical parts,stepping motor,spindle Free Warranty

Technical Parameters

CNC 6040V+H 0.8KW  3axis parameters:

Machine Dimensions:

840X620X450mm

Rack material:

6061 and 6063 Hard aluminum alloy
(The unique and dedicated mold extrusion profiles)

Max. working stroke

XYZ=400*600*60mm

Acceptable material thickness:

≤90mm

Rail type:

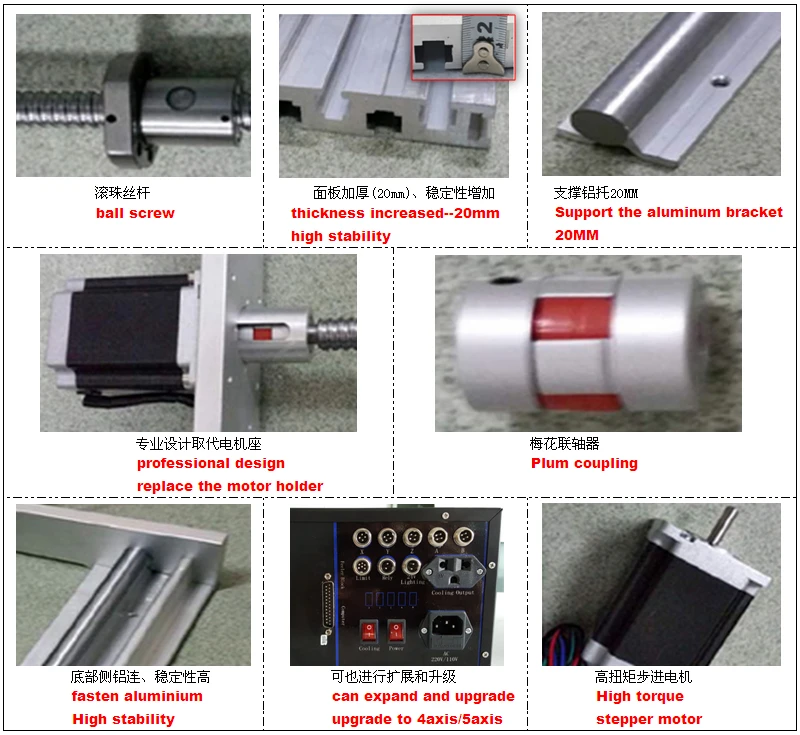

Chromeplate shaft + Linear Bearings, Surface hardening 61HRC

Type of screw:

XY is 1605 ball screw, Z is 1204 ball screw

Spindle motor:

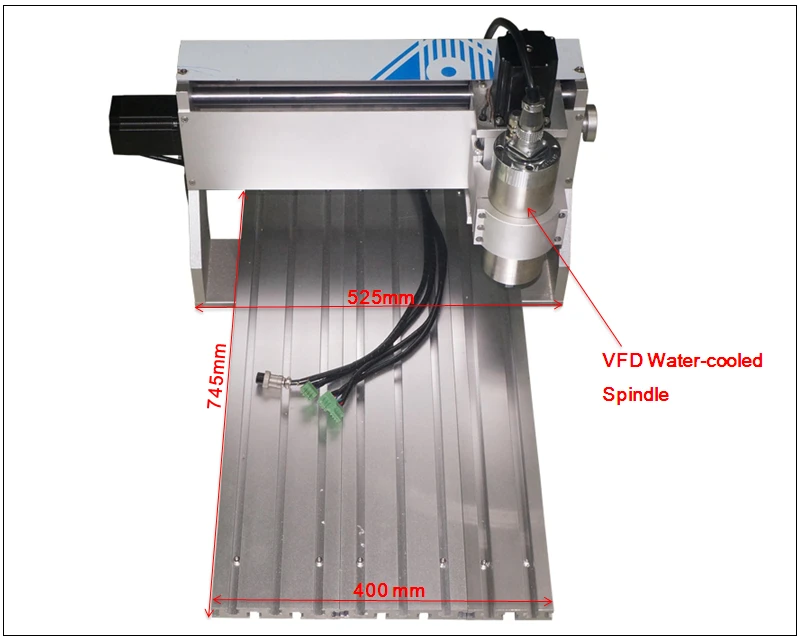

0.8KW VFD water cooling spindle , 0-24000r/min

Collet type:

ER11,1/8"(3.175mm) Collet

Stepper motor and drive:

57BYGH78-3.5A two-phase 4 wire stepper motor

Maximum operating speed:

4000mm/min (Engraving speed : 300-3000mm/min)

Repeat positioning Accuracy:

0.03mm

Communication interface:

Parallel port 25pin

System requirements

  Win-XP or WIN-7 operating system

Software Compatability:

Mach3/Emc2/Kcam, (Type3,Wentai, ArtCAM, coppercam)

Command code:

G code/.nc/.ncc/.tab/.txt

Machine weight:

60kg

Without Rotation Axis (4th Axis)

Can add 4th axis

Packing list:

1× Engraving machine

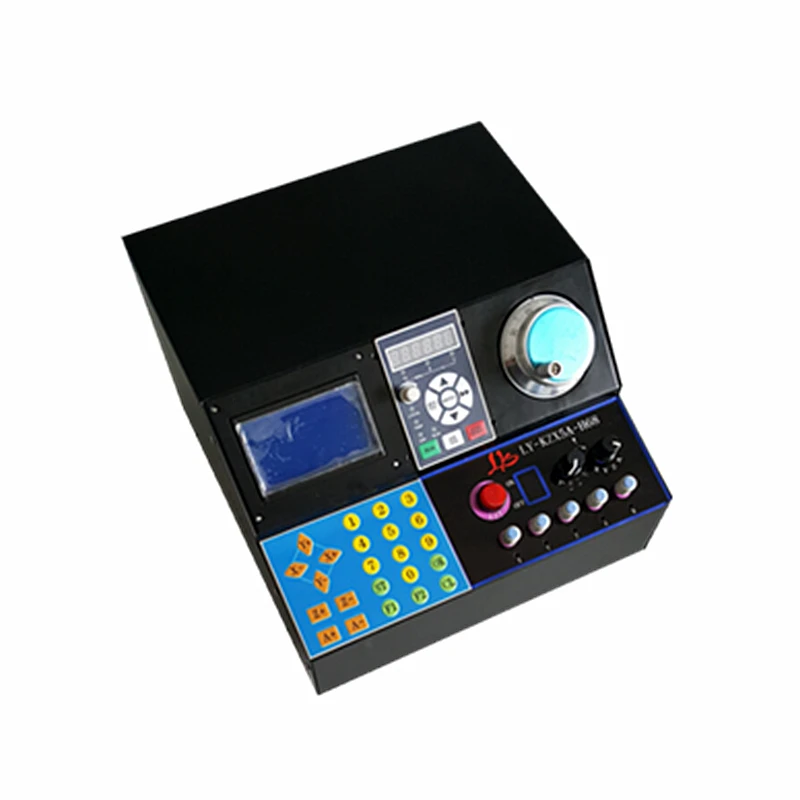

1× Control box

1× Power cable

1×Parallel port cable 25pin

1× Tool package (include tools 4 pcs, wrench 2pcs, clamp 4pcs)

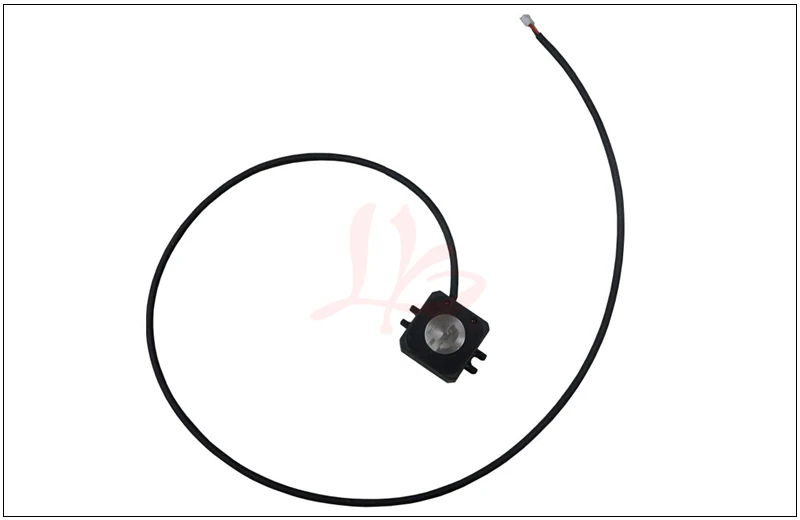

1× tool auto-checking instrument

1x water pump

1× CD of manual and software MACH3 (if not get, may be lost in customs, please contact us)

1x cnc clamp(free gift)
