Infrared Touch Panel Working Principal

IR Touch Screen is a touch frame which is usually installed in front ofthe display screen. The frame is integrated with printed circuit board which contains a line of IR-LEDs and photo transistors hidden behind the bezel of thetouch frame. Each of IR-LEDs and photo transistors is set on the opposite sides to create a grid of invisible infrared light. The bezel shields the parts fromthe operation

Super advantages for 75 inch 10 points IR multi touch screen :

Infrared Dual/Multi Touch Basic Characteristics:

Specification

Size

General Size

15 inch to 159 inch

Fit in with

Panel display device

Performance

Touch Mode

Single-point touch, Multi-touch, drag, draw-line, rotate, zoom in/out

Resolution(Interpolation)

4096*4096

Linearity Error

<1.5mm

Response Speed

<15ms

Mechanical

Input Method

Finger or gloved hand (rubber ,cloth or leather)

Minimum Touch Object

2.5 mm X 2.5 mm

Vandal-proof

No break by 1-pound steel ball dropping from 130 cm high

Optical

Glass:

Without glass, 4mm glare, AG (anti-glare), or AR (anti-reflective) glass optional

Light Transmission

92%

Gloss

Antiglare surface (curved or flat): 95  ±  15 gloss units or 65  ±  15 gloss units

Environmental

Temperature

Operating Range: -20°C ~ 70°C;

Storage Range: -40°C ~ 85°C

Relative Humidity

Operating Range: 0%~90% RH (no dew falls)

Storage Range: 0% to 95% RH (no dew falls)

Ambient Light

Direct sunlight 90°to ±30° to the display surface Touch detection operational

Direct sunlight all angles to display surface Free of false touch reports

Electrical

Operation Voltage

Typical +DC 5V, +4.75V to +5.25V

Power Supply

Size under 52”(include 52”)USB or PS/2 Interface, power ripple max.200mV rms

Size above 52”(52” not included): external AC-DC power adaptor

Interface

Full Duplex USB 2.0 (Full Speed) Plug and play compatible

Plug and play compatible

Current

Typical 150MA@+5VDC; 350mA, maximum

Power

<1.5W, operating current<300mA

Electrostatic Protection

15 kV air / 8 kV contact discharges (EN61000-4-2,1995 :Level 4)

Controller

Integration inside touch panel

Agency Approvals

CE, FCC, Rohs

Operating System

Operation System :windows 7, windows8, Android, Linux

Assemble User Manual Instructions:

Shipping Method:

We ship in tube to save shipping cost. We also can ship it with glass as well. Contact us.

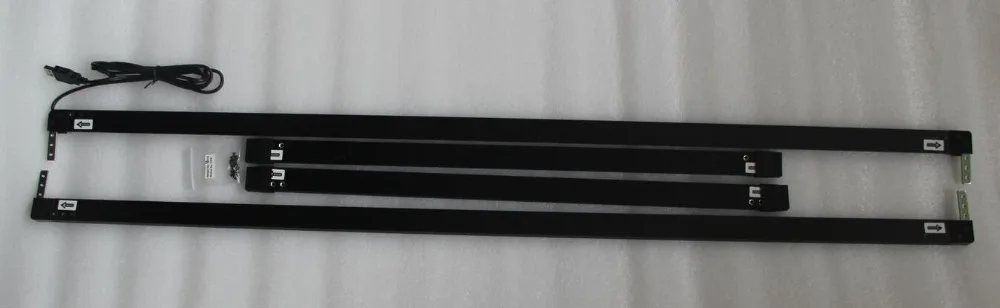

1. Disassembly

2. Without Glass

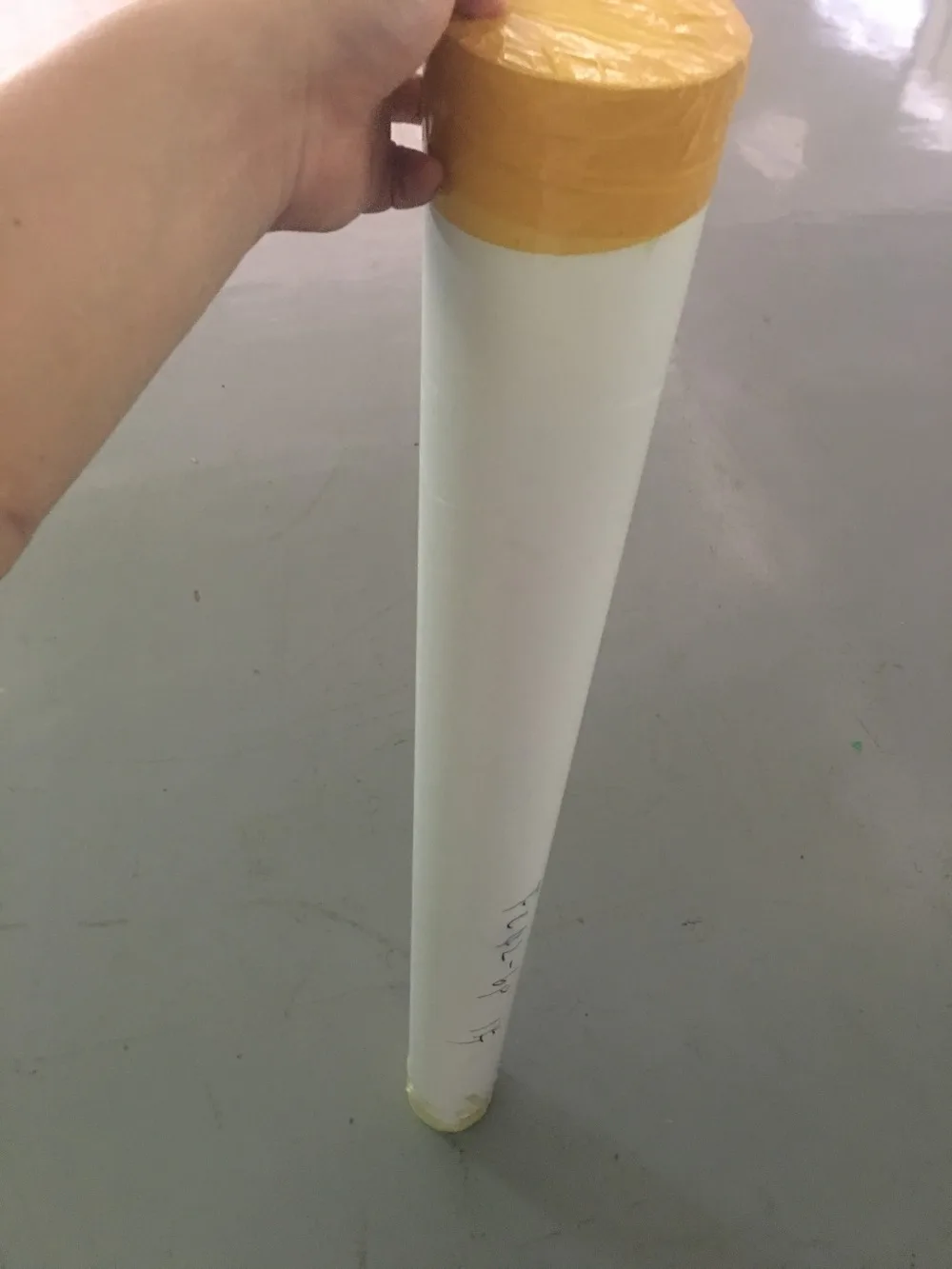

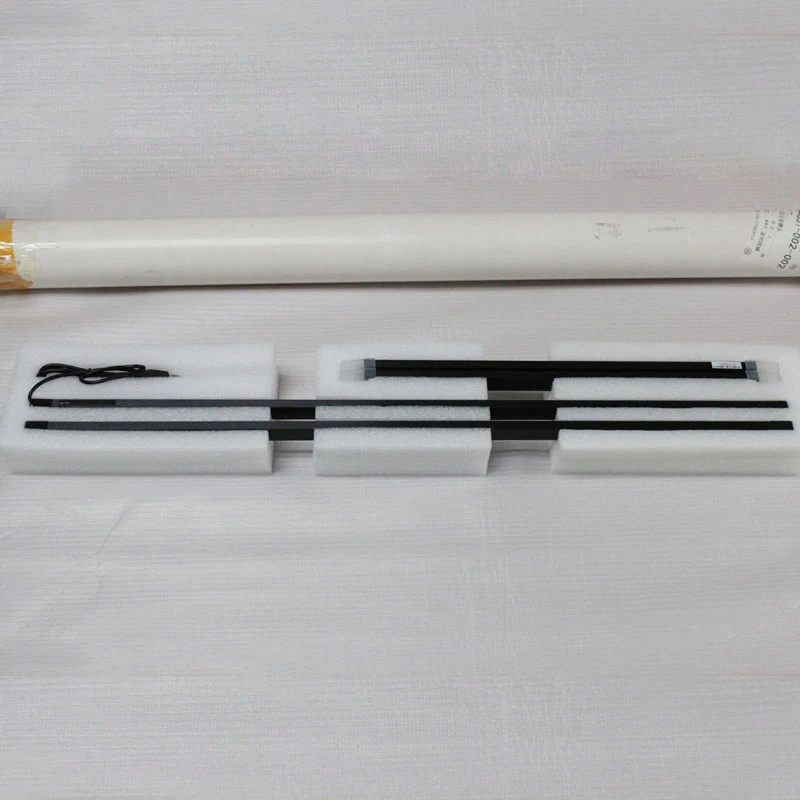

3. In tube Shipping

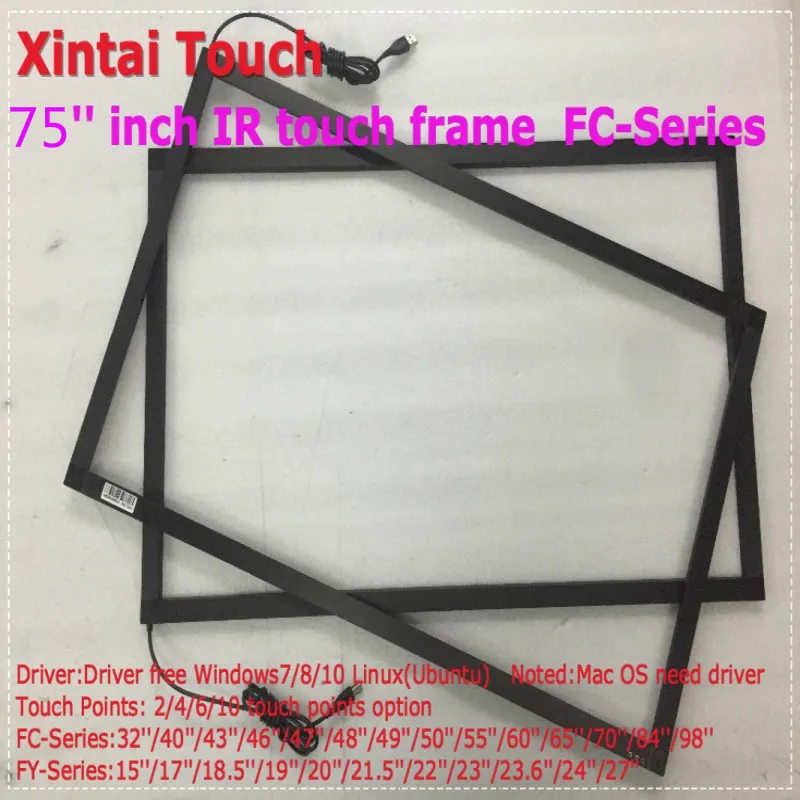

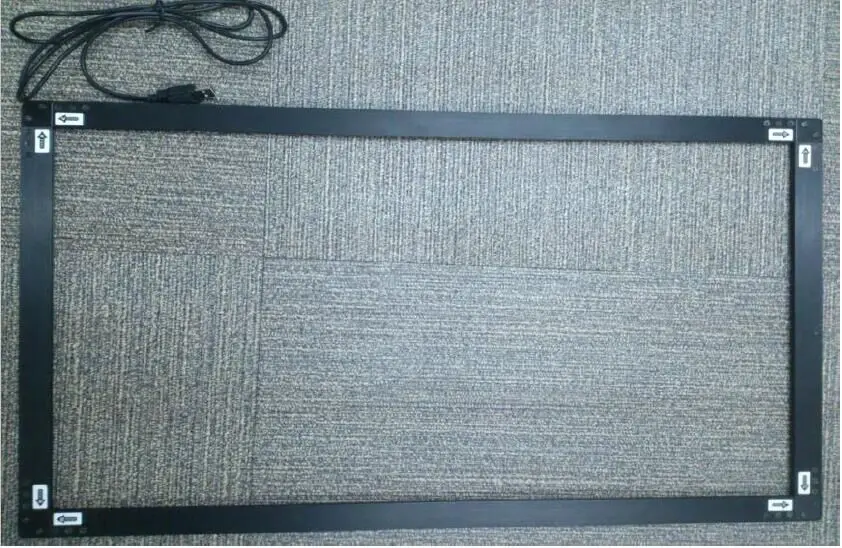

IR Touch Frame Photos:

Warranty:

We offer 1 year free warranty for hardware.

Tax and Duties:

1. For customers from South America Market, we need you provide Tax Number before shipment.

Brazil-CNPJ/CPF, Chile-RUT number, Argentina-CUIT number, Colombia-NIT number, Peru-IVA number, Venezuela-RIF number

2. The goods will be delcared with low value on the invoice, purpose is to reduce your tariffs, but our price is not including the destination tariffs.

Different coutries have different customs tariffs, it is buyer's responsibility.

Shipment and Payment:

1. For Payment, we accept Western Union, TT, Paypal.

2. BY DHL/FEDEX/UPS((It's commonly Takes 5-7 working days to deliver to destination if everything go well without customs clearance problem).

3. By EMS (normally takes 7-15 working days -----It's shipping to Russia and Ukaine).

4. By Russia-Line(It will take about18-25 days shipping to Russia).

5. In commonly Country (except russia,Ukaine,Brazil) below 43 inch(including 43 inch) we will choose DHL to deliver the package;above 43 inch will choose fedex or ups,please kindly know.

6. Brazil Customer

1)Brazil customer should provide CPF/CPNJ tax number to us,then shipment can be arranged,It's used  for customs clearance

2)Brazil customer should tell us what value should be decalred for customs clearance

As brazil customs clearance problems.
