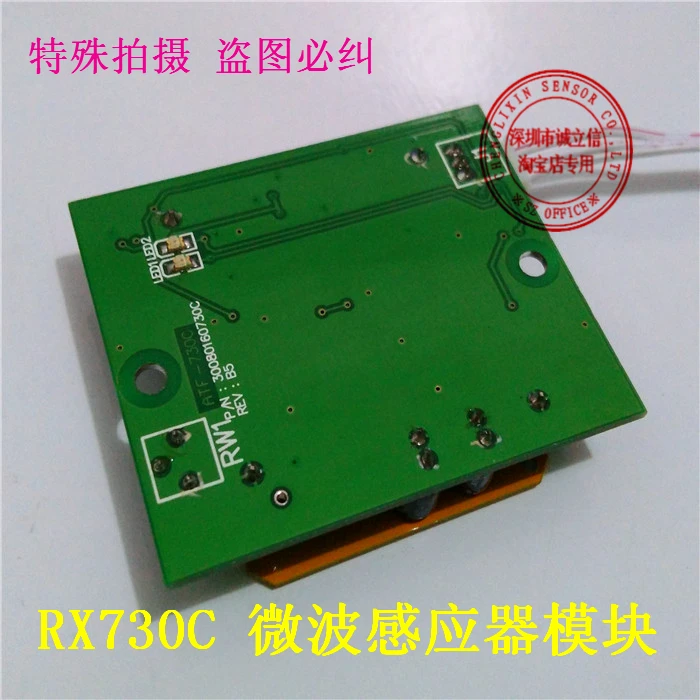

RX730CMicrowave inductor description

BBasic characteristics

Integrated microwave sensor in this device,Microwave analog amplifierThe frequency filtering circuit, the microwave power management, the data micro processing, the control output port, the sensitivity adjustment and so on. The selected electronic components and the hardware and software design scheme realize the low power, high reliability, long life and friendly and easy to use output ports, of which the smaller power consumption greatly reduces the demand for the power supply.

The built-in microcontroller can judge the surrounding environment and microwave receiving efficiency according to the characteristics of the microwave signal, and use these data to make the special fuzzy logic judgment technology to adjust the intermittent ratio of microwave work, so that the system has been running at the best balance point of low power and high reliability. On the processing of microwave signals, the software program has the functions of power frequency interference filtering, transient interference filtering and so on.

RX730CUsing the high performance microwave sensor module, the frequency of the sensor is 10.525GHz, the work is very reliable, the induction range is easy to control, and the low frequency microwave such as 2.4GHz and 5.8GHz, such as the frequency band of microwave field intensity is unstable.

RX730CThe microwave sensor has an average life expectancy of 24 hours and a continuous operation of up to 8 years.

B Induction distance regulation

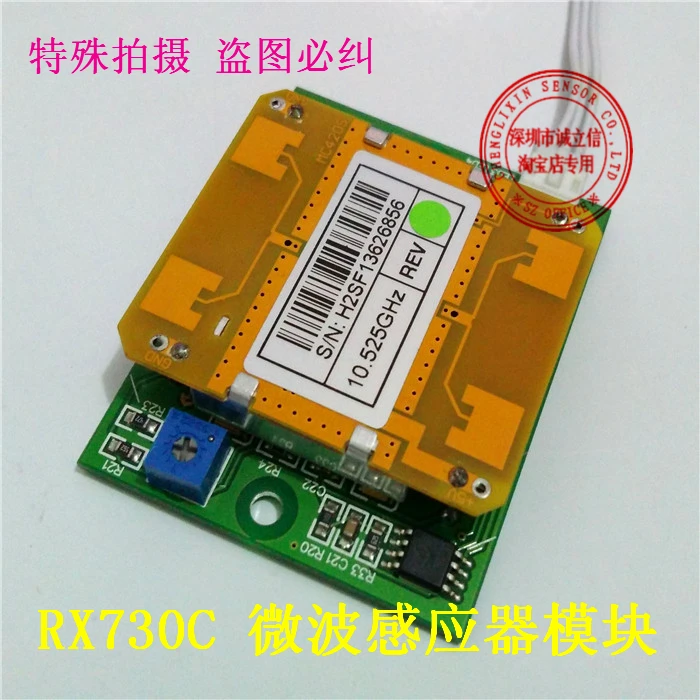

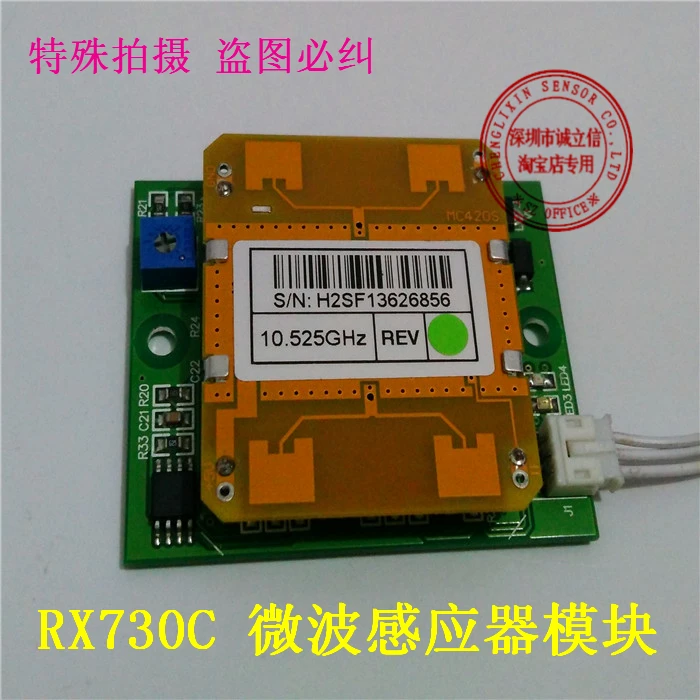

The blue and yellow potentiometer in the upper right corner of the inductor is the induction distance adjustment knob. Clockwise rotation of the induction distance is far away, and vice versa.

B Induction range

The knob is adjusted by the rotating distance.1.5riceThe linear distance between 10 meters will vary according to the environment, the size of the tested body, the movement characteristics and the direction of walking.

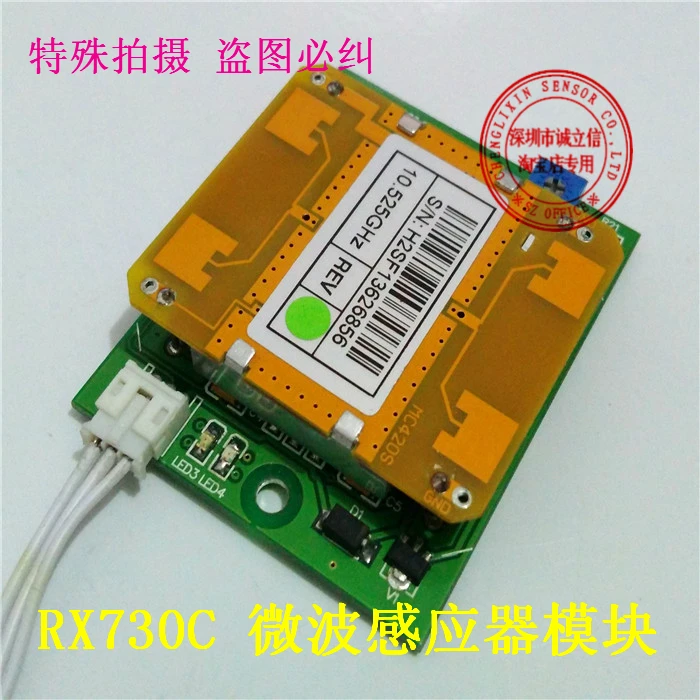

B State indication

In standby state, the green light is on, output3VHigh level. When the alarm state, the green light goes out, the red light is on, the output is out.0.6VLow level.

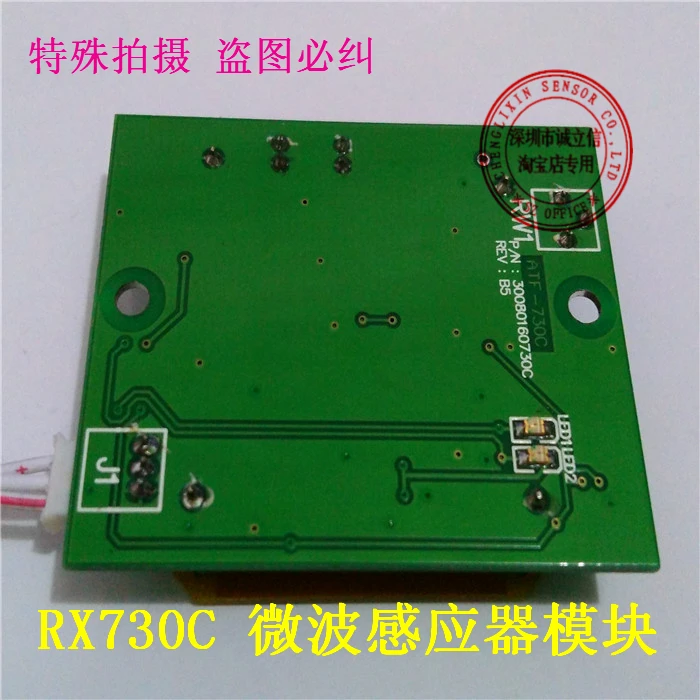

port

J1-1

Power Supply land

J1-2

Control output3.3V

J1-3

Power cathode

Power Supply

supply voltage

9 ~12V DC

consumeElectric current

Less than 15mA

angle

portrait

60°-90°

transverse

110°-150°

temperature

-10—65Centigrade

distance

routine

7mWithin adjustable

size

standard

47×58(mm)

'
