Classification: two categories are 12V power supply, 5.5*2.1mm power supply port, red finger digital tube and four units LED are red, blue light is blue color light, the other functions are consistent.

In the following introduction, there is a quick use of instructions. If you need to look up the full version of the instructions, please copy the following link in the browser: http://wenku.baidu.com/link? Url= hhoKKP3O6Yu-YuUoIns6s3q3x8-5bLL6UXvILDGJ0FO1rrt2Vf4sAipxYI_kRFZpKnALUCF5yib6oF57SQ7BLd1hgdUWn4YJDKdlzVDI5Li

Or search for &ldquo in Baidu library by yourself; &rdquo in ZB206V1.3 version.

Related video usage (please copy to link bar to view):

Basic battery capacity test and parameter setting demonstration video: http://v.youku.com/v_show/id_XNzEwNDgzNDQ0.html

Test the video of the mobile power supply (rechargeable battery):

Internal resistance voltage test function using video: http://v.youku.com/v_show/id_XNzEwNDU4Mjky.html

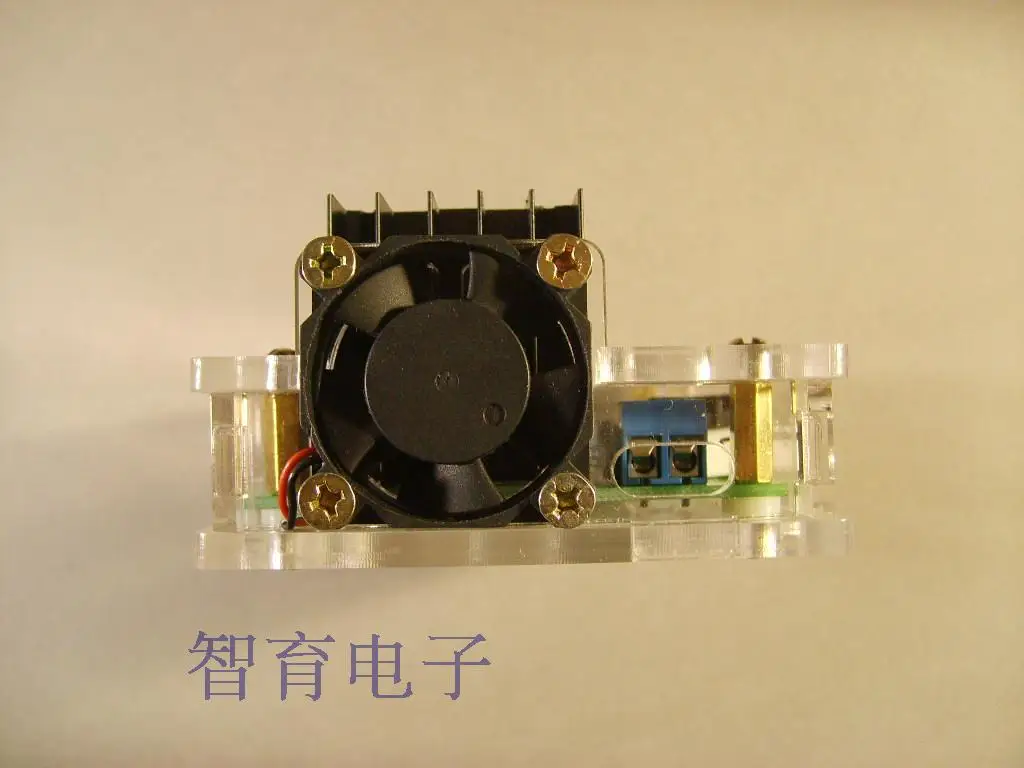

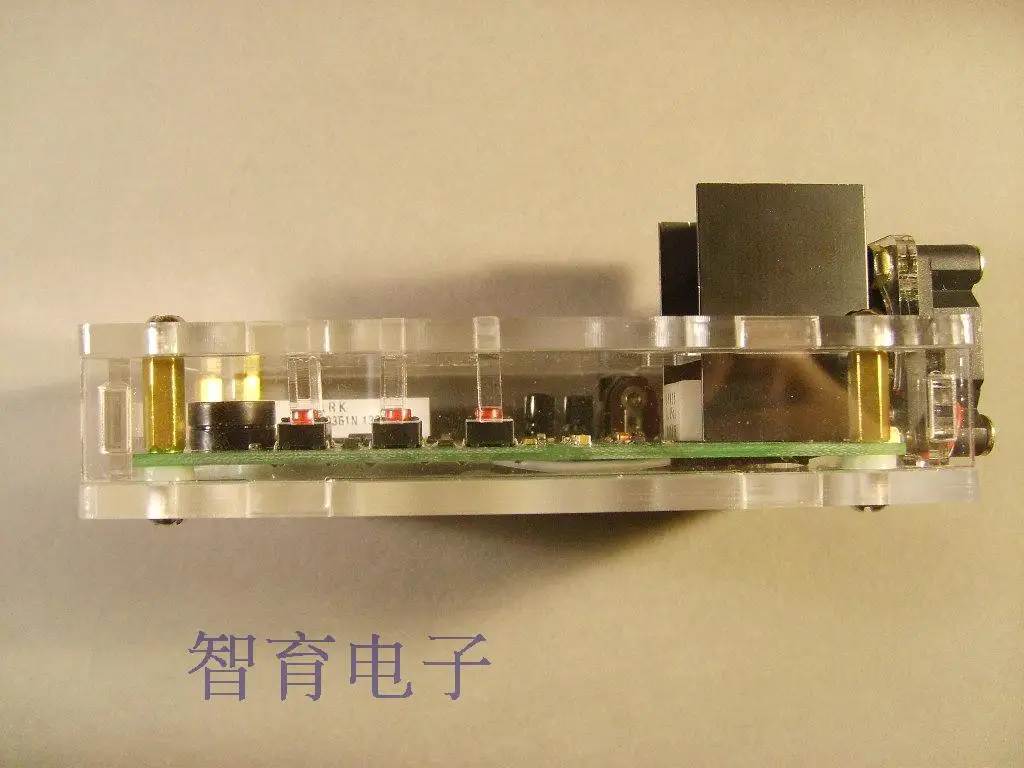

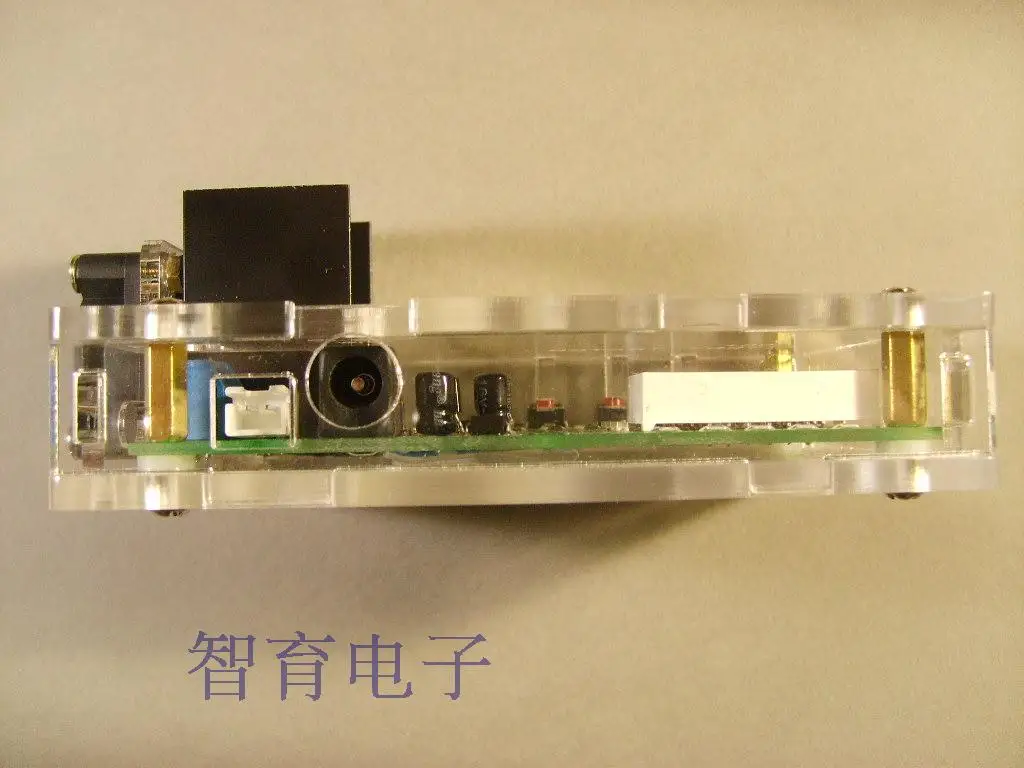

The baby includes the following four items:

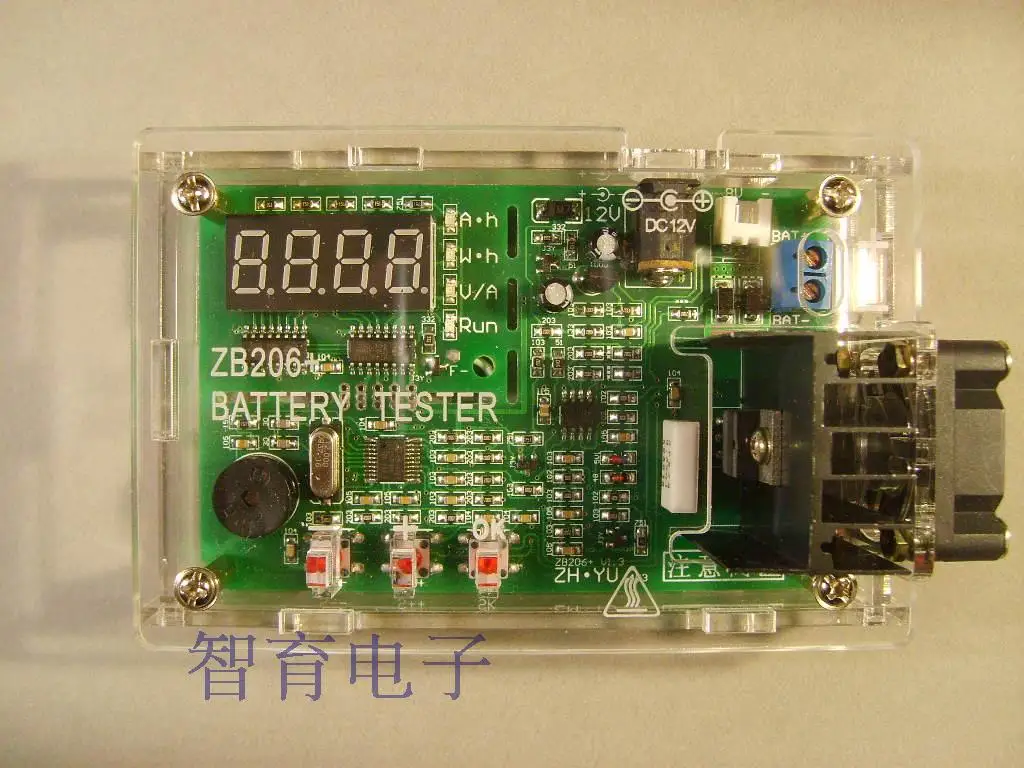

1. 12V basic ZB206+ tester bare board (red or blue digital tube)

2. a fully transparent acrylic material case (the shell is designed by 100MHz, laser cutting).

3. 12V 30mm small fan

4. manual cost of assembling and debugging

Test range:

Current: 0.1-2.6A per 0.1A

Voltage: the maximum battery group is full of electric voltage 8.5V

Termination voltage: 1.0-6.0V per 0.1V first factory automatic identification by default.

The maximum capacity count: 80.00Ah (80000mAh) or 500.0Wh (500000mAh) will automatically stop the test when it reaches the count value.

Note: this baby does not include 12V power supply or any other accessories. It is exactly the same with the main picture of the baby.

This assembly assembly has turned off the power restriction function and can support 2.6A current to directly test 7.2V battery pack. The fan control is set to 3W, that is, when the discharge power (current multiplied by voltage) exceeds 3W, the fan starts.





The instruction manual (or the owner's request for electronic version):     Quick use of instructions (factory default):   1.. Will connect the positive and negative electrodes of the tested battery (charging treasure) to the blue terminals BAT+ and BAT- respectively, and connect the wires as short as possible. The DC 12V working voltage is supplied to the tester (microUSB power is supplied by 5V power), and the tester starts to display discharge current.     2. press the S-- or S++ button to change the set current in the 0.1-2.6A range, and then press the SK button to start the test after the current is appropriate (if the fault code Err* appears later), the tester can select the battery type intelligently and make the termination voltage, and start the test & ldquo; RUN” the indicator light, the digital tube. The display values will be displayed between the capacity Ah, the energy Wh, the voltage V and the current A. When the test is finished, the digital tube stays at the Ah value and blinks quickly, with a voice reminder, “ RUN” the indicator lights go out.   3. after completion, you can move “ SK” the key lets the tester stop flashing alarm, and can switch the S-- or S++ button to check the battery capacity Ah, energy Wh and discharge platform voltage V, when again pressed “ SK” the tester returns to the opening current setting state, can be repeated before operation. Do the next battery test. Note: a key operation must be carried out when the test is completed, and the backup data will be cleared. If the button is not operated, the backup results will always be saved, even if the power supply is cut off!     Error code Err* meaning and handling methods:   Err1: the battery voltage is too high. Please confirm that the voltage before the battery test is below 8.5V.   Err2: the battery voltage is too low (lower than the set termination voltage value). Please confirm the battery voltage and reset it. If the battery is connected and the four line mode voltage measurement is not connected or connected, it is also Err2.   Err3: the battery does not support the set discharge current or the line resistance is too large. Please use the smaller current to test the battery, and ensure that the battery line is rough and short, and the contact between the electrodes is good.   Err4: damage to the power tube. This problem usually occurs after bad transformation. The power pipe can be replaced by itself, and the substitute type has P75NF75.   Err5: beyond the test power limit, this state is only possible when the power limit function is opened (LPon), representing the discharge power exceeding 12W under the set condition, and the protective measure taken to prevent heat heat from overheating. The user can be reformed by itself (enlarging the radiator or installing the fan) and entering the function setting menu to close the power limit (LPoF), which can exceed the 12W power use.   Err6: the power supply voltage exceeds the range, when the power supply voltage is lower than 11V or higher than 14V, the error code will be displayed on the test instrument. Please replace the suitable voltage power supply!   Note: when Err1-Err5 is displayed, press any key to return to the initial state.
