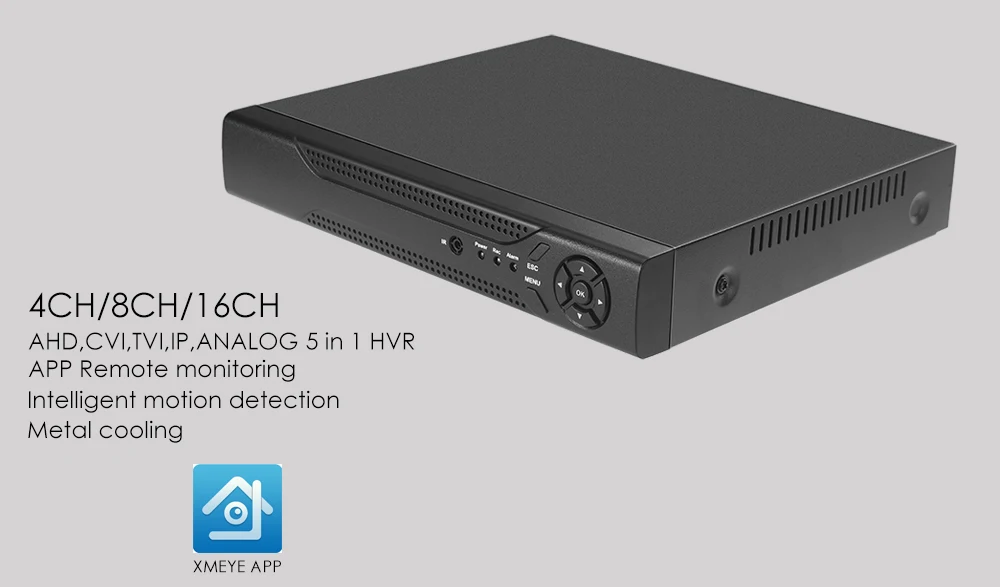

USAFEQLO 4CH/8CH/16CH 1080N TVI CVI AHD-NH 5 In1 Hybrid DVR/1080P NVR Video Recorder AHD DVR For AHD/Analog Camera IP | Безопасность и

USAFEQLO 4CH/8CH/16CH 1080N TVI CVI AHD-NH 5 In1 Hybrid DVR/1080P NVR Video Recorder AHD DVR For AHD/Analog Camera IP | Безопасность и

Model

7804R -LM-V3

7080R-LM-V3

7016T-LM-V3

System

Main processor

Hi3520D V200

Hi3520D V300

Hi3521A

Interface

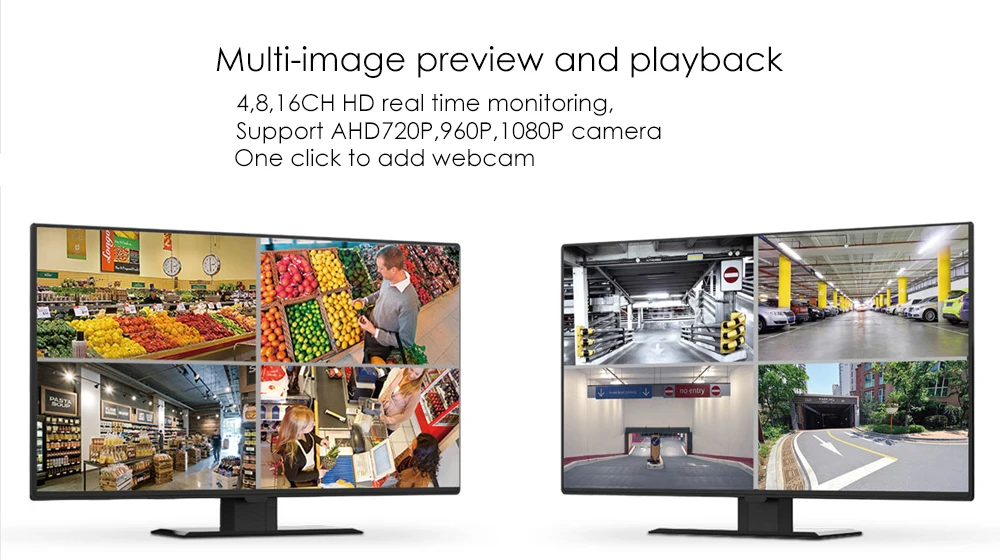

Preview

1/4

1/4/8/9

1/4/8/9/16

Video

Codec

H.264

Monitor quality

VGA,HDMI:HD

Preview ability

4*1080N

8*1080N

16*1080N

Encode ability

4*1080N

8*1080N@12fps/4*1080P@15fps

16*1080N@12fps/16*960H/8*1080N

Decode ability

1*1080N

8*1080N@12fps/4*1080P@15fps

16*1080N@12fps/8*960H/8*1080N

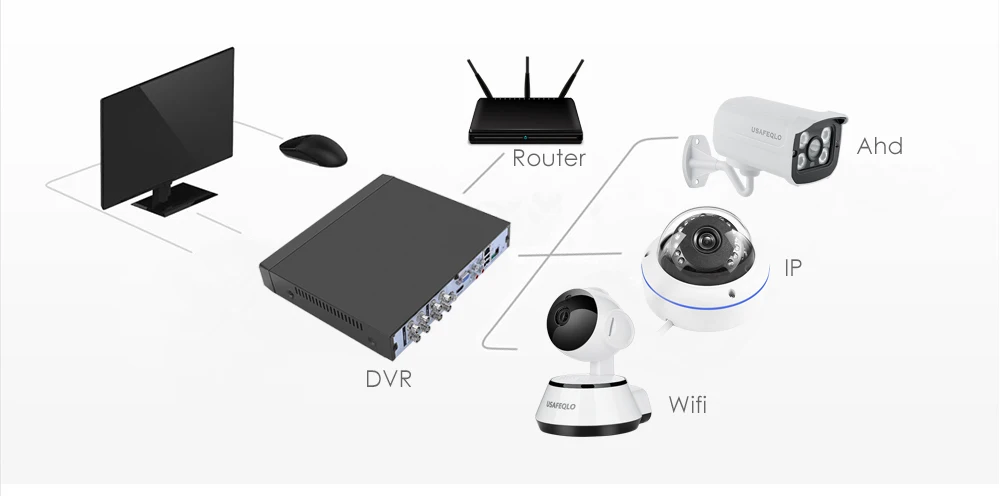

4CH Multimode input

analog: 4*1080N;4*720P;4*960H

hybrid: 2*720P(analog)+2*720P(network);

network: 8*1080P;12*960P;8*720P; 4*1080P; 4*720P; 1*1080P

8CH Multimode input

analog: 8*1080N;4*1080P

hybrid: 2*1080P(analog)+2*1080P(network); 4*1080N(analog)+4*960P(network)

network:16*1080P; 9*1080P;16*960P; 4*5M

16CH Multimode input

analog:16*1080N;8*1080N;16*960H;

hybrid: 8*1080N(analog)+8*960P(network)

network:8*1080P+8*960P; 4*3M ;4*5M

Motion Detection

Each screen can be set to 192 (16 * 12) detection areas; multi-level sensitivity

can be set (Limited local channel)

Audio compression

G.711A

Audio

Intercom

support

Record mode

manual>alarm>motion detection>timing

Record & playback

Local Playback

4ch(analog input mode)

8ch(local input mode)

16ch(analog input mode)

Search mode

Search by time, calendar, event, channel

Video storage

HDD, network

Storage &

backup

Backup mode

Network, USBhard disk, USB burner, SATA burner

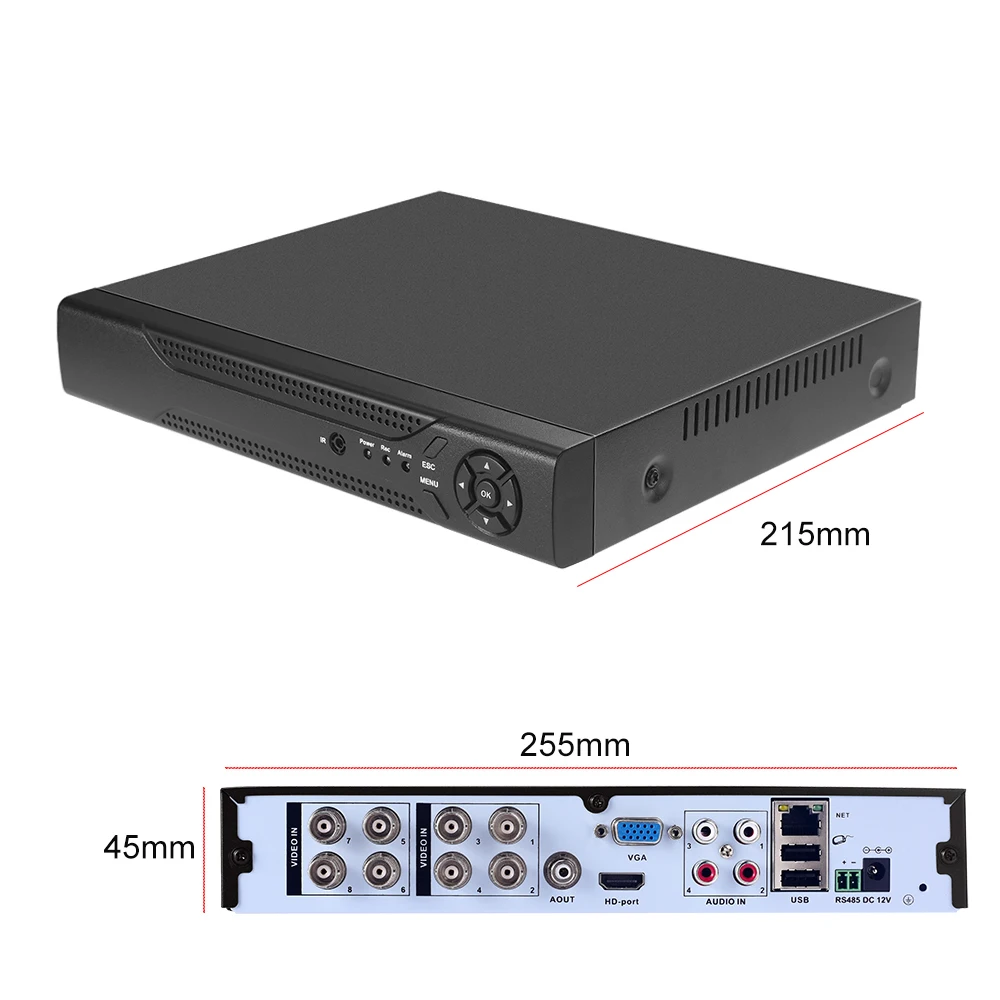

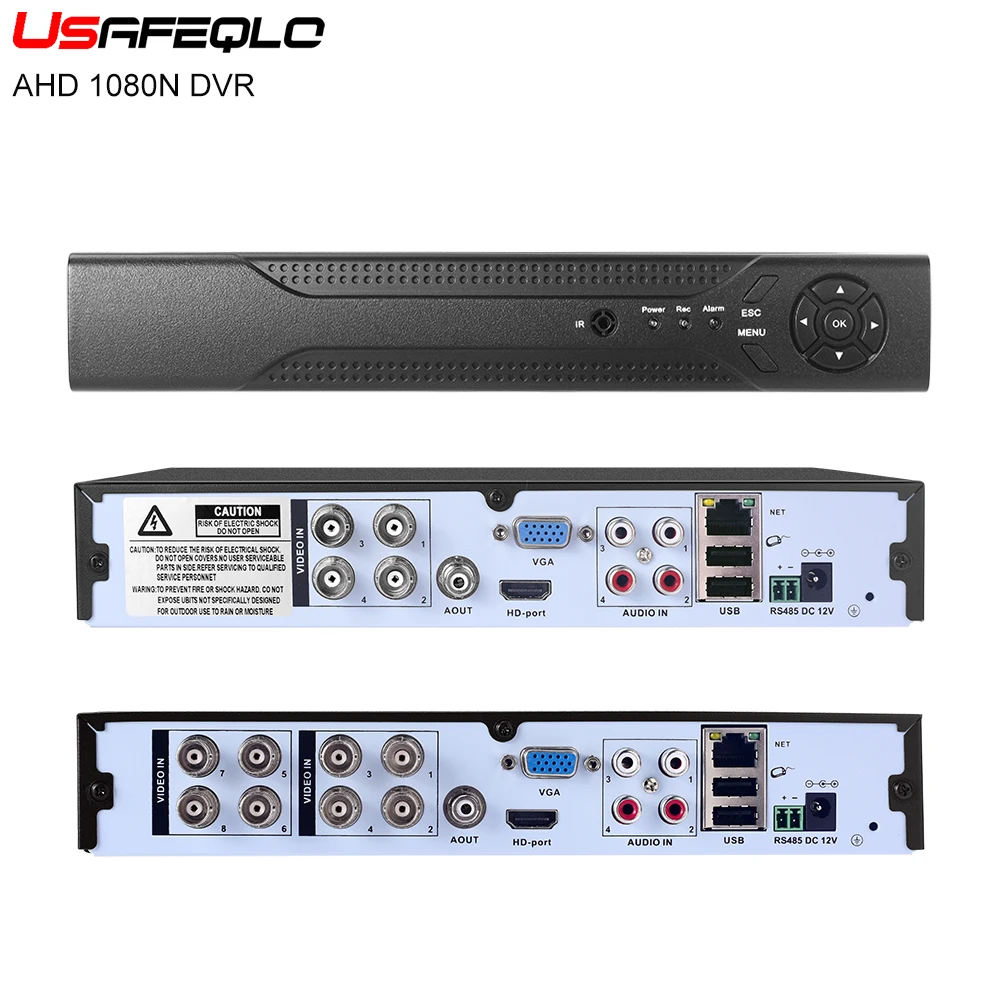

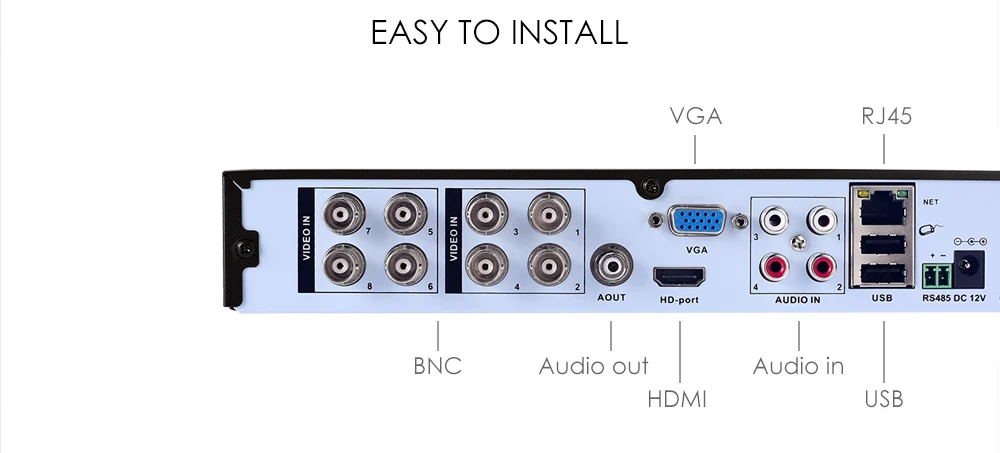

Video input

4CH BNC

8ch BNC

16ch BNC

External Interface

Video output

4ch BNC

Loop Vout

1ch VGA, 1ch HDMI

Audio I/O

N/A

Alarm I/O

4/1

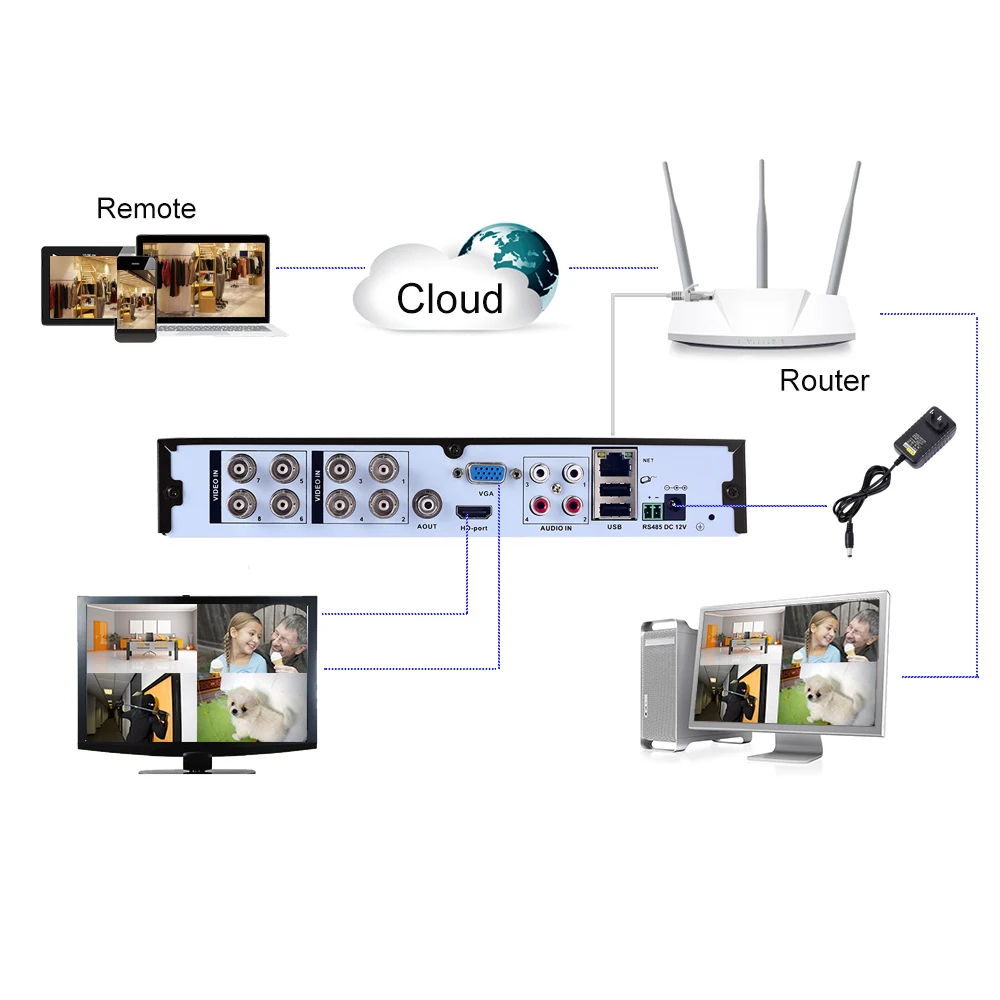

Network interface

RJ45 10M/100M self-adaption

PTZ control

1*RS485, Support kinds of PTZ protocols

USB

2* USB 2.0 ports

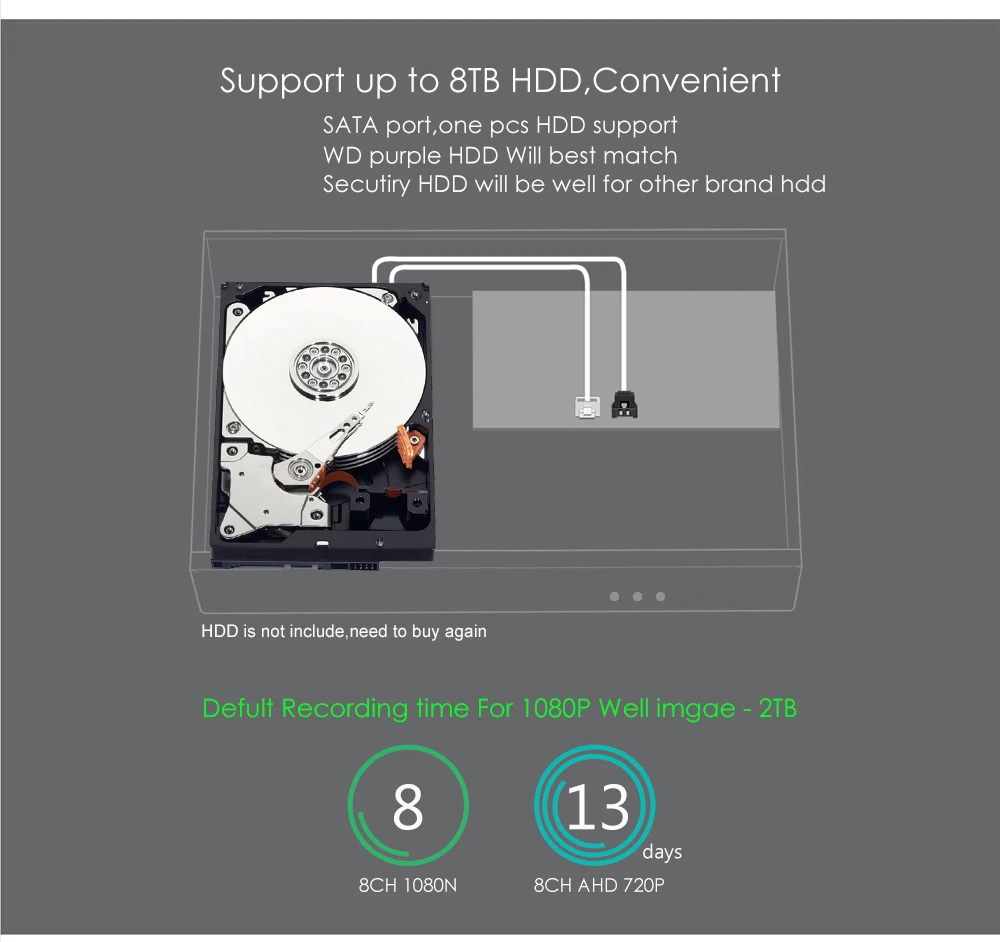

HDD

1*SATA ports (Max 8TB/per)

Wireless

Not support

Power supply

12V/2A(If it can not work with your hdd,please change 12v4a or 5A adapter.)

General

Power Consumption

<15W (without HDD)

Working environment

Temperature:0℃—+55℃,Humidity:10%—90%,Atm:86kpa—106kpa
