Specifications:

Model

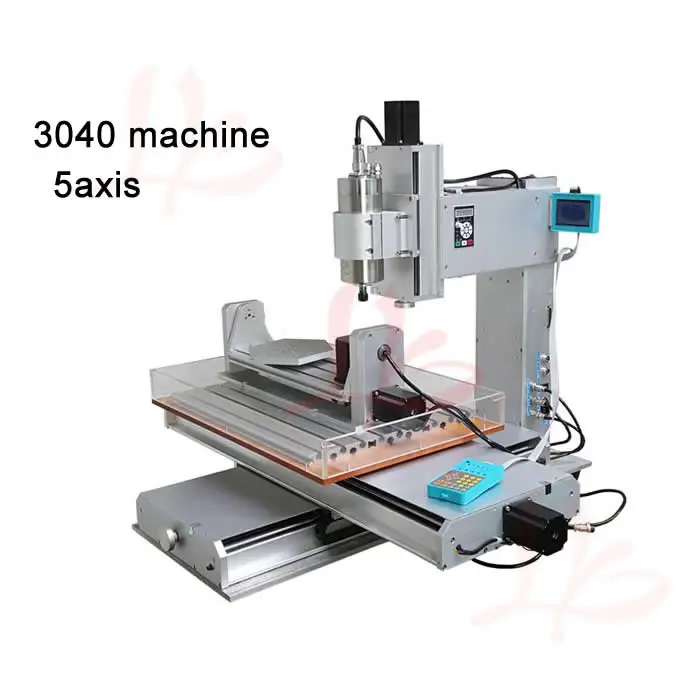

3040 5 Axis CNC Machine

Product demention

520(H)X660(L)X580(W) mm

Effective work area

300x400x(150)mm

Precision ballscrew

1605

XYZ rail material

Hard chrome shaft

XY rail diameter

20mm

Z rail diameter

16mm

XYZ axis torque

57*78  250 OZ/IN (2.2N/CM)

4th and 5th

57*56

4th and 5th transmission ratio

1:6

Repeat positioning accuracy

0.01mm

Working precision

0.02mm

Processing speed

0-4000 mm/Min

A-axis B-axis rotation speed

0-180 rpm/min

XY table maximum load

50kg

XY+A+B axis table maximum load

15kg

Tailgate material

Stainless steel

Switching Power Supply

Integrated 24V 350W

Spindle power

1500 W/2200W water-cooled frequency spindle

Spindle converter

1500W/2200W

Input Power

220V / 110V power supply

Output Current

Drive 4.5A (peak 5A)

Drive motor

57*78 stepper motors (two-phase 4 wire)

Net Weight

60kg

Gross Weight

95kg

Outside packing

80*70*85 (cm)

Features:

1. Integrated high-speed microcomputer intelligent control chip, can be equipped with external LCD monitor with hands, automatic detection of computer controlled automatic shield handle motion control functions, can simultaneously track digital recording of computer data and handle mobile data control

2. The computer keeps track of the path, you can run once the computer processing of the data record-keeping process automatically repeats offline processing operation.

3. Manually move the processing to save recorded track record, manually move the machine data and automatically reprocessed run manually move the path.

4. Manual data input processing path and enter the path to run automatically.

5 You can automatically complete the XYZ axis or Z axis of the knife, without complicated computer software operation control

6. Max 5A stepper motor drive current, eight-speed adjustable.

7. Up to 16 segments, higher accuracy, run more smoothly.

8. Overload over-current over-temperature protection function, automatic semi-flow control, fully protect your computer and peripherals.

9. Bipolar constant current chopper drive motor low-speed non-creeping phenomenon, noise, non-resonant region.

10. Closed optical isolation, dual-stage signal processing, and fully protect your computers and devices.

 Why buy  from us :

Ø  CE approved.

Ø  Video support.

Ø  English manual available.

Ø  Mach 3 software send with the machine as a CD.

Ø  Can engrave material which hardness below 45.

Easy operating:

Ø  It can work with 3 axis / 4 axis / 5 axis, just as you like !

Ø  Integrated high-speed micro computer intelligent control chip.

Ø  With external digital LCD monitor and handwheel controller.

Ø  The working process can be tracked, recorded in the digital LCD monitor automatically.

Ø  Mach 3 software

Ø  Built in frequencey converter and without controller box.

Higher precision because:

Ø  Cross slippery platform design rather than gantry design.

Ø  Aluminum base sheet is heavy which can make sure no vibration when work.

Ø  With auto-checking function.

Ø  1500w water-cooled spindle.

Ø  Ball screw
