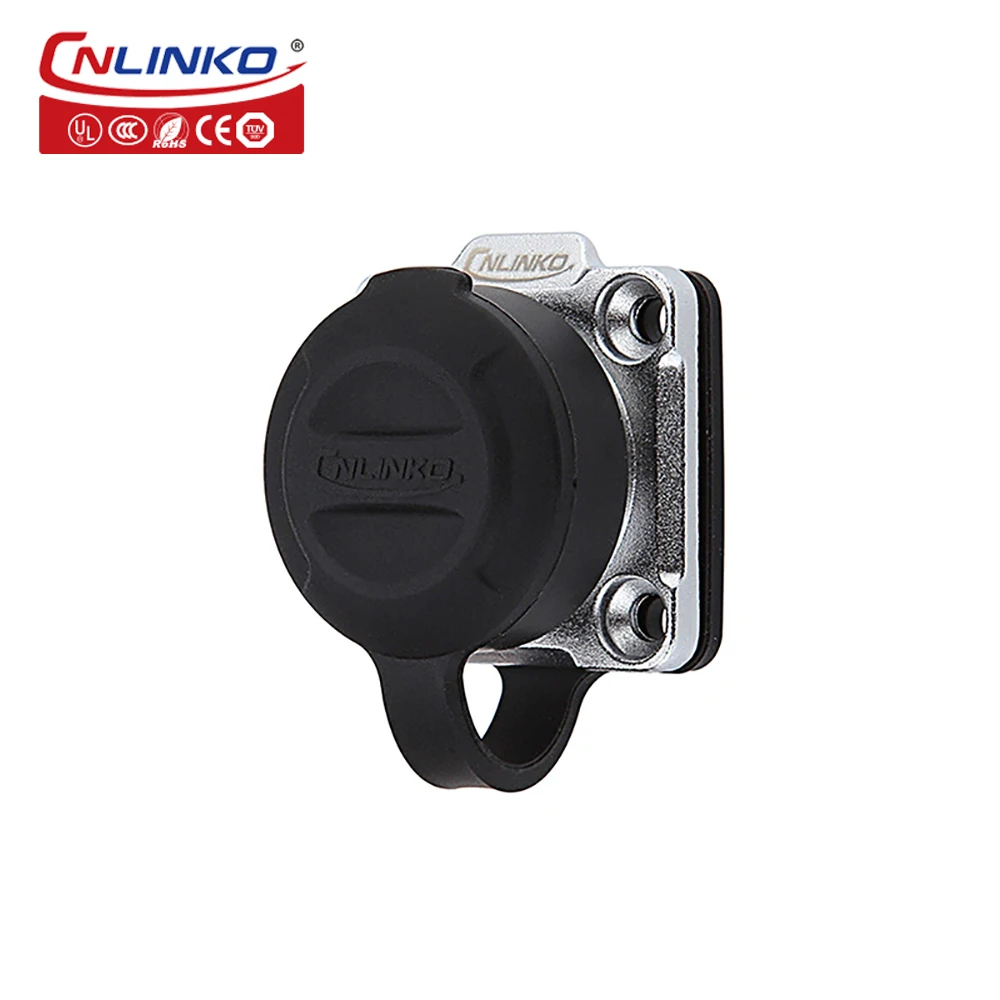

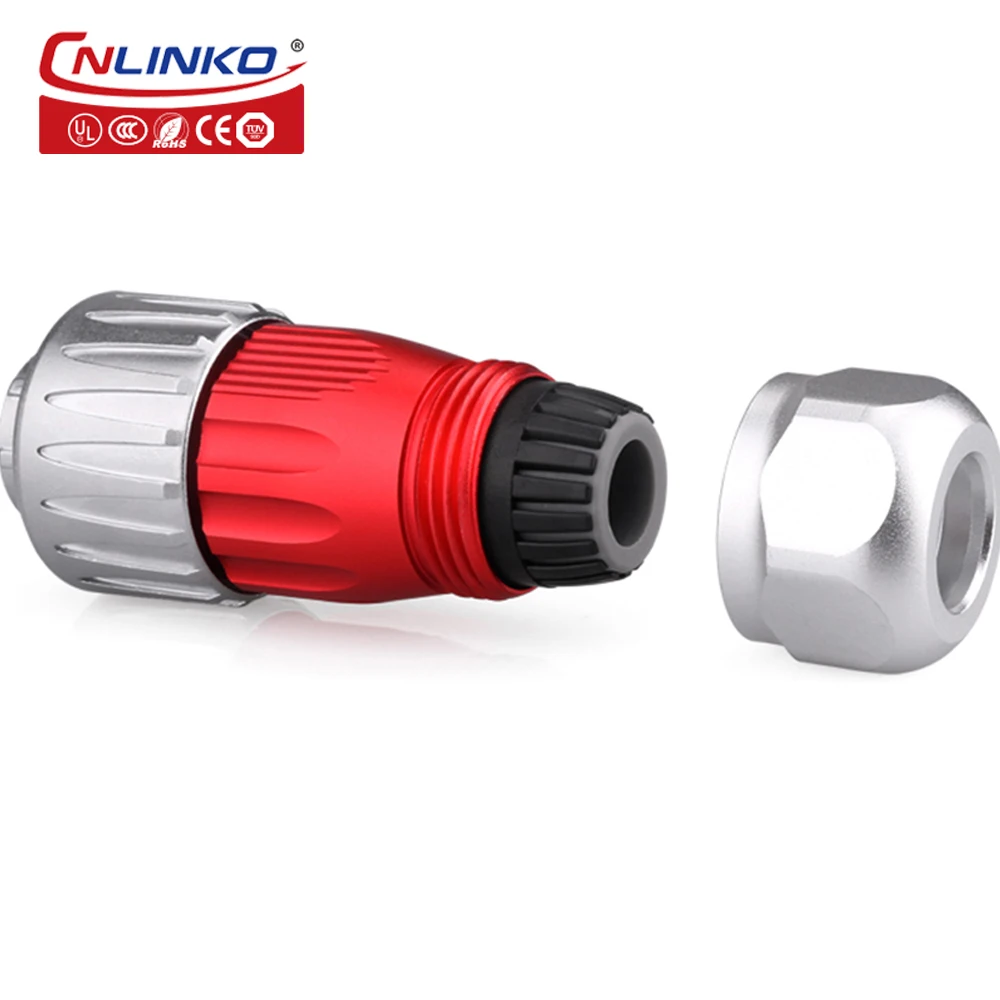

CNLINKO 4 Pin Bulkhead Speaker Wire Waterproof 4 Pin Aviation Connector Male Female Power Cord Connector With Zinc Alloy

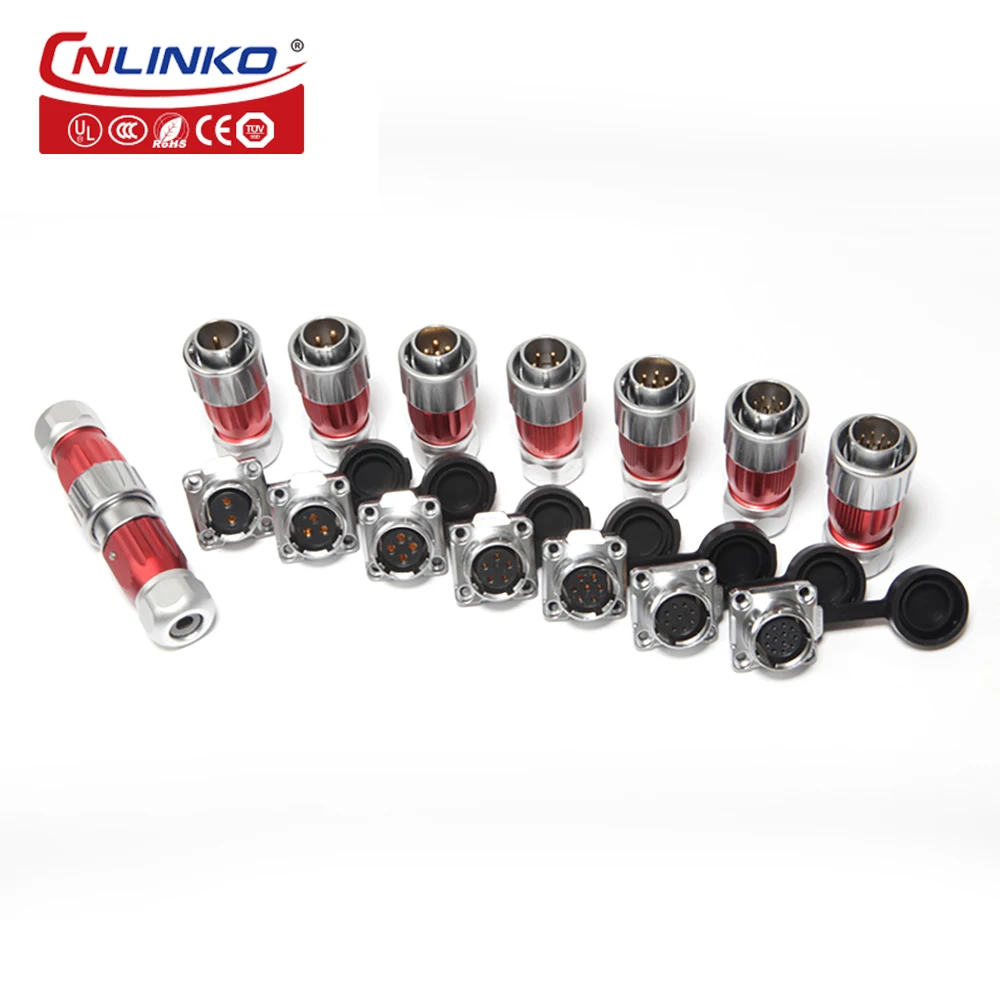

DH-20 series electrical connectors IP65/IP67

1. Three positioning, designing as wave spring knob, the outer ring card point locking snap engaged with the socket, making the connection operation for the plug and socket be more simple and convenient, uniform intensity engaging, and keeping the current and signal transmission more stable.
2. Using wave spring structure, so that elastic wave spring stranded automatically when connect the plug and socket.
3. Copper needle retainer designing, so that copper welding operations and install socket were separated, thus solve up limited operating environments from install to then welding.
4. Using outer alloy ring, keeping the plug and socket more stable in the closed state, making the power supply or signal transmission more stable and comparable while connection.
5. Using tail jaws design, to tighten the wire more effective, twisted more effective too, improving the product waterproof rating and tensile strength requirements, and prevent the nut back effectively.
6. Waterproof clip coil designing, so that the products have better waterproof rating when closed.
7. Waterproof IP65/IP67 while connection.

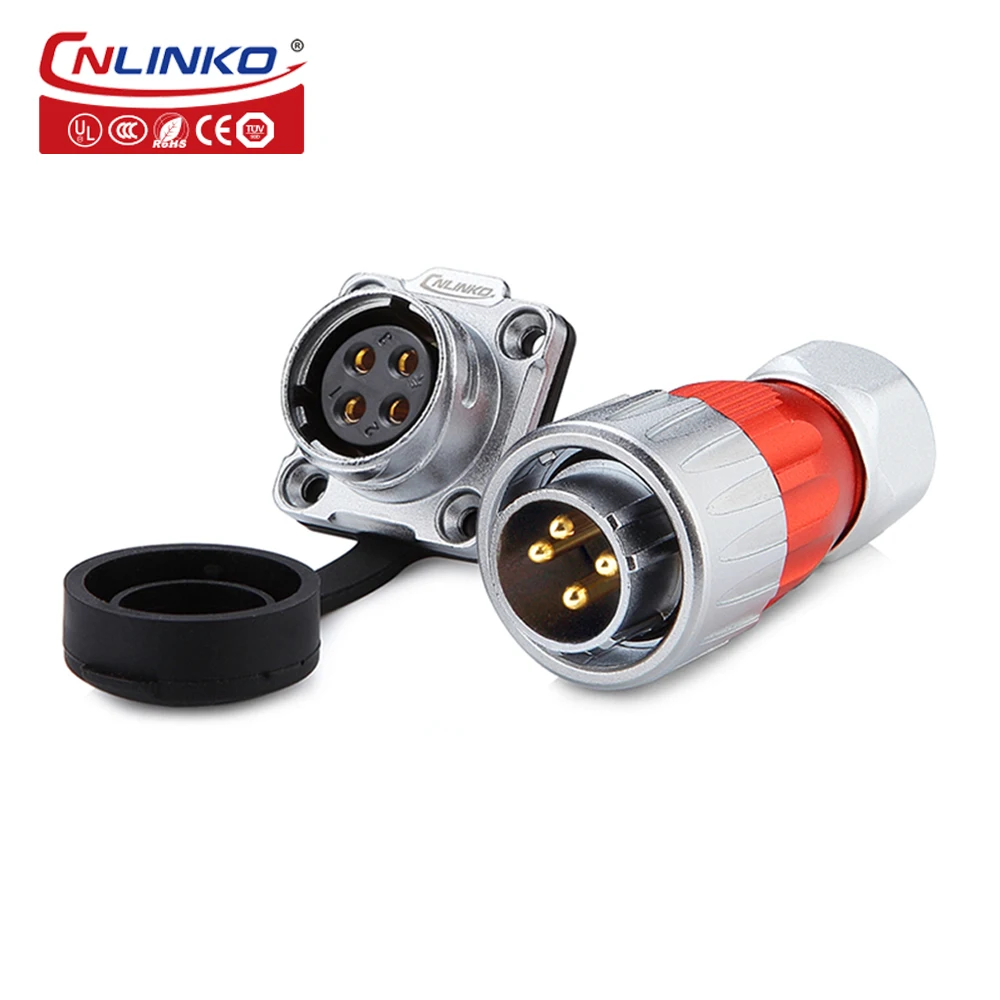

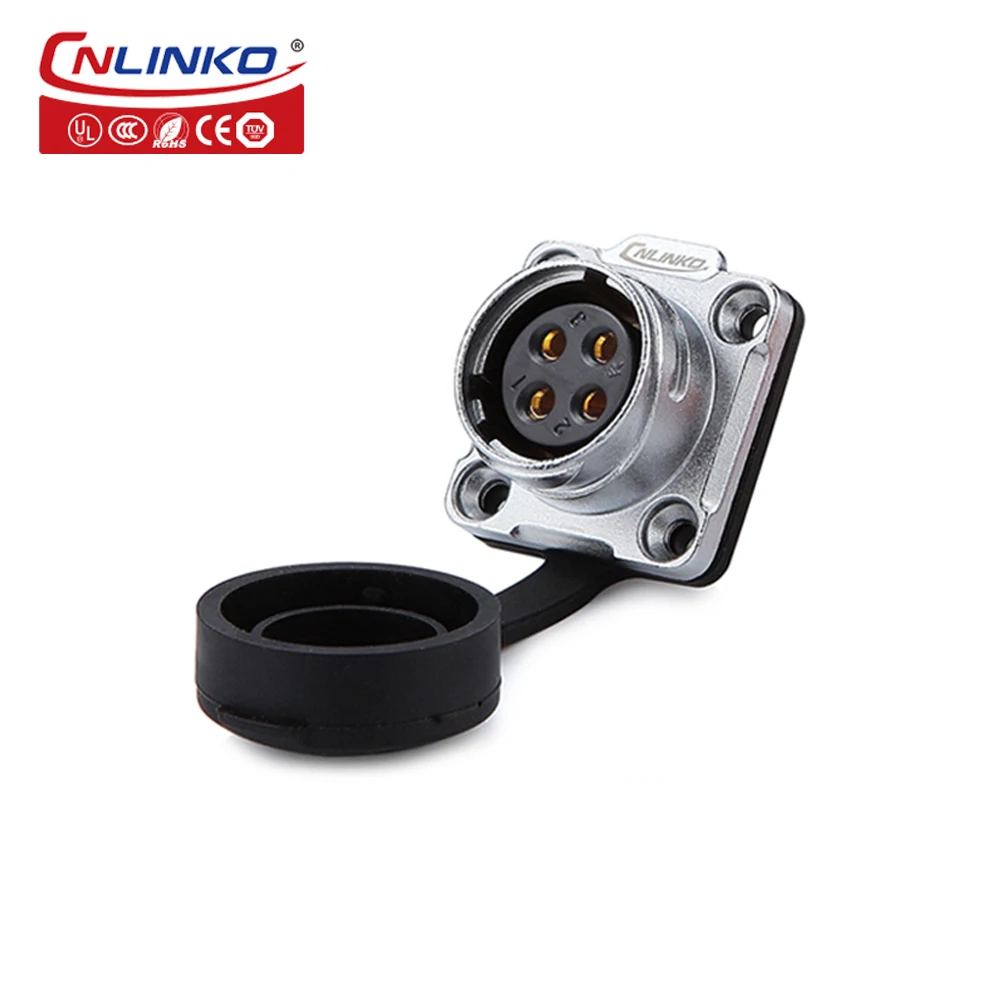

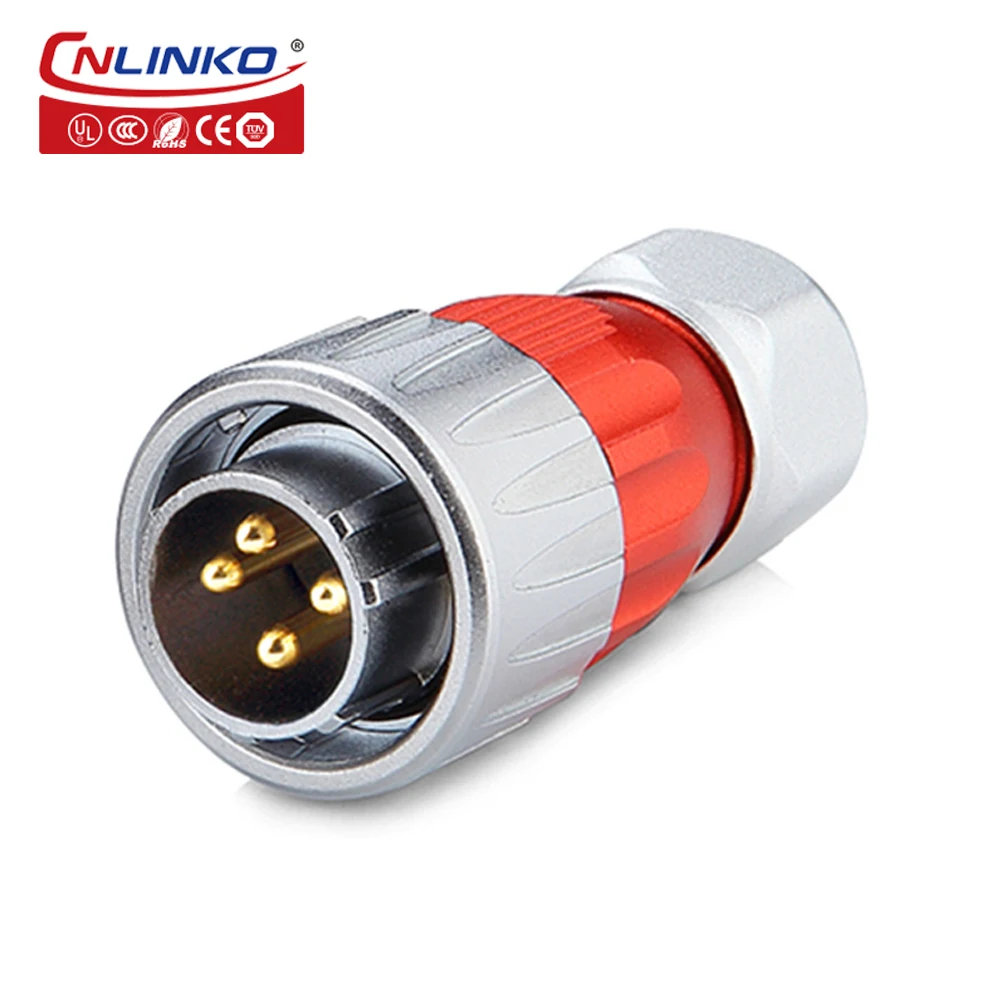

DH-20-C04PE-01-001,DH-20-J04SX-01-001

Specifications:

Connecting mode:

Screw connect

Protection level:

IP65/IP67

Cable specification:

2.5mm2~ 4mm2/14~12AWG

Diameter range:

Φ8mm ~Φ12mm

Contact diameter×Qty:

Φ2.7×4

Current rating(A):

20A

Operating voltage(AC.V.rms):

500V

Withstand voltage(AC.V)1min:

2500V

Contact resistance:

<1mΩ

Insulation resistance:

>500MΩ

Durability:

≥500 mating&unmating cycles

Temperature rating:

-40°C~80°C

Method of connecting cable:

Solder

Prevent the combustion level:

UL94-V0

Material:

Shell&insulated parts:

High performance engineering plastics

Hardware metal:

Zinc alloy(pearl hard chromium)

Contact pin:

Copper alloy(gold-plated)

Spring:

Stainless steel

Sealing:

Silica gel

Main characteristics:

- Sealed against dust and fluid (IP65/IP67)

- Vibration resistance,impact resistance,stretching resistance

- 1/4 bayonet connect; socket with cover

Application industries:

- Stage equipment

- The smart grid

- Medical equipment

- Server

- Solar energy equipment

- Ship equipment

- Electric power equipment

- Vehicle equipment

- Communications equipment

- Heavy machinery
