Supports 4/2/1 SD/SDHC/SDXC/TF(tf card adapter needed)at one time

Do not support 3 cards at one time

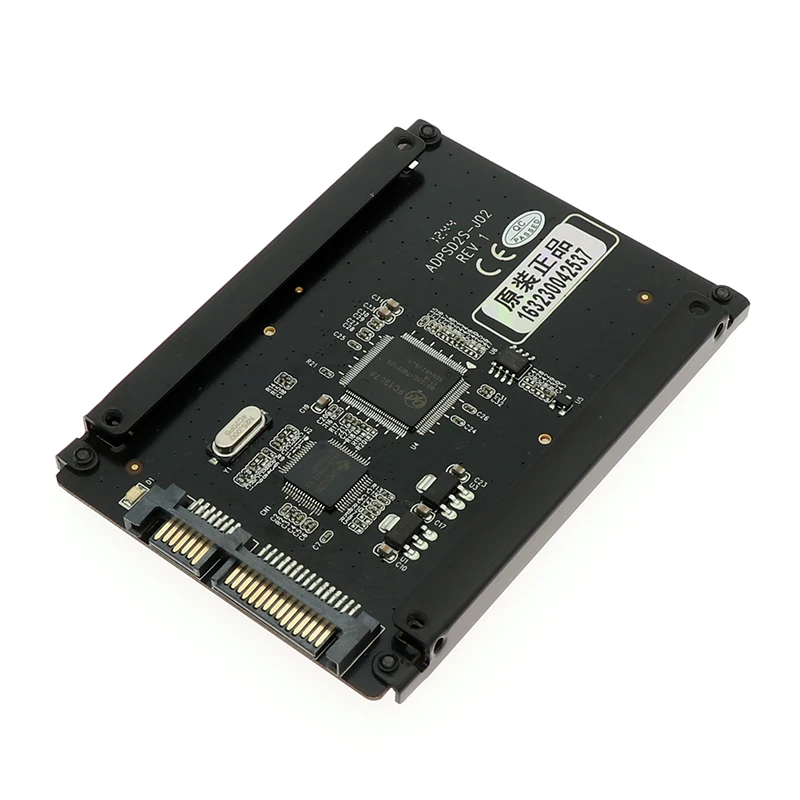

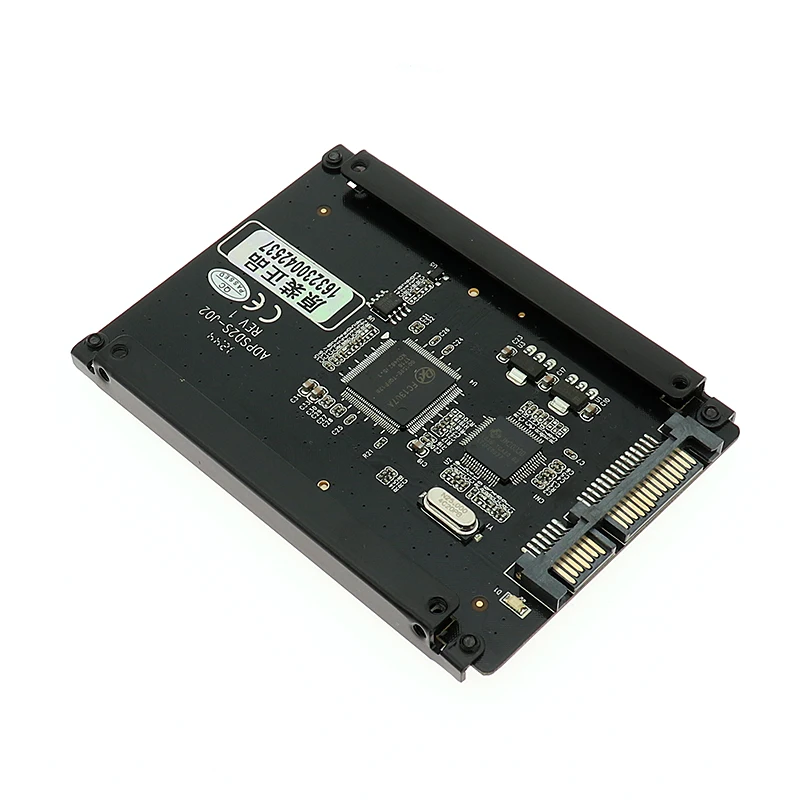

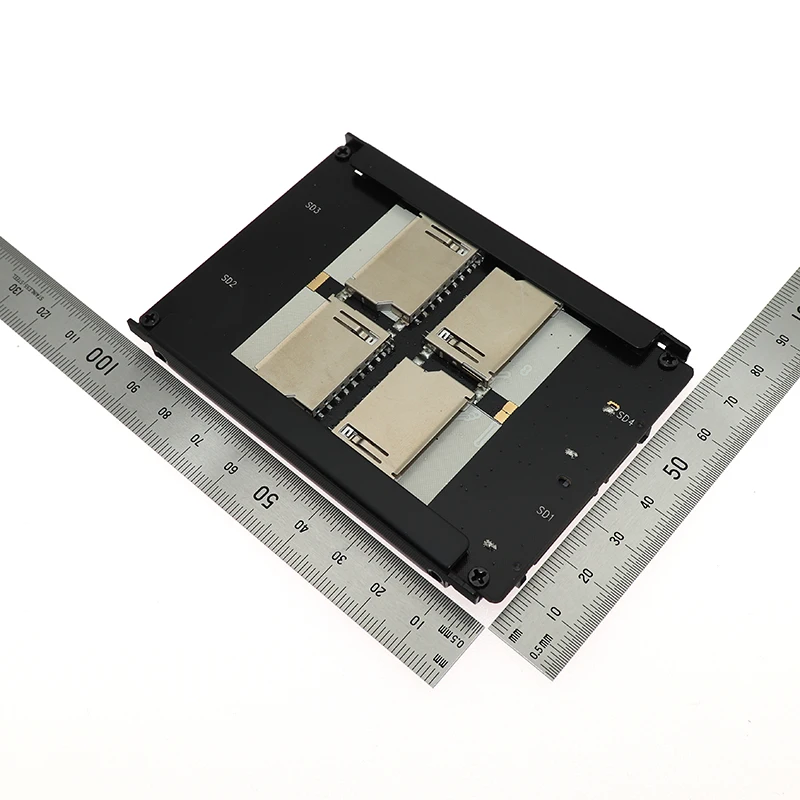

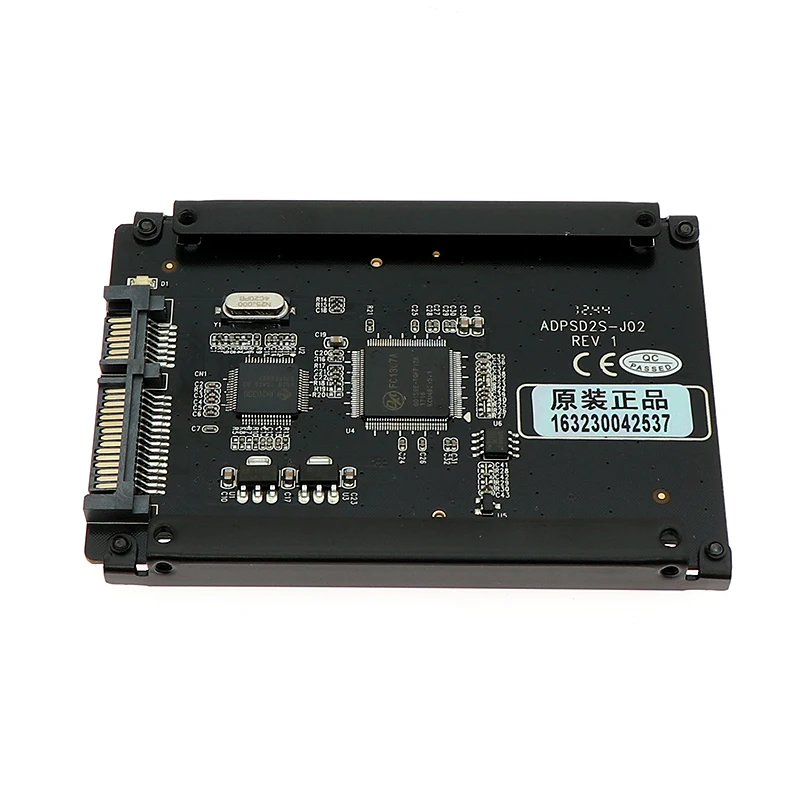

This adapter is designed to enable 4 SD Cards to be used as a direct replacement for a 2.5” SATA hard drive. Once installed, the SD appears as an ordinary SATA hard drive to any OS and can be configured as a bootable device.

Serial ATA 1.0a Specification compliant
Supports Serial ATA hot-plug
Built-in RAID0 functions which can speed/size up 4-channel SD host interface to SATA interface.
Supports SDIO,SDHC,SDXC(Do NOT support UHS-I),MMC
Ultra low power consumption
OS Bootable and no drivers required
Compatible with DOS, Windows 3.1, NT4, 98SE, Me, 2000, XP, Vista, Mac, Linux

Installation

1) Insert the SD cards into the slots and connect the SATA port to host side, and then turn on the computer, the
LED lamp will light.
2) Please format your SD cards before using.
Note:
a. You can use 1 SD card, 2 SD Cards or 4 SD Cards at one time. Do not support 3 SD cards together.

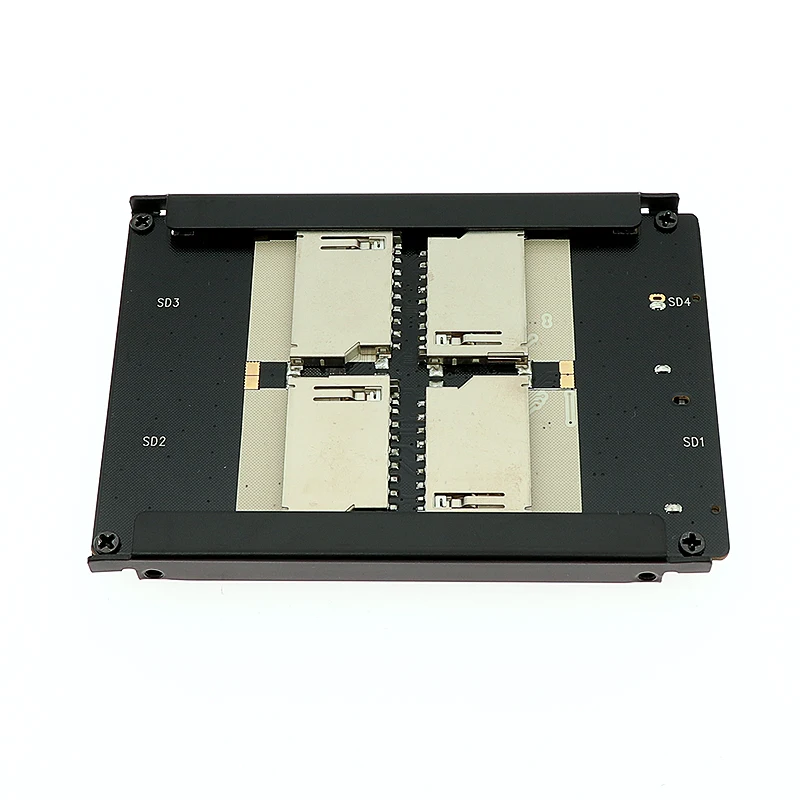

b. Please insert the SD cards into SD slots one by one as the order shown on adapter (SD1, SD2, SD3, SD4).
For example, when using 1 SD Card, please insert the card into SD1 Slot, 2 SD cards, please insert the cards
into SD1 and SD2 slots separately.
c. When you used different capacity of SD cards, in RAID 0 mode, the total capacity is the minimum capacity
SD card multiplied by the number of SD card. For example, SD1 (2G), SD2(8G), in RAID 0 mode, the total
capacity is 2G*2=4G.
d. Do NOT support hot swappable of SD Card
e. Do NOT change the position of the SD cards, or else you may lose your data. Please mark your SD cards to
prevent position exchange.

Adapter X 1

General English Manual X 1

​
