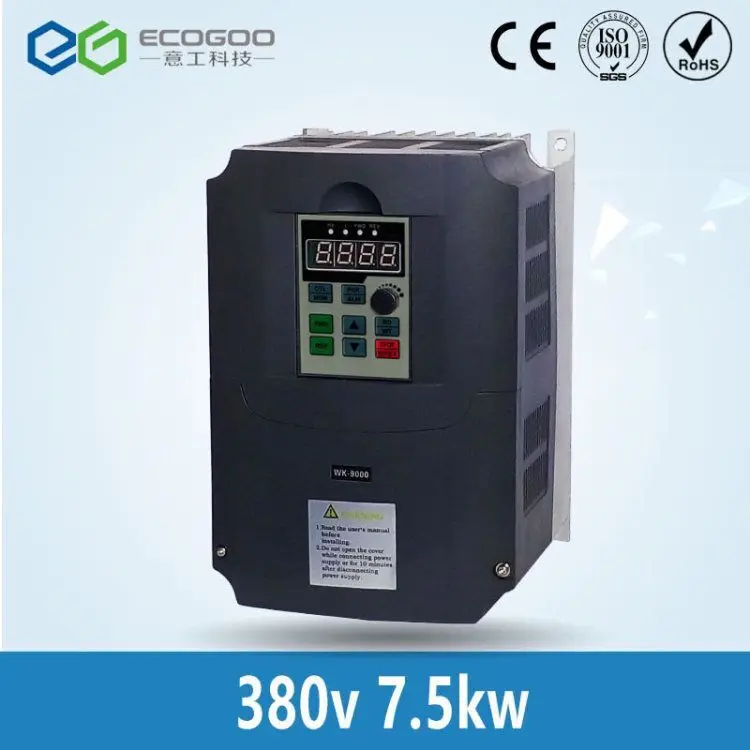

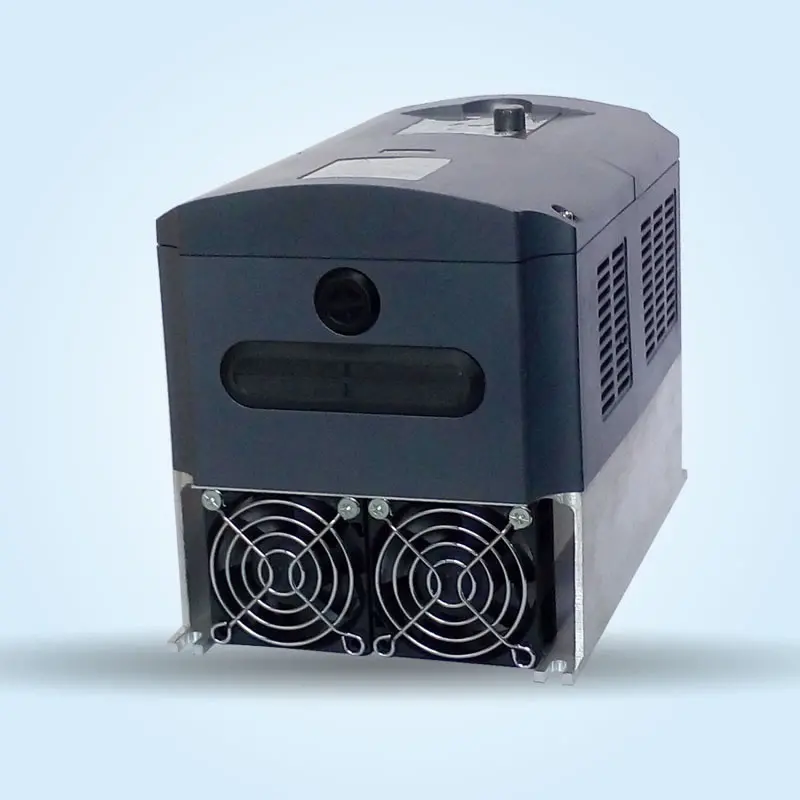

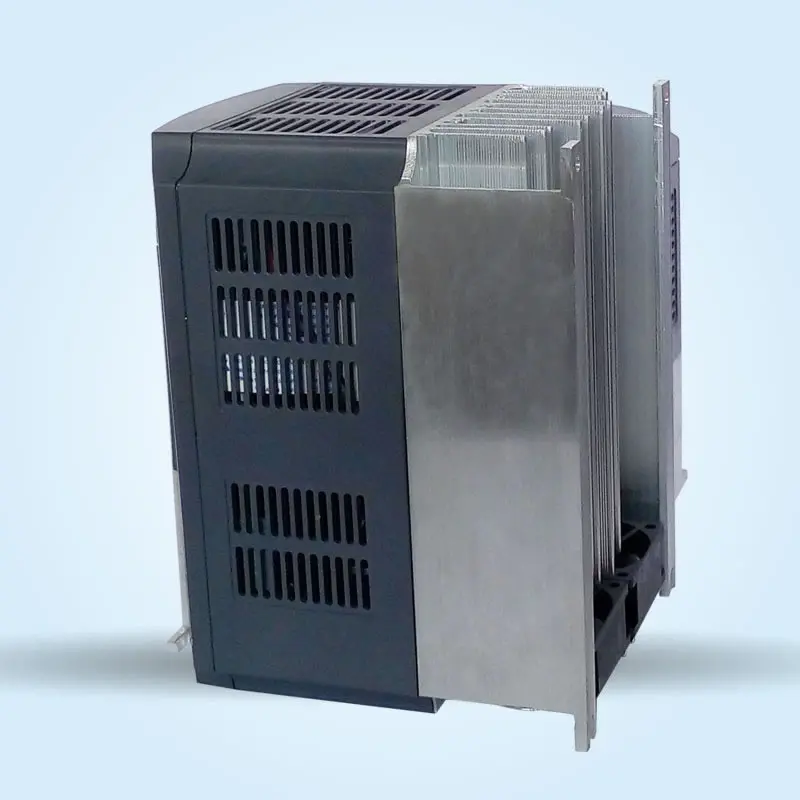

VFD Drive 7.5KW 380V spindle inverter frequency converter &optional parts (extension cable + box) ecogoo factory direct sales |

VFD Drive 7.5KW 380V spindle inverter frequency converter &optional parts (extension cable + box) ecogoo factory direct sales |

1.Output Power:7.5kw

2.Rated current:16A

2.Rated Frequency :50hz/60hz

3.Output Frequency Range:0~650Hz

4.Input Voltage Range:3 phase  380V±15%

5.Output Voltage Range:3 phase 380V±15%

6.Control way: Open loop vector control(SVC)      V/F control

7.Starting Torque: G type machine:0.5Hz/150%( SVC)

8.Main function: Control and adjust the speed of the ac motor

​+Advantages of ECOGOO AC drives

We have sophisticated engineers, scientific producing workmanship and management team with rigorous quality control systems ,frequency inverter are equipped with advanced features as below:
01 V/F control, vector control and output torque control;
02 Built-in RS-485 communication interface
03 Compact size, easy to install;
04 With a speed potentiometer and external panel;
05 Built-in synchronous control and proportional synchronization control;
06 16 speed control modest,Can run automatically;
07 Can choice multiple running commands or frequency channel;
08 Can be achieve Part or all of the keys locked(Analog potentiometer unlock);
09 Relay normally open or closed and two high configuration output have 100 kinds of ways optional;
10 6 digital opto-isolated inputs, 100 kinds of ways optional;
11 3 analog input, 1 analog output channel;
12 Having textile pendulum frequency function, It can be widely applications for many kinds of textile equipment;
13 Built-in user timer / counter;
14 Built-in PID regulation function to facilitate the realization of closed loop control of the temperature, pressure and tension.
15 At zero speed time,can be achieve output 0-100% of Adjustable torque,With zero speed brake function,instead foreign inverter application on freight elevator and crane.

+Technical specifications of ECOGOO AC drives

+The wiring diagram of ECOGOO AC drives

+The reason of ECOGOO AC drives for choosing us

Pls note:We are not responsible for any custom duty or import tax!

Payment
1.Please make payment by Secure payment in advance. .

2.please write your detailed delivery address ,contact information and phone number on payment,it is very important to deliver package successfully.Please make sure your address in Aliexpress is matched with your shipping address before you pay.Specially, for Russian customer, must write the full name(the first name , middel name, last name)  .Thanks very much.

3.We are not responsible for any custom duty or import tax.Please check with your country customs office to determine what these additional costs will be before bidding/buying.

Delivery
1.All package is standard paper box packing or wooden packing for big order.

2.Pls note the delivery date using different Express , so pls choose the right delivery according to your need .

3.If you prepare to big order ,please contact us if want delivery by any other method.

4. All packages will shipped with a Tracking Number.

Feedback
your positive feedback is highly appreciated.We guarantee the quality of our products. Each item will be checked carefully before delivery. Please contact us immediately if there is any reason you feel.We will always do our best to make the customer.

If you are satisfied with our products and service, please kindly leave a positive five starfeedback for us,It is very important for us . Thanks very much in advance.

Contact us
We will reply to your enquiries as immediately as possible.However,please note that we have 12-16 hours time difference

with western Europe and 8 hours time difference with U.S.A.Therefore,we promise will try best to reply within 24 hours.

For bulk order,also please contact us for details.
