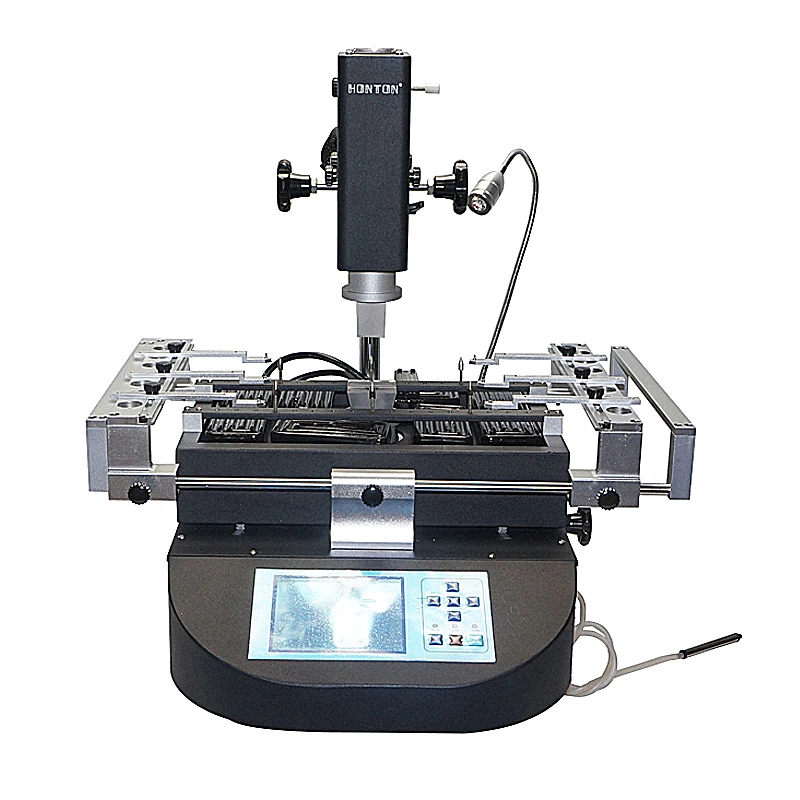

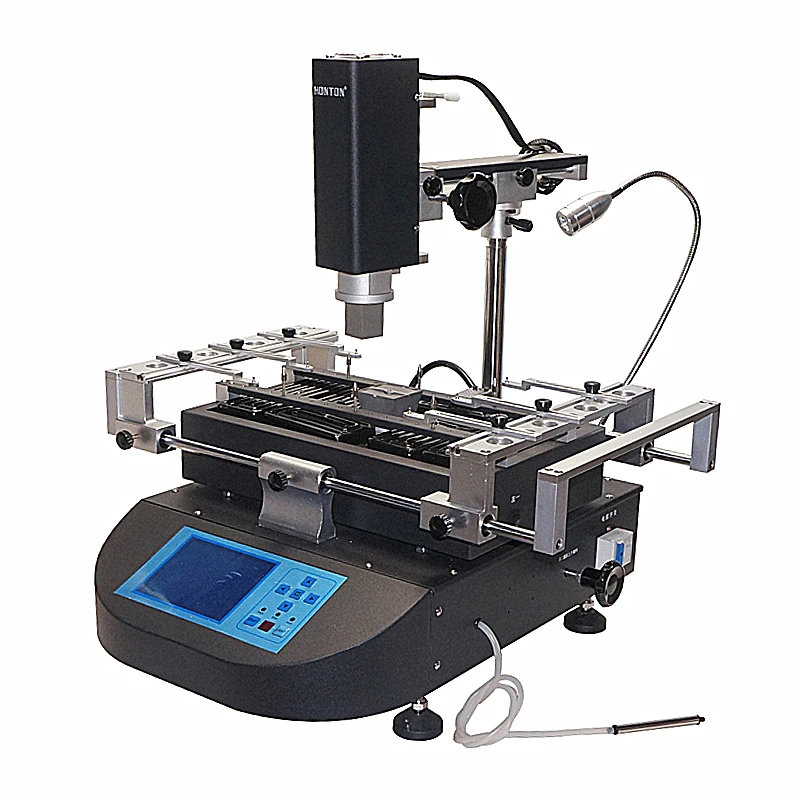

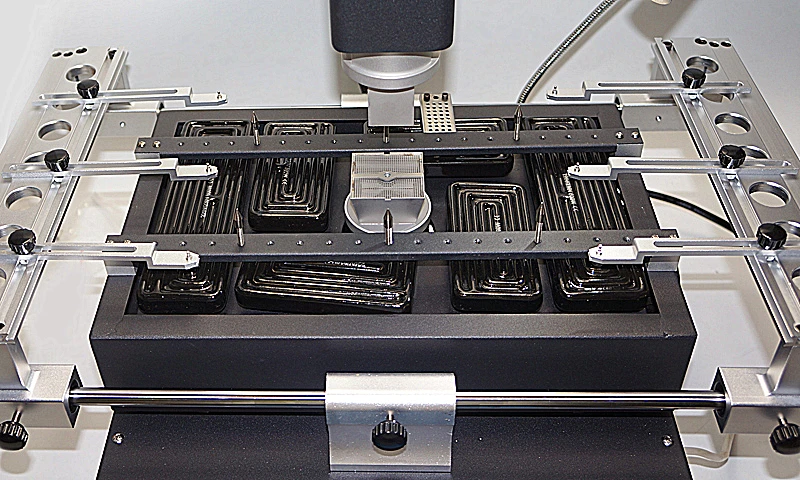

NEWEST Hot air 3 zones honton HT R490 BGA Rework Station 220V 110V updated from R930 | Инструменты

NEWEST Hot air 3 zones honton HT R490 BGA Rework Station 220V 110V updated from R930 | Инструменты

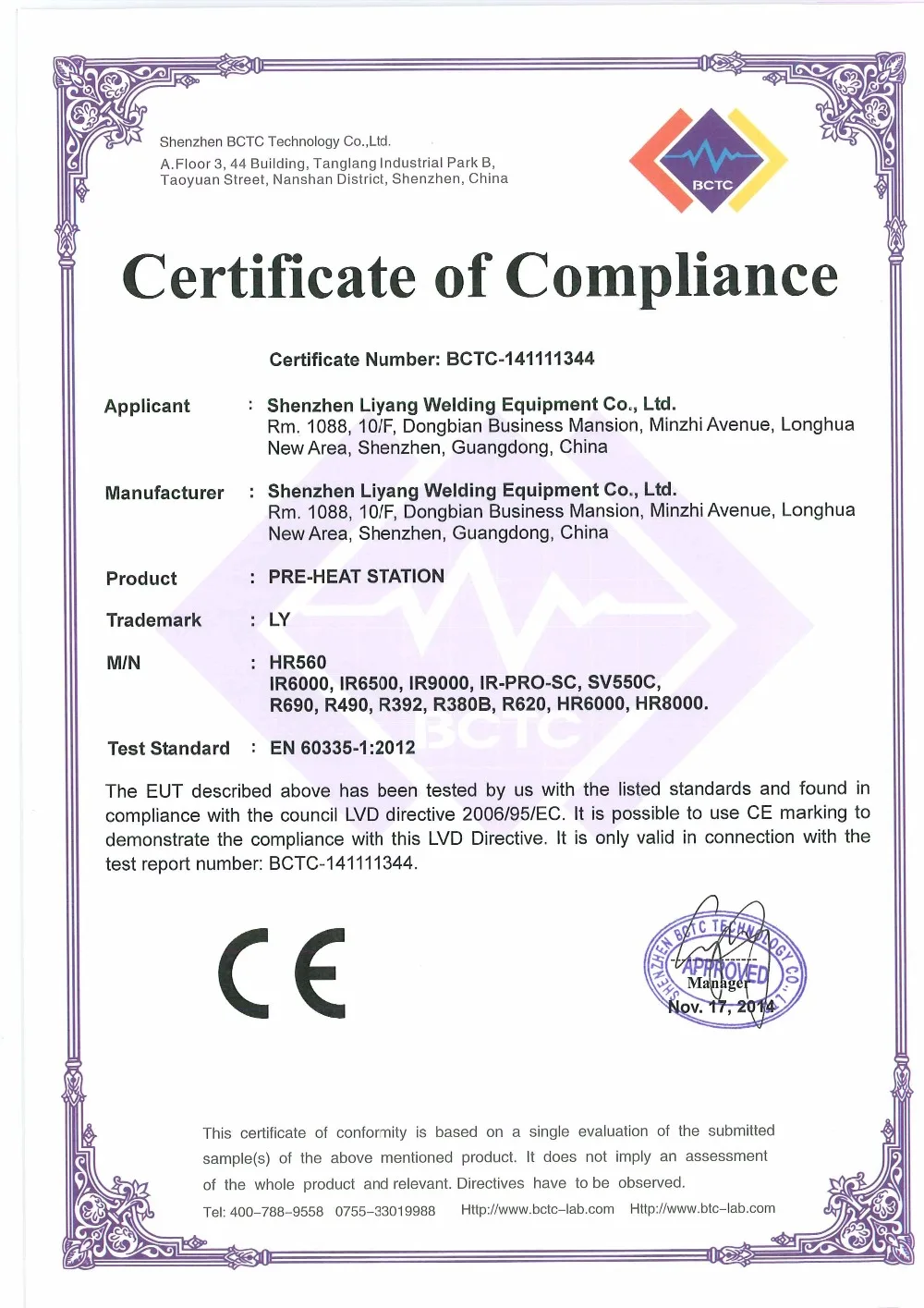

CE Certification

Basic Parameters

Heating

HR

Dimension

L580mmx W560mmx H650mm

Weight

28kg

Total weight

About 35 kg, vary with the different need of the users

Electrical Parameters

Power

220V AC

Upper Heating

HR

Size of upper (IR)

---------------

Consumption of upper (IR)

---------------

Nozzle of upper(HR)

4pcs: 19x19, 29x29,34x34,37x37 mm

Consumption of upper (HR)

800W

Bottom Heating

HR

Nozzle of bottom(HR)

1 pcs: 50x50 mm

Consumption of bottom (HR)

800W

Bottom Preheat

IR

Consumption of preheat (IR)

2400W

General power

4KW

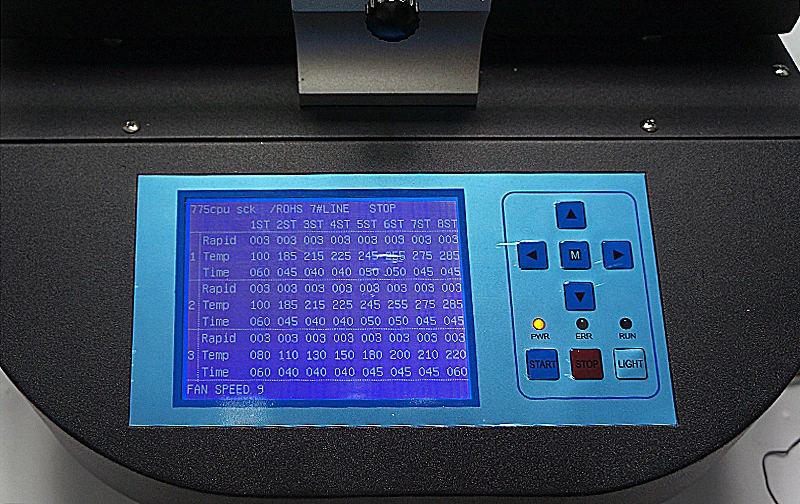

Temperature Control

Control mode of Upper

Independent temperature control, high-precision closed-loop
control, precision ± 0.5%, Alarm

Control mode of Bottom

Independent temperature control, high-precision closed-loop
control, precision ± 0.5%, NO Alarm

Rework Function

SMD

Suit for welding, remove or repair packaged devices
such as BGA,PBGA,CSP,multi-layer substrates, EMI
metallic shield product and solder/lead free Rework welding

Size of applicable chips

≤80mm x80 mm

Size of applicable PCB

MIN 10mm*10mm         MAX 350mm*400mm

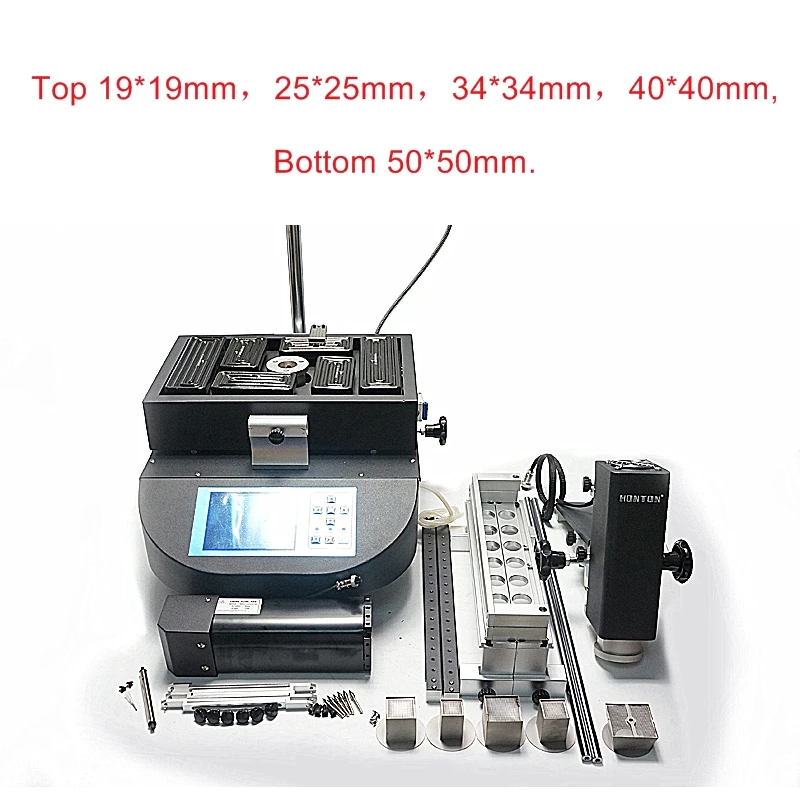

1× bga rework station

5× nozzles: 4 pcs top(19,29,34,37mm) and 1 pcs bottom(50mm);

6× pcb jig (with screw)

1x vacuum pen

1× k-type thermocouple

1x socket head wrench

1x Computer Cable

1× CD of manual and software (if not get, may be lost in customs, please contact us)
