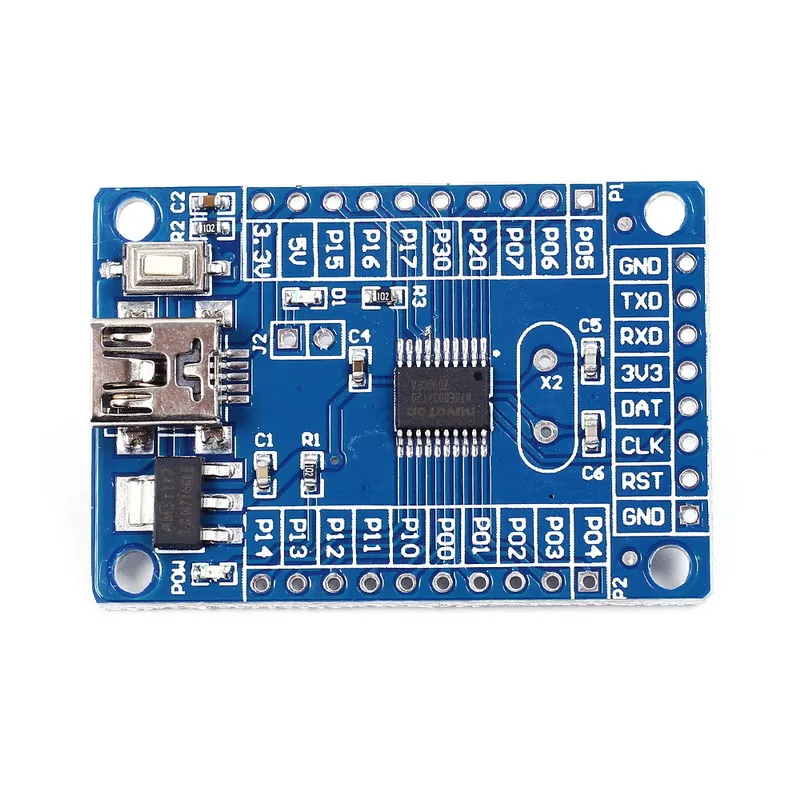

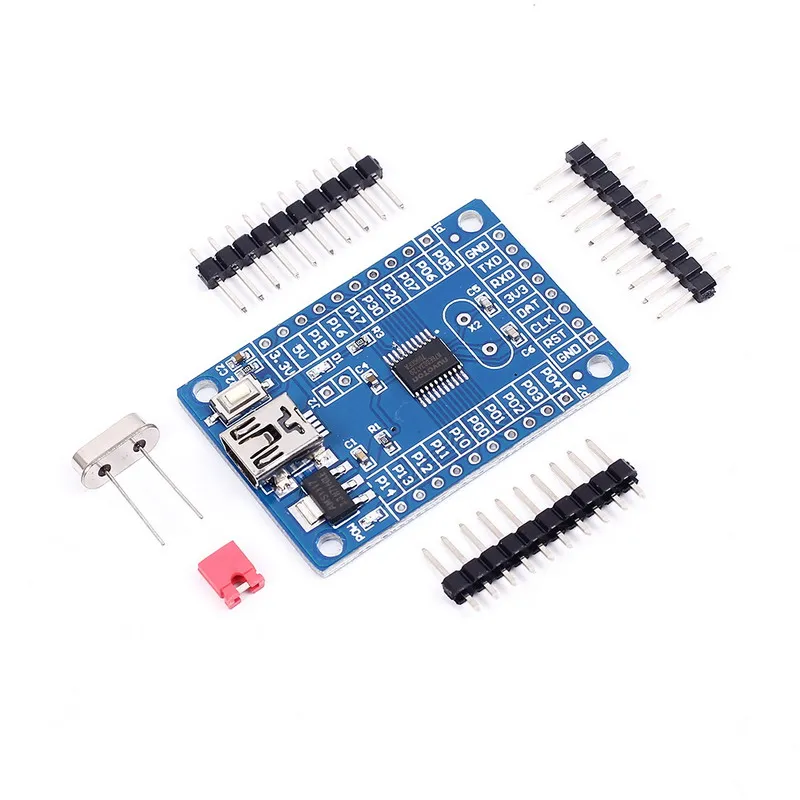

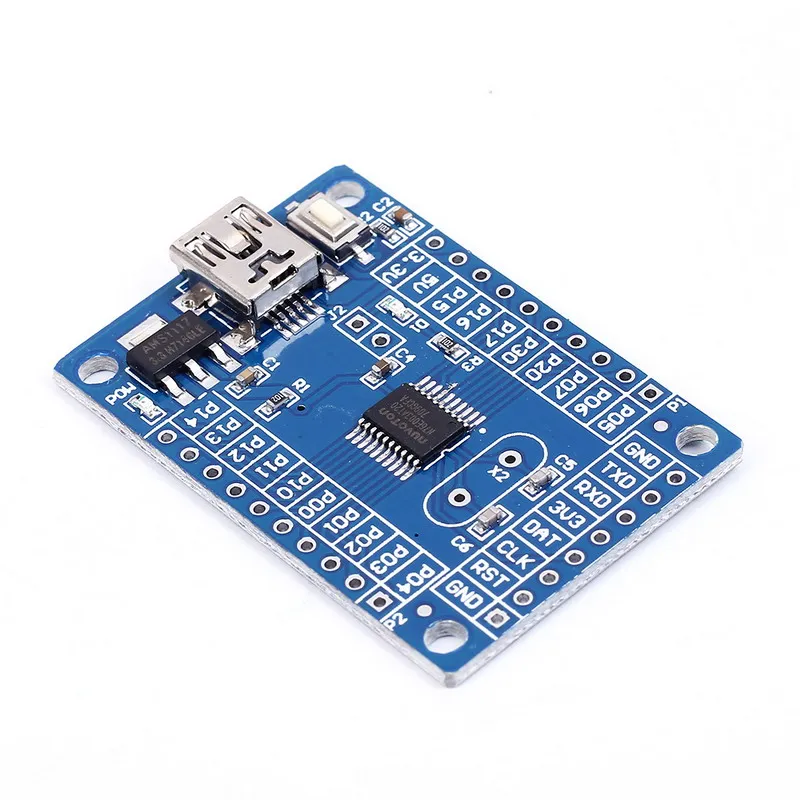

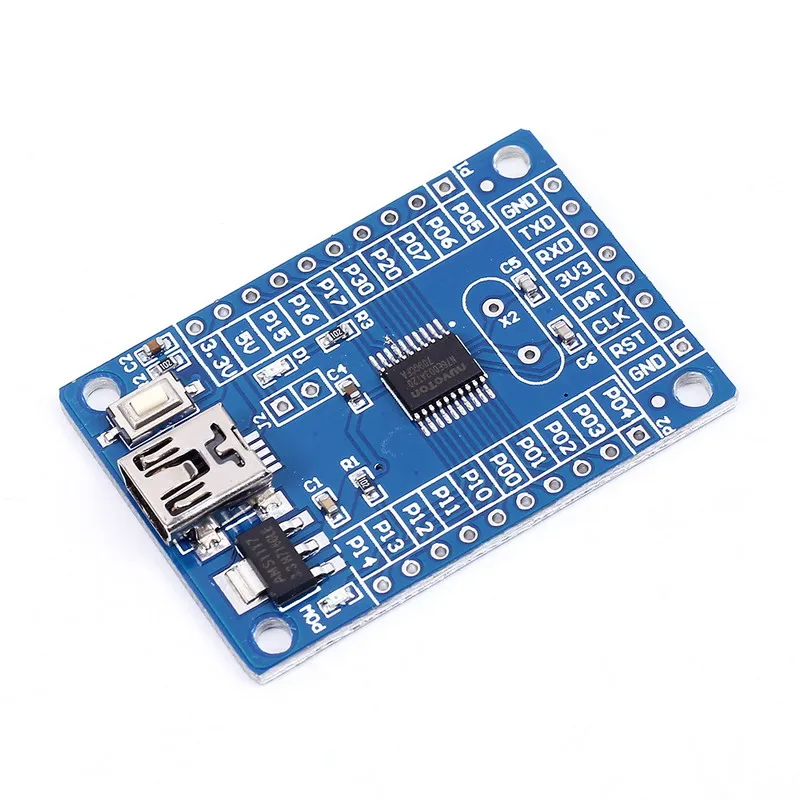

N76E003AT20 Core Controller Board Development System | Электронные компоненты и принадлежности

N76E003AT20 Core Controller Board Development System | Электронные компоненты и принадлежности

1. Description:

This is a potential chip. 51 kernel, fast start, low power, high performance, affordable. It has great potential in the Internet of things and general applications. Compared with STC chips, brands, performance, and even prices have advantages.
Whether you do development or learning, it is a good choice.

2. Features:

1>. N76E003 provides 18 KB Flash ROM, configurable Data Flash and high capacity 1 KB SRAM. It supports 2.4V to 5.5V wide operating voltage and -40 to 105 OC working temperature, and has high anti-interference ability 7KV ESD/4KV EFT.
    2>. N76E003 provides up to 18 I/O pins in a 20 pin package.

3>. Its peripheral includes double serial port, SPI, I2C, 6 channel PWM output.

4>. Its internal construction is better than the same product 2% error.

5>. It has a high precision 16 MHz RC crystal oscillator and a high resolution 8 channel 12 bit ADC.

6>. It has the functions of self awakening, undervoltage detection and so on.

7>. It provides a small package of TSSOP20 (4mm*6.5mm) and QFN20 (3mm*3mm), both high performance and design flexibility.

3. Comparison with STM8S003F3P6

STM8S003F3P6: a total of 20 feet, up to 16 GPIO, support 16 external interrupt; 2 16 bit timer [TIM1/TIM2], up to 3 PWM output signal; 5 ADC channels, 8KBYTE FLASH, 1K SPI/I2C/UART; RAM BYTE, 128 EEPROM; and the built-in 16M high-speed oscillator, WDG and so on.
      From the point of view of the performance of the device: N76E003AT20 has more classic advantages:
      • 1T/8051:1T value MCU, classic kernel 8051;
      • 18KB Flash ROM: better than 8KB Flash, and there are 18KB flash space, all can be used as data storage space applications;
      • 1024B SRAM;
      • 17 +1 inputs: better than 16 GPIO support;
      • 2*UART, I2C, SPI: better than SPI/I2C/UART (one more UART);
      • 8CH of 12bit ADC: better than 5 channel 10bit ADC;
      • 6ch of individual duty PWM: better than 3 PWM output;
      • 10KHz LIRC for WDT reset / WKT;
      • 16MHz HIRC + 1% Room temp. + 2% full condition;
      • -40~105 temperature range is wider;
      • wider range of supply voltages from 2.4V to 5.5V;
      • TSSOP20 / QFN20;
      ESDEFT:HBM/8KV - MM/400V, Over 4KV, excellent ESD and EFT, anti jamming and ESD protection.

Features

N76E003

STM8S003F3

Operating Voltage

2.4-5.5V

2.95-5.5V

AP ROM

(16+2)KB

8KB/MTP100 time write

SRAM

1024B

1024B

Data Flash

Share APROM(0-18kb configurable)

EEPROM/128B

Timer

3*16-bit+1*16-bit(for PWM)

2*16-bit,1*8-bit

I/O

17+1 input port

16

PWM

6CHs*16-bit

3CHs of PWM

ADC

8CHs*12-bit,400KHz

5CHs*10-bit, 428 KHz/14 clocks

UART

2CHs

1CH

SPI

Yes/8Mbit/s

Yes/8 Mbit/s

I⊃2;C

Yes/400Mbit/s

Yes/400Kbit/s

Power off

Less than 5uA

6uA

HIRC

16MHz +/- 1%@25 Celsius
16MHz +/- 2%@-40-105 Celsius

16mhZ+/- 1.5%@25-85 Celsius

LIRC

10KHz

128KHz

EFT

Over 4KV

/

ESD

ESD:HBM/8KV, MM/400V

/

ICE

On- chip(two wire )

On- chip(single wire/SWIM)

Package

TSSOP20/QFN20

TSSOP20
