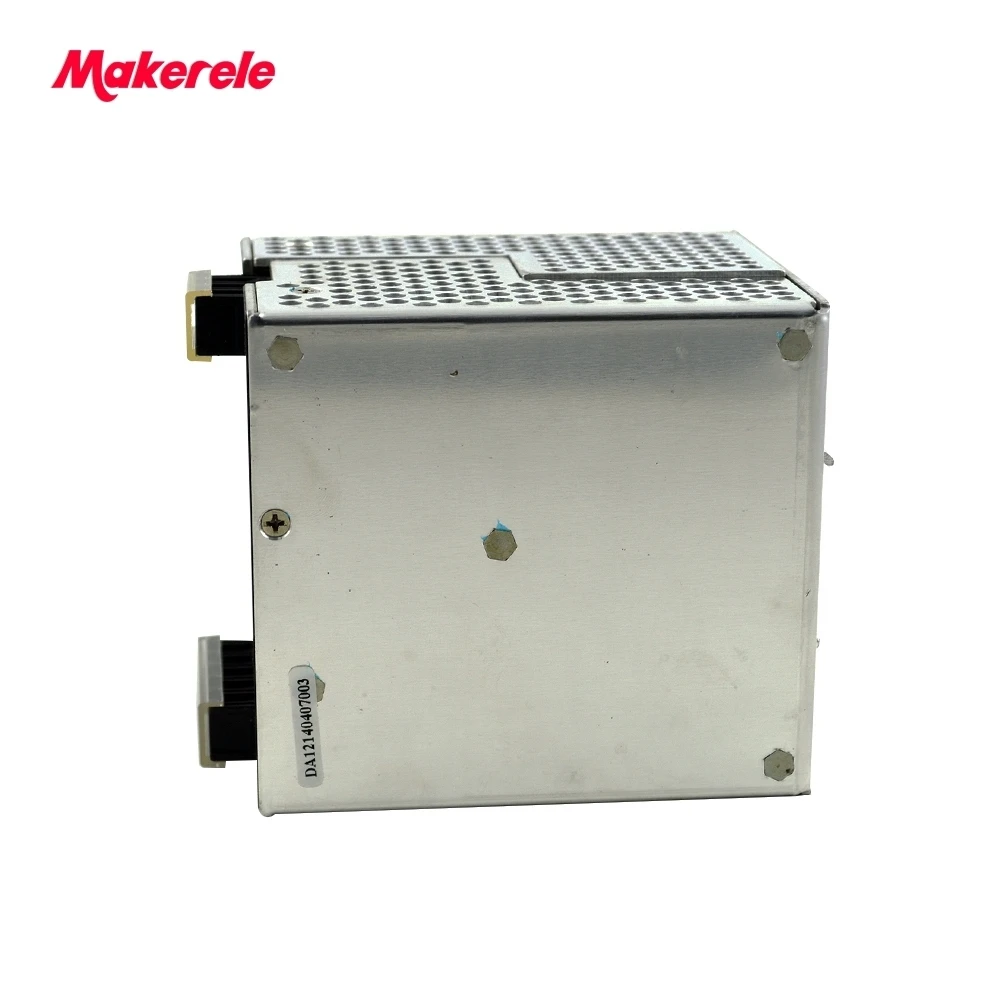

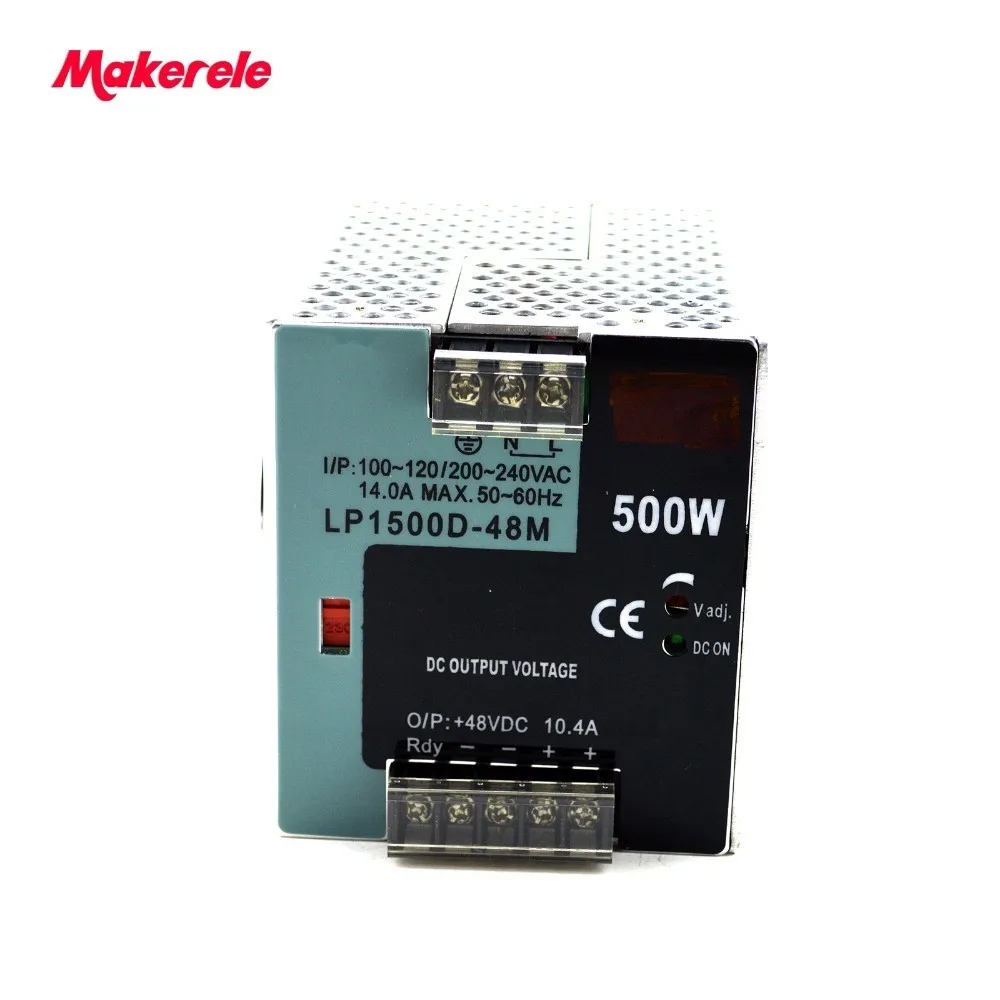

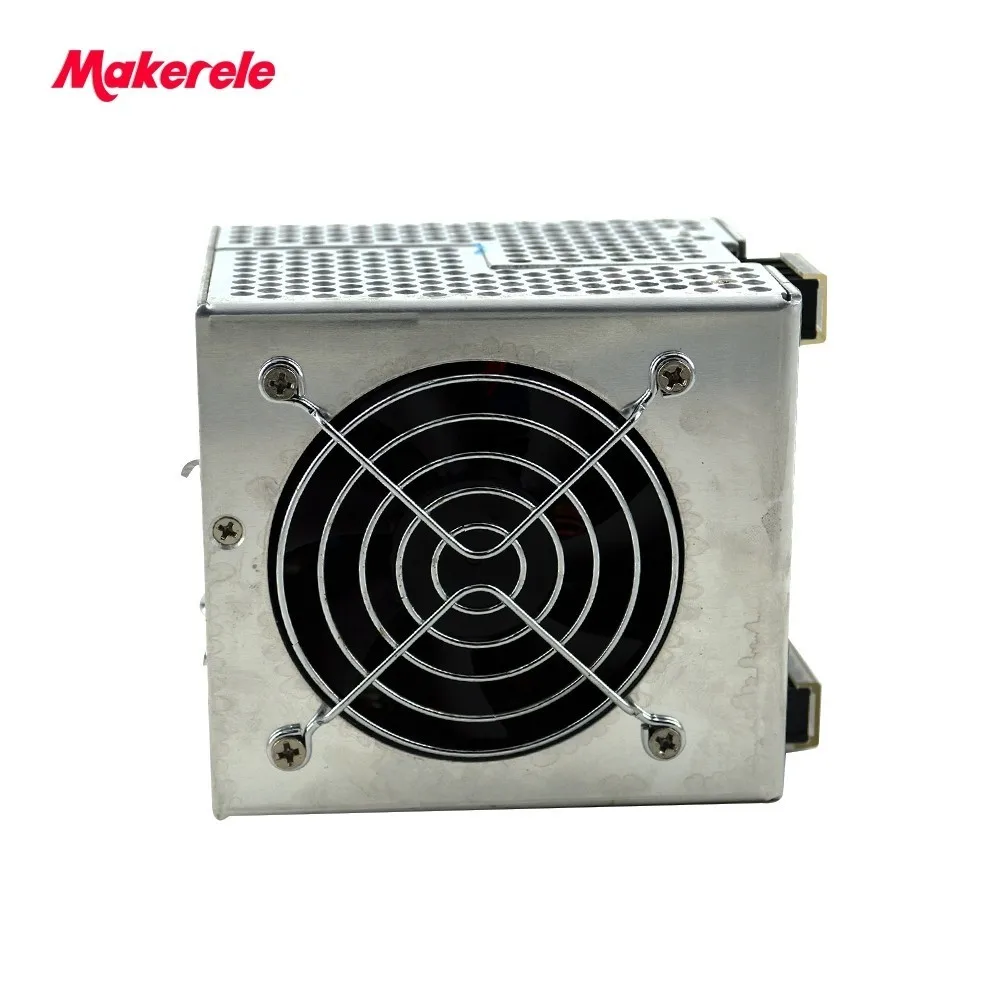

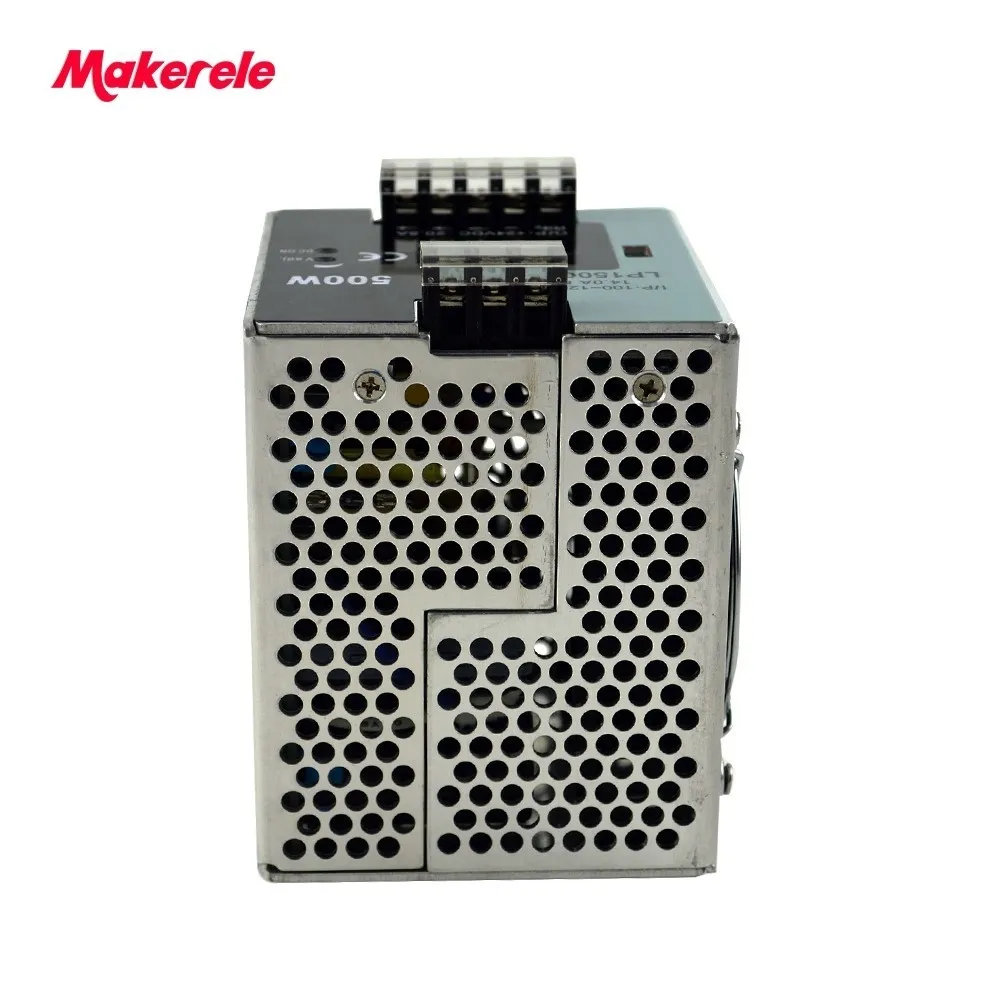

Высокой мощности din рейку переключатель Питание большая мощность 500 Вт

Высокой мощности din рейку переключатель Питание большая мощность 500 Вт

Notice:

Please make sure the input voltage, output voltage and current in item specs when placing orders. Or we\'ll arrange the one as the item specs says.

Product Description

Model LP-500W-12 LP-500W-24 LP-500W-48

DC output voltage 12V 24V 48V

Output voltage tolerance 1% 1% 1%

Rated output current 37.5A 20.8A 10.4A

Output current range 0~37.5A 0~20.8A 0~10.4A

Output power 450W 499.2W 499.2W

Ripple and noise 120mVp-p 240mVp-p 300mVp-p

Adjustable DC voltage range 10.5~14V 20.5~26.5V 44.5~51V

Input voltage range 85~132VAC/176~264VAC(switchover) or 248~373VDC 47~63Hz

AC input current 9.5A/115VAC 4.8A/230VAC

Efficiency 83% 85% 86%

Impulse current Cold starting current: 15A/115VAC 30A/230VAC

Leakage current <2mA/240VAC

PROTECTION

Overload protection 110%~150%

Protection mode: cut off output and reset automatically

Overvoltage protection 14~18V 27~30V 51~54V

Protection mode: cut off output and reset automatically

ENVIRONMENT

Work temperature, humidity -10C~+50C;20%~90 %RH

Storage temperature, humidity -20C~+85C;10%~95 %RH

Shock resistance 10~500Hz,2G 10min./1 cycle,duration: 60min, each shaft

SAFETY

Voltage withstand capacity Input-output: 2KVAC Input-earth: 1.5KVAC Output-earth: 0.5KVAC

Insulation resistance Input-output, input-earth, output-earth: 100M Ohms/500VDC

STANDARD

Safety standard Conforms to UL1012

EMC standard Design refer to FCC Part15 J Conduction Class B

OTHERS

Weight 0.82KG

Package

Outline size 100*90*110mm(L*W*H)

According to your order,we can provide different cartons for you.

NOTE:

1. All parameters, except special situation, are measured under 230VAC voltage input and rated load at 25C.

2. The ripple and noise voltage are measured in condition that capacitance of 0.1 and 47 are applied to ends of 12inch twisted-pair of 20MHz bandwidth oscilloscope.

3. The tolerance is the sum of setting voltage error, voltage and current regulation factor.

Product Size:

1. Item will be shipped within 5-7 business days.

2. Delivery Time:

----Via Air: Generally 1-3 working days

----Via Express: Generally 3-7 working days.

----Via China Post Air Mail: Generally 15-25 working days

----Via Sea: According to the order.

3.If you have not received your shipment within 30 days from payment,Please contact with us,We will track the shipment and get back to you as soon as possible with a reply.

&middot; We Ship to Worldwide, except APO/FPO.

&middot; Items are shipped from China using Airmail, reach most of the countries within 10 to 20 business days.

&middot; Delivery time depends on destination and other factors, it may takes up to 20 business days

&middot; Noted: Fedex Maybe charge handling charges at your country, we are not responsible for this charges.

Payment:

Payment method on Aliexpress Check here help.aliexpress.com/payment_method.html

Warranty and Guarantee:

&middot; 12 months Warranty. Buy with confidence!

&middot; If you are not satisfied when you receive your item, please return it within 14 days for a replacement or money back. Please contact me before you return it.

&middot; If item is defective in 3 months, We will send you a replacement without extra charges, or offer refund after we receive the defective item.

&middot; If item is defective after 3 months, you can still send it back to us. We will send you a new one after receiving the defective item. But you have to pay the extra shipping fee

Other Policies:

&middot; We are not responsible for any custom duty or import tax.

&middot; We will leave POSITIVE FEEDBACK after receiving the payment. Please contact us if you are not satisfied with the item after receive it.

&middot; All emails will be answered within 1 business day. If you do not receive our reply, please kindly re-sent your email and we will reply to you as soon as possible.

Serious Buyer Only! Please place bid only if you agree with all the terms

MingWei switching power supply factory is a set design, development, production in one of the high-tech professional manufacturers, the region is the first company to introduce Taiwan manufacturer of switch power supply technology, building in May 2001.

Custom Product Design

OEM/ODM

Profession in export service from Maker Electric

High quality Product, Affordable Price

Notes on choosing a switching power supply?

To increase the reliability of the S.P.S., we suggest users choose a unit that has a rating of 30% more power than actual need. For example, if the system needs a 100W source, we suggest that users choose a S.P.S. with 130W of output power or more. By doing this, you can effectively boost the reliability of the S.P.S. in your system.Make sure that the model qualifies for the safety standards and EMC regulations you need.

What are switching power supplies?

Switching power supplies input a commercial AC power supply (such as 110 VAC or 220 VAC), uses a high-speed semiconductor switching process to convert the input to high-frequency electric power, and yields a direct current (such as 24 VDC).
