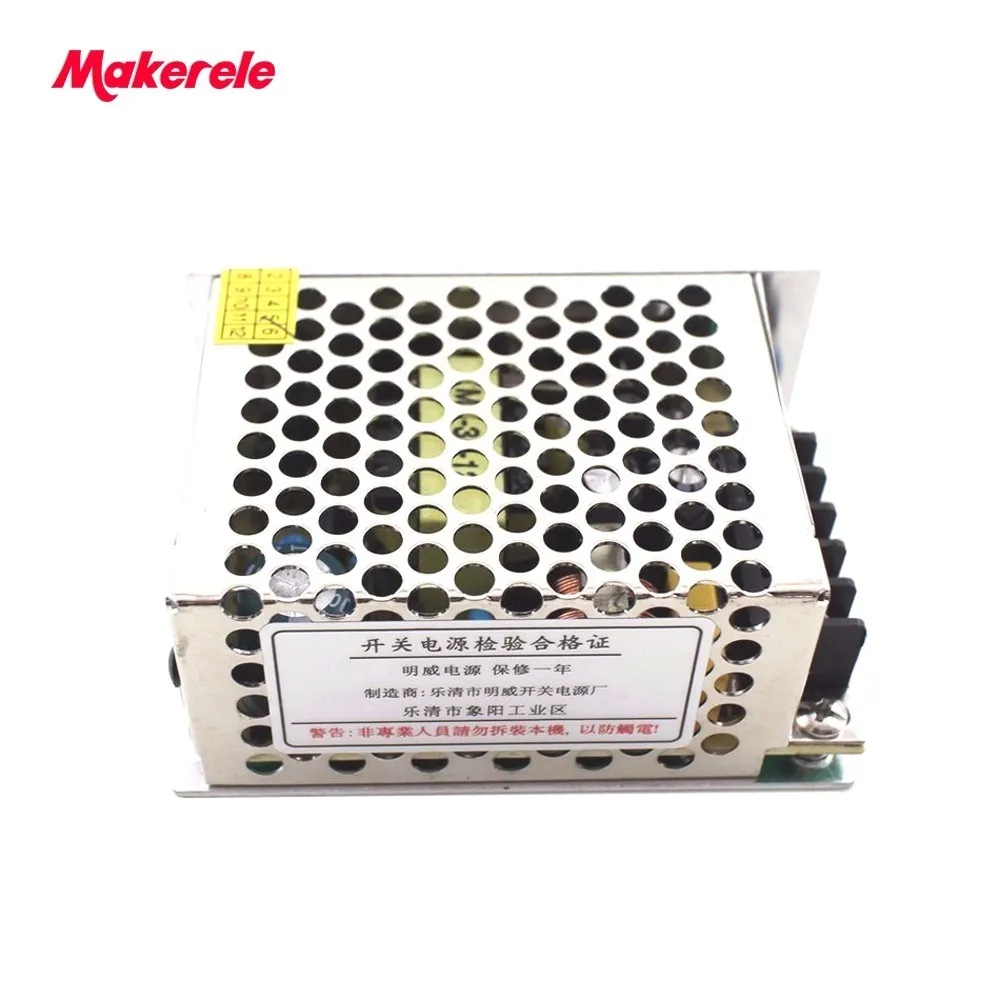

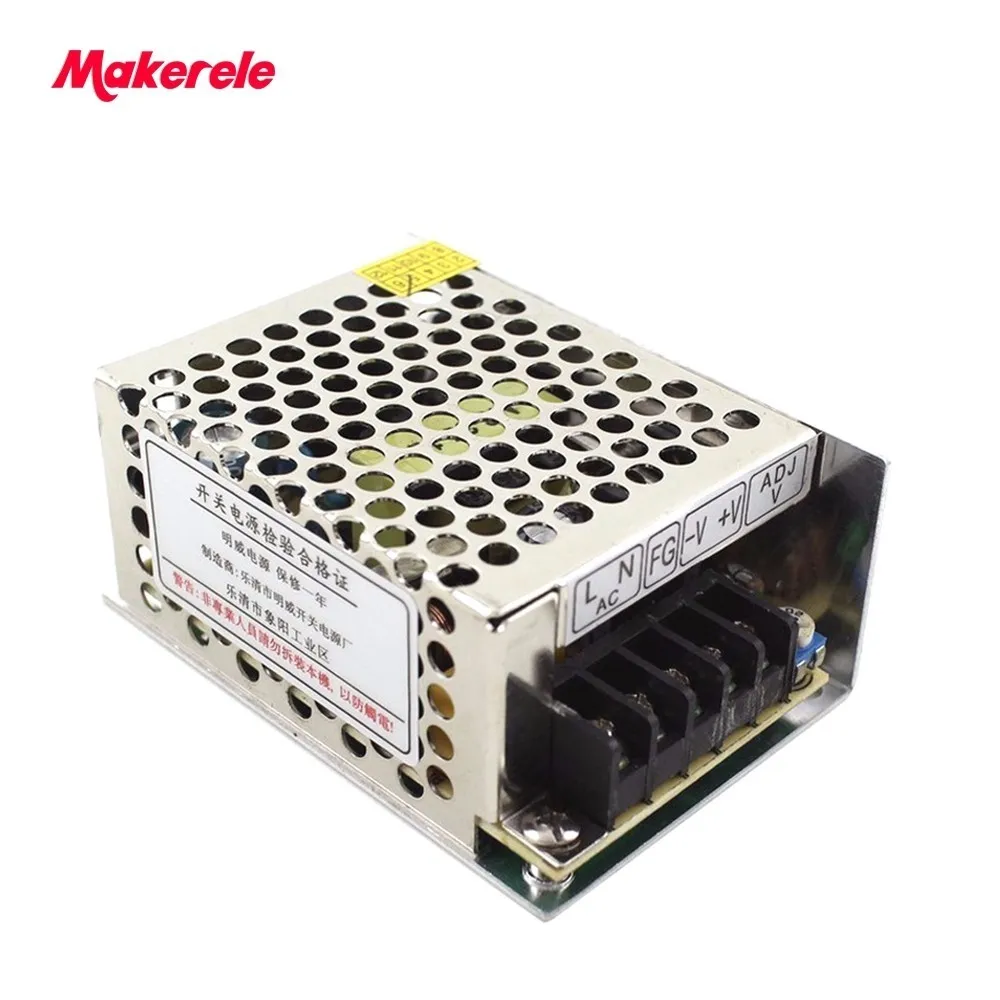

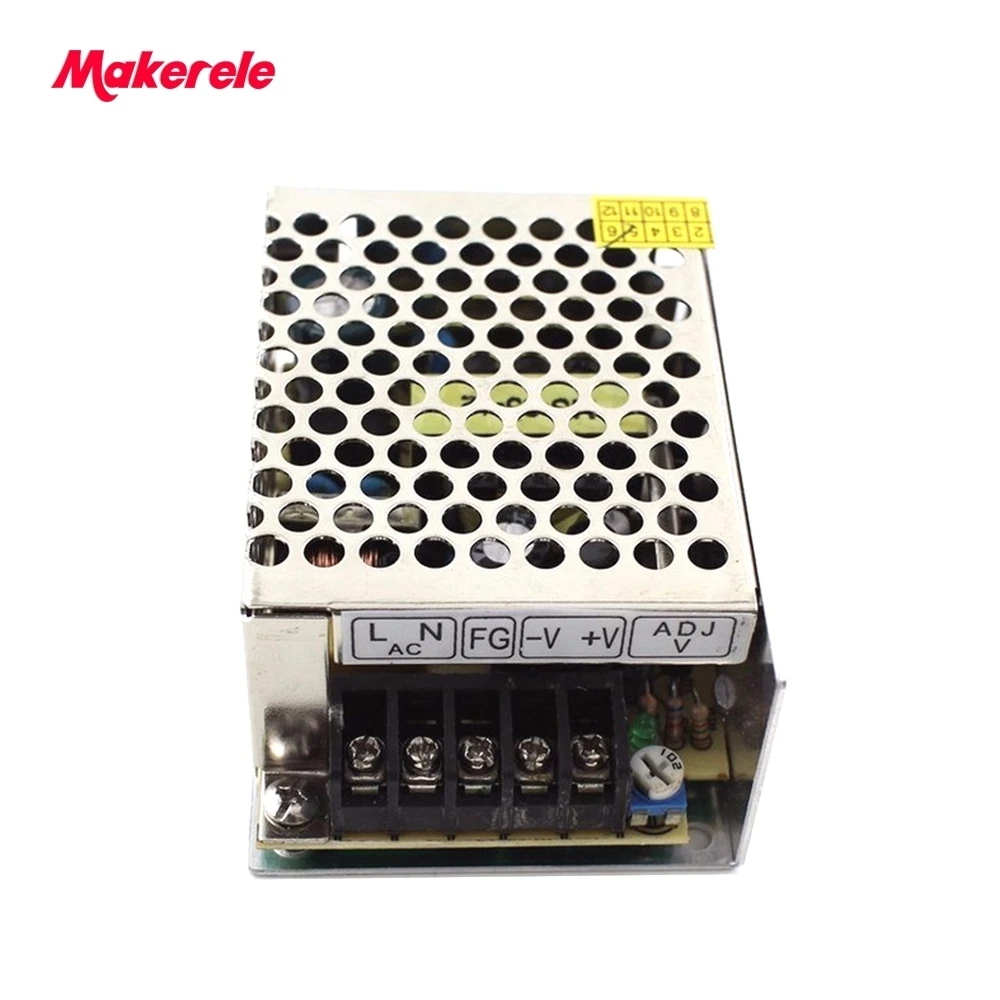

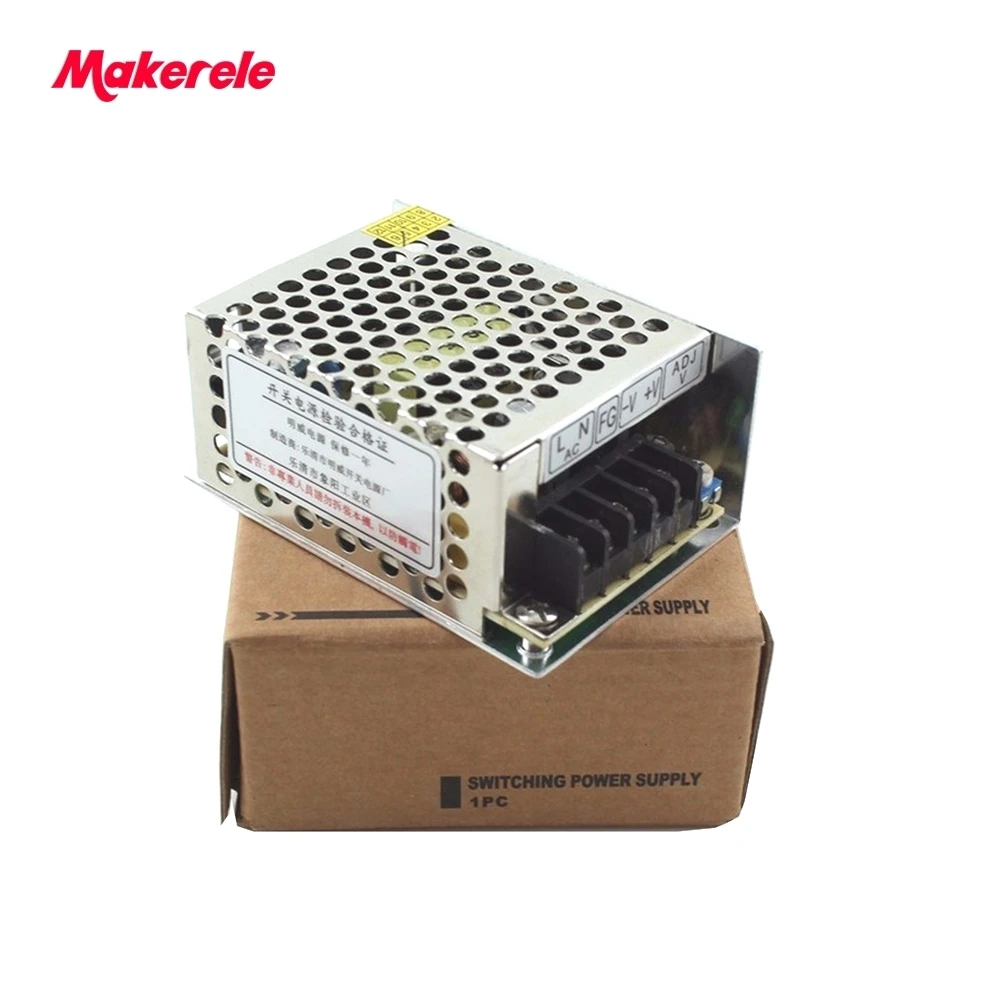

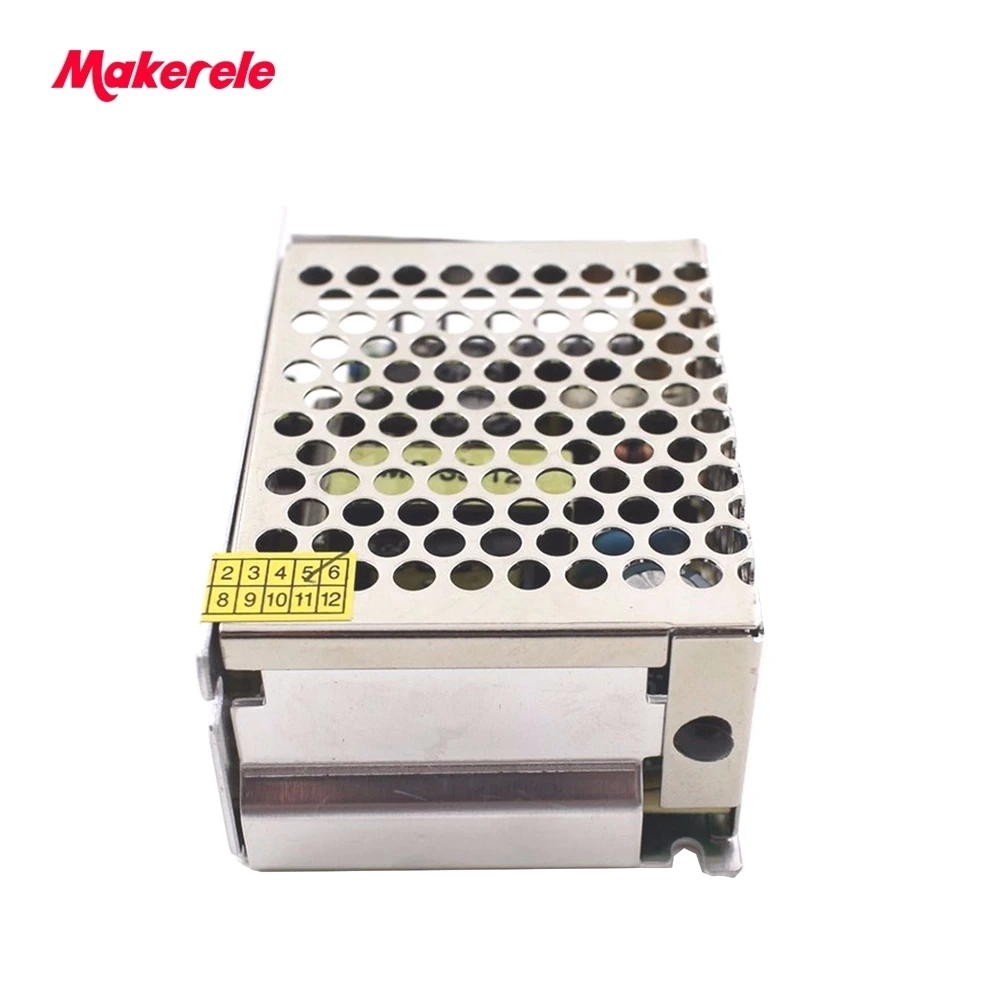

110 В 220 AC к DC 35 Вт мини Импульсные блоки питания 5 12 15 24 48 небольшой рисунок для LED

110 В 220 AC к DC 35 Вт мини Импульсные блоки питания 5 12 15 24 48 небольшой рисунок для LED

Notice:

Please make sure the input voltage, output voltage and current in item specs when placing orders. Or we'll arrange the one as the item specs says.

MODEL MS-35-5 MS-35-12 MS-35-15 MS-35-24 MS-35-48

DC Voltage 5V 12V 15V 24V 48V

Rated current 7A 3A 2.4A 1.1A 0.73A

Current range 0-7A 0-3A 0-2.4A 0-1.1A 0-0.73A

DC power 35W 36W 35W 35W 35W

Voltage ADJ.range 10% 10% 10% 10% 10%

Voltage tolerance 2% 1% 1% 1% 1%

Ripple and noise 70mVp-p 100mVp-p 100mVp-p 100mVp-p 100mVp-p

Intet stability 0.5% 0.5% 0.5% 0.5% 0.5%

Load stability 1% 0.5% 0.5% 0.5% 0.5%

AC voltage range AC100~240V 47~63Hz ; 240~370VDC

Current 0.8A/115V 0.45/230V

Effi ciency 77% 79% 80% 81%

AC Inrush current Cold-start current 18A/115V 30A/230V

Leakage current < 0.5mA/240VAC

PROTECTION

Overload 105%~150% Type:pulsing hiccup shutdown Resete:auto recovery

Over voltage 5.75~6.75 13.8~16.2V 27.6~32.4V 55.2~64.81

200ms,100ms,30ms

ENVIRONMENT

Temperature coeffi cient

Working temperature and humidity -10C ~+60C,20%~90%RH

Store temperature and humidity -20C ~+85C,10%~95%RH

Overall dimension 85&times;58&times;37 311 100PCS/CARTON

SAFETY

Setup,rise,hold up time 200ms,100ms,30ms

Vibration 10~500Hz,2G 10min,/1 cycle

Withstand voltage Input and output internal:1.5KvAc,input and enclosure:1.5KvAc,Output and enclosure:0.5KvAc

Isolation resistance Input and output internal:Input and enclosure,Output and enclosure:500VDC/100M

STANDARD

CE EMC Authenticate EN55022:2010 EN61000-3-2:2006+AL:2009 EN61000-3-3:2008

EN55024:2010 EN55015:2006+AL2007+2009 EN61547:2009

OTHERS

Weight: 0.18Kg

Packing: According to your order,we can provide different cartons for you.

NOTE:

NOTE 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25&ordm;C of ambient temperature.

2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.

3. Tolerance: includes set up tolerance, line regulation and load regulation.

Product Size:

1. Item will be shipped within 5-7 business days.

2. Delivery Time:

----Via Air: Generally 1-3 working days

----Via Express: Generally 3-7 working days.

----Via China Post Air Mail: Generally 15-25 working days

----Via Sea: According to the order.

3.If you have not received your shipment within 30 days from payment,Please contact with us,We will track the shipment and get back to you as soon as possible with a reply.

&middot; We Ship to Worldwide, except APO/FPO.

&middot; Items are shipped from China using Airmail, reach most of the countries within 10 to 20 business days.

&middot; Delivery time depends on destination and other factors, it may takes up to 20 business days

&middot; Noted: Fedex Maybe charge handling charges at your country, we are not responsible for this charges.

Payment:

Payment method on Aliexpress Check here help.aliexpress.com/payment_method.html

Warranty and Guarantee:

&middot; 12 months Warranty. Buy with confidence!

&middot; If you are not satisfied when you receive your item, please return it within 14 days for a replacement or money back. Please contact me before you return it.

&middot; If item is defective in 3 months, We will send you a replacement without extra charges, or offer refund after we receive the defective item.

&middot; If item is defective after 3 months, you can still send it back to us. We will send you a new one after receiving the defective item. But you have to pay the extra shipping fee

Other Policies:

&middot; We are not responsible for any custom duty or import tax.

&middot; We will leave POSITIVE FEEDBACK after receiving the payment. Please contact us if you are not satisfied with the item after receive it.

&middot; All emails will be answered within 1 business day. If you do not receive our reply, please kindly re-sent your email and we will reply to you as soon as possible.

Serious Buyer Only! Please place bid only if you agree with all the terms

MingWei switching power supply factory is a set design, development, production in one of the high-tech professional manufacturers, the region is the first company to introduce Taiwan manufacturer of switch power supply technology, building in May 2001.

Custom Product Design

OEM/ODM

Profession in export service from Maker Electric

High quality Product, Affordable Price

Notes on choosing a switching power supply?

To increase the reliability of the S.P.S., we suggest users choose a unit that has a rating of 30% more power than actual need. For example, if the system needs a 100W source, we suggest that users choose a S.P.S. with 130W of output power or more. By doing this, you can effectively boost the reliability of the S.P.S. in your system.Make sure that the model qualifies for the safety standards and EMC regulations you need.

What are switching power supplies?

Switching power supplies input a commercial AC power supply (such as 110 VAC or 220 VAC), uses a high-speed semiconductor switching process to convert the input to high-frequency electric power, and yields a direct current (such as 24 VDC).
