AUX IN state

A:AUX mode to achieve external audio signal to the internal output

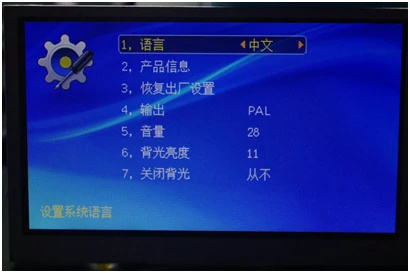

System settings

1. language: Chinese and English

2. product information: display memory card or USB capacity

3. restore factory settings: Yes / no

4. output: NTSC, PAL

5. volume: current volume

6. backlight brightness: set LCD backlight brightness

7. turn off backlight: set LCD backlight delay closing time

Function brief introduction

Support SD or USB read 128G TF Card

Support FM radio function 87~108M

Support Bluetooth receive function: Bluetooth version 4.2

Support video playback format: RM/RMVB MKV AVI MPG FLV WMV MP4/M4V MOV VOB PMP

(RM, RMVB, DVD, SVCD, VCD, DVCD, DVIX, FLV, MKV, AVI and other standard formats)

Support audio playback format: MP3 WMA OGG FLAC APE AAC AC3 ATRA DTS

Support for picture browsing format: JPEG BMP GIF PNG

EBook browsing format: TXT LRC.C

Functional characteristics:

5V DC power supply, supports U disk, SD card, USB hard disk interface;

Support a variety of coding formats MPEG-1, MPEG-2, MPEG-4, H264 XVID video decoder up to 1280*720., built-in 2 channel output

Support Bluetooth receive function: Bluetooth version 4.2

Dynamic setting function, digital album flowing smoothly,

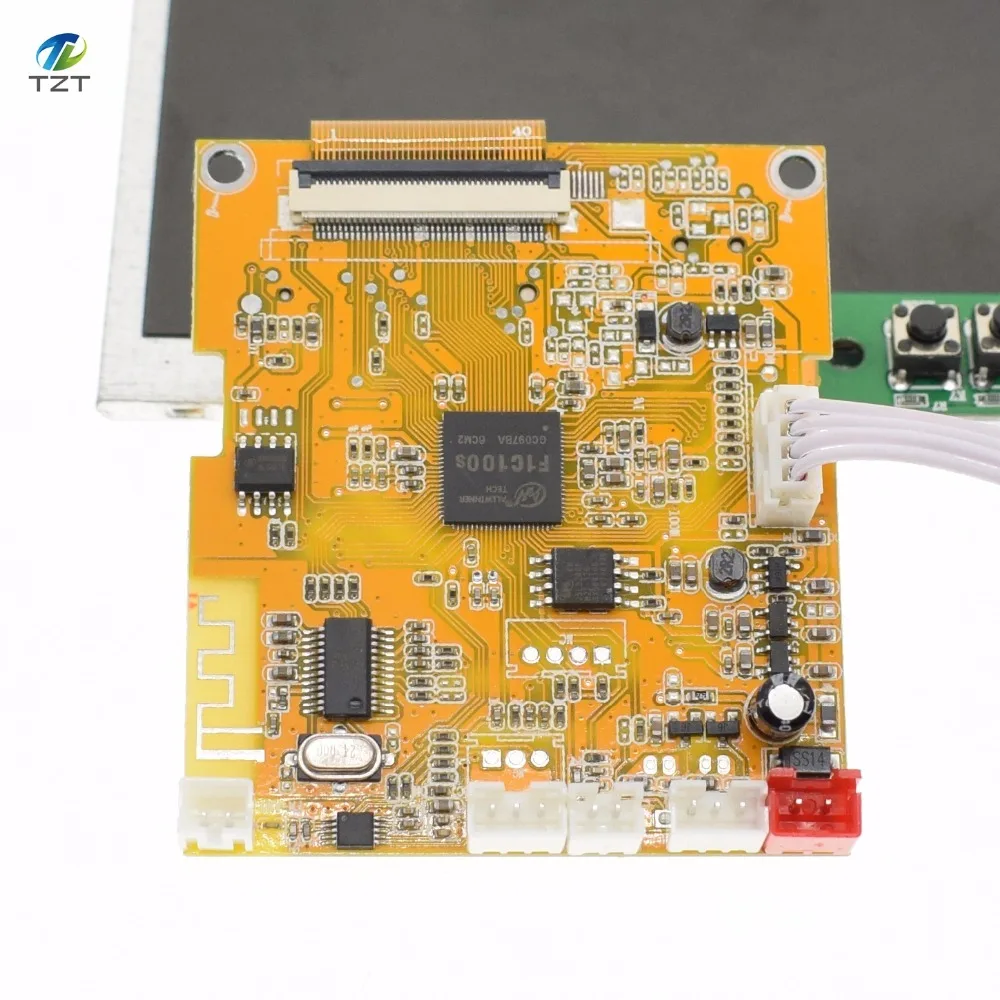

Main control built-in package 16*16 DDR memory

Computer pull-down menu setting, more convenient and comfortable operation;

Super compatible with RM, RMVB, DVD, SVCD, VCD, DVCD, DVIX, FLV, MKV, AVI, MP3 and other standard format, fluent interpretation of MP3, WMA, OGG, FLAC, ACC, APE;

Support the e-book function and browse the TXT text easily

Multi language support (default Chinese, English, other languages can be added as required),

Video output support: CVBS (through video mode menu options TV-OUT implementation, video output)

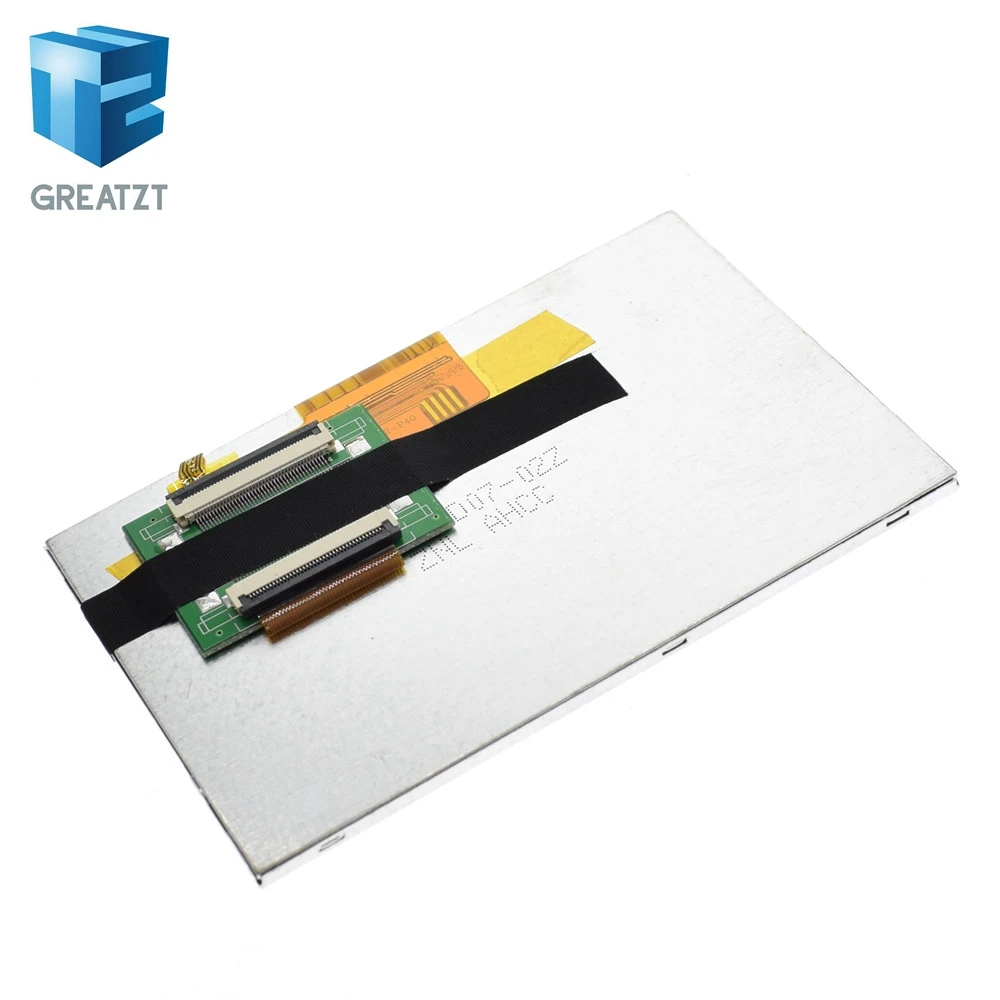

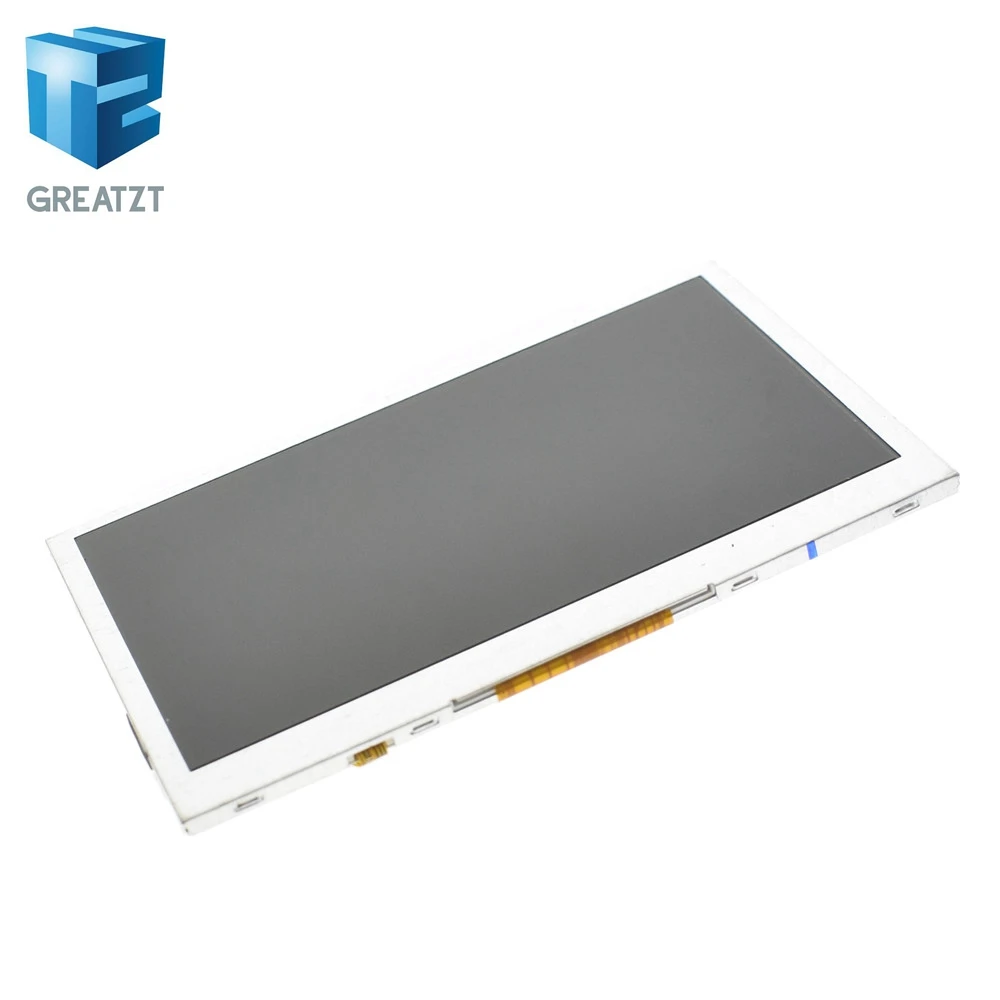

LCD screen: support 4.3 inch LCD display

Audio output support: stereo (R/L)

VFD/LCD/LED can be configured to do all kinds of functional display (need development interface);

It can be built in FAT32 format, large capacity hard disk, you can easily in multi partition hard disk, you like the film, music, pictures

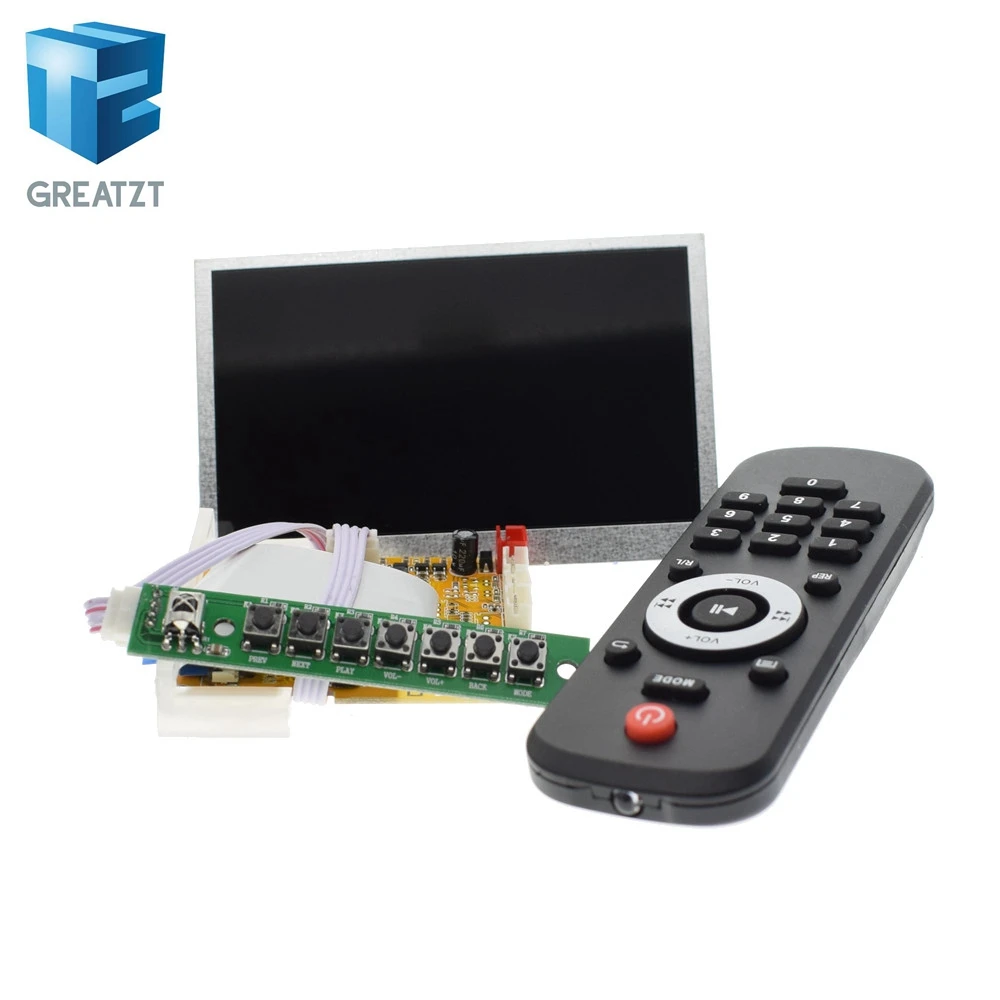

Convenient and quick infrared remote control operation,

Support HD video resolution (1280*720)

Supporting resolution in RM/RMVB format is (1280*720)

Supporting picture format: JPEG, BMP, Kodak PICTURE, CDG;

Video formats: RM, RMVB, DVD, SVCD, VCD, DVCD, DVIX, MPEG4, AVI, VOB, etc.;

Play audio formats: MP3, WMA, HDCD; OGG, FLAC, ACC, APE

FM radio 87.0---108.0MHZ

With AUX input,

Software intelligence upgrade

Application range:

HDCD VOB, CDG, MPEG4 AVI DIVX5.1 format digital photo frame, PMP, advertising machine can be done;

TV BOX products, with the existing TV set, you can watch movies in the TV, listen to music, browse digital photos;

For speaker, HD TV, LCD display, set top box, HDMI, projector manufacturers, embedded applications and other supporting board services;

Provide guidance for connection interface and connection method. Can also be customized according to the actual needs of customers.

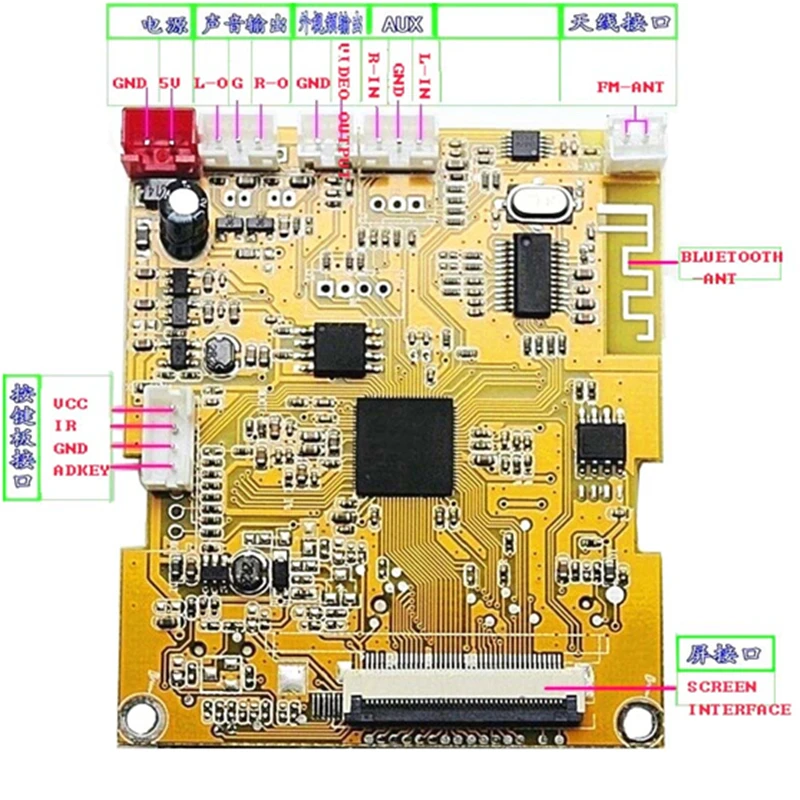

Output interface

Power supply interface: 5V 1A

Video output interface: CVBS (composite video output)

Audio output interface: left and right channel analog signal output

Audio input interface: AUX (left and right channel analog signal input)

Support USB hard disk insert play directly, USB hard disk supply current enough

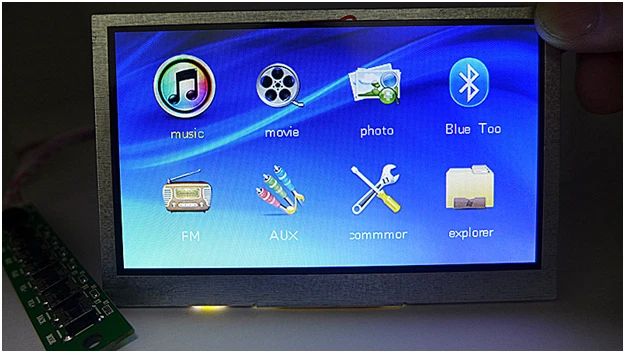

Figure 1: product home page

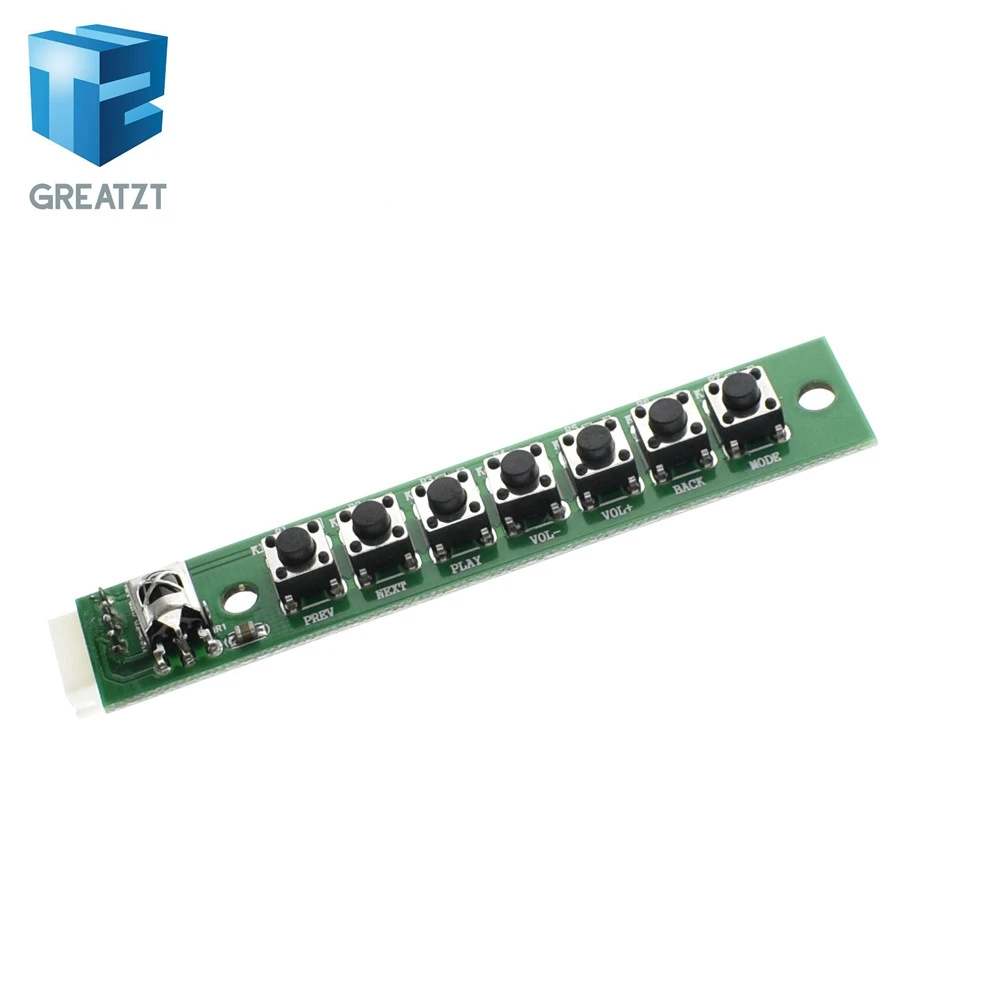

Through the remote control or button on the song / next song select icon, play pause key into the relevant function

MUSIC (Music) mode

When the SD card or USB has music, you can enter the music playing mode by moving icons

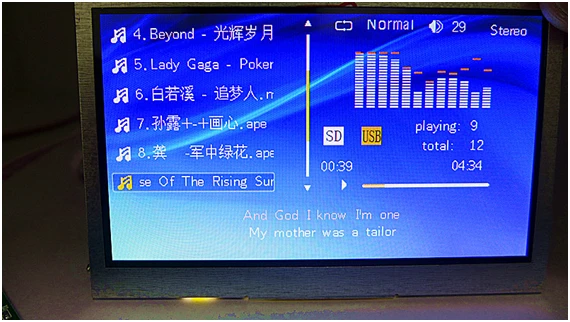

Music player interface, support post insert priority - insert, know play

MOVIE (video) mode

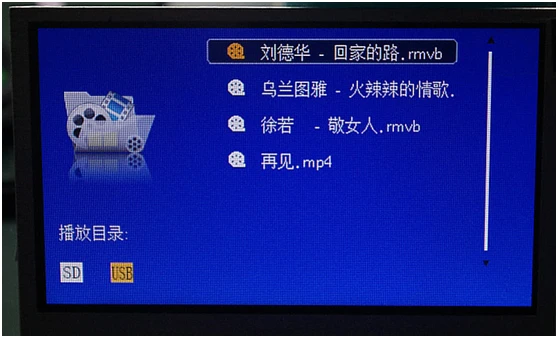

Play back the video in the selectable list

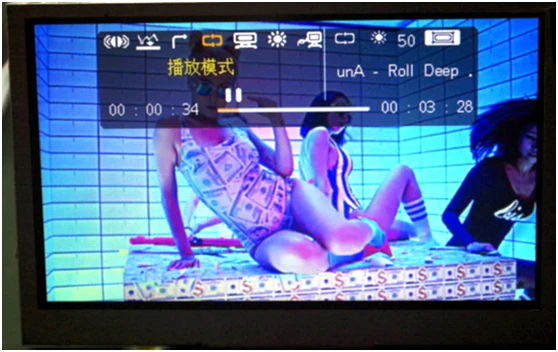

Video playback interface - by setting up the menu

1. channel selection: left, right, stereo;

2. time choice: setting time;

3. play modes: sequential play, random play, single play, all cycles;

4. screen selection: full screen, original, stretch, pull width, automatic

5. video output: 4.3 inch LCD screen (TV-OUT video mode only select video output through menu)

Press the up and down it for fast, fast release to stop

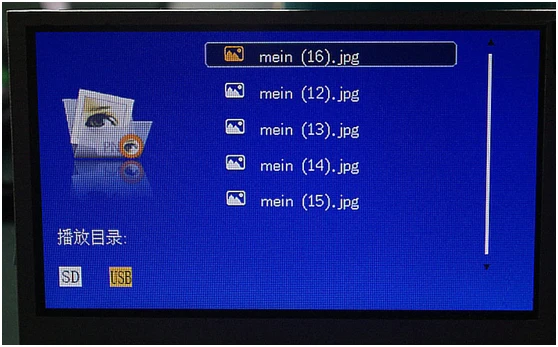

PHOTO (picture) mode

Automatically read the memory card or U disk pictures, according to the play button can play turns

Press menu button to bring up the setup menu

Select the picture file by moving cursor up and down, click the play key to confirm the playback

Through the remote control menu button to bring up the menu

1. magnification: image magnification (press PLAY/PAUSE key)

2. rotation: rotate 90 degrees clockwise

3. brightness: 1-9

4. effects: default, fade, horizontal blinds, vertical blinds, drag up and down drag, drag, drag to the right, to start up, down, left and right expansion expansion expansion, narrowing, amplification, mosaic, random. (Note: remote)

5. speed: slow, medium, fast, self defined (0-59)

6. proportion

(1) automatic

(2) primitive

3: cutting

Tensile test

C: exit the album and press the return key

FM (radio) mode

A: press the play / pause button to enter the FM main interface

B: short auto press / pause key to search the radio automatically

There are three kinds of c: radio search channels, which are called by menu key

1. automatic search

Channel 2. selection

3. manual search

D: returns the radio by pressing back

Bluetooth mode

Enter Bluetooth mode, open the phone Bluetooth search Bluetooth, click and phone pairing, you can receive mobile phone audio
