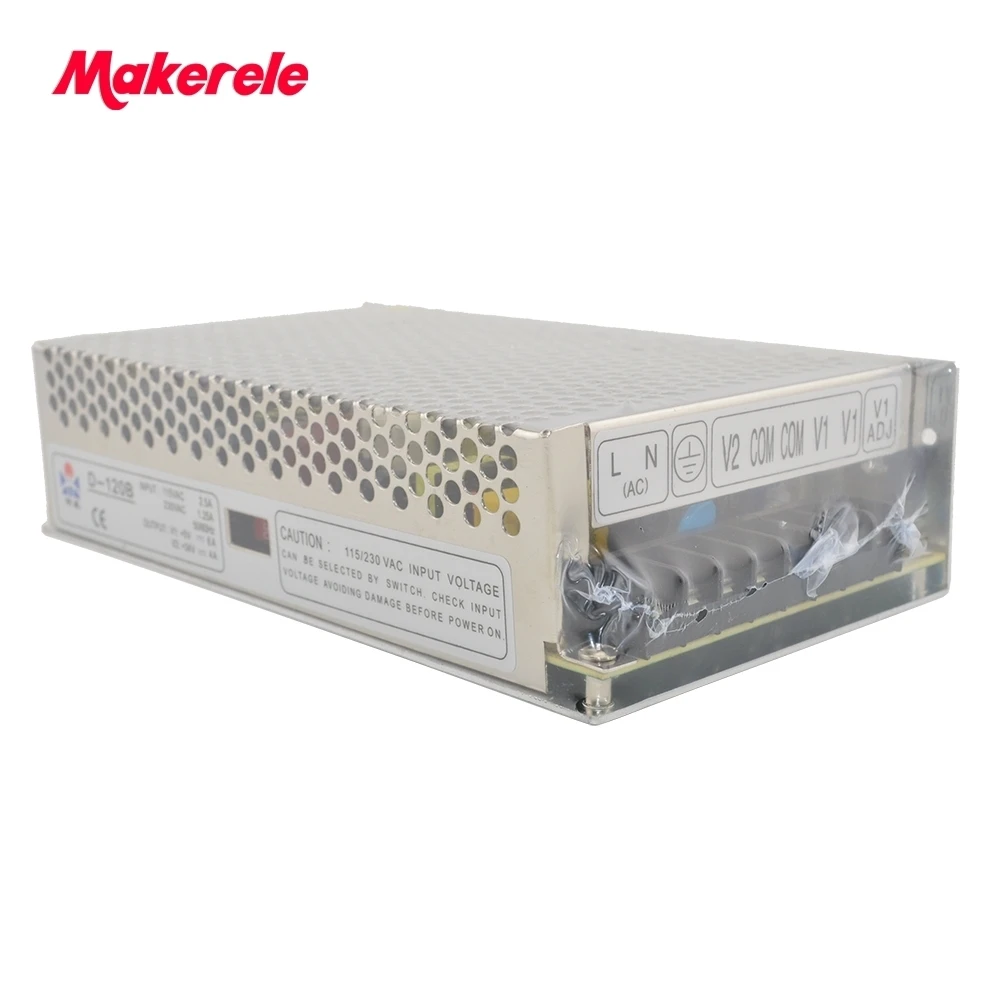

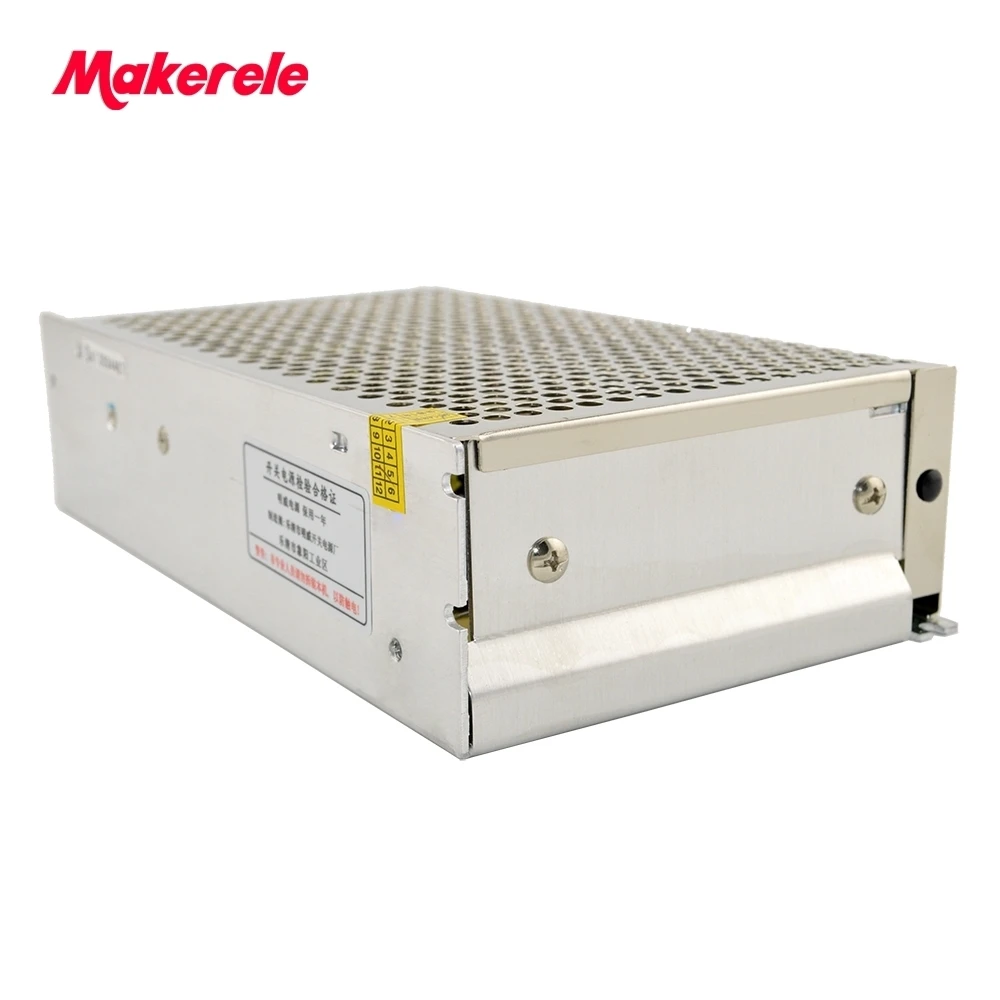

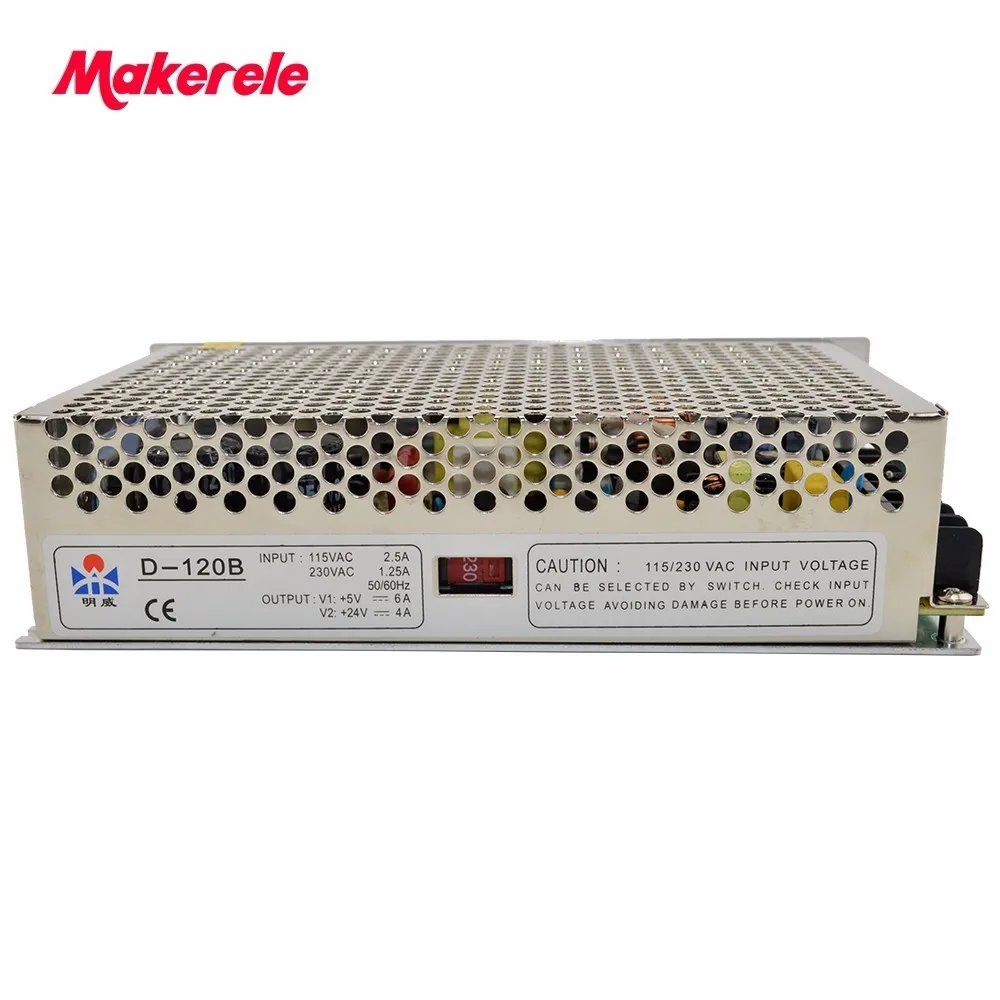

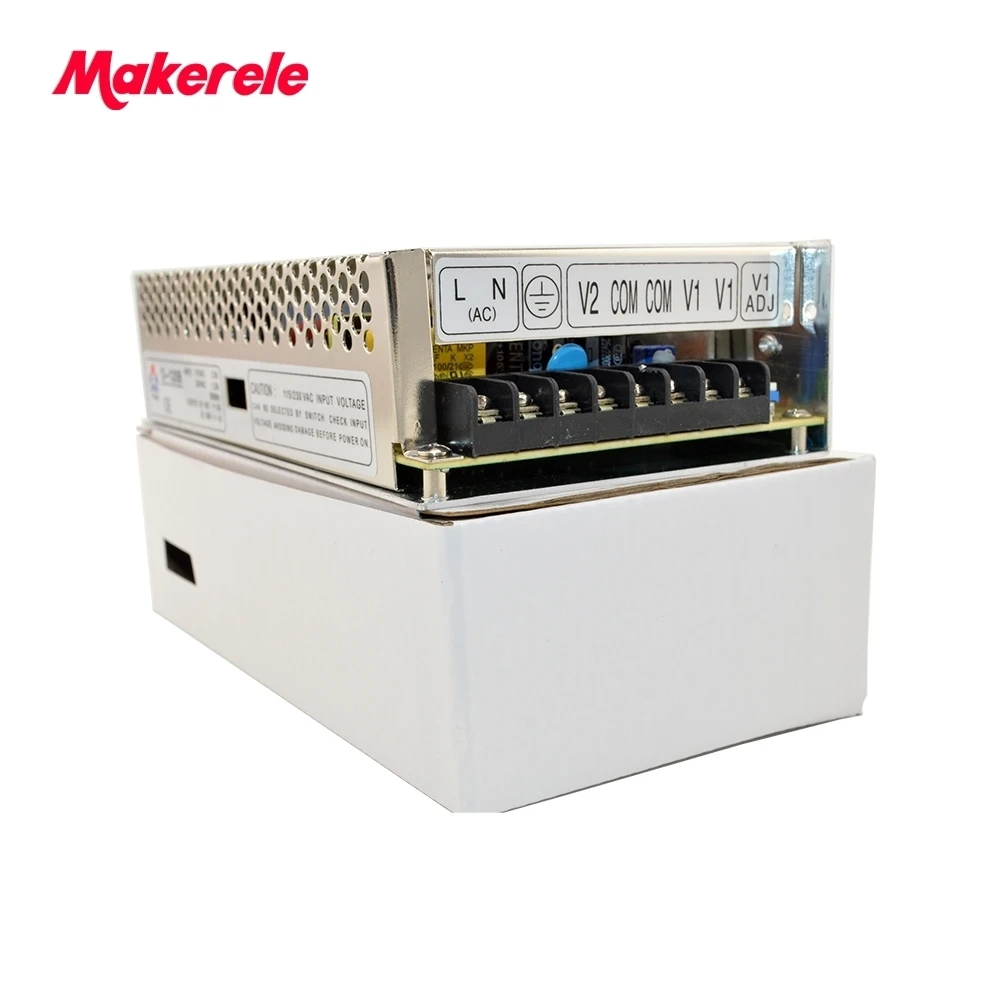

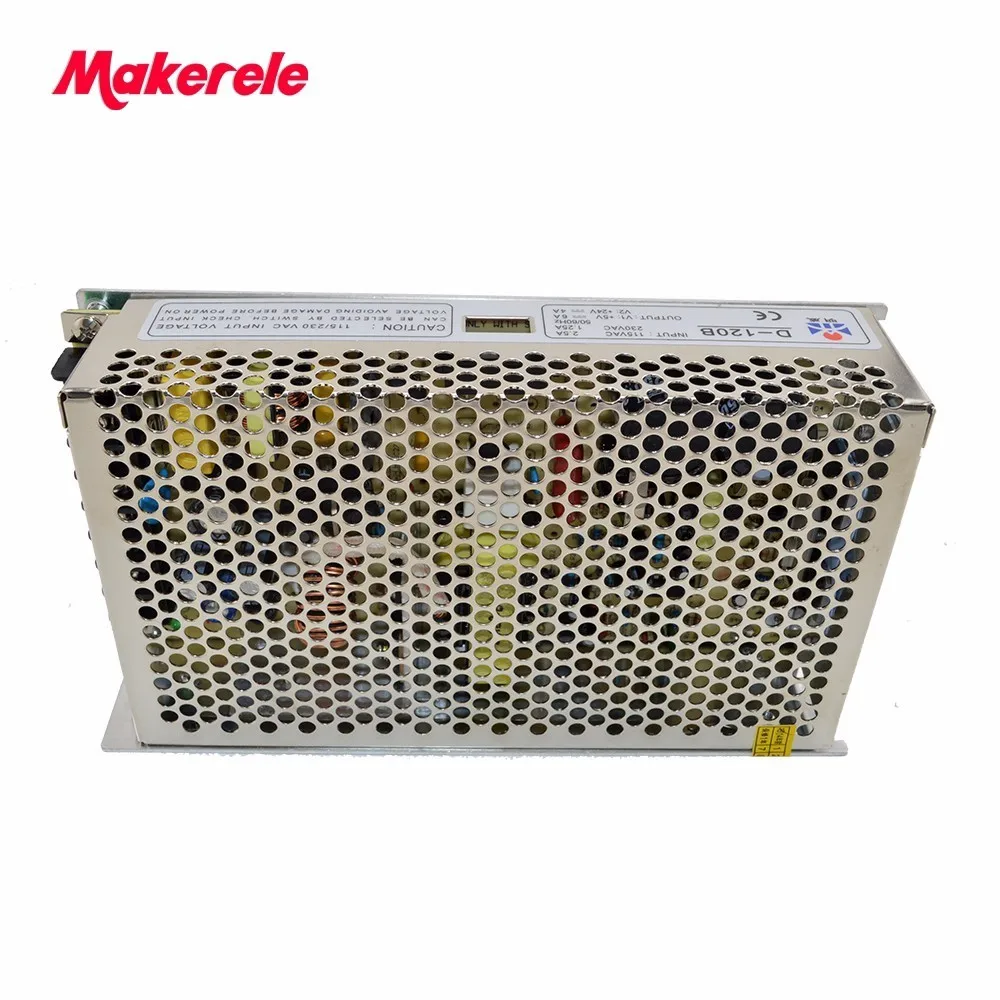

15 В 120 Вт двойной выход моделью коммутации питания переменного тока в DC 4A типа

15 В 120 Вт двойной выход моделью коммутации питания переменного тока в DC 4A типа

Notice:

Please make sure the input voltage, output voltage and current in item specs when placing orders. Or we\'ll arrange the one as the item specs says.

INPUT

Voltage Range 88-132 VAC / 176~264VAC47~63 Hz;selected by switch 248-370VDC

AC Current 2.8A/115 V1.6A/ 230 V

Efficiency 78%(SKD-120A-CH1);78%(SKD-120A-CH2);80%(SKD-120A-CH1);80%(SKD-120A-CH2);

Inrush Current Cold start 35A

Leakage Current <3.5mA/240VAC

PROTECTION

Over Load 105%-135%

Protection type: Shut down o/p voltage , re-power on to recover

Over Voltage 115%-135%

Protection type: Shut down o/p voltage , re-power on to recover

ENVIRONMENT

Working Temp., Humidity -10C-+60C;20%~90 %RH

Storage Temp., Humidity -20C-+85C;10%~95 %RH

Vibration 10-500Hz,2G 10min/1cycle, period for 60min, each along X, Y, Z axes

SAFETY

Withstand Voltage I/P-O/P: 3KVACI/P-FG: 1.5KVACO/P-FG:0.5KVAC

Isolation Resistance I/P-O/P, I/P-FG, O/P-FG: 100M Ohms/500VDC

STANDARD

Safety Standard Design refer t o 1950,TUV EN60950

EMC Standard Design refer to EN55022 (CISPR22), EN61000-3-2,-3,EN61000-4-2,3,4,5,6,8,11; ENV50204, EN55024

OTHERS

Weight 0.82Kg

NOTE:

1.All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25C of ambient temperature.

2.Ripple & noise are measured at 20MHz of bandwidth by using a 12twisted pair-wire terminated with a 0.1 &47 parallel capacitor.

3.Tolerance: includes set up tolerance, line regulation and load regulation.

Product Size:

1. Item will be shipped within 5-7 business days.

2. Delivery Time:

----Via Air: Generally 1-3 working days

----Via Express: Generally 3-7 working days.

----Via China Post Air Mail: Generally 15-25 working days

----Via Sea: According to the order.

3.If you have not received your shipment within 30 days from payment,Please contact with us,We will track the shipment and get back to you as soon as possible with a reply.

MingWei switching power supply factory is a set design, development, production in one of the high-tech professional manufacturers, the region is the first company to introduce Taiwan manufacturer of switch power supply technology, building in May 2001.

Custom Product Design

OEM/ODM

Profession in export service from Maker Electric

High quality Product, Affordable Price

Notes on choosing a switching power supply?

To increase the reliability of the S.P.S., we suggest users choose a unit that has a rating of 30% more power than actual need. For example, if the system needs a 100W source, we suggest that users choose a S.P.S. with 130W of output power or more. By doing this, you can effectively boost the reliability of the S.P.S. in your system.Make sure that the model qualifies for the safety standards and EMC regulations you need.

What are switching power supplies?

Switching power supplies input a commercial AC power supply (such as 110 VAC or 220 VAC), uses a high-speed semiconductor switching process to convert the input to high-frequency electric power, and yields a direct current (such as 24 VDC).

What about production process of switching power supply?
