    Характеристики

    SFX-4000B Portable EDM Electrical Spark Erosion Machine Remove Broken Screw | Wire

    Описание товара

    Brand NameSFXModel NumberSFX-4000BConditionNewCNC or NotNormalMeasurement unitpiece/piecesEach pack1Input VoltageAC220V±10%Input Power(W)3000WElectrode diameter(mm)2~24Can Remove Taps Size(mm)≥M2Power Frequency50HzWorking LiquidTap WaterPacking Size(mm)525*325*460ColorYellowGross weight(kg)24kgModel NumberSFX-4000B

    Unavailable in

    Description SFX-4000B Portable EDM Electrical Spark Erosion Machine Remove Broken Screw

    Three panel for the machines

    Input Voltage AC220V±10% Input Power(W) 300~3000 Dielectric Liquid Tap Water Max Process Depth of spindle servo(mm) 70 Max Processing Speed(mm/min) ≈2 Electrode Diameter(mm) 2~13 Set Depth Alarm Automatically for Certain Depth Adjustable Current Stepless Adjustment Power box size(mm) 420*220*370 Packing Size(mm) 525*325*460 Gross Weight(kg) 24kg FOB Price 2380.00USD

    Working principle of Portable EDM

    SFX-4000B Portable EDM drilling machine (portable EDM machine to cut off the tap)  abide by the principle of Spark Erosion to remove broken tools,no direct contact, thus, no external force and damage to the workpiece.The common methods of removing broken taps and drills are smashing items by hand, screwing them out after welding, or even acid corrosion and flame cutting, which contribute to low efficiency and damage to workpieces.



    specification of tap remover

    Portable EDM-8C Broken Tap Remover Small Edm Wire Electrical Discharge Machine(portable EDM punching machine, spark punching machine, tap extractor,tap burner,metal disintegrator) can fast remove broken taps, drill, drift, screw, plug gauge, etc., without damaging to the work piece, easily process on work pieces at any size, especially effective for large machine tools. The integral construction of this machine left a space for storage at the bottom of the power box which is convenient for managing the attachments. With a high efficiency in processing, it could remove broken tap, screw and is especially good at processing mark.



    Components of SFX-4000B Portable EDM Electrical Spark Erosion Machine Remove Broken Screw

    Working part: power box, operation panel, work head, water pump, magnetic base. Power box: The power box of PortablE EDM is portable designing unit.
    The carrying handle on the top of power box is good for carrying. Assist devices: power cable, high-frequency cable, control cable, water pipe, magnetic external water supply pipe, electrode chuck, adapter sleeve, etc. Consumptive materials: brass tube, brass bar, hexagon electrode, brass sheet.

    HTB17cHbiwaTBuNjSszfq6xgfpXaw

    3 certification

    Portable EDM Broken Tap Remover Machine

    HTB1xgLTir1YBuNjSszhq6AUsFXaU

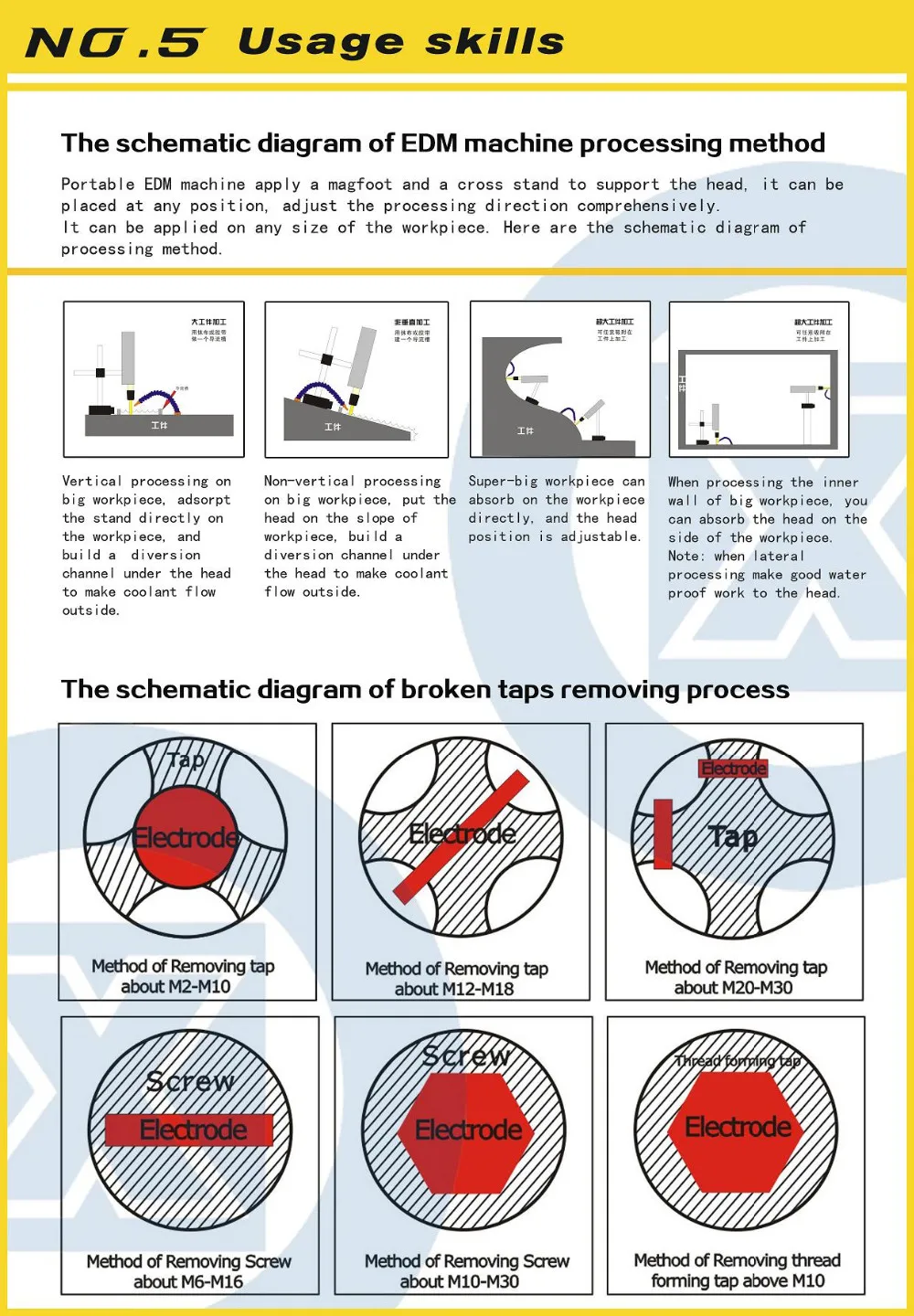

    Portable EDM Broken Tap Remover Machine

    Electrode discharge area is generally about 0.3mm diameter larger than themselves. For example, an electrode of 3mm diameter could process a hole of 3.3 diameter. The electrode should be chosen according to the actual processing conditions to avoid injury to thread and the discharge area should be considered.
    Selection of electrodes for removing general broken objects should reference following table:

    Broken Items Size



    Electrodes Recommended



    Remarks

    Tap

    M3



    1.5



    For the electrodes,
    the shorter, the better.
    (there will be less jitter with short electrode.)

    Tap

    M4



    2.0



    Tap

    M6



    3.0



    Tap

    M8



    4.0



    Tap

    M10



    5.0



    Tap

    M12



    6.0



    Tap

    M14



    7×2



    Sheet electrode

    Tap

    M16



    8×2



    Tap

    M20-30

    10×2
    Sheet electrode



    Taps above M20 can be processed by several times.

    Screw

    M3-M20

    Method Recommended: drill a straight, triangular, square or hexagonal groove, and remove it with matching tools.



    HTB1nr4ciSBYBeNjy0Feq6znmFXaI

    FAQ:

    1. Will your machine could operate on 110V/60HZ input voltage
    Answer: Sure, the standard equipment is for 220VC+/-10%, 1 phase, 50/60HZ input voltage, while a transfer will be matched for lotal voltage, by the way, if the quantity is enough, custome design is available.
    2. Do you offer a pump for through the electrode flushing
    Answer: Yes, a water pump is included in the parts,and you need to buy nothing else to start operating.
    3. If the chucks rotate when they are machining
    Answer: The chuck won't rotate when machine working.
    4. What's your delivery method
    Answer: The machine will be delivered by internatiol express such as TNT, Fedex, DHL, etc
    5. What about the delivery time
    Answer: The machine will be delivered from our factory within 72 hours after the 100% deposit checked.
    6. What's the payment terms
    Answer: We accept T/T, Western Union, Paypal, etc payment terms.

    WARRANTY POLICIES

    First of all,our product will have to go through a thorough quality exam process to ensure that our devices won’t have any glitch before delivery.
    Secondly,the warranty period is usually around one year and within this time frame,if there are any technical problems,we would repair them for free including the new parts that needed for the repair.
    PS:we would offer free repair only when the damages are caused by technical deficiencies of the product itself, not man made errors, namely,the damages were done by mishandling the machine.repair.
