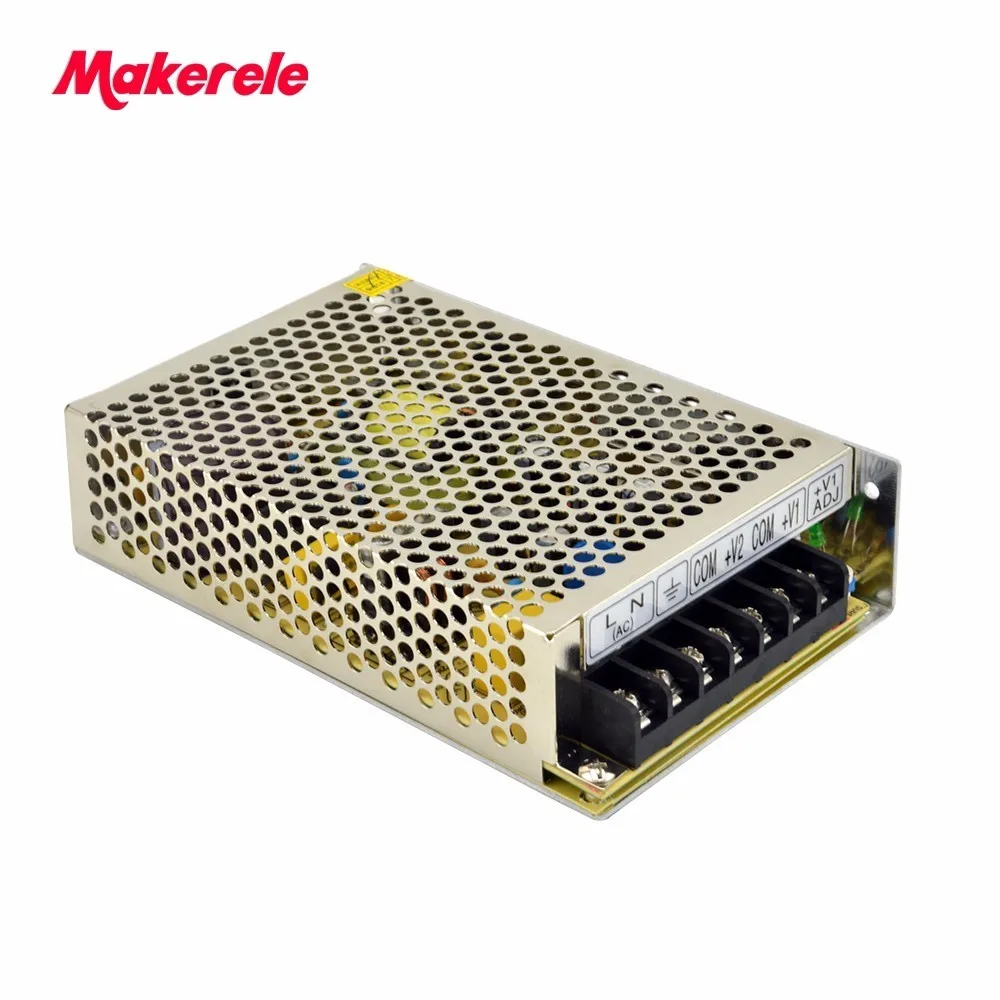

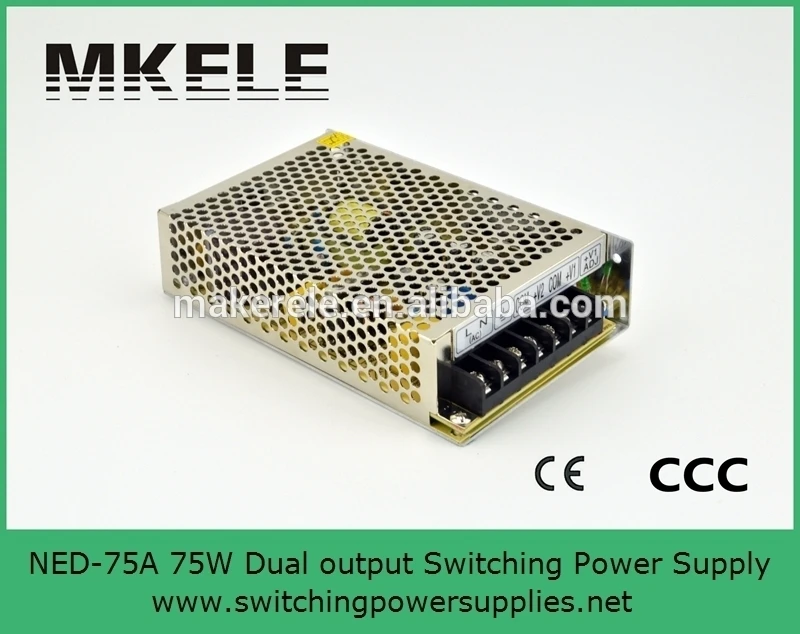

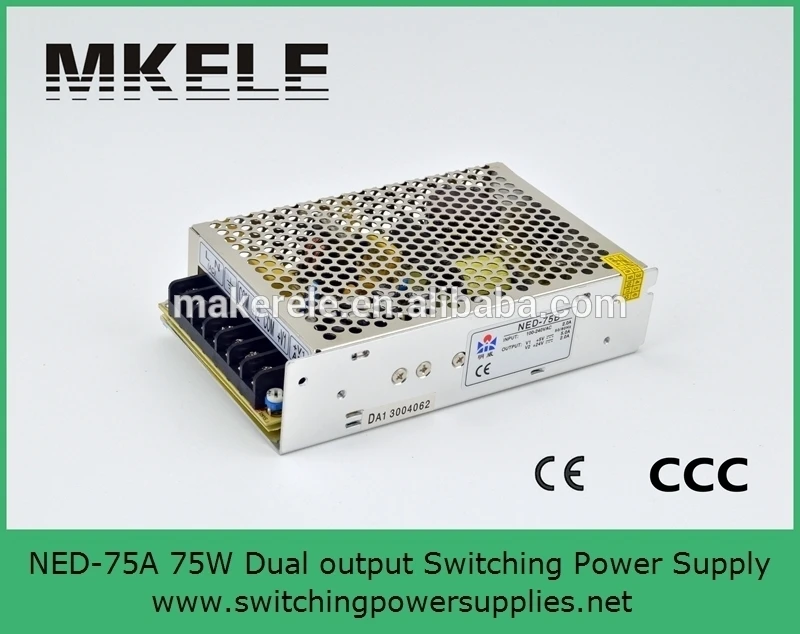

MODEL

NED-75A

OUTPUT

OUTPUT NUMBER

CH1

CH2

DC VOLTAGE

5V

12V

RATED CURRENT

7A

3A

CURRENT RANGE Note. 6

1~ 8A

0.3 ~ 4A

RATED POWER

71W

RIPPLE & NOISE (max.) Note.2

80mVp-p

120mVp-p

VOLTAGE ADJ. RANGE

CH1: 4.75 ~ 5.5V

VOLTAGE TOLERANCE Note.3

2.0%

6.0%

LINE REGULATION Note.4

0.5%

1.0%

LOAD REGULATION Note.5

1.5%

3.0%

SETUP, RISE TIME

500ms, 30ms/230VAC 1200ms, 30ms/115VAC at full load

HOLD UP TIME (Typ.)

50ms/230VAC 10ms/115VAC at full load

INPUT

VOLTAGE RANGE

85 ~ 264VAC 120 ~ 370VDC

FREQUENCY RANGE

47 ~ 63Hz

EFFICIENCY (Typ.)

78%

AC CURRENT (Typ.)

1.5A/115VAC 0.9A/230VAC

INRUSH CURRENT(Typ.)

COLD START 45A

LEAKAGE CURRENT

Less than 2mA / 240VAC

PROTECTION

OVER LOAD

110 ~ 150% rated output power

Protection type: Hiccup mode, recovers automatically after fault condition is removed

OVER VOLTAGE

CH1: 5.75 ~ 6.75V

Protection type: Shut down o/p voltage, re-power on to recover

ENVIRONMENT

WORKING TEMP.

-20 ~ +60C (Refer to derating curve)

WORKING HUMIDITY

20 ~ 90% RH non-condensing

STORAGE TEMP., HUMIDITY

-40 ~ +85C , 10 ~ 95% RH

TEMP. COEFFICIENT

0.03%/C (0~45C)

VIBRATION

10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes

SAFETY & EMC (Note 7)

SAFETY STANDARDS Note.6

UL60950-1, CB(IEC60950-1) approved

WITHSTAND VOLTAGE

I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC

ISOLATION RESISTANCE

I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25C/ 70% RH

EMC EMISSION

Compliance to EN55022 (CISPR22) Class B, EN61000-3-2,-3

EMC IMMUNITY

Compliance to EN61000-4-2,3,4,5,6,8,11, EN55024, EN61000-6-1, light industry level, criteria A

OTHERS

MTBF

381.3Khrs min. MIL-HDBK-217F (25C )

DIMENSION

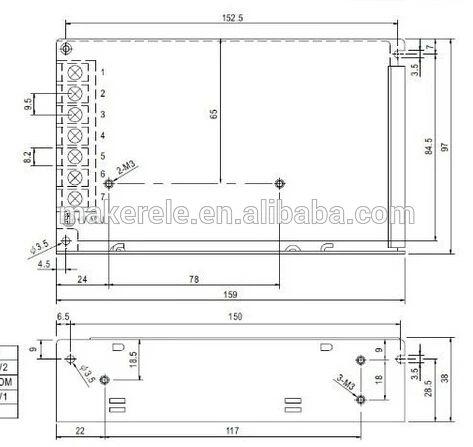

159*97*38mm (L*W*H)

PACKING

0.52Kg; 30pcs/16.6Kg/0.797CUFT

NOTE

1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25C of ambient temperature.

2. Ripple & noise are measured at 20MHz of bandwidth by using a 12 twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.

3. Tolerance: includes set up tolerance, line regulation and load regulation.

4. Line regulation is measured from low line to high line at rated load.

5. Load regulation is measured from 0% to 100% rated load.

6. Each output can work with current range. But total output power cant exceed rated output power.

7. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives.
