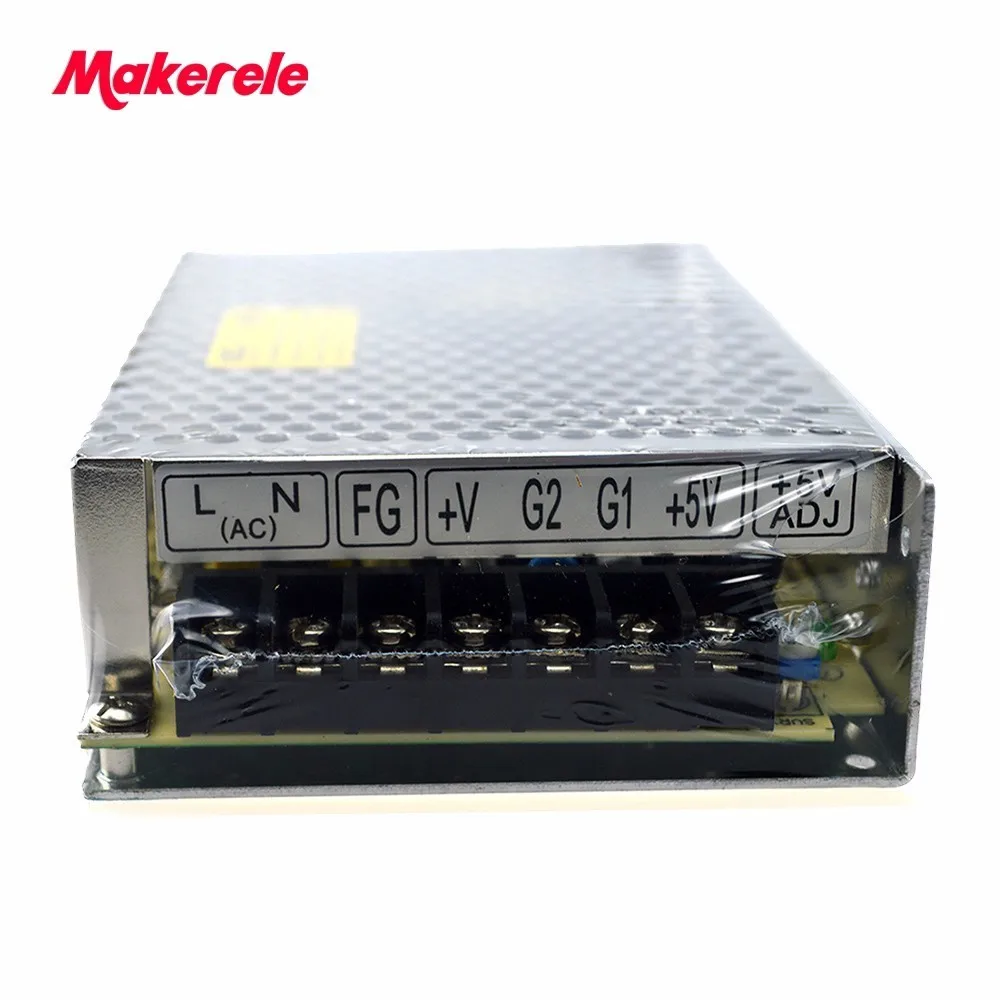

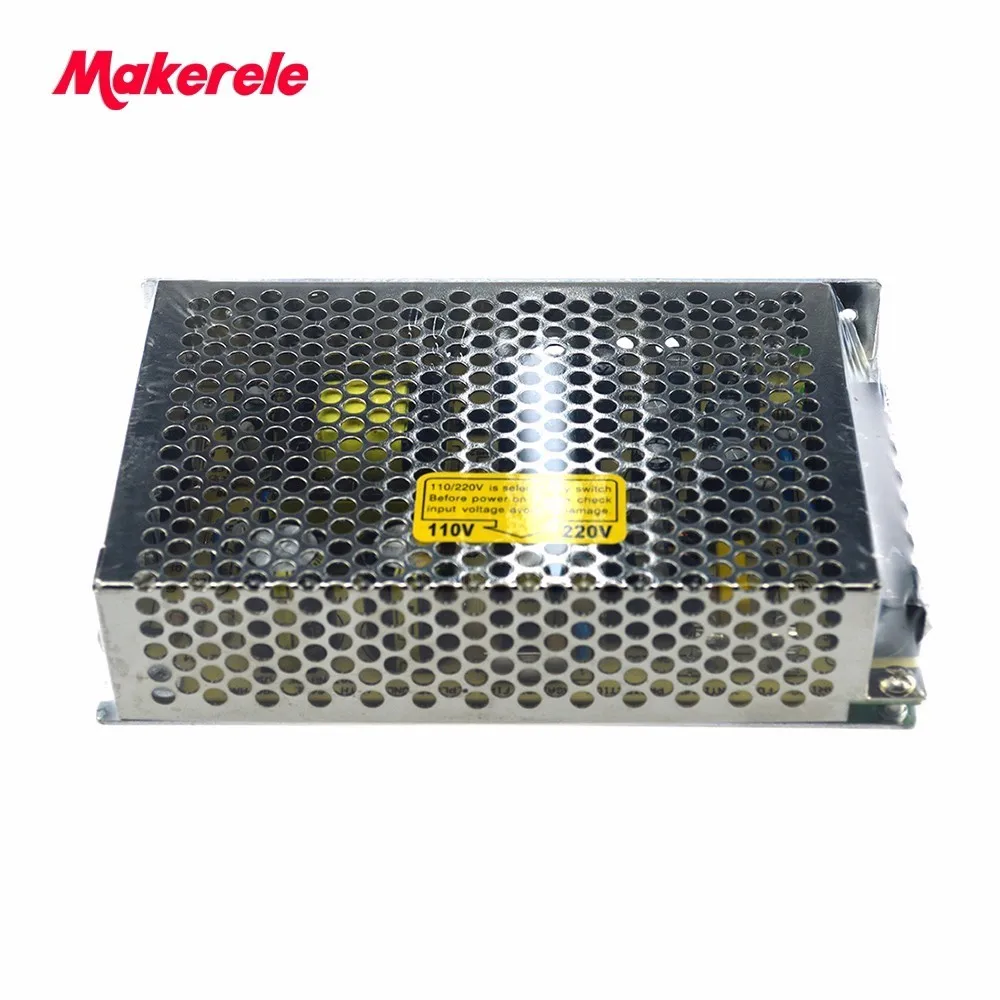

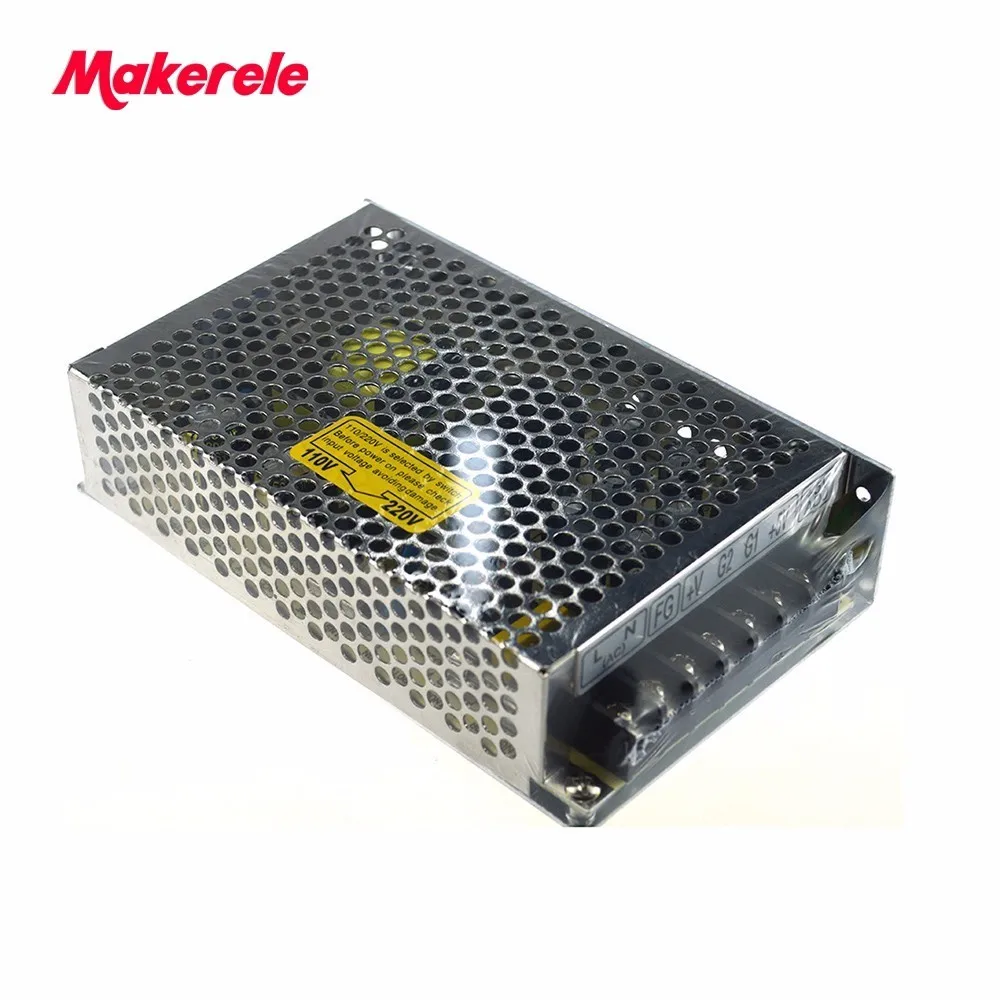

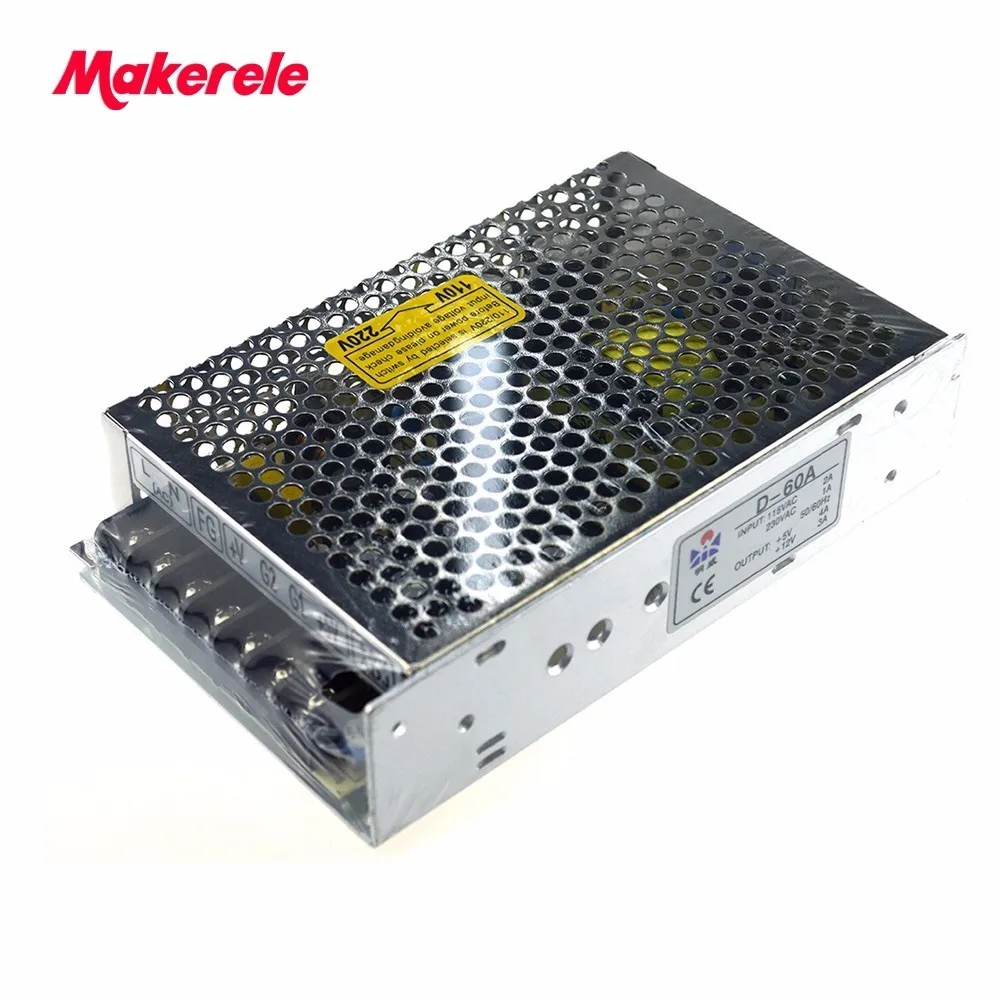

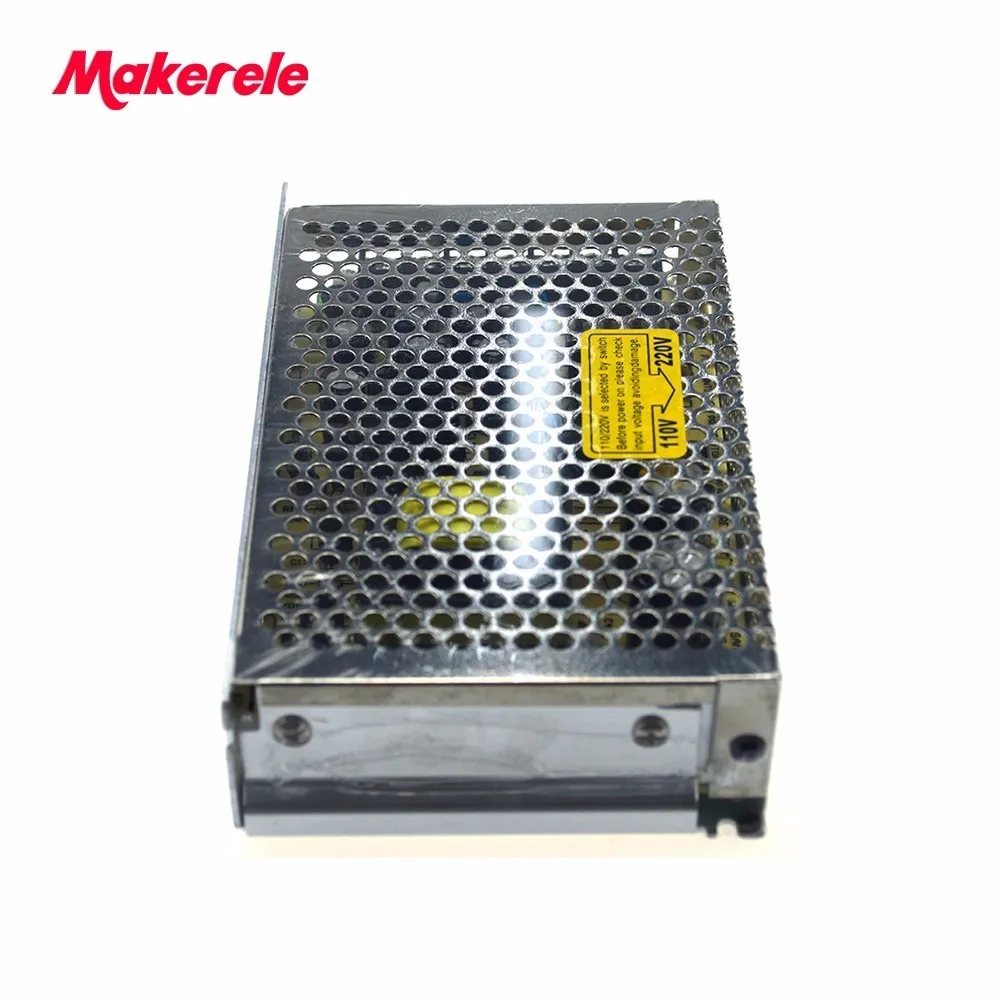

dual Output ac to dc Switching power supply 60W 5V 4A 12V 3A AC DC Free Shipping D 60A high quality|dual output|switch powerswitching |

dual Output ac to dc Switching power supply 60W 5V 4A 12V 3A AC DC Free Shipping D 60A high quality|dual output|switch powerswitching |

Notice:

Please make sure the input voltage, output voltage and current in item specs when placing orders. Or we\'ll arrange the one as the item specs says.

Model

D-60A

D-60B

CH1

CH2

CH1

CH2

DC Voltage

5V

12V

5V

24V

Voltage Tolerance

2%

6%

2%

5%

Rated Current

4A

3A

3A

1.8A

Current Range

0.3-6A

0.2-4A

0.3-6A

0.2-2.2A

Rated Power

56W

56W

58W

58W

Ripple & Noise

75 mVp-p

150 mVp-p

75mVp-p

150mVp-p

DC Adjustment Range

CH1: -5%,+10%

Setup,Rise,Hold Time

300ms,50ms ,80ms/230VAC 800ms,50ms,10ms/115VAC at full load

INPUT

Voltage Range 85~264 VAC/ 47~63 Hz; 120~370VDC

AC Current 2A/115 V 1A/ 230 V

Efficiency 73%(SKD-30A); 73%(SKD-30B)

Inrush Current Cold start 30A/115VAC 60A/230VAC

Leakage Current <3.5mA/240VAC

PROTECTION

Over Load 105%~150%

Protection type: Shut down o/p voltage, recovers automatically after fault condition is removed

ENVIRONMENT

Working Temp., Humidity -10C~+60C;20%~90 %RH

Storage Temp., Humidity -20C~+85C,10%~95 %RH

Vibration 10~500Hz,2G 10min./1cycle,period for 60min, each along X, Y, Z axes

SAFETY

Withstand Voltage I/P-O/P: 1.5KVACI/P-FG: 1.5KVACO/P-FG: 0.5KVAC

Isolation Resistance I/P-O/P, I/P-FG, O/P-FG: 100M Ohms/500VDC

STANDARD

Safety Standard Design refer to UL1012 , UL60950 ,EN60950

EMC Standard Design refer to EN55022(CLSPR22),EN61000-3-2,-3, EN61000-4-2,3,4,5,6,8,11; ENV50204, EN55024

OTHERS

Weight 0.54Kg

Packing 30pcs/16.7Kg/0.99CUFT

NOTE:

1.All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25C of ambient temperature.

2.Ripple & noise are measured at 20MHz of bandwidth by using a 12twisted pair-wire terminated with a 0.1 &47

parallel capacitor.

3.Tolerance: includes set up tolerance, line regulation and load regulation

Product Size:

MingWei switching power supply factory is a set design, development, production in one of the high-tech professional manufacturers, the region is the first company to introduce Taiwan manufacturer of switch power supply technology, building in May 2001.

Notes on choosing a switching power supply?

To increase the reliability of the S.P.S., we suggest users choose a unit that has a rating of 30% more power than actual need. For example, if the system needs a 100W source, we suggest that users choose a S.P.S. with 130W of output power or more. By doing this, you can effectively boost the reliability of the S.P.S. in your system.Make sure that the model qualifies for the safety standards and EMC regulations you need.
