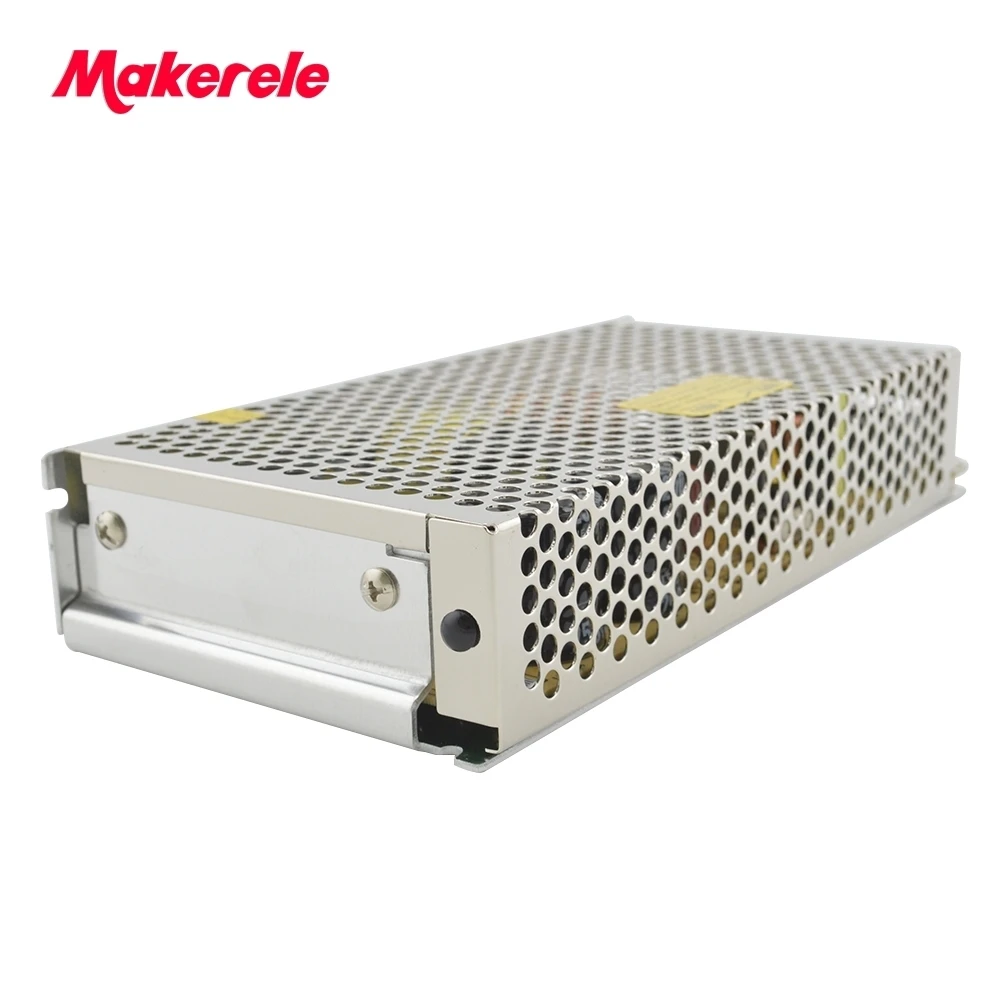

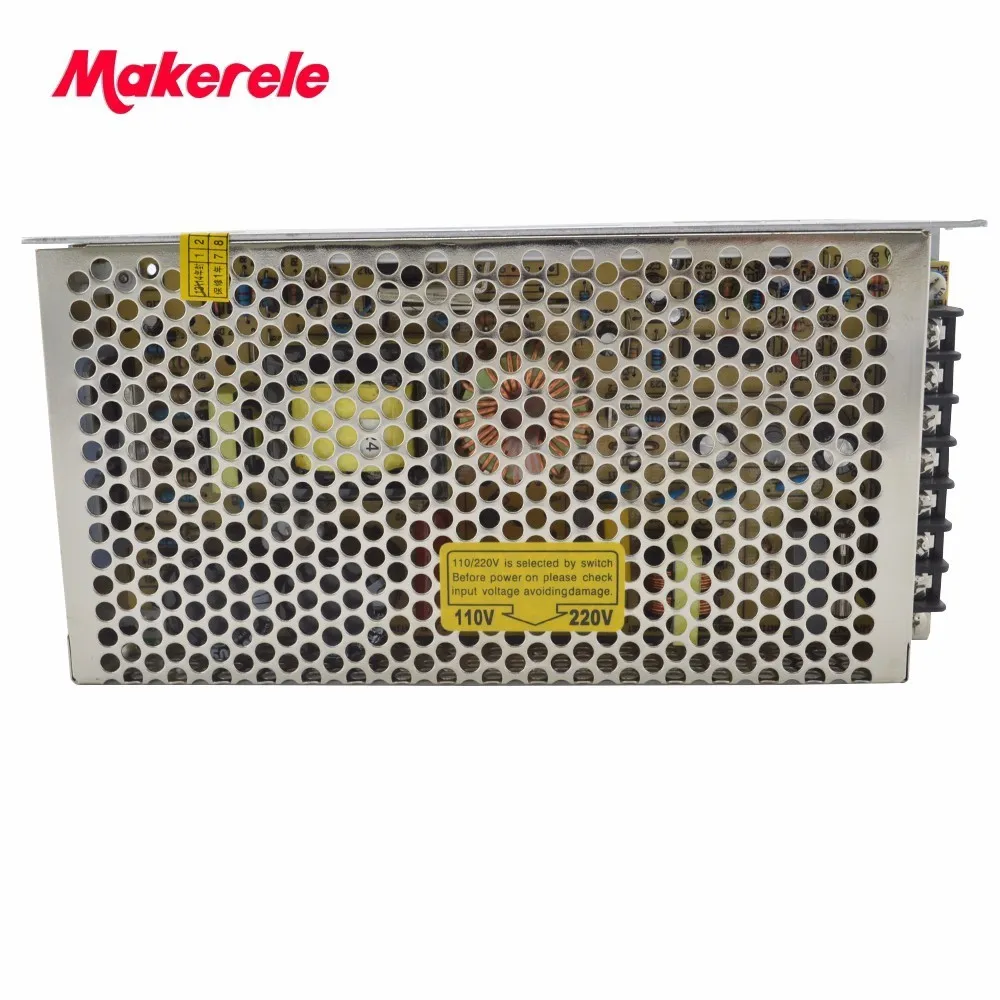

Высокая эффективность 150 Вт 20A 7.5 В один Выход Импульсный источник питания NES CE

Высокая эффективность 150 Вт 20A 7.5 В один Выход Импульсный источник питания NES CE

Notice:

Please make sure the input voltage, output voltage and current in item specs when placing orders. Or we\'ll arrange the one as the item specs says.

Model NES-150-3.3 NES-150-5 NES-150-7.5 NES-150-9 NES-150-12 NES-150-15 NES-150-24 NES-150-48

DC voltage 3.3V 5V 7.5V 9V 12V 15V 24V 48V

rated current 30A 26A 20A 16.7A 12.5A 10A 6.5A 3.3A

current range 0 ~ 30A 0 ~ 26A 0 ~ 20A 0 ~ 16.7A 0 ~ 12.5A 0 ~ 10A 0 ~ 6.5A 0 ~ 3.3A

rated power 99W 130W 150W 150W 150W 150W 156W 158.4W

Ripple & noise 80mVp-p 80mVp-p 120mVp-p 120mVp-p 120mVp-p 120mVp-p 120mVp-p 200mVp-p

voltage adj range3.2~3.5V 4.75~5.5V 7.13~8.3V 8.55~9.9V 11.4~13.2V 14.25~16.5V 22.8~26.4V 45.6~52.8V

voltage tolerance 3.0% 2.0% 1.0% 1.0% 1.0% 1.0% 1.0% 1.0%

line regulation 0.5% 0.5% 0.5% 0.5% 0.5% 0.5% 0.5% 0.5%

load regulation 2.0% 1.0% 0.5% 0.5% 0.5% 0.5% 0.5% 0.5%

setup rise hold time 800ms, 20ms, 24ms/230VAC, 1200ms, 30ms, 20ms/115VACat full load

voltage range 90 ~ 132VAC / 180 ~ 264VAC selected by switch 254 ~ 373VDC

FREQUENCY RANGE 47 ~ 63Hz

EFFICIENCY (Typ.) 73% 78% 80% 83% 83% 84% 86% 87%

AC CURRENT(Typ.) 3A/115VAC 2A/230VAC

INRUSH CURRENT (Typ.) COLD START 40A/230VAC

LEAKAGE CURRENT <2mA / 240VAC

PROTECTION

OVERLOAD 110 ~ 150% rated output power

Protection type: Hiccup mode, recovers automatically after fault condition is removed

OVER VOLTAGE 3.8 ~ 4.45V 5.75 ~ 6.75V 8.6 ~ 10.1V 10.4 ~ 12.2V 13.8 ~ 16.2V 17.25 ~ 20.25V 27.6 ~ 32.4V 55.2~ 64.8V

Protection type: Hiccup mode, recovers automatically after fault condition is removed

ENVIRONMENT

WORKING TEMP. -20 ~ +60ºC (Refer to output load derating curve)

WORKING HUMIDITY 20 ~ 90% RH non-condensing

STORAGE TEMP., HUMIDITY -40 ~ +85ºC, 10 ~ 95% RH

TEMP. COEFFICIENT 0.03%/ºC (0 ~ 50ºC)

VIBRATION 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

SAFETY

SAFETY STANDARDS Design refer to UL60950-1,TUV EN60950-1

WITHSTAND VOLTAGE I/P-O/P:3KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC

ISOLATION RESISTANCE I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC

STANDARD

EMI CONDUCTION & RADIATION Compliance to EN55022(CISPR22) Class B

HARMONIC CURRENT Compliance to EN61000-3-2,-3

EMS IMMUNITY Compliance to EN61000-4-2,3,4,5,6,8,11; ENV50204, EN61000-6-2 (EN50082-2) heavy industry level, criteria A

MTBF 433.3Khrs min. MIL-HDBK-217F (25ºC)

OTHERS

Dimension 199*98*38mm (L*W*H)

Weight 0.73Kg

Packing 30pcs/22.6Kg.According to your order,we can provide different cartons for you.

NOTE:

1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25C of ambient temperature.

2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.

3. Tolerance: includes set up tolerance, line regulation and load regulation.

4. Line regulation is measured from low line to high line at rated load.

5. Load regulation is measured from 0% to 100% rated load.

6. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives.

7. Length of set up time is measured at cold first start. Turning ON/OFF the power supply very quickly may lead to increase of the set up time.

Product Size:

· We Ship to Worldwide, except APO/FPO.

· Items are shipped from China using Airmail, reach most of the countries within 10 to 20 business days.

· Delivery time depends on destination and other factors, it may takes up to 20 business days

· Noted: Fedex Maybe charge handling charges at your country, we are not responsible for this charges.

Payment:

Payment method on Aliexpress Check here help.aliexpress.com/payment_method.html

Warranty and Guarantee:

· 12 months Warranty. Buy with confidence!

· If you are not satisfied when you receive your item, please return it within 14 days for a replacement or money back. Please contact me before you return it.

· If item is defective in 3 months, We will send you a replacement without extra charges, or offer refund after we receive the defective item.

· If item is defective after 3 months, you can still send it back to us. We will send you a new one after receiving the defective item. But you have to pay the extra shipping fee

Other Policies:

· We are not responsible for any custom duty or import tax.

· We will leave POSITIVE FEEDBACK after receiving the payment. Please contact us if you are not satisfied with the item after receive it.

· All emails will be answered within 1 business day. If you do not receive our reply, please kindly re-sent your email and we will reply to you as soon as possible.

Serious Buyer Only! Please place bid only if you agree with all the terms

MingWei switching power supply factory is a set design, development, production in one of the high-tech professional manufacturers, the region is the first company to introduce Taiwan manufacturer of switch power supply technology, building in May 2001.

Notes on choosing a switching power supply?

To increase the reliability of the S.P.S., we suggest users choose a unit that has a rating of 30% more power than actual need. For example, if the system needs a 100W source, we suggest that users choose a S.P.S. with 130W of output power or more. By doing this, you can effectively boost the reliability of the S.P.S. in your system.Make sure that the model qualifies for the safety standards and EMC regulations you need.

What about production process of switching power supply?

Maker Industrial and Trading Company started to run businiess since 2006, which is located in Wenzhou Yueqing - The world-famous city for low-voltage electric apparatus.We owns followed subsidiary corporations:

Yueqing Maker electric Co., Ltd. concentrates on Import and Export.

Yueqing MINGWEI Switching power supply FactoryMore than 20 years of production experience,focus on production and research and development of switch power supply.
