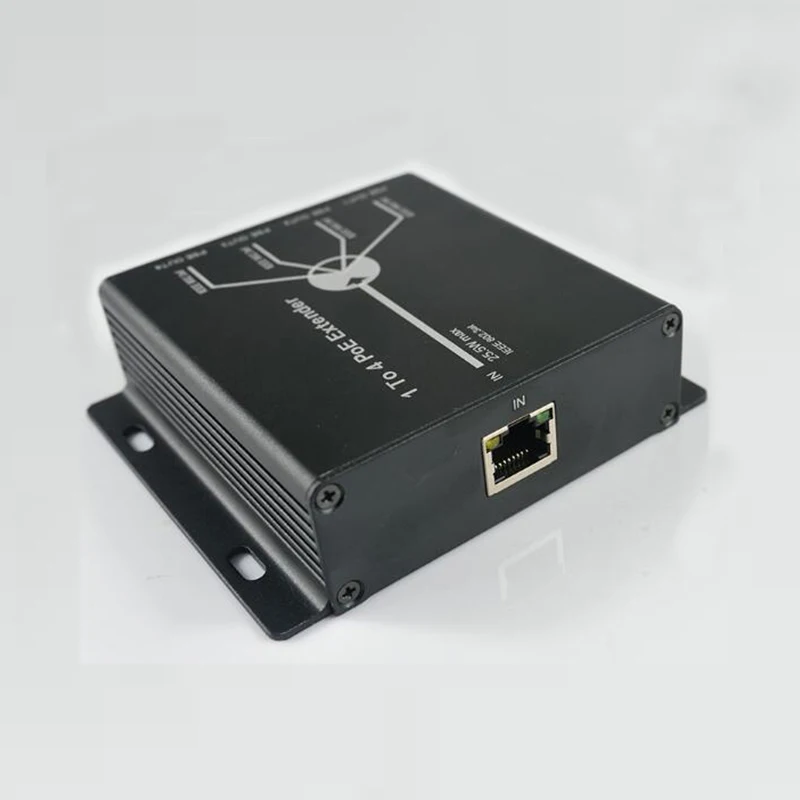

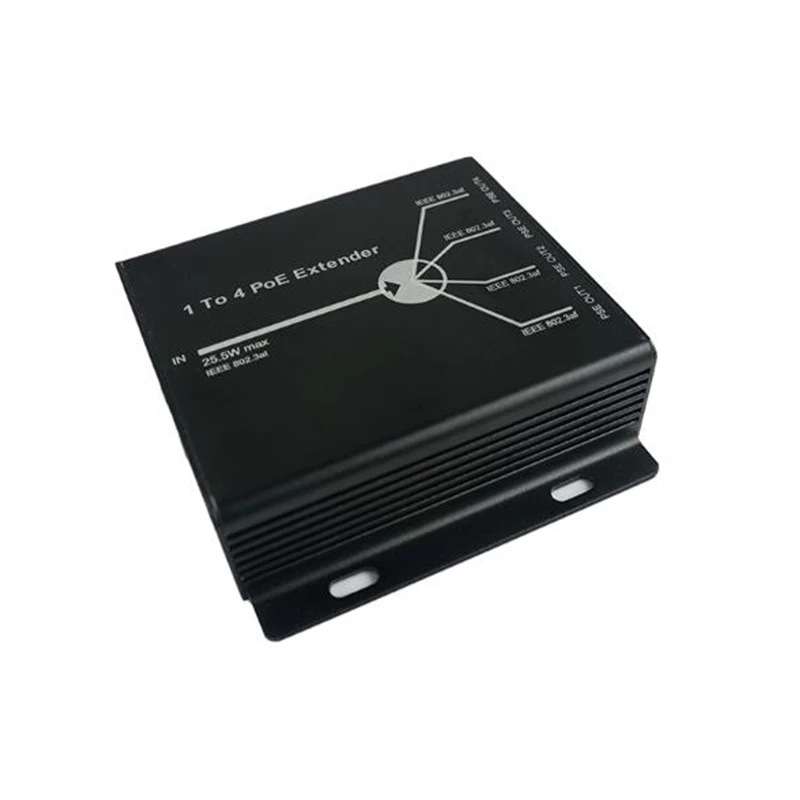

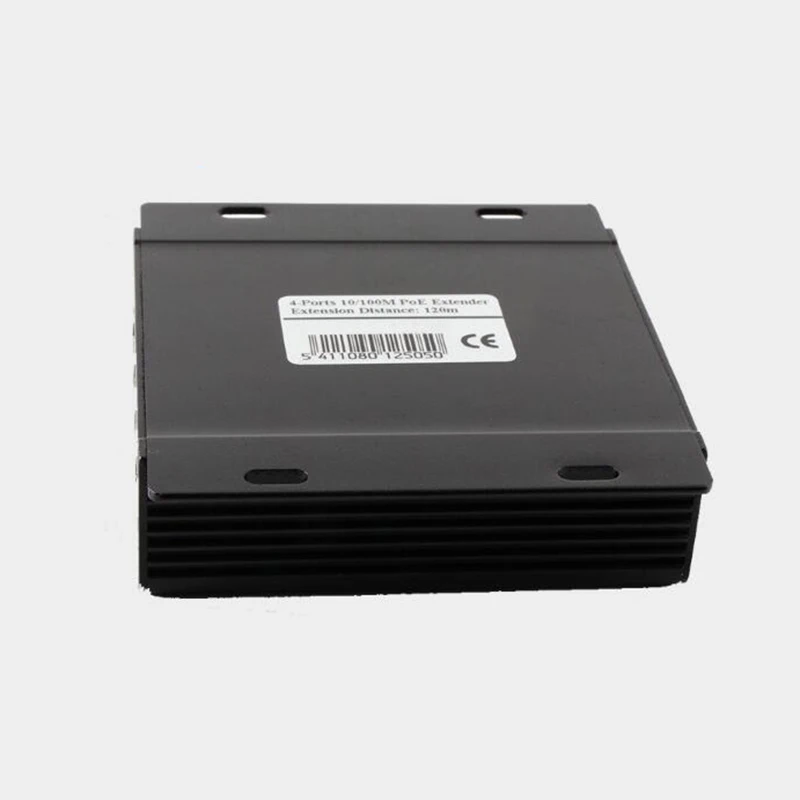

Product overview

4-Ports PoE Extender has 5 10/100M PoE ports, among them , 1 port for power input, and others for power output.

Comply with 10/100 BASE-TX, IEEE802.3at (power-in) / IEEE802.3af (power-out). The power input is 25.5W in total.

Power output for single port is 15.4W(max).

PoE Extenders can increase the transmission distance for Ethernet data and PoE power up to 120m via Cat5 UTP cable.

It offers you great flexibility to extend the distance of PoE.

* Comply with IEEE 802.3af Power over Ethernet.

* 10/100m Supported.

* Extend the range of PoE an additional 120 meters.

* Automatically detects and protects PoE equipments from being damaged by incorrect installation.

* Plug and Play no configuration required.

* 4 ports PoE extender can forward both ethernet and PoE power for 4 terminal equipments via Cat5 UTP cables.

Product Name

1-Port 10/100M PoE Extender

4-Ports 10/100M PoE Extender

Port Description

POE Input: 1 RJ45 Port
PoE Output: 1 RJ45 Port

PoE input: 1 RJ45 Port
PoE output: 4 RJ45 Ports

Network Medium

Cat5 or better UTP cables(≤120m)

Repeater Mode

Store and forward

MAC Address Table

2K

Packet Buffer Memory

48Byte

Switching Capacity

400Mbps

1.0Gbps

PoE Standard

IEEE802.3af

IEEE802.3at(Power-in)
IEEE802.3af(Power-out)

PoE Port Power

Input POwer: 13 Watts;
Output: 12.2 Watts

Input Power: 25.5 Watts;
Output: 24 Watts in total

LED Display

PoE working status, ethernet

PoE power Supply Type

1/2(+), 3/6(-),Mode A, End-Span

Network Protocol

IEEE 802.3i: 10BASE-T
IEEE 802.3u: 100BASE-TX
IEEE 802.3x: Flow Control
IEEE 802.3af: Power over Ethernet
IEEE 802.3at: Power over Ethernet(for 4-Ports PoE Extender only)

Regulation Compliance

FCC Part 15B
RoHs Directive 2011/65/EU
Low Voltage Directive 2014/35/EU
Electromagnetic Compatibility Diective 2004/108/EC

Working Environment

Working Temperature:0~40
Working Humidity:10%~90%, No Condensation

Storage Environment

Storage Temperature:-30~70
Storage Humidity:5%~90%, No Condensation

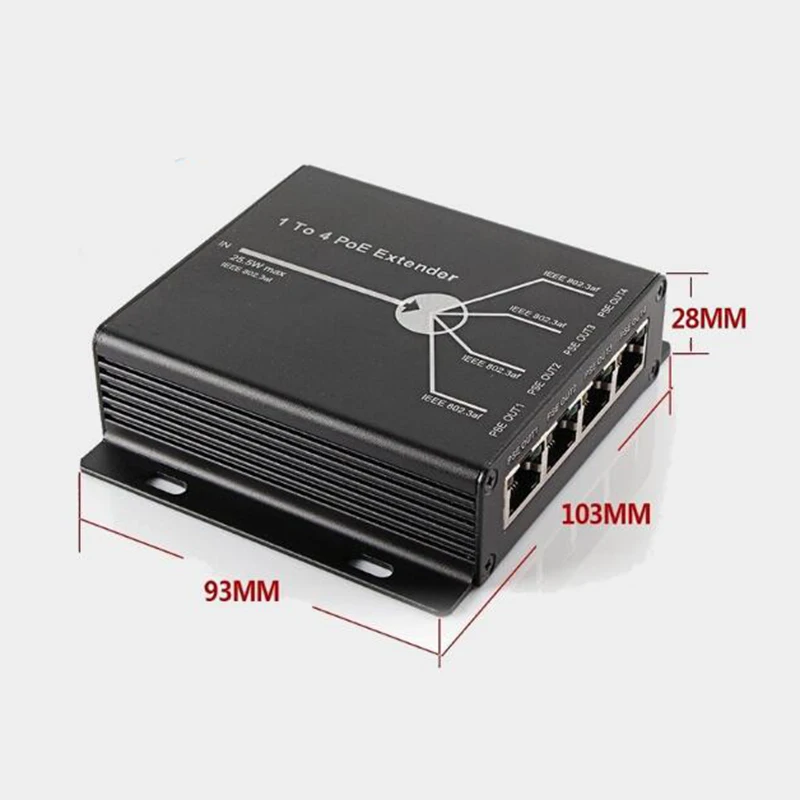

Dimension

75x37x26.5mm

105x93x28.5mm

1x User Manual
