About Description:

100% Brand New And High quality.
Part Number: IO-MPCE352A-2S

Specifications
• USB 2.0 High Speed (480 Mbits/sec.) and Full Speed (12 Mbits/sec.) compatible
• Standards: conforming to USB1.0, 1.1 and 2.0
• USB 2.0 Compliant, Full-Speed (12 Mbps)
• Full size Mini PCIe module type combo
• MiniPCIe via USB & USB pin header
• RS232 Data Rates: 300bps to 1 Mbps
• RS422/RS485 Data Rates: 300bps to 10 Mbps
• FIFO Buffer: 4K byte transfer, 4K byte receiver
• UART interface support for 7 or 8 data bits,1 or 2 stop bits and

even/odd/mark/space/none,Flow
control none,hardware and xon/xoff
1.Isolation voltage: 2500V,High common-mode transient immunity: >25 kV/μs
2.500W surge protection and ±23KV ESD protection
3.Signal indication: indicator lights for Power (PWR), Send (TXD) and Receive (RXD)
4.Operating Temperature:-40°C to +85°C
• The model is ready the USB signal on both MiniPCIe side (Pin 36, 38, 2, 4) and Pin Header (J2).
While using, please kindly select only one of the two.

Applications:
• POS Printer Terminal
• Networking System
• Industrial and Power Meter

System Requirements:
• Windows XP,Vista,7,8,10 32,64-bit;
• Windows Server 2K3,2K8,2K12 32,64-bit
• Windows XP Embedded
• Windows CE 4.2, 5.0 and 6.0
• Mac OS-X
• Linux 3.2 and greater
• Android

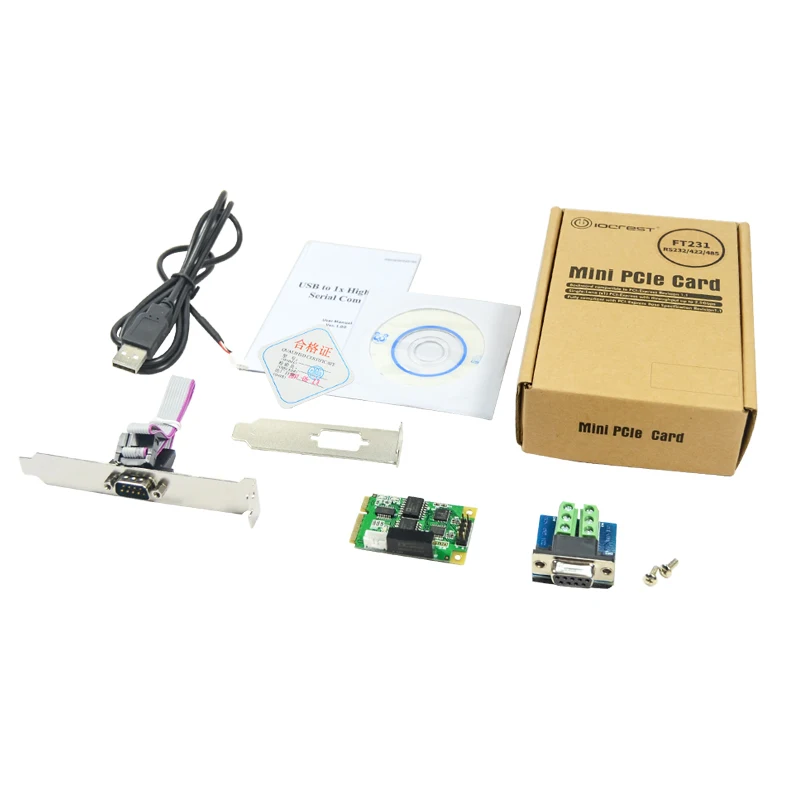

You'll receive:

1 x High Speed Serial Module Board
1 x DB-9 pin Serial Adatper
1 x USB to IDE 4pin Cable

1 x Low Profile Bracket
1 x User Manual
1 x CD Driver

2 x Screws
