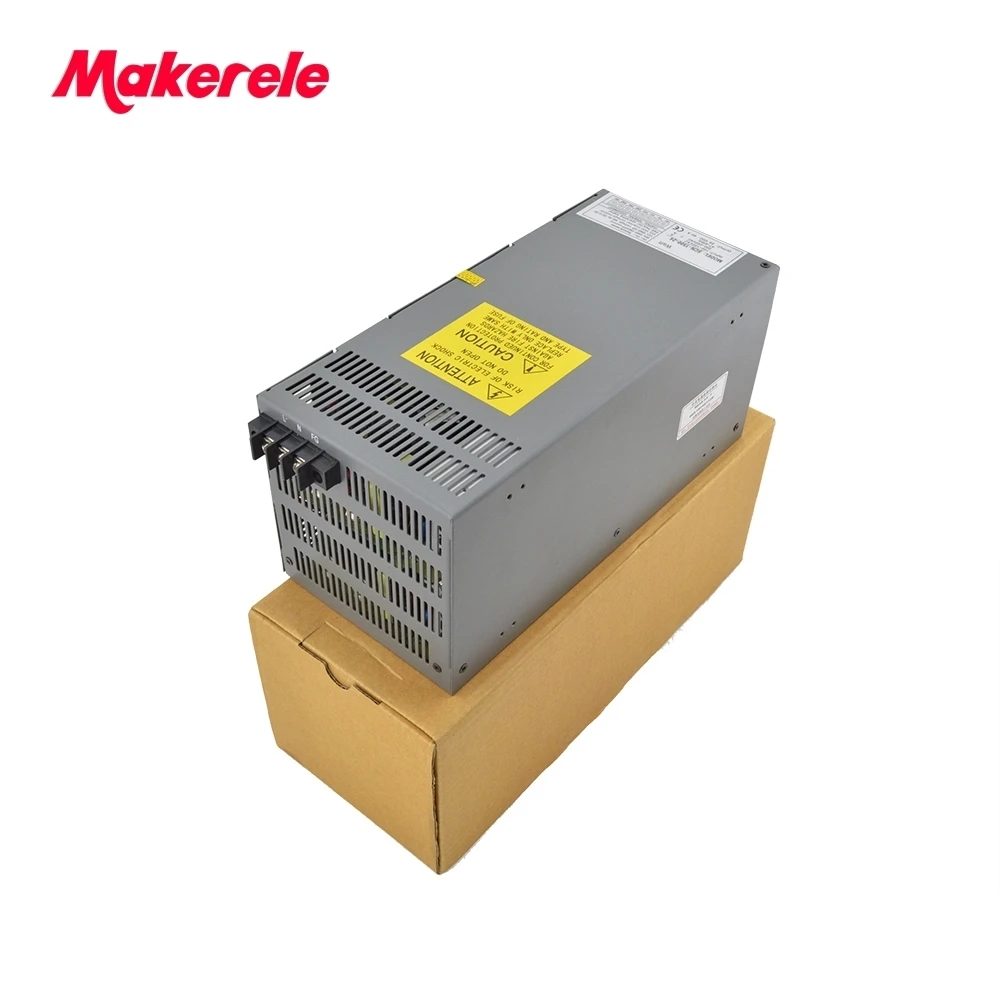

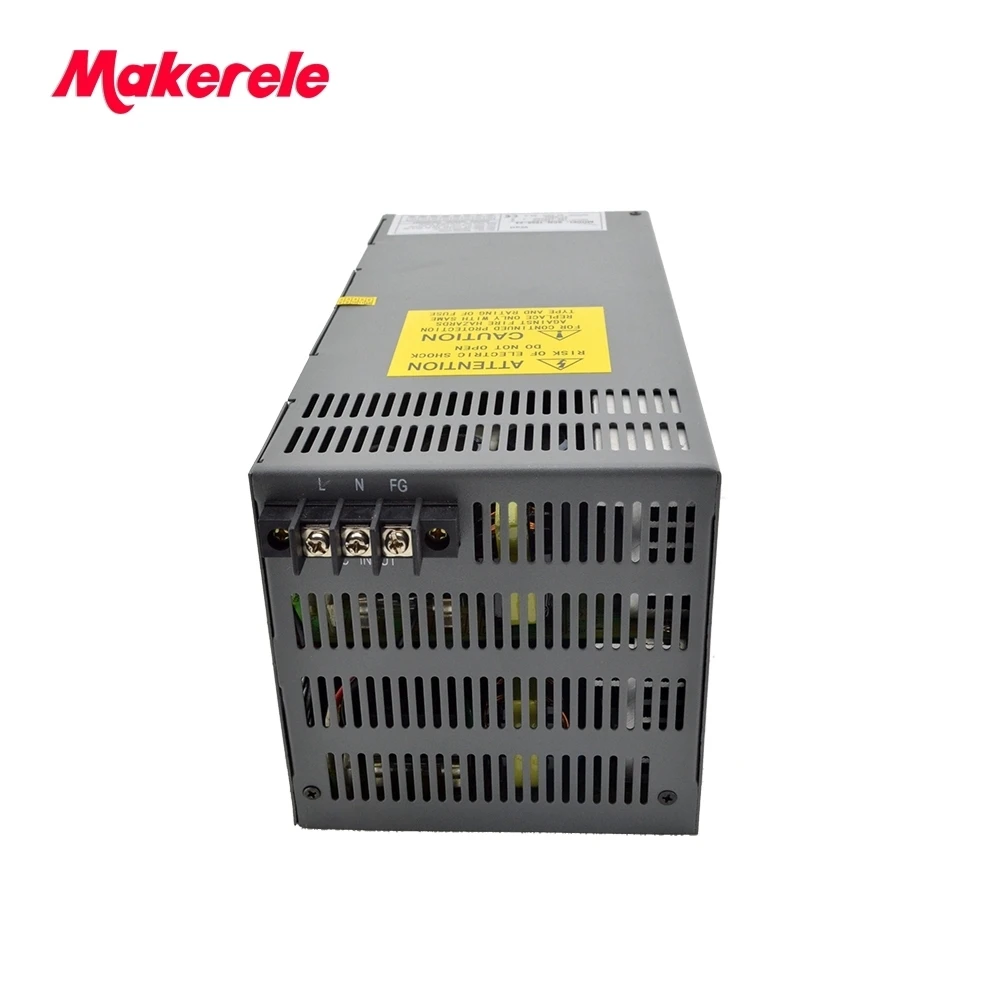

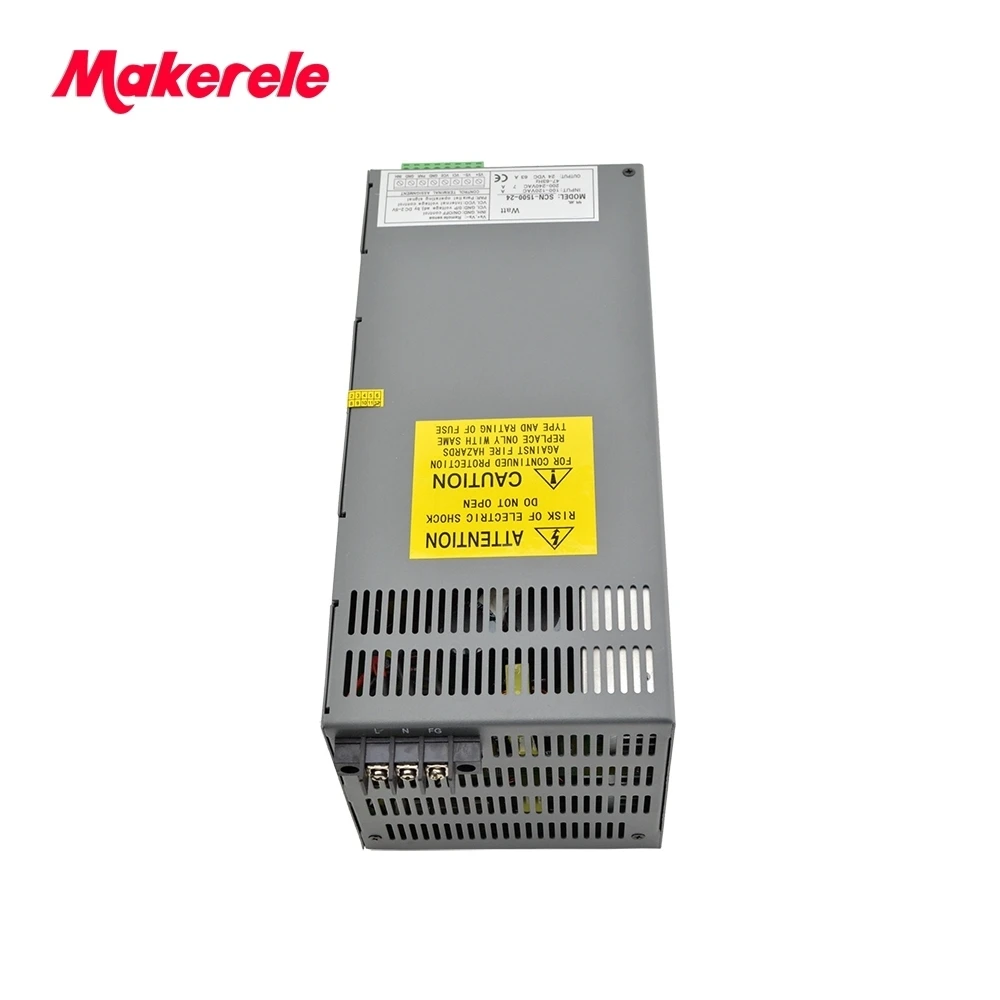

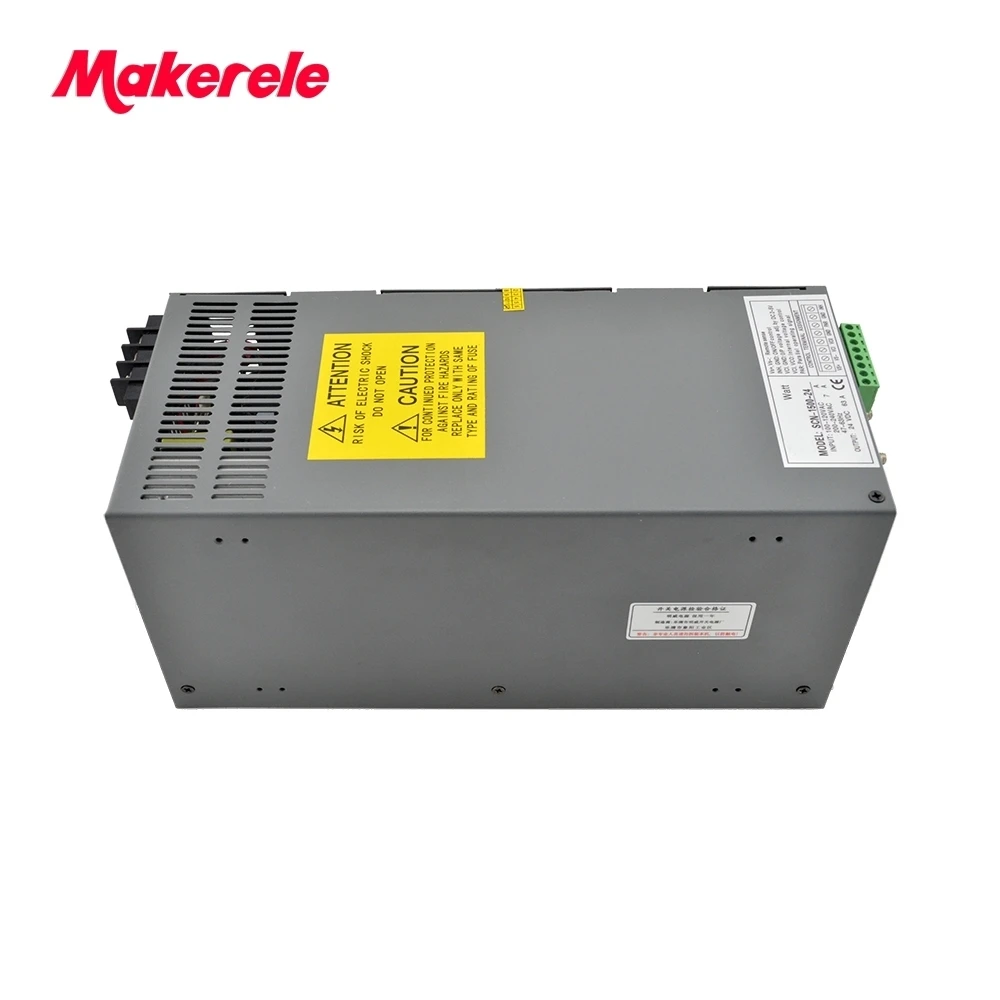

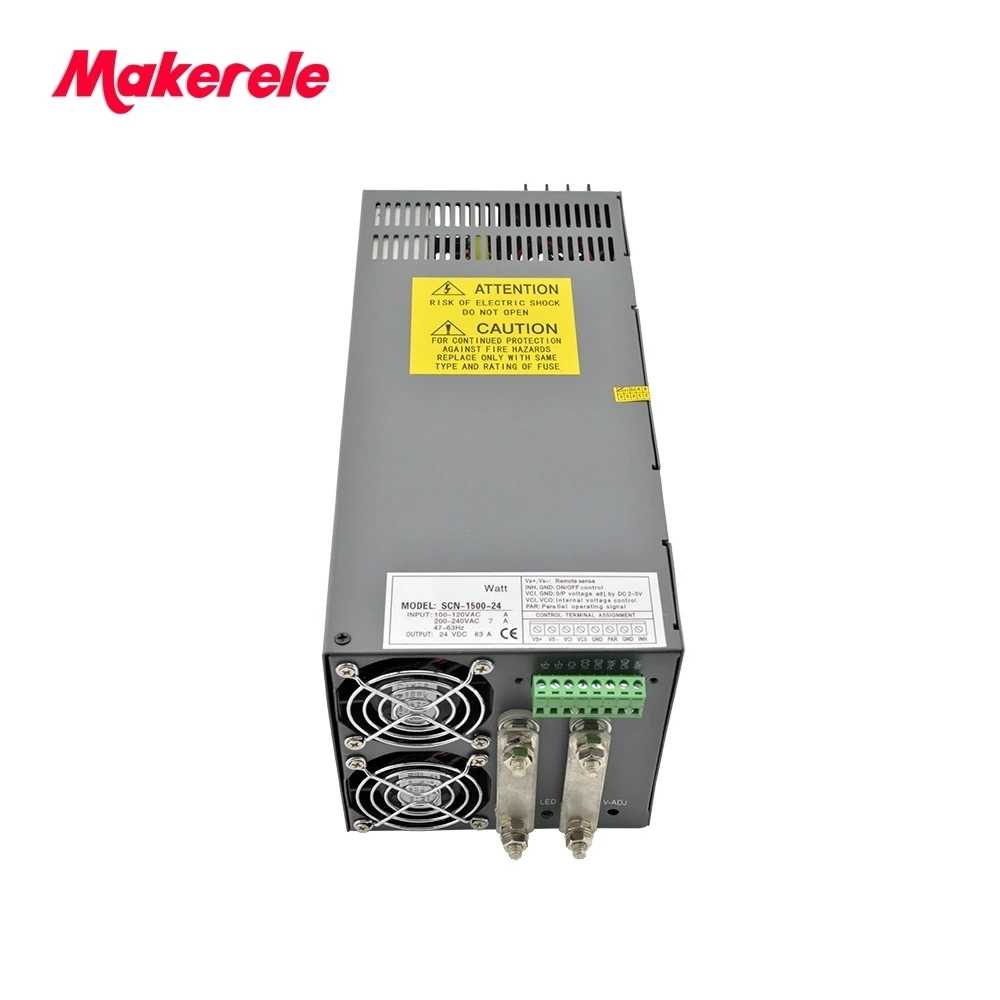

Полезные SCN моделью коммутации источника питания 1500 Вт с се 5/12/24/48 В низкая цена

Полезные SCN моделью коммутации источника питания 1500 Вт с се 5/12/24/48 В низкая цена

Notice:

Please make sure the input voltage, output voltage and current in item specs when placing orders. Or we\'ll arrange the one as the item specs says.

Model SCN-1500-5 SCN-1500-12 SCN-1500-15 SCN-1500-24 SCN-1500-48

DC output voltage 5V 12V 15V 24V 48V

Output voltage error 2% 1% 1% 1% 1%

Rated output current 217.5A 125A 100A 62.5A 32A

Output current rage 0-217.5A 0-125A 0-100A 0-62.5A 0-32A

Wave and noise 150mVp-p 150mVp-p 150mVp-p 240mVp-p 480mVp-p

Inlet stability 0.5% 0.5% 0.5% 0.5% 0.5%

Load stability 1% 0.5% 0.5% 0.5% 0.5%

DC output power 1000W 1500W 1500W 1500W 1500W

Efficiency 77% 83% 85% 85% 87%

Adjustable range

for DC voltage 10% 10% 10% 10% 10%

INPUT

AC input voltage range 190~240VAC 47~63Hz

Input current 12A/230V

AC impulse current 150A/230V

Leakage current <3.5mA/240VAC

PROTECTION

Overload protection 105%~150%TypeTOLDBACK Reset auto recovery

ENVIRONMENT

Temperature coefficient 0.03%C(0~50C)

Setup rise hold up time 800ms,50ms,10ms/115VAC 300ms,50ms,80ms/230VAC

Vibration 10~500Hz,2G 10min./1cycle,Period for 60min,Each axes

SAFETY

Withstand voltage Input and output interval1.5KvAC Input and enclosure1.5KvAC Output and enclosure0.5KvAC

Isolation resistance Input and output intervalInput and enclosure,Output and enclosure500VDC/100M

Working temperature and humidity -10C~+60C,20%~90%RH

Store temperature and humidity -20C~+85C,10%~95RH

STANDARD

Safety standards UL1012 TUV 60950(IEC950,UL1950)

EMC standards CLSPR22(55022),IEC801-2,3,4,IEC555-2

OTHERS

Outline dimension 291*132*132mm

Weight 5.3Kgs

NOTE:

1 The above parameters test conditions are: 230VAC input, rated load, 25 C 70% RH. Humidity.

2 Tolerance: includes set up tolerance, line stability, load stability (Note 5).

3 The ripple test: 20MHz with A12 "twisted pair, interrupted with 0.1uF & 47uF capacitor short-circuit.

4 Into the line voltage stability test: full load into the line of the minimum voltage to maximum voltage.

5 Load stability test: the load from 0% to 100%, and other output at 60% rated load.

6 The output of up to maximum current, but the overall load can not exceed the maximum output power.

7 C2, 3,11 must be dismantled.

Product Size:

MingWei switching power supply factory is a set design, development, production in one of the high-tech professional manufacturers, the region is the first company to introduce Taiwan manufacturer of switch power supply technology, building in May 2001.

· We Ship to Worldwide, except APO/FPO.

· Items are shipped from China using Airmail, reach most of the countries within 10 to 20 business days.

· Delivery time depends on destination and other factors, it may takes up to 20 business days

· Noted: Fedex Maybe charge handling charges at your country, we are not responsible for this charges.

Payment:

Payment method on Aliexpress Check here help.aliexpress.com/payment_method.html

Warranty and Guarantee:

· 12 months Warranty. Buy with confidence!

· If you are not satisfied when you receive your item, please return it within 14 days for a replacement or money back. Please contact me before you return it.

· If item is defective in 3 months, We will send you a replacement without extra charges, or offer refund after we receive the defective item.

· If item is defective after 3 months, you can still send it back to us. We will send you a new one after receiving the defective item. But you have to pay the extra shipping fee

Other Policies:

· We are not responsible for any custom duty or import tax.

· We will leave POSITIVE FEEDBACK after receiving the payment. Please contact us if you are not satisfied with the item after receive it.

· All emails will be answered within 1 business day. If you do not receive our reply, please kindly re-sent your email and we will reply to you as soon as possible.

Serious Buyer Only! Please place bid only if you agree with all the terms

Notes on choosing a switching power supply?

To increase the reliability of the S.P.S., we suggest users choose a unit that has a rating of 30% more power than actual need. For example, if the system needs a 100W source, we suggest that users choose a S.P.S. with 130W of output power or more. By doing this, you can effectively boost the reliability of the S.P.S. in your system.Make sure that the model qualifies for the safety standards and EMC regulations you need.
