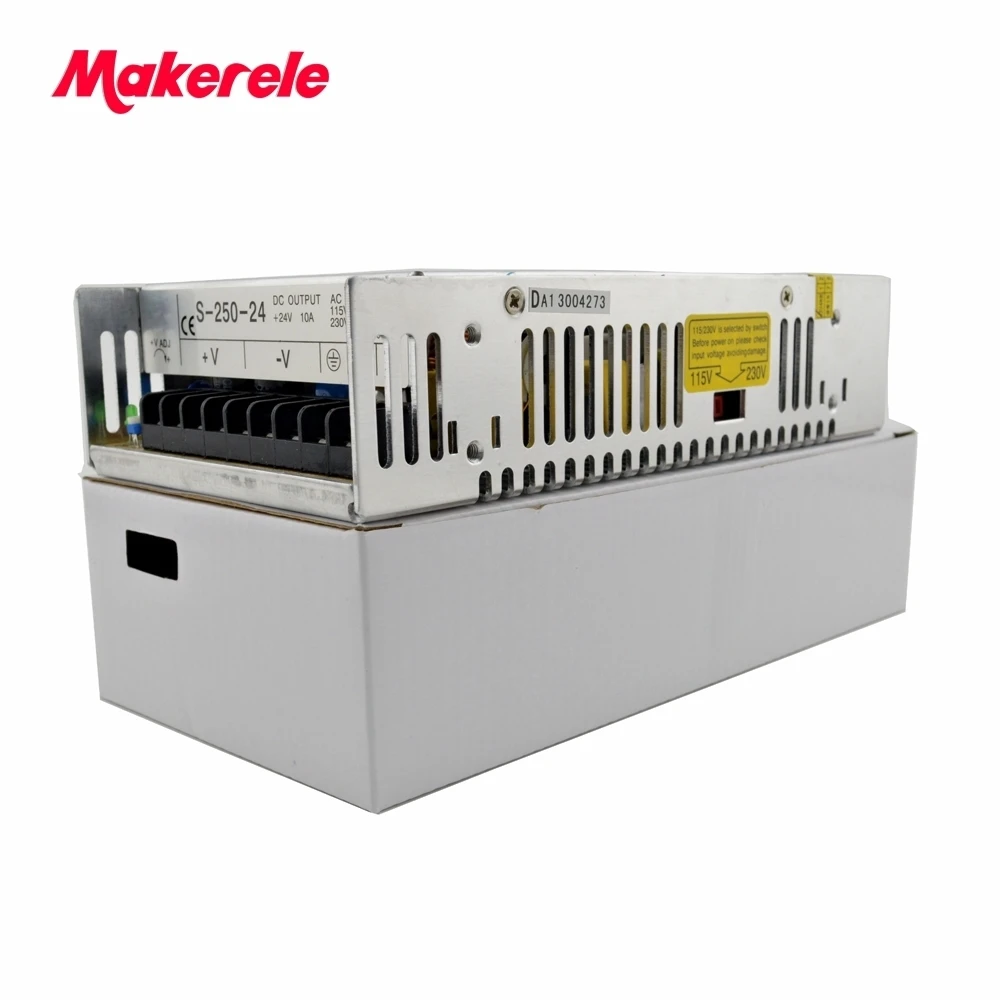

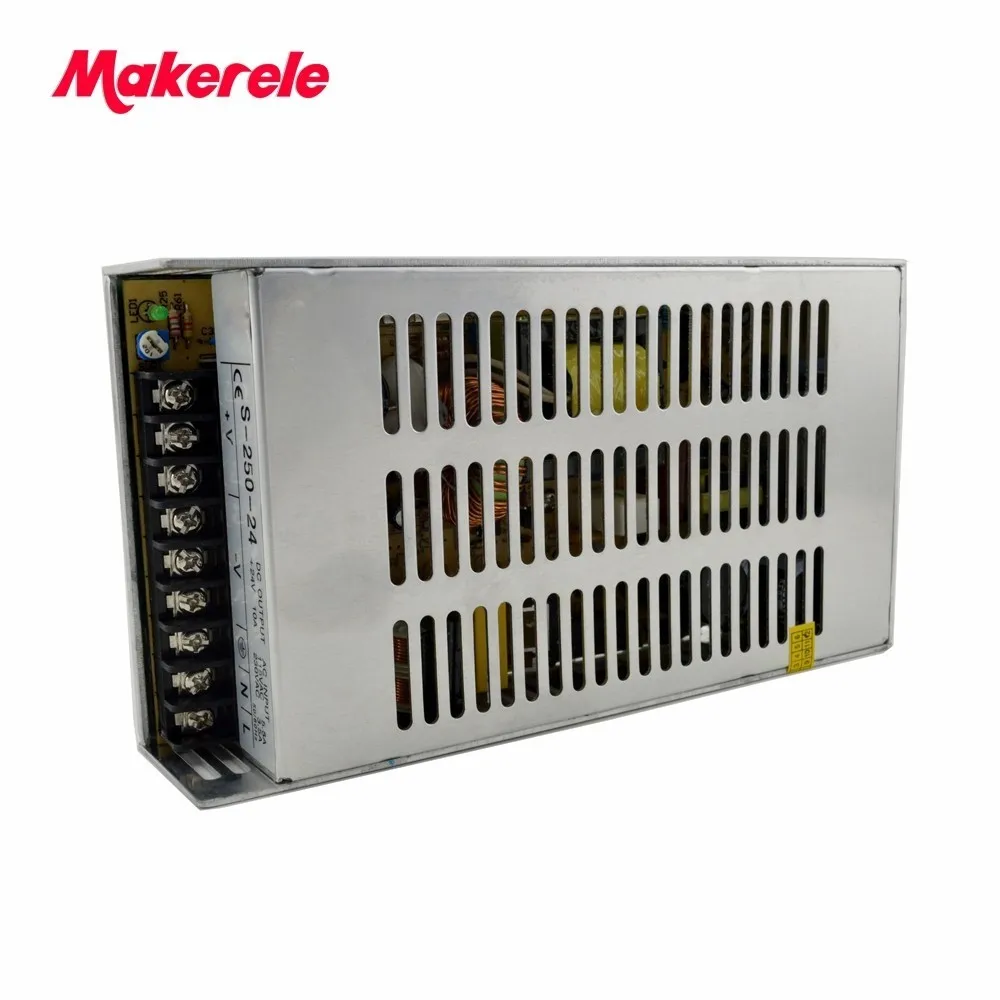

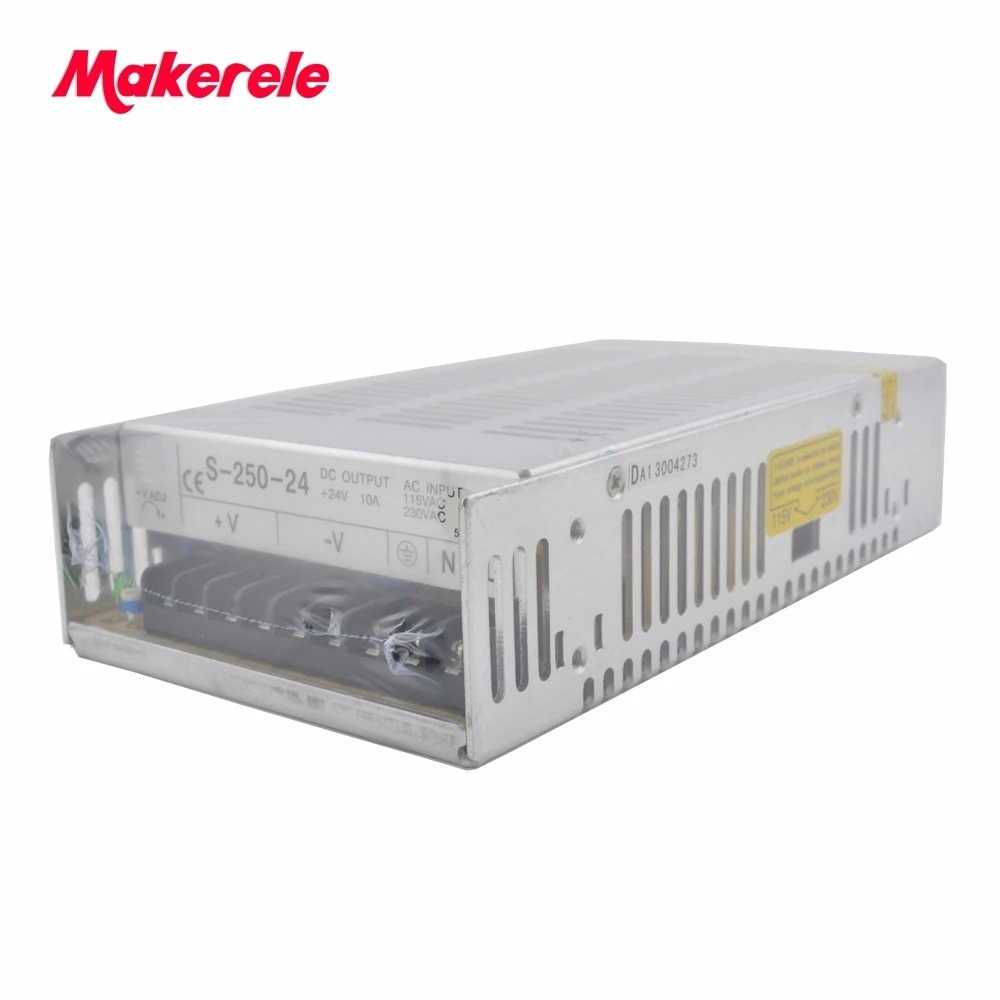

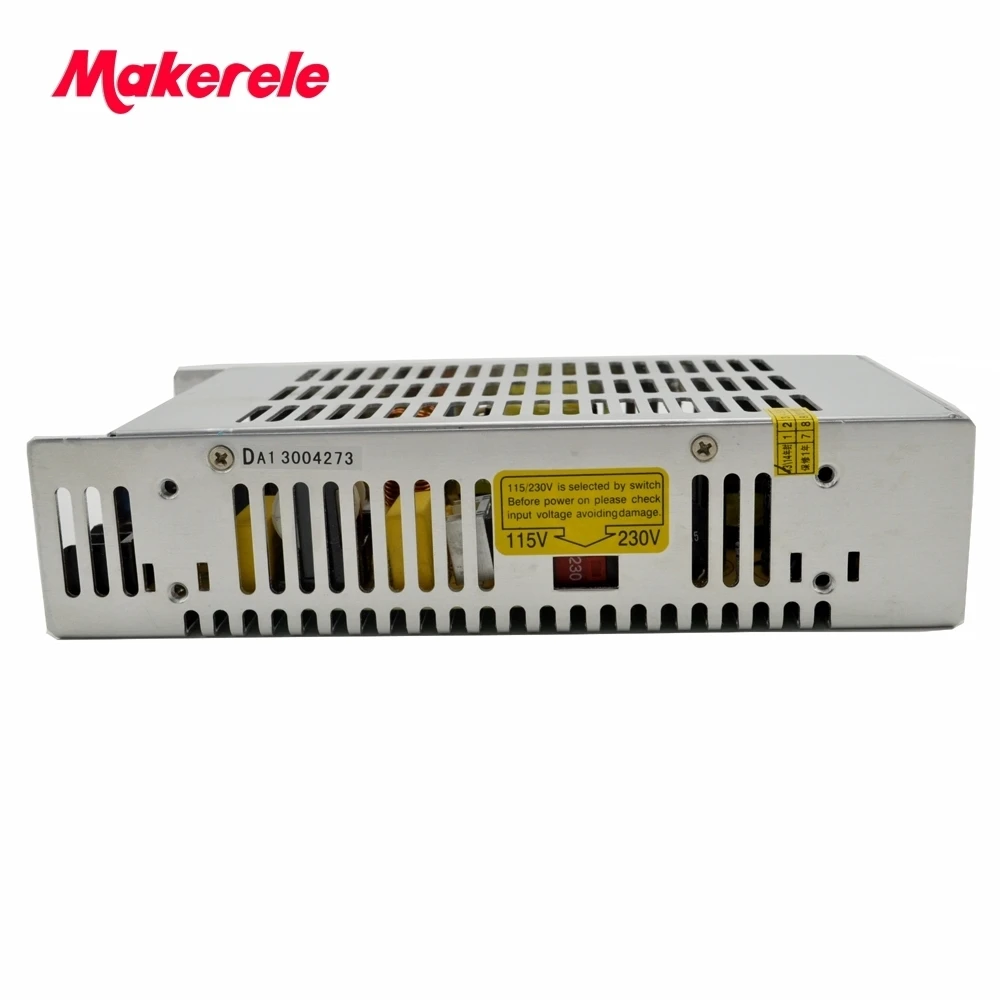

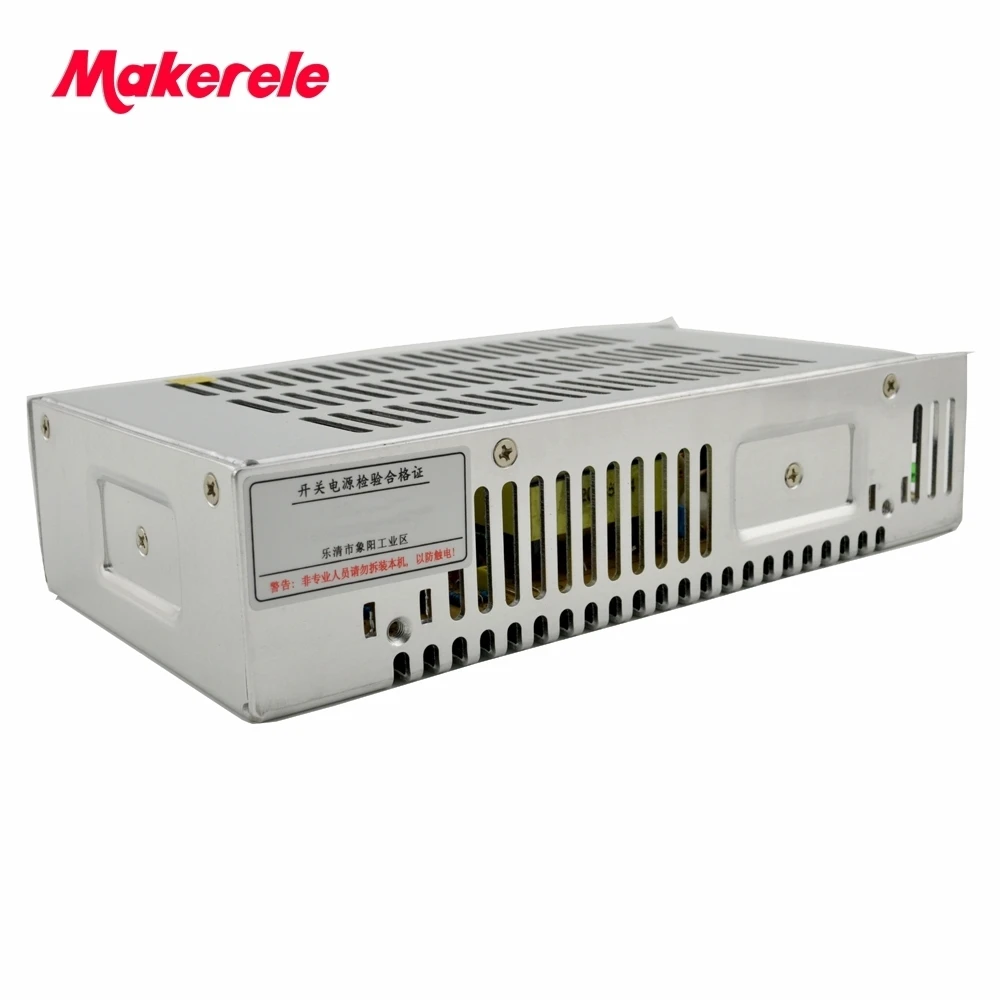

Один выход типа CE IP20 постоянное напряжение переменного тока в DC 250 Вт 5 В 12 24 48 5A

Один выход типа CE IP20 постоянное напряжение переменного тока в DC 250 Вт 5 В 12 24 48 5A

Notice:

Please make sure the input voltage, output voltage and current in item specs when placing orders. Or we\'ll arrange the one as the item specs says.

model S-250-5 S-250-7.5 S-250-12 S-250-13.5 S-250-15 S-250-24 S-250-27 S-250-48

Dc output voltage 5V 7.5V 12V 13.5V 15V 24V 27V 48V

Output voltage tolerance 2% 2% 1% 1% 1% 1% 1% 1%

Rated output current 40A 30A 20A 18.5A 16.6A 10A 9.3A 5.2A

Output current range 0-40A 0-30A 0-20A 0-18.5A 0-16.6A 0-10A 0-9.3A 0-5.2A

Output power 200W 225W 240W 250W 249W 240W 251W 250W

Ripple and the noise 120mVp-p 120mVp-p 150mVp-p 150mVp-p 150mVp-p 150mVp-p 200mVp-p 240mVp-p

Dc voltage

adjustable scope -10%,+12% 20% -16%,+10% -12%,+11% -10%,+20% -16%,+10% -4%,+18% -15%,+17%

Start, rise, keep time 200ms,50ms,20ms Loaded with

INPUT

Input voltage range 90~132 VAC/180~264VAC47~63 Hz;The switch choice

254~370VDC

Exchange input current 5.5A/115 V 3.5A/ 230 V

efficiency 74% 76% 78% 79% 78% 82% 82% 83%

Impulse current 25A/115V50A/230V

Leakage current

PROTECTION

Overload protection 105%~135%

Protection way: current limiting, automatic recovery

Overvoltage protection 115%~135%

Protection way: hiccups, auto recovery mode

Cooling way RTH3 acuity 45 C fan more than 40 C wind authority open, 85 C : cut off output

ENVIRONMENT

Working temperature, humidity -10C~+50C;20%~90 %RH

Keep temperature, humidity -20C~+85C;10%~95 %RH

Vibrate resistance 10~500Hz,2G 10min./ 1 cycle time, 60 minutes, the axis

SAFETY

Compression sex Input/output: 1.5 KVAC input and between to KVAC output and the earth: 1.5:0.5 KVAC

Insulation resistance Between the input and output, the input and output, and ground: 100 M / 500 VDC Ohms

STANDARD

Safety standards Accord with UL1950

EMC standard Accord with EN55022,EN55024,EN61000

OTHERS

Weight:0.927Kgs

Packing:12pcs/11.92kg/box. According to your order,we can provide different cartons for you.

NOTE

note 1. All the parameters in has not specified, all is in 230 VAC voltage input, rated load and 25 C conditions measuring income value.

2. Ripple and noise voltage is in 20 MHz bandwidth oscilloscope take 12 inches twisted pair end with 0.1 mu and 47 u when capacitance measurement.

3. Tolerance is voltage setting error, the voltage adjustment rate and adjust the sum total of the current rate.

Product Size:

MingWei switching power supply factory is a set design, development, production in one of the high-tech professional manufacturers, the region is the first company to introduce Taiwan manufacturer of switch power supply technology, building in May 2001.

Notes on choosing a switching power supply?

To increase the reliability of the S.P.S., we suggest users choose a unit that has a rating of 30% more power than actual need. For example, if the system needs a 100W source, we suggest that users choose a S.P.S. with 130W of output power or more. By doing this, you can effectively boost the reliability of the S.P.S. in your system.Make sure that the model qualifies for the safety standards and EMC regulations you need.
