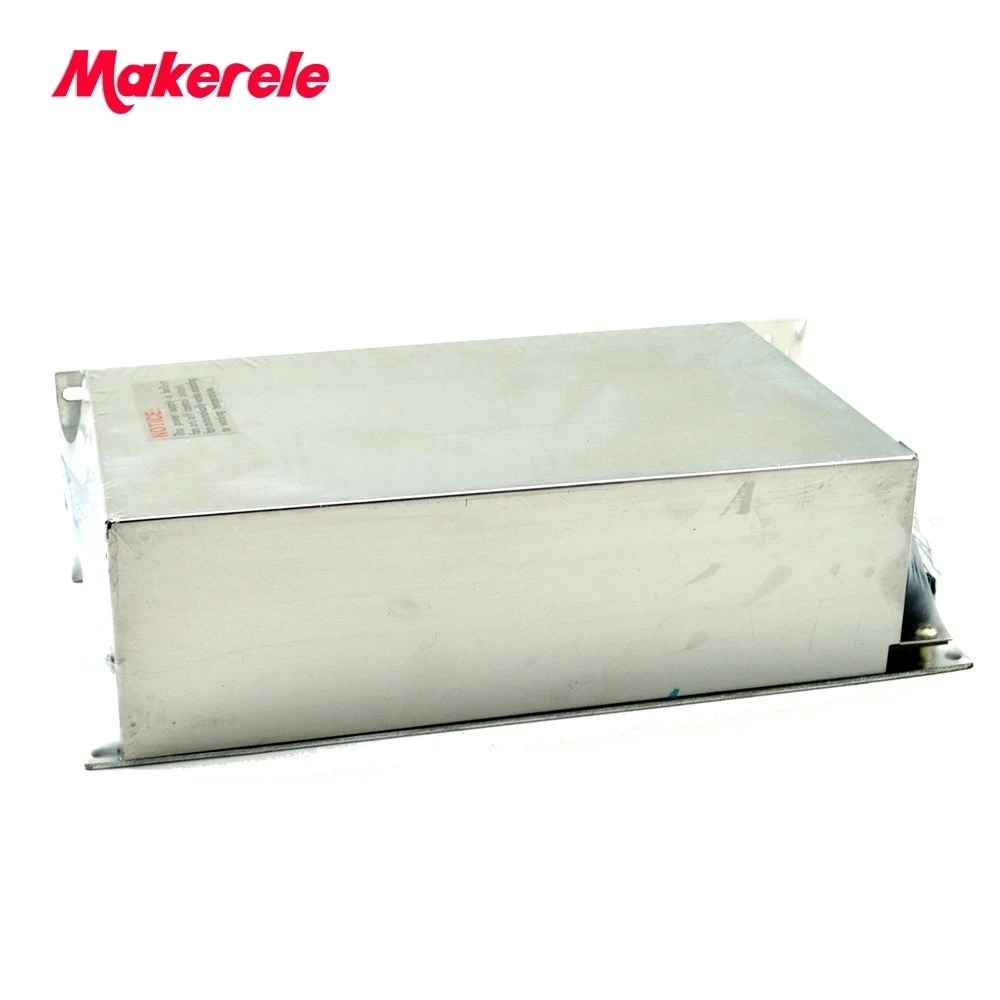

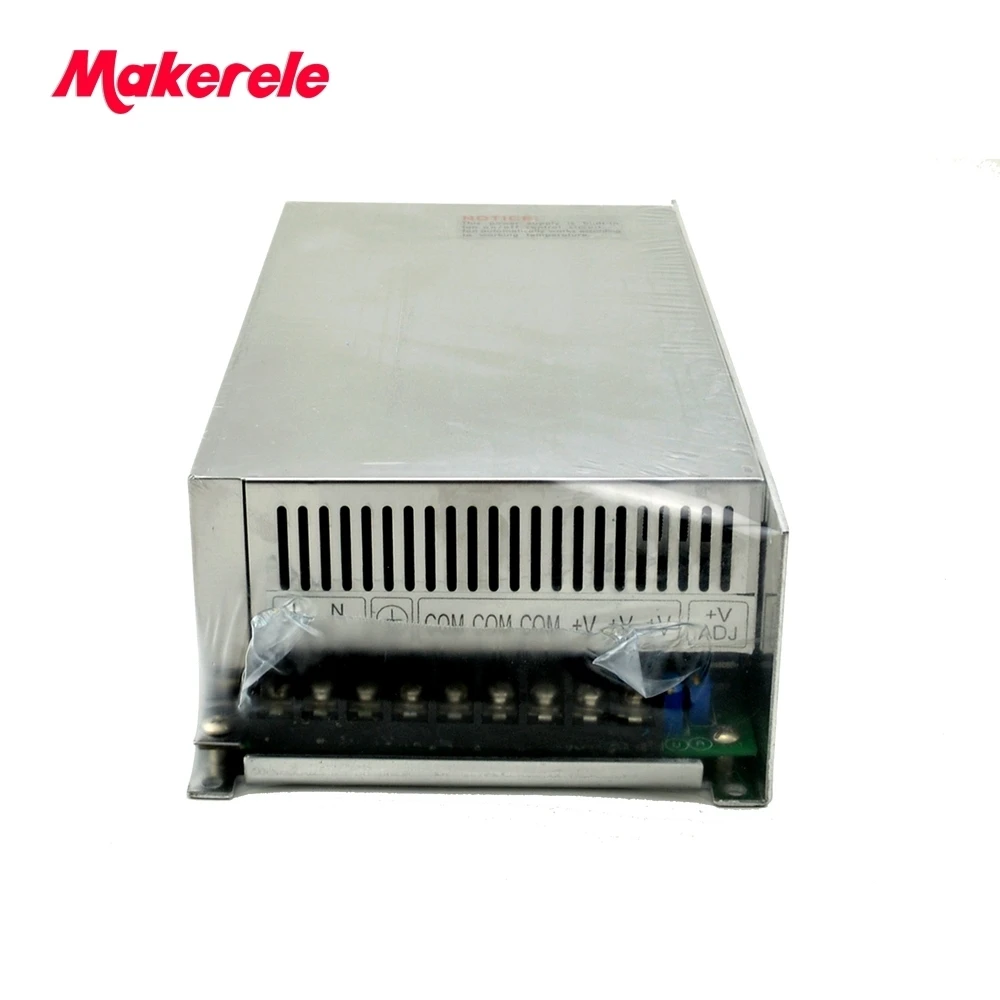

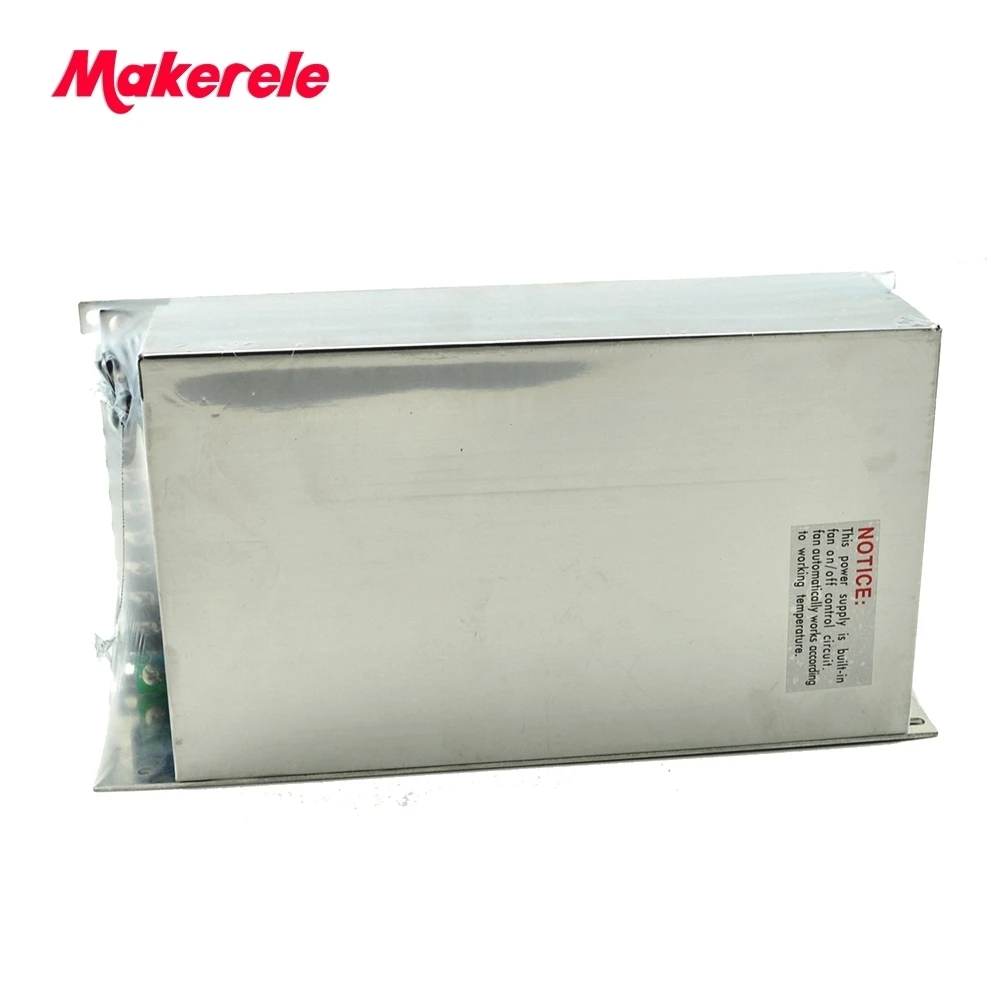

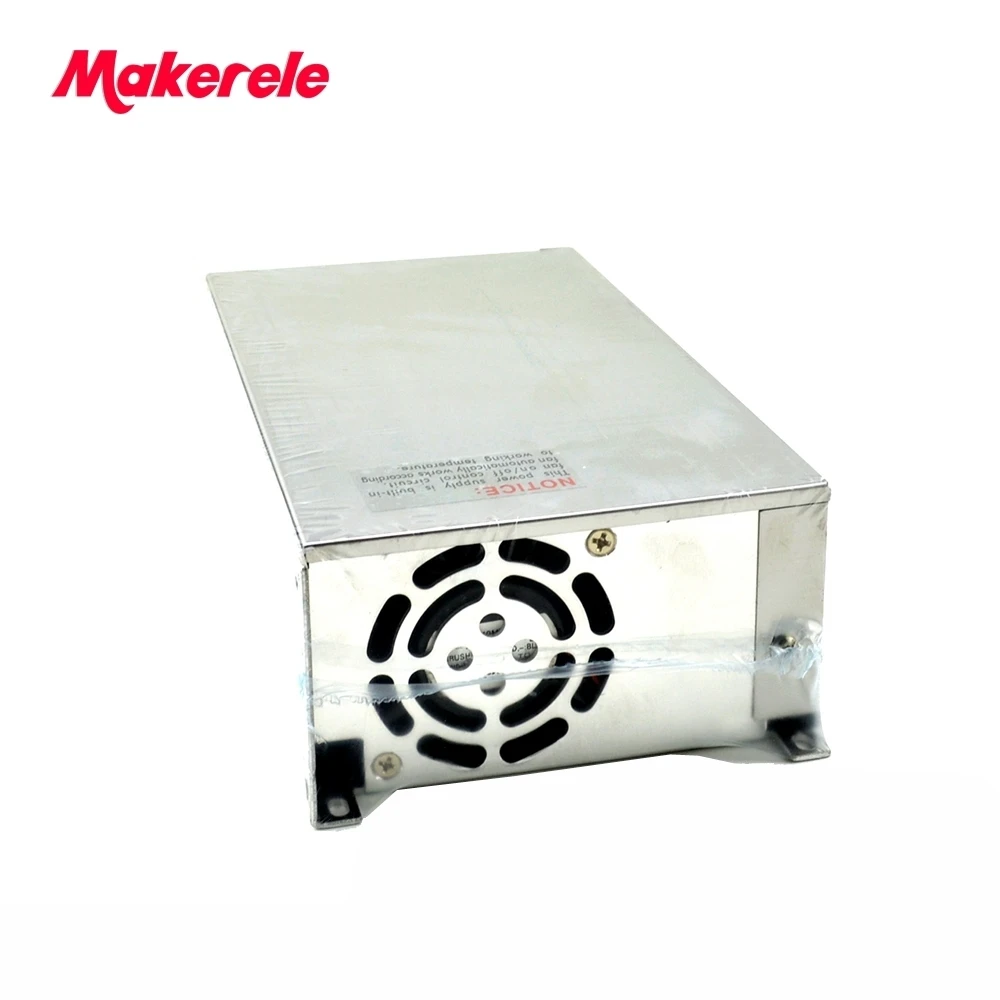

Big Watt Single Output Switching power supply 1000W 48V 20A for LED Strip light AC DC 5/12/24/48V|switch power|switching supply48v 20a |

Big Watt Single Output Switching power supply 1000W 48V 20A for LED Strip light AC DC 5/12/24/48V|switch power|switching supply48v 20a |

Working Temp., Humidity:-10~+65,20%~90 %RH

Notice:

Please make sure the input voltage, output voltage and current in item specs when placing orders. Or we\'ll arrange the one as the item specs says.

Model SCN-1000-5 SCN-1000-12 SCN-1000-13.5 SCN-1000-15 SCN-1000-24 SCN-1000-27 SCN-1000-48

DC Output Volta 5V 12V 13.5V 15V 24V 27V 48V

Output voltage

tolerance 1% 1% 1% 1% 1% 1% 1%

Rated output current 100A 80A 71A 64A 40A 35.5A 20A

Output current range 0-100A 0-80A 0-71A 0-64A 0-40A 0-35.5A 0-20A

Ripple and noise 240mVp-p 240mVp-p 240mVp-p 240mVp-p 240mVp-p 200mVp-p 300mVp-p

Inlet stability 0.5% 0.5% 0.5% 0.5% 0.5% 0.5% 0.5%

Load stability 1% 1% 0.5% 0.5% 0.5% 0.5% 0.5%

DC output power 500W 1000W 1000W 1000W 1000W 1000W 1000W

Efficiency 84% 84% 84% 83% 85.5% 86.5% 87%

DC voltage

adjustable range 4.5-5.5V 10-13.2V 12-15V 13.5-18V 20-26.4V 24-30V 41-56V

ENVIRONMENT

Working Temp., Humidity -10~+65,20%~90 %RH

Storage Temp., Humidity -20~+85,10%~95 %RH

Vibration 10~200Hz,2G 10min./1cycle, period for 60min, each along X, Y, Z axes

SAFETY

Withstand Voltage I/P-O/P, I/P-FG:1500VAC

Isolation Resistance I/P-O/P, I/P-FG, 100M Ohms / 500VDC

STANDARD

Safety Standard Design refer to UL1950,CSA22.2,IEC60950

EMC Standard Design refer to FCC Part 15 Class A

OTHERS

Weight 1.43kg

According to your order, we can provide different cartons for you.

NOTE

1.All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25 of ambient temperature.

2.Ripple & noise are measured at 20MHz of bandwidth by using a 12twisted pair-wire terminated with a 0.1 &47

parallel capacitor.

3.Tolerance: includes set up tolerance, line regulation and load regulation

4.The power supply is considered a component which will be installed into a final equipment. The final equipment must

be re-confirmed that it still meets EMC directives.

Product Size:

MingWei switching power supply factory is a set design, development, production in one of the high-tech professional manufacturers, the region is the first company to introduce Taiwan manufacturer of switch power supply technology, building in May 2001.

Notes on choosing a switching power supply?

To increase the reliability of the S.P.S., we suggest users choose a unit that has a rating of 30% more power than actual need. For example, if the system needs a 100W source, we suggest that users choose a S.P.S. with 130W of output power or more. By doing this, you can effectively boost the reliability of the S.P.S. in your system.Make sure that the model qualifies for the safety standards and EMC regulations you need.

Maker Industrial and Trading Company started to run businiess since 2006, which is located in Wenzhou Yueqing - The world-famous city for low-voltage electric apparatus.We owns followed subsidiary corporations:

Yueqing Maker electric Co., Ltd. concentrates on Import and Export.

Yueqing MINGWEI Switching power supply FactoryMore than 20 years of production experience,focus on production and research and development of switch power supply.
