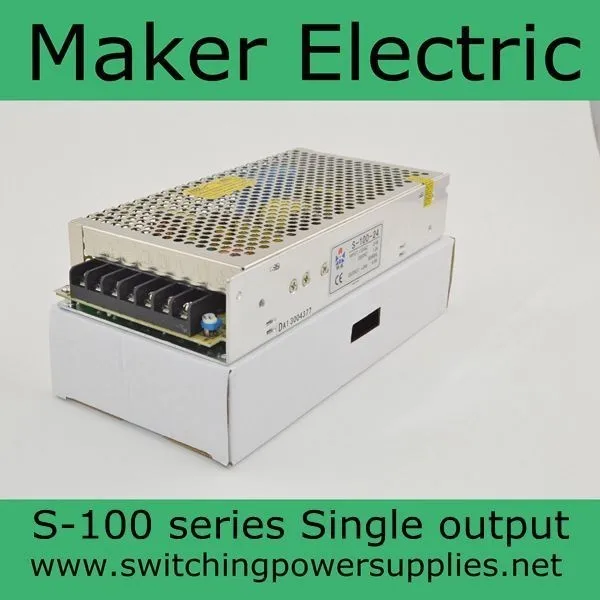

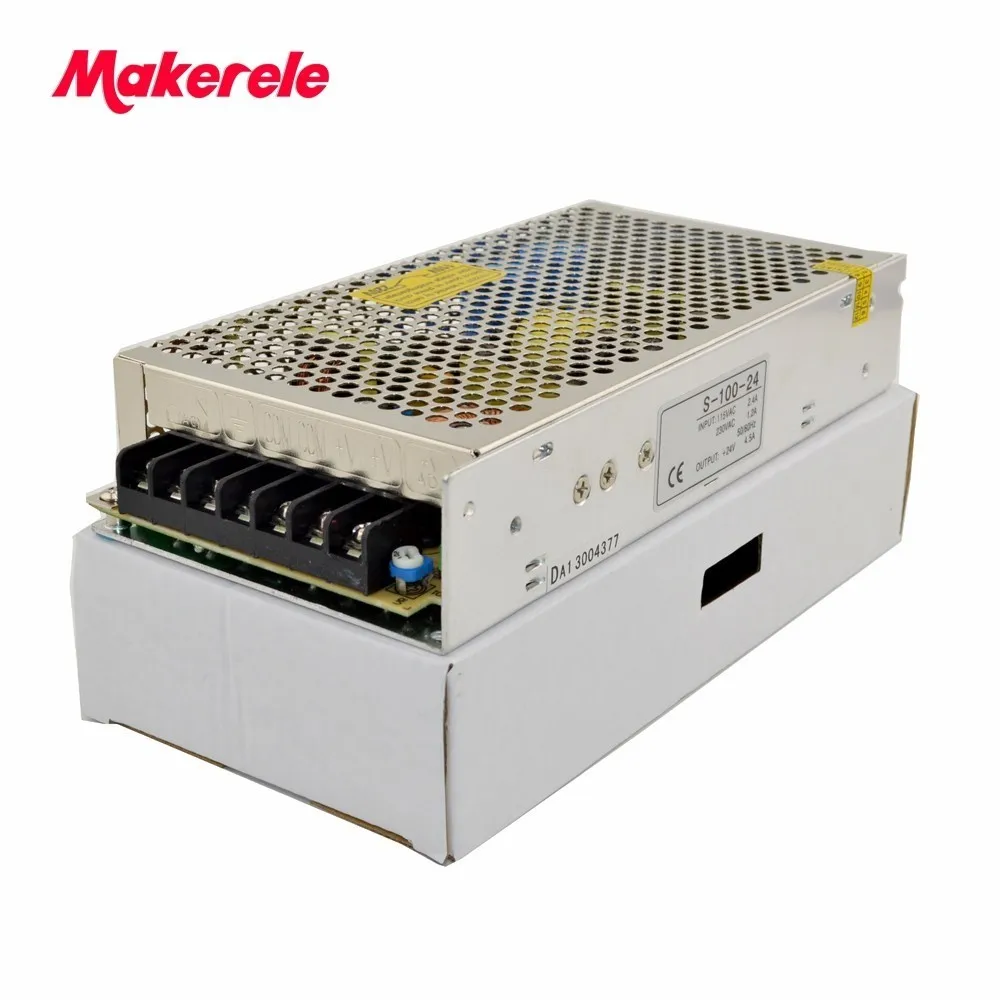

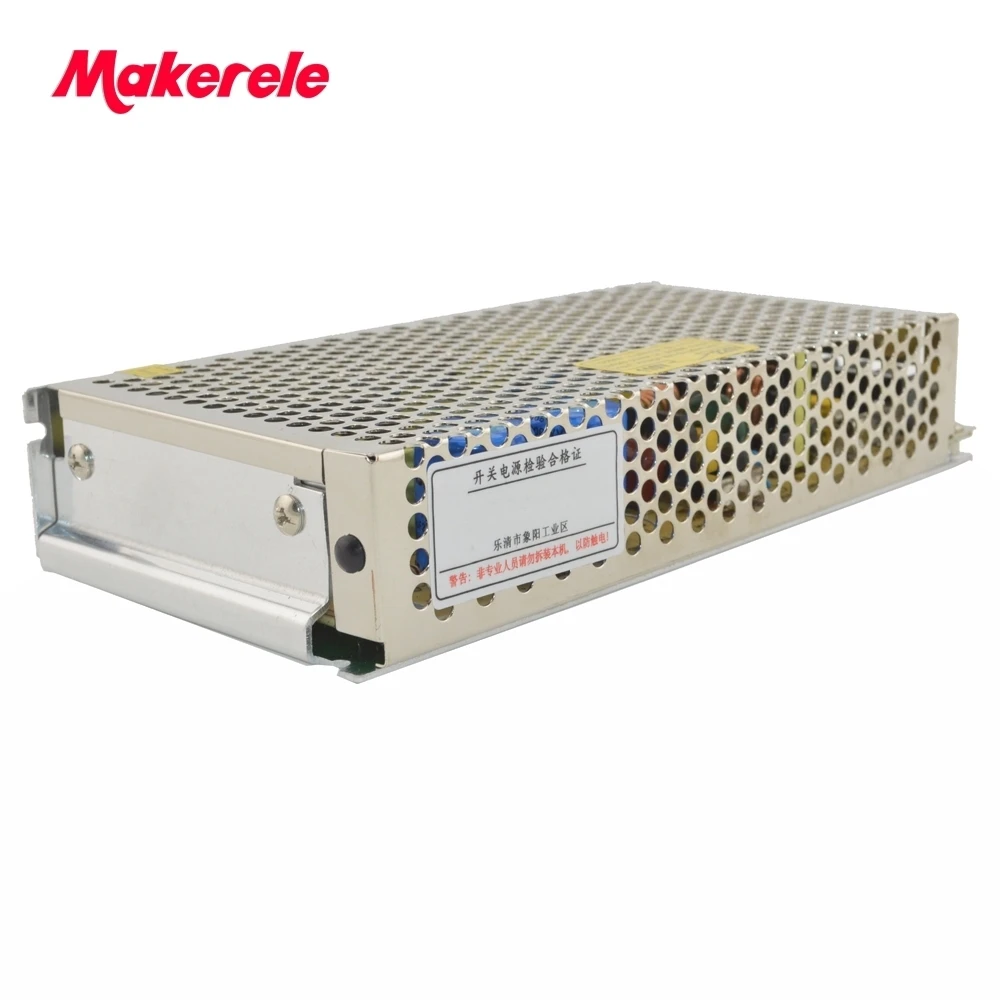

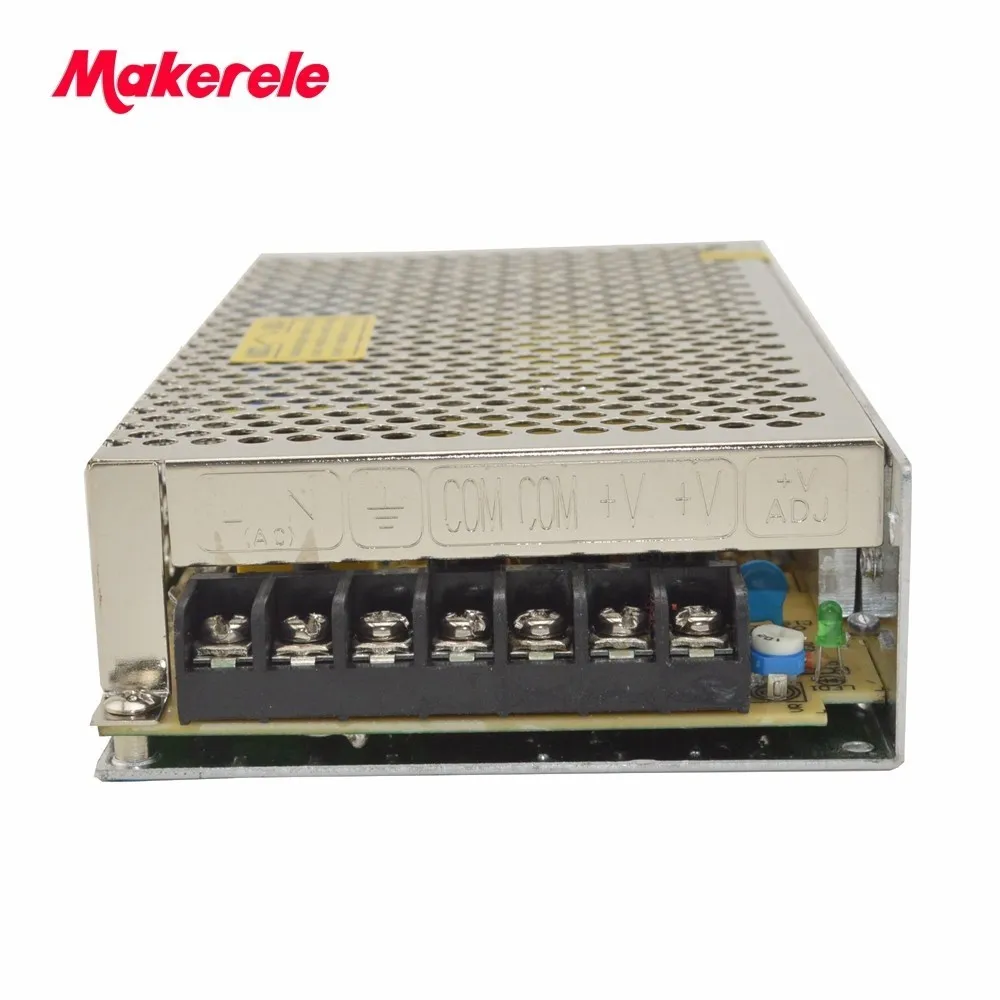

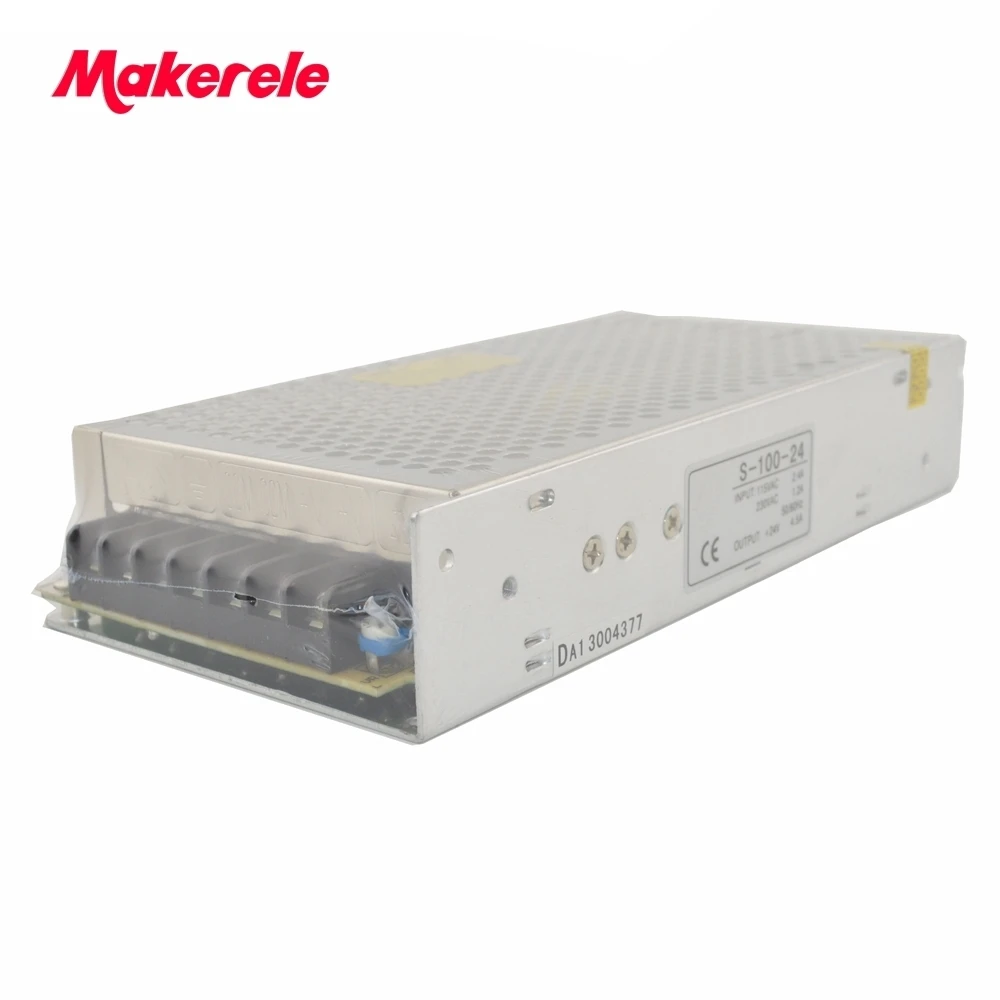

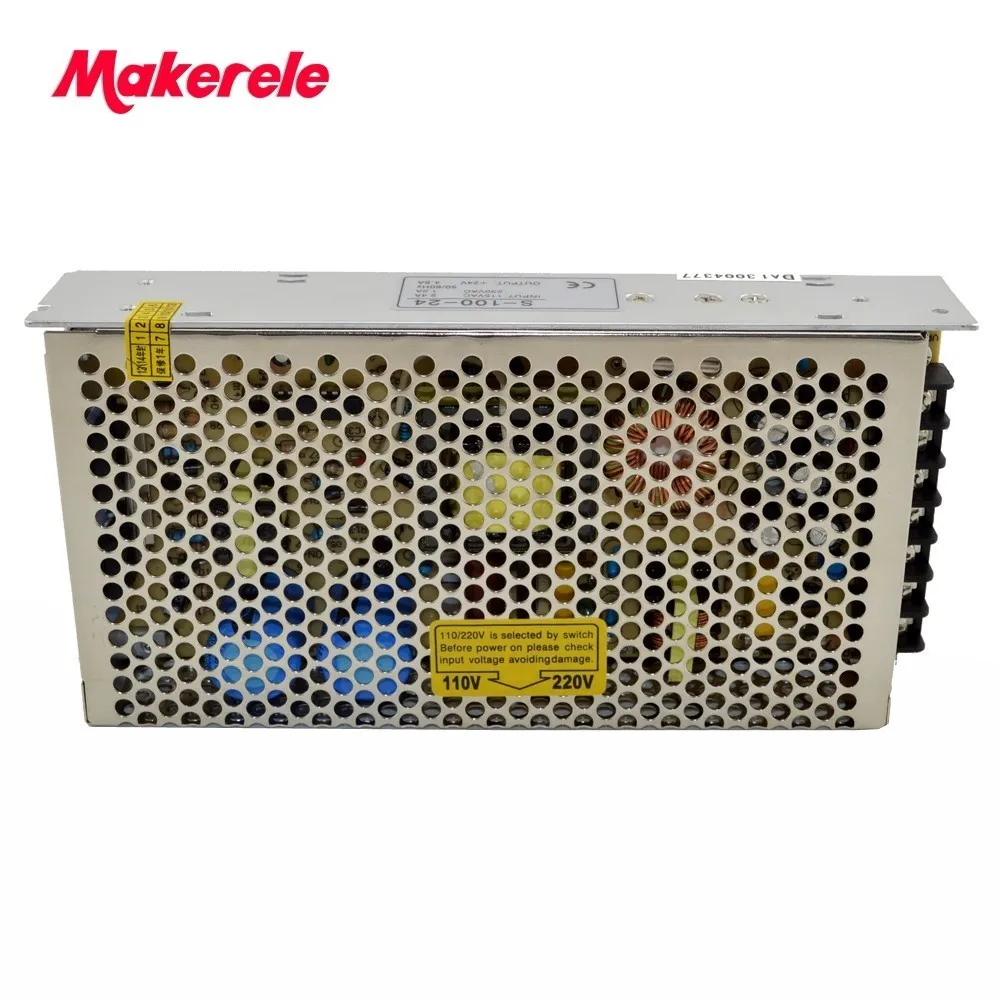

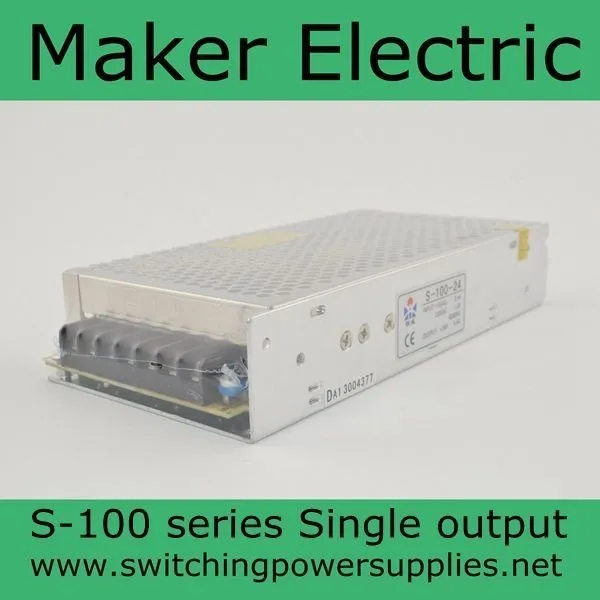

Один Выход импульсный источник питания 100 Вт 24 .. v 4. 5 AC/DC преобразователь CE

Один Выход импульсный источник питания 100 Вт 24 .. v 4. 5 AC/DC преобразователь CE

Inlet stability:+-0.5%

Notice:

Please make sure the input voltage, output voltage and current in item specs when placing orders. Or we\'ll arrange the one as the item specs says.

DC Voltage 3V 5V 7.5V 12V 15V 18V 24V 27V 48V

Voltage Tolerance 2% 2% 1% 1% 1% 1% 1% 1% 1%

Rated Current 20A 20A 13.6A 8.5A 6.7A 5.6A 4.5A 3.7A 2A

Current Range 0-20A 0-20A 0-13.6A 0-8.5A 0-6.7A 0-5.6A 0-4.5A 0-3.7A 0-2A

Rated Power 60W 100W 102W 102W 100.5W 100.8W 108W 99.9W 96W

Ripple & Noise 100 mVp-p 100 mVp-p 100 mVp-p 100 mVp-p 100 mVp-p 100 mVp-p 100 mVp-p 100 mVp-p 100 mVp-p

DC Adjustment Range -5%;+10% -5%;+10% 10% 10% 10% 10% 10% -4%;+18% 10%

Setup,Rise,Hold Time 200ms,80ms,20ms at full load

INPUT

Voltage Range 85~132 VAC/180~264VAC 47~63 Hz;selected by switch 255~370VDC

AC Current 2.4A/115 V 1.2A/ 230 V

Efficiency 70%(SKS-100-3); 78%(SKS-100-5); 80%(SKS-100-7.5); 81%(SKS-100-12); 81%(SKS-100-15);

82%(SKS-100-18); 84%(SKS-100-24); 84%(SKS-100-27); 84%(SKS-100-48);

Inrush Current Cold start 30A/115V 60A/230V

Leakage Current

PROTECTION

Over Load 135%~165%

Protection type: Shut down o/p voltage, recovers automatically after fault condition is removed.

ENVIRONMENT

Working Temp., Humidity -10C~+60C;20%~90 %RH

Storage Temp., Humidity -20C~+85C;10%~95 %RH

Vibration 10~500Hz,2G 10min./1cycle, period for 60min, each along X, Y, Z axes

SAFETY

Withstand Voltage I/P-O/P:1.5KVACI/P-FG: 1.5KVACO/P-FG: 0.5KVAC

Isolation Resistance I/P-O/P, I/P-FG, O/P-FG100M Ohms/500VDC

STANDARD

Safety Standard Design refer to UL1012

EMC Standard Design refer to FCC Part15 J Conduction Class B

OTHERS

Weight 0.655Kg

Packing 30pcs/20.5Kg. According to your order,we can provide different cartons for you.

NOTE

NOTE 1.All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25C of ambient temperature.

2.Ripple & noise are measured at 20MHz of bandwidth by using a 12twisted pair-wire terminated with a 0.1 &47

parallel capacitor.

3.Tolerance: includes set up tolerance, line regulation and load regulation

Product Size:

MingWei switching power supply factory is a set design, development, production in one of the high-tech professional manufacturers, the region is the first company to introduce Taiwan manufacturer of switch power supply technology, building in May 2001.

Notes on choosing a switching power supply?

To increase the reliability of the S.P.S., we suggest users choose a unit that has a rating of 30% more power than actual need. For example, if the system needs a 100W source, we suggest that users choose a S.P.S. with 130W of output power or more. By doing this, you can effectively boost the reliability of the S.P.S. in your system.Make sure that the model qualifies for the safety standards and EMC regulations you need.
