DC 8-32 В до 9-46 Step Up Модуль 150 Вт высокое Мощность повышающий преобразователь модуль

DC 8-32 В до 9-46 Step Up Модуль 150 Вт высокое Мощность повышающий преобразователь модуль

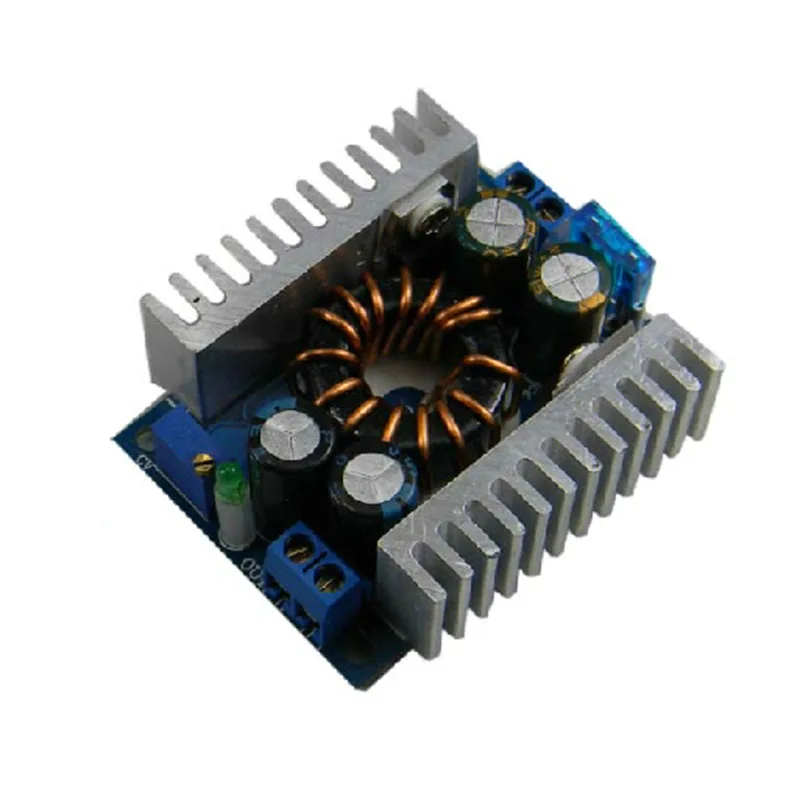

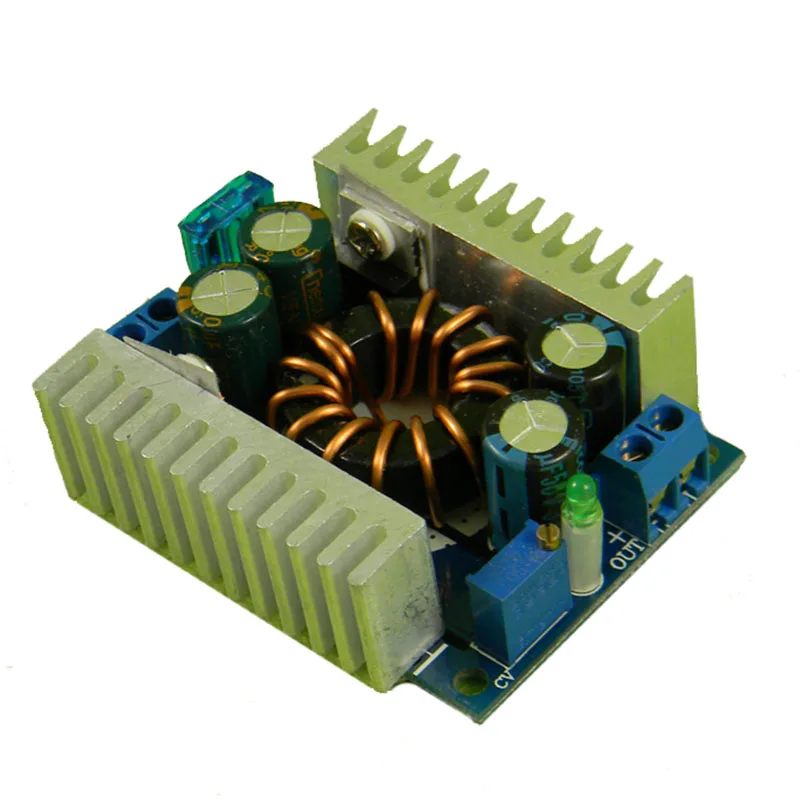

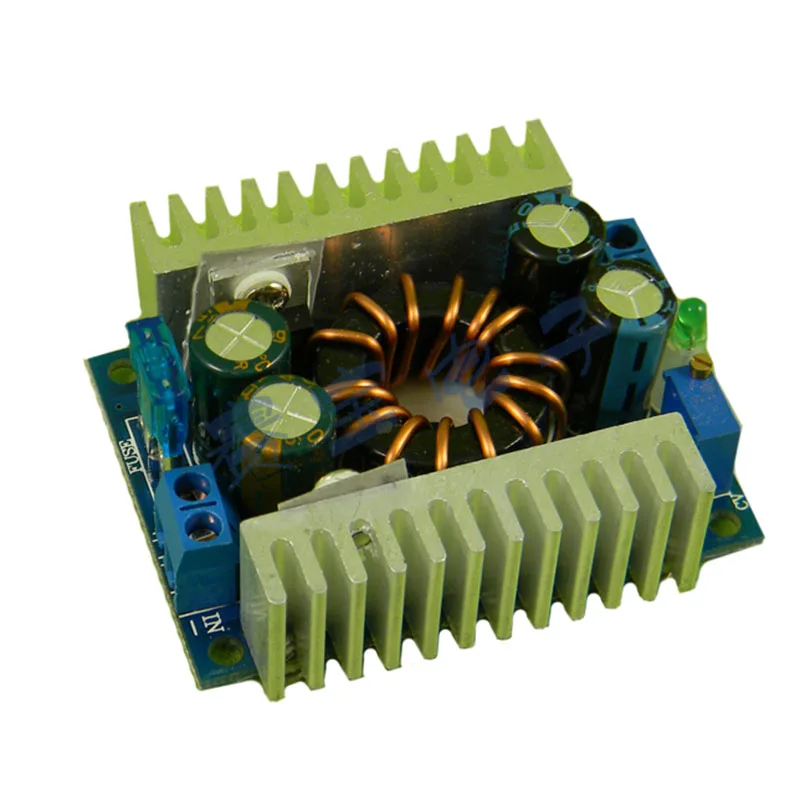

DC-DC Step-up Module:

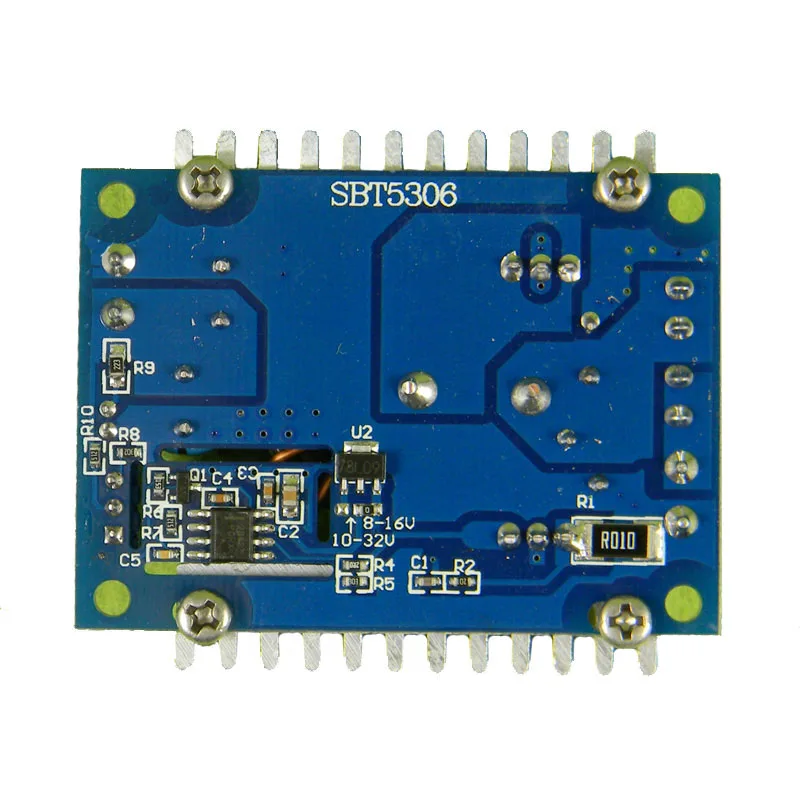

Ultra small volume, super dense aluminum radiator, lower module temperature, more stable. Input two 470uF/35V, output two 330uF/50V, 60V output for 220uF/63V switching power supply dedicated high-frequency low resistance capacitor, so that output ripple is lower, onboard LED work indicator light, work more intuitive. Unique PCB hollow design, to minimize the temperature due to the change of important parts of the parameters caused by the instability of the work. Onboard 4 M3 screw holes to facilitate your installation.

Product parameter:

Module name: 150W boost module

Module property: non isolated boost module (BOOST)

Input voltage: 8-16V input, 10-32V input

Input current: 16A (MAX) over 8A, please strengthen the heat dissipation

Quiescent operating current: 15mA (12V liters 20V), the output voltage is more Gao Jing, so the current will increase

Output voltage: 9-46V, adjustable continuously

Output current: 8A, MAX over 4A, please strengthen the heat dissipation (with the input and output pressure difference, the greater the pressure difference, the smaller the output current)

Output power: natural heat dissipation, 90W, enhanced heat dissipation, 150W

Operating temperature: -40~+85 ℃(ambient temperature is too high, please strengthen the heat dissipation)

Operating frequency: 150KHz

Conversion efficiency: up to 95% (efficiency is related to input, output voltage, current, pressure difference)

Short circuit protection: Yes (enter 15A fuse)

Input reverse connection protection: No, (please enter the diode in the input string)

Installation: 4 3mm screws

Connection mode: the terminal is free of welding output, and the shell is welded. (V-IN for input, V-OUT for output)

Module size: 60*50*20mm

Weight: 80g

​

1*DC-DC Step-up Module Boost Converter
