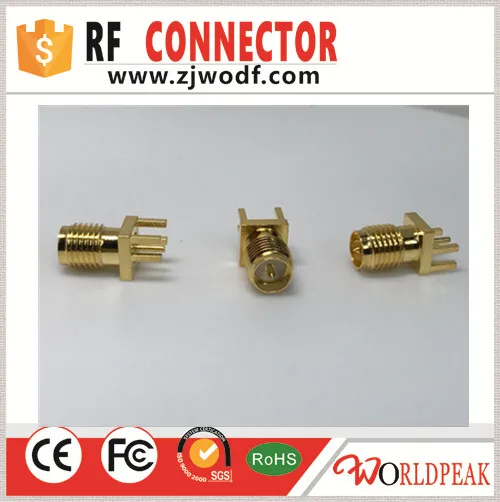

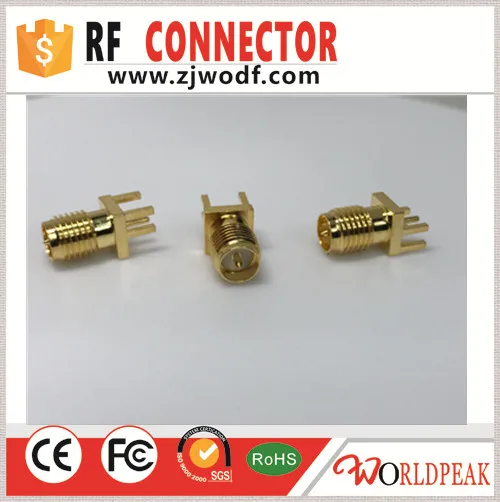

Free shipping 100 piece RPSMA female straight pcb edge mount sma jack pcb pallet rf coaxial connector

Product Description

Electrical

Impedance

50Ω

 Frequency range

0~12.4GHz

Working Voltage

335V max

Withstand Voltage

1000V rms

VSWR

Straight

≤ 1.1

Rigth Angle

≤ 1.2

Contact resistance

-center contact

≤3mΩ

-outer contact

≤2mΩ

Insulation resistance

≥5000MΩ

Mechanical

Temperature range      -55°C~+155°C

Durability(matings)      >500 cycles

Material and plating

Piece part

Material

plating

Body

Brass

Gold or nickel plated

Center conductor

Brass or Phosphor Bronze

Gold plated

Crimping suite

Copper alloy

Nickel plated

O-ring sealing

6146 silastic

Insulator

PTFE

Environmental

IEC 60169-16/MIL-C-39012/CECC22210

SMA series rf connector has small volume, wide frequency band, excellent mechanical properties, high reliability and so on. It is one of the most popular used RF coaxial connectors.

What the difference between SMA and RP SMA ?

Look this picture :

Our company

Zhenjiang WORLDPEAK electronic products co.,ltd is located Jingkou Road,zhenjiang City jiangsu Province China.
Specializing in the design,research,production and sales of a variety of RF coaxial connectors and rf coaxial cable,our company has advanced technique,perfect and full testing means and 100-bed CNC maching equipment.

The company passed ISO9001:2000 quality management system certification in 2001,and started to use the software of ERP management to organize the production control since 2006.
The main products are RF coaxial connectors,cable assemblies,totally more than 20 series , about 2000 varieties,N,BNC,TNC,SMA,SMB,L9,MCX,7/16DIN, CC4,MMCX/FME/QMA and so on.

Our production process is in accordance with international standards,the products meet the IEC and MIL technical standards throngh performance testing of authorities,widely used in the field of communications.
Our tenet is “Qualtiy is the first,customer is king",we export our goods to many countries and enjoy a high reputation both at home and abroad.
Our products have been exporting to East Europ, Weatern Europ ,Mid east, Africa, Southeast Asia.

Packing &   Delivery

Delivery
Our cooperation and professional international logistics company, quick safe, cheap, let the customer trust.

Our Service

We can do it:


• Low loss Superflexible Cable Assembly With Connector factory sell directly
• Long-term,strong and steady supplying ability
• Delivery time: 1-2 working days
• Do as your requirements on package,brand or other designs
• Strong sales promotion policy
• Ex-factory price and competitive price
• We can provide you a good survice
• Replying you asap.(will reply you 10-20 mins on the basis of getting your require.)

Customization advantages Reliable performance Perfect production management system (ISO9001,ISO14001) we have experience about RF components more than 20 years Experienced R&D staff. All Goods will be tested before shipping OEM/ODM service available.
FAQ

Q:what's your company MOQ?
A: In generally, if use customer brand, we will ask at least 500~800pcs, this we can negotiate.

Q: What's your delivery time?
A: This please ask our stock in first, products can send out once receive your deposit.If use customer brands, we will take a 3-5days to prepare materials and mass production.

Q: Can your company accept customize?
A: Welcome OEM & ODM.

Q: How do you solve after sale service?
A: This please ask us for technical support if you have workers know how to repair.If do not have engineers, please send back the items, we can repair the items for you.

Q: Can you send a sample for us to develop?
A: Yes, we can. Sample can send out once you ask for it, but will ask a sample fee. Sample fee will return back in future order.
