Electrical OLED Parameter Tester

-100V/50A-100A

Technical Parameters:

Voltage measurement range: DC00.0-99.9V                 Time measurement range: 0-99h59min

Current measurement range: DC00.0-50.0A (50A range)   DC00.0-99.9A (100A range)

Power measurement range: 0-999.9-5000W (50A range)   0-999.9-9999W(100A range)

Temperature measurement range: -15 °c ~60°c         Capacity accumulation range: 0-999.99-9999.9 Ah

Energy accumulation range: 0-99999Wh-9999KWh    Voltage measurement accuracy: ± (0.5% + 2digits)

Current measurement accuracy: ± (1% + 2digits)  Product weight: 28g

Product size: 48mm*29mm*22mm (L*W*H)

Display Interface Instruction:

①Run time

②Power display

③Data set

④Temperature display

⑤Capacity display

⑥Voltage display

⑦Current display

⑧Energy display

Operating instruction

When meausuring, changing range and calibrating zero, it must be connected with the corresponding shunt.

Changing range operation:

Factory default is 100A measuring range; if switch to 50A range,please connect 50A shunt and keep pressing the key to power on, until the screen displays "50A", then loose the key. Now changing range is done. If you want to switch to 100A range, please connect 100A shunt and operate by same way.

Calibrating zero operation

With the aging of components and influence of ambient temp, there might be tiny error for the current reading, especially when measuring low current. To calibrate it: 1, power off the meter.2, connect the shunt and disconnect the load. 3 press and hold the front button .4, power on the meter.5, release the button when you see “AAA” on the screen. Done

Button Function Instruction:

This tester has 0 and 1 two data groups; and data groups are switched by pressing the key.

When data group is the 1 group, the current capacity and energy will be stored after power off. And the stored values will be accumulated after power on. When the data group is the 0 group, the current capacity and energy will be stored after power off; when power on next time, the stored capacity and energy are blinking displayed. But when the new capacity is up to 0.01 Ah, the stored capacity and energy will be covered, and the values will start over. At the two data groups, the accumulated values can be cleared to zero by keeping pressing the key.

The Wiring Diagram Instruction:

①Red thin line

②Black thin line

③Yellow thin line

④Red thick line

⑤Black thick line

⑥Load

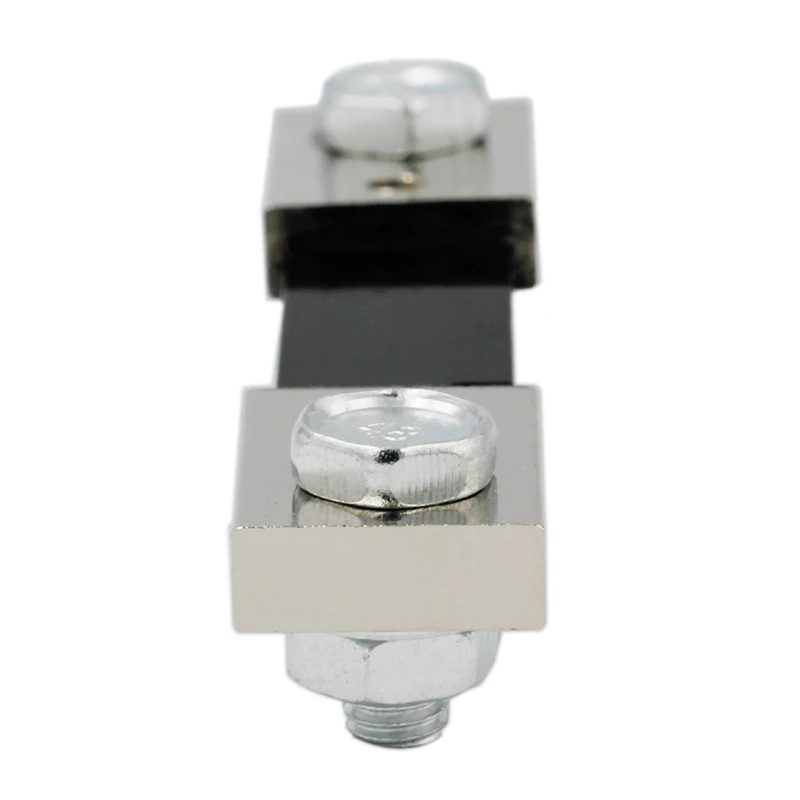

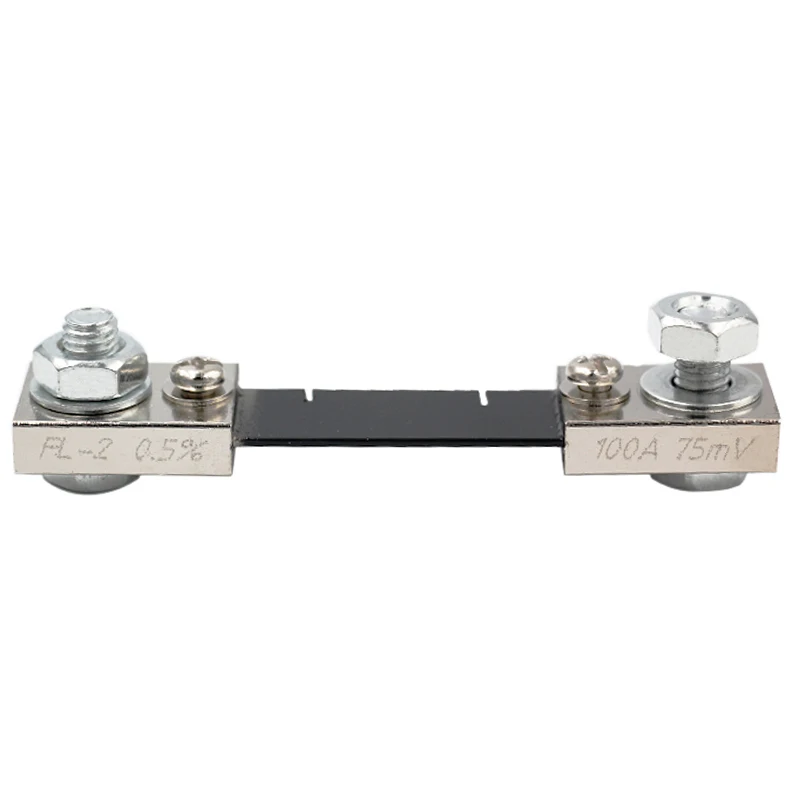

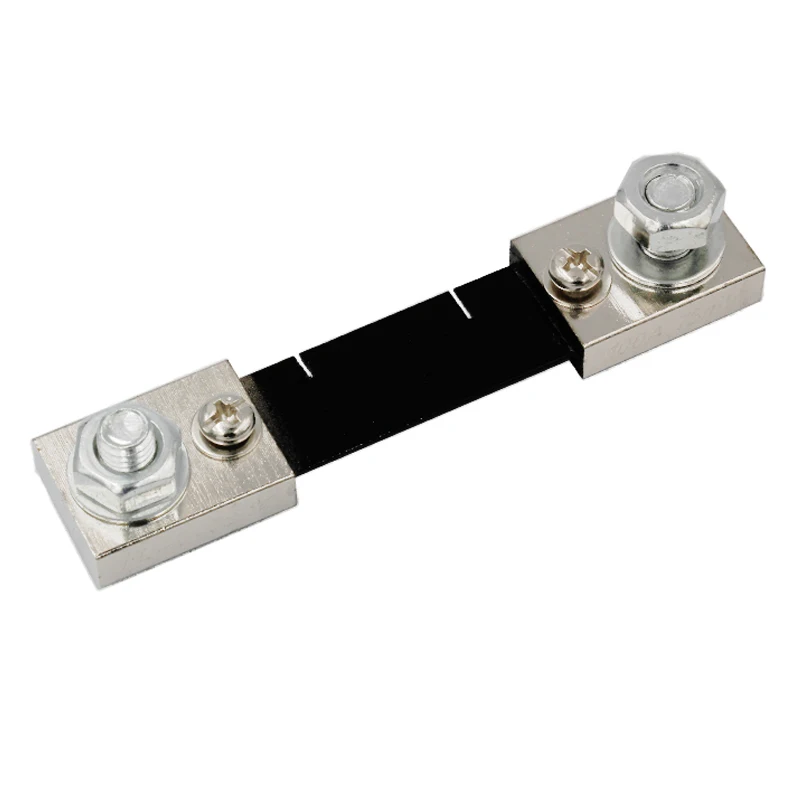

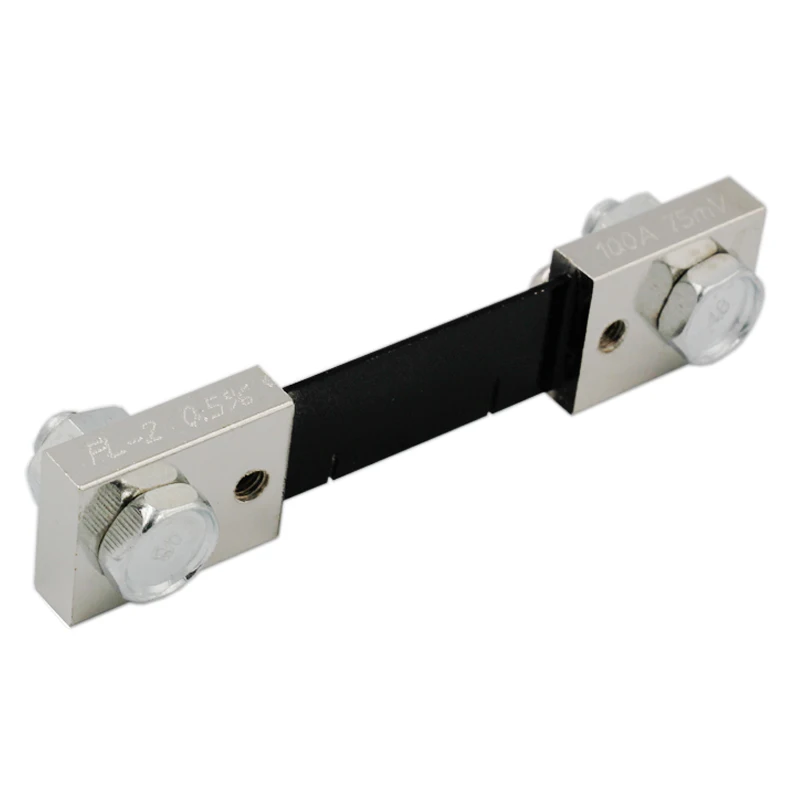

⑦Shunt

Please ensure proper wiring in strict accordance with the wiring diagram.

Using Isolated Power Supply to power the meter

The two power supplies must be isolated and don't have any connections between them. The voltage of the isolated power supply must be less 60V

Using system to power the meter

The black thin wire connects nothing and you should use insulator wrap it to avoid short circuit.

Using DC-DC converter to power the meter

The black thin wire connects nothing and you should use insulator wrap it to avoid short circuit.The DC-DC converter must be common cathode structure.
