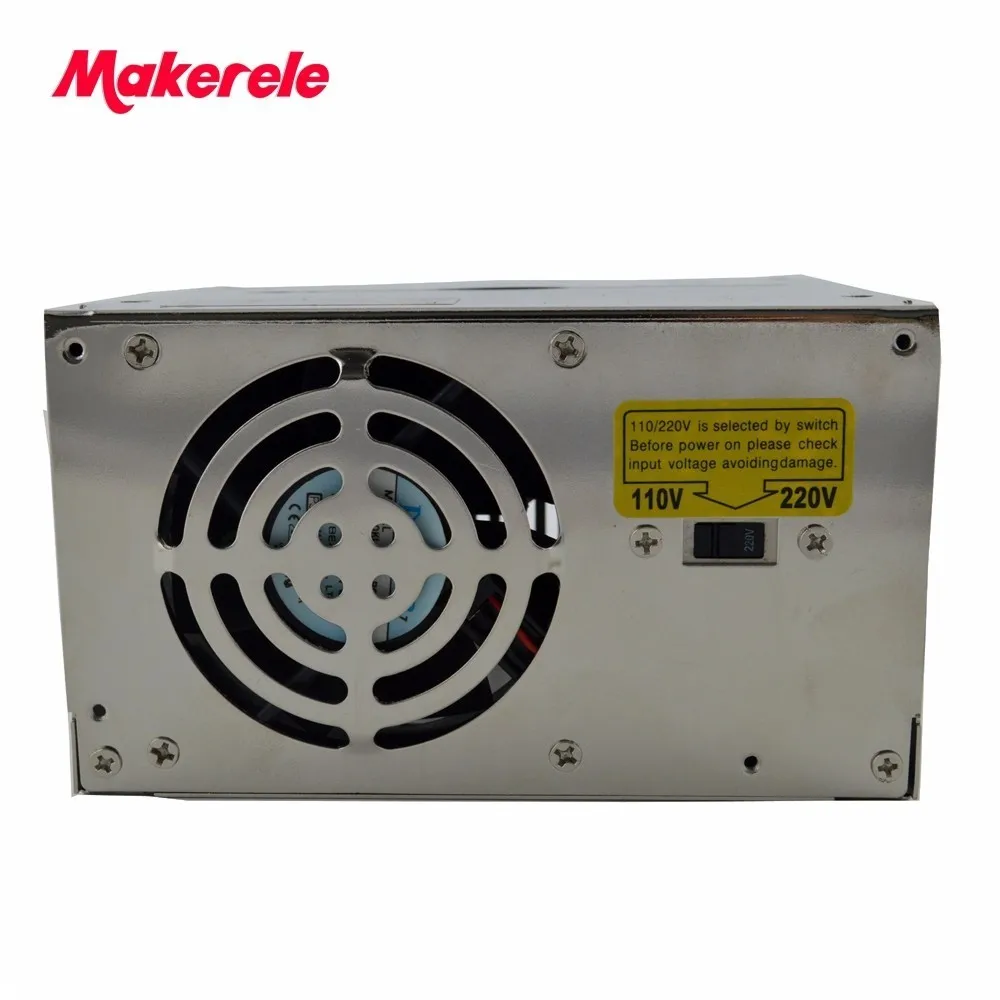

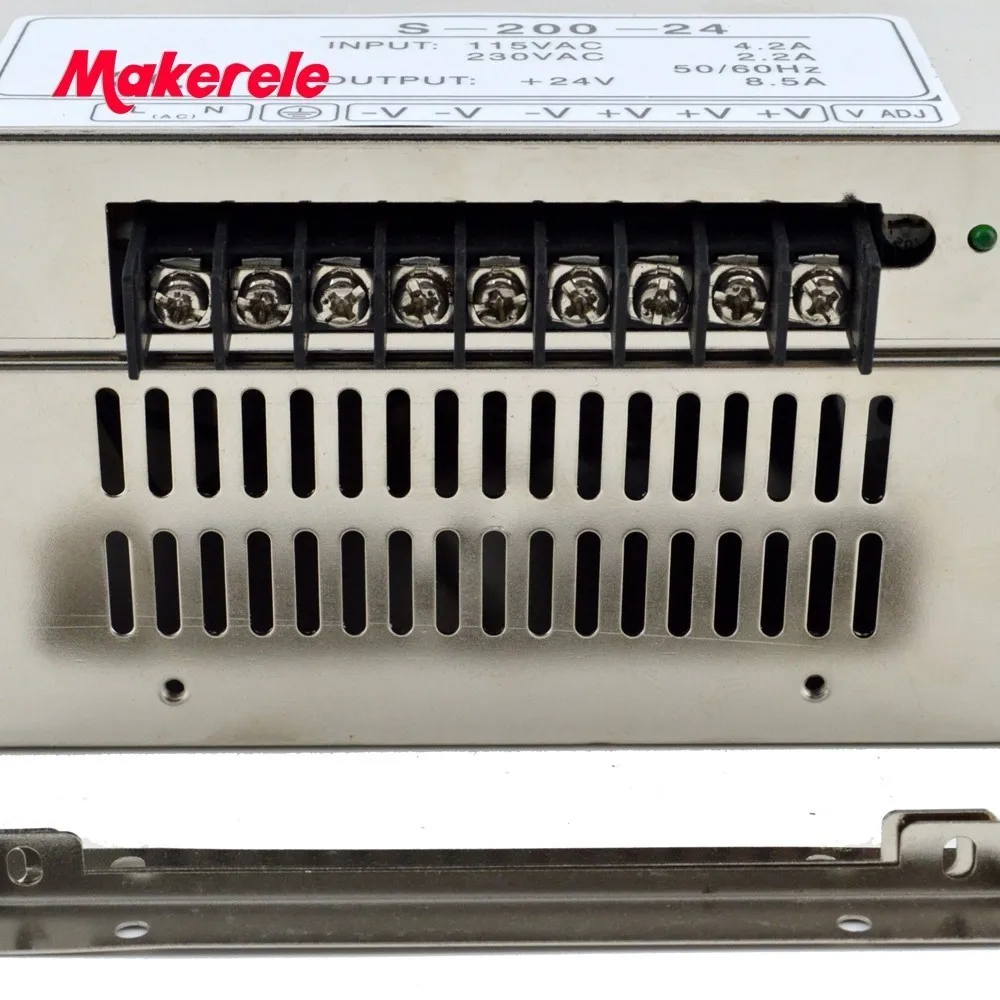

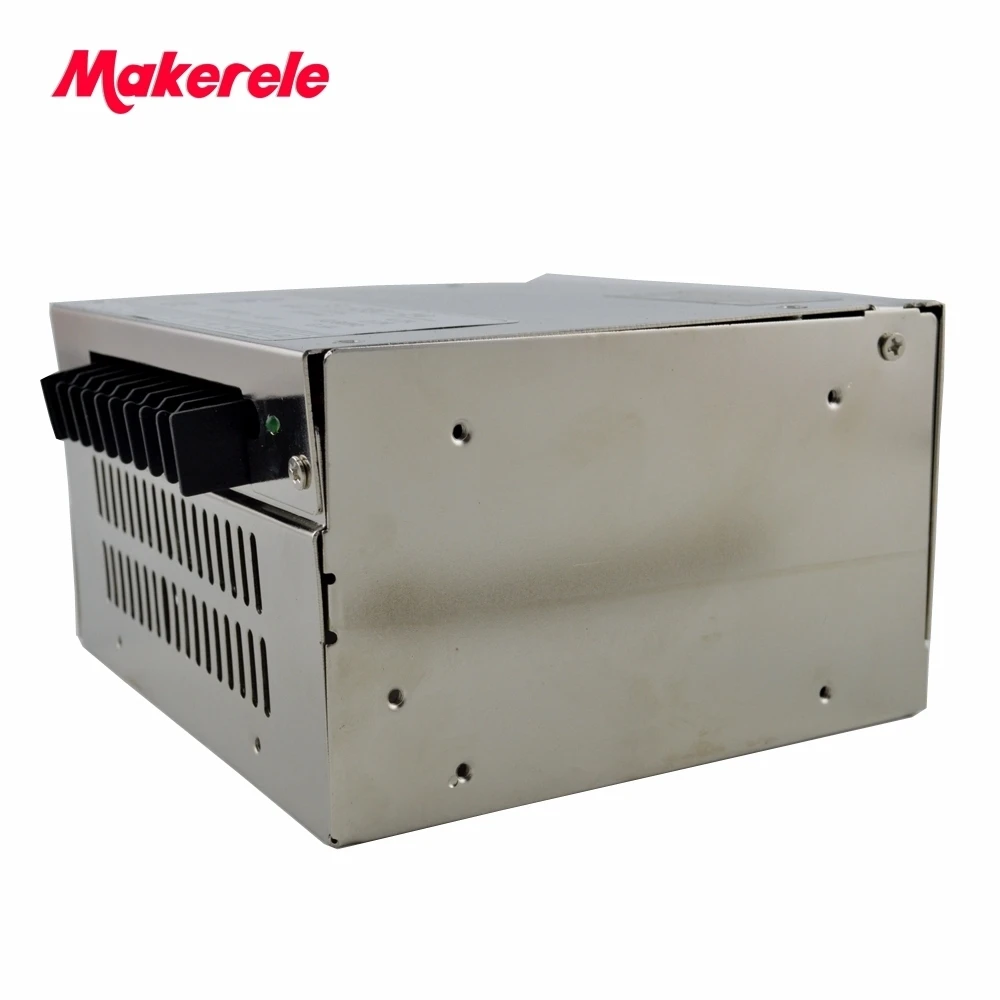

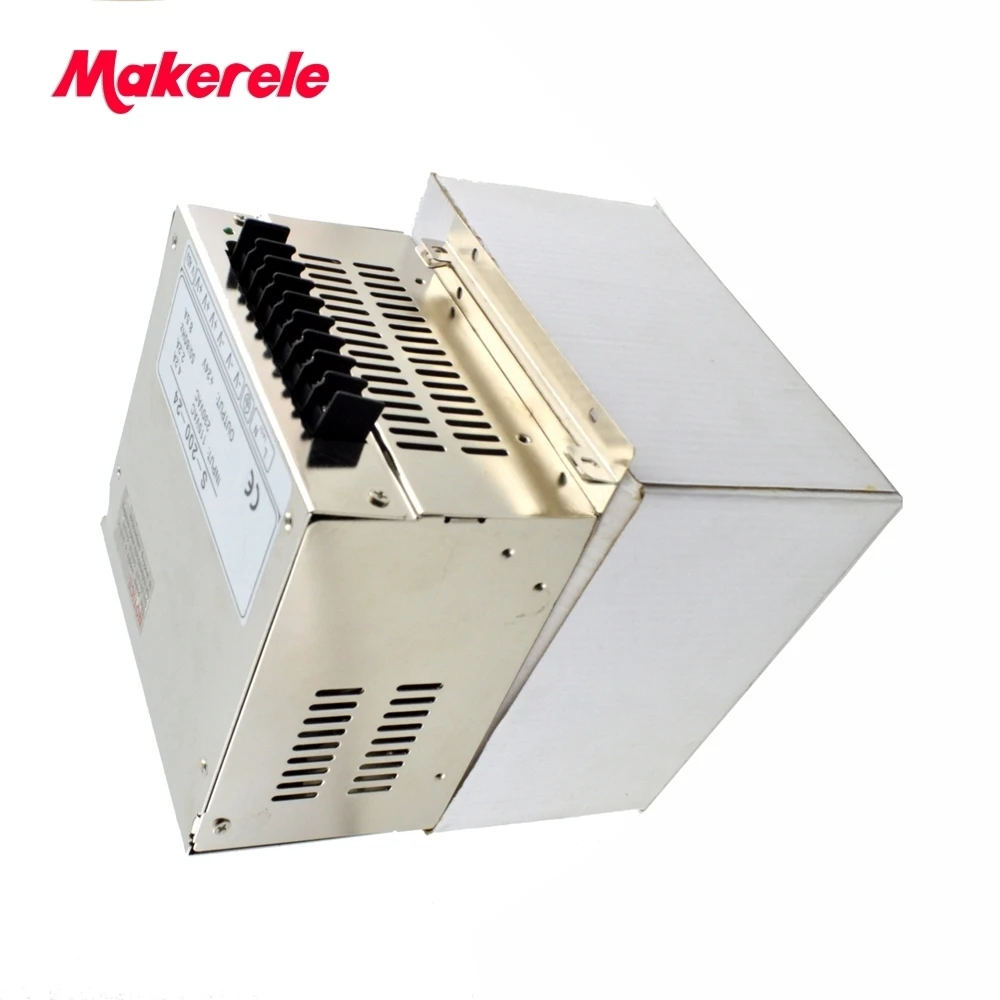

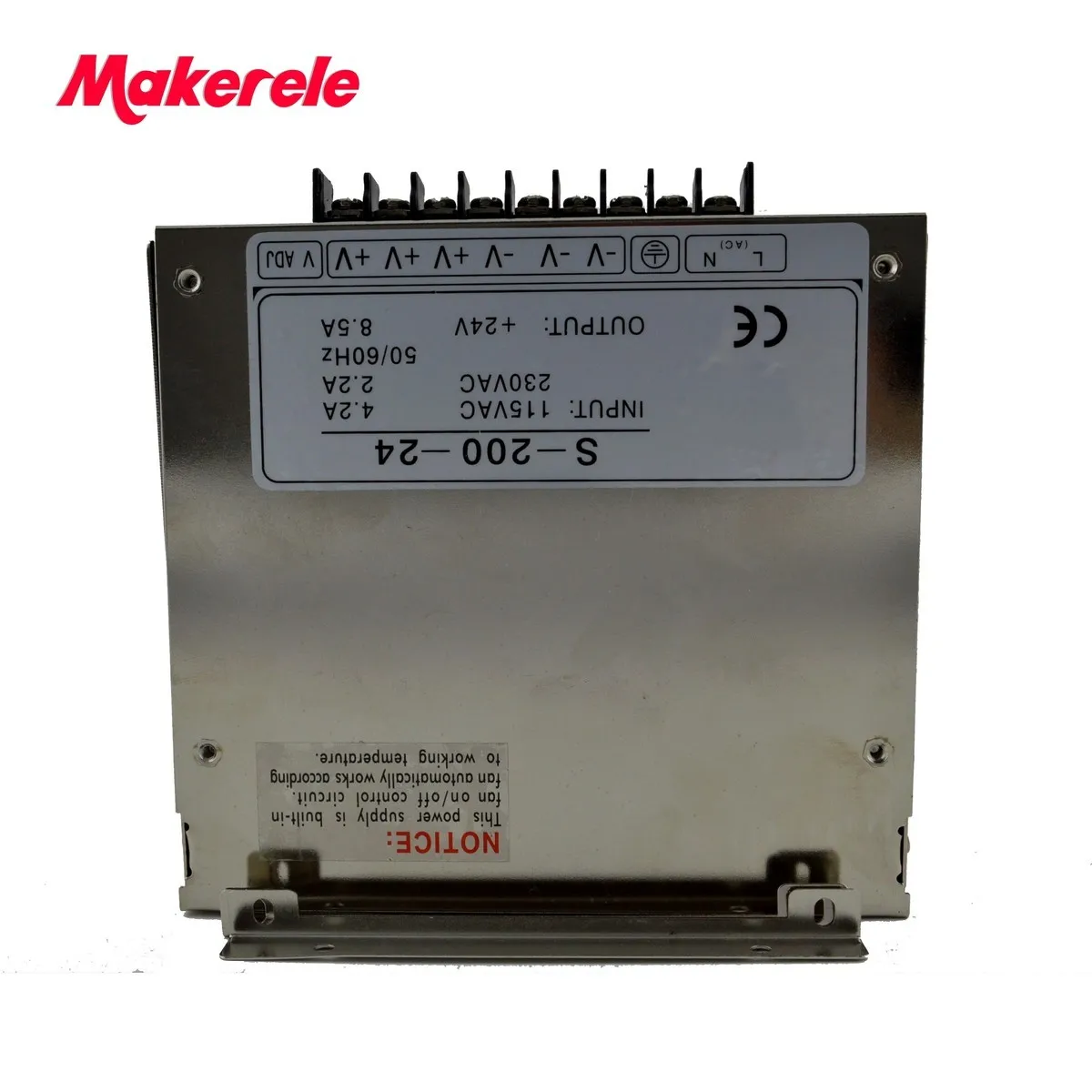

AC 110 В/220 В к DC импульсный источник питания 200 Вт 48 4.2A.. Бесперебойного Регулируемая

AC 110 В/220 В к DC импульсный источник питания 200 Вт 48 4.2A.. Бесперебойного Регулируемая

Notice:

Please make sure the input voltage, output voltage and current in item specs when placing orders. Or we\'ll arrange the one as the item specs says.

Model S-200-5 S-200-7.5 S-200-12 S-200-13.5 S-200-15 S-200-24 S-200-27 S-200-48

DC output voltage 5V 7.5V 12V 13.5V 15V 24V 27V 48V

Output voltage error 2% 2% 1% 1% 1% 1% 1% 1%

Rated output current 40A 26.5A 16.5A 14.7A 13A 8.3A 7.4A 4.2A

Output current range 0-40A 0-26.5A 0-16.5A 0-14.7A 0-13A 0-8.3A 0-7.4A 0-4.2A

Wave and noise 180mVp-p 180mVp-p 120mVp-p 120mVp-p 120mVp-p 120mVp-p 150mVp-p 240mVp-p

Inlet stability 0.5% 0.5% 0.5% 0.5% 0.5% 0.5% 0.5% 0.5%

Load stability 1% 1% 0.5% 0.5% 0.5% 0.5% 0.5% 0.5%

DC output power 200W 198.75W 198W 198.45W 198W 199.2W 199.8W 201.6W

Efficiency 75% 75% 79% 79.00% 80.00% 81% 82% 84%

Adjustable range

for DC voltage 4.5~5.6V 6~9V 10~13.2V 12~15V 13.5~18V 20~26.4V 26~32V 41~56V

INPUT

AC input voltage range: 88~132VAC/176~264VAC selected by switch 47~63Hz;248~370VDC

Input current: 4.5A/115V 2.5A/230V

AC inrush current: 30A/115V 60A/230V

Leakage current: <3.5mA/240VAC

PROTECTION

Overload protection: 105%~160% Type:plusing hiccup shutdown Reset:auto recovery

ENVIRONMENT

Working temperature and humidity:

-10C~+60C(Refer to output derating curve),20%~90%RH

Store temperature and humidity: -20C~+85V, 10%~95%RH

Temperature coefficient: +-0.03%/C(0~50C)

Setup rise hold-up time: 200s,80ms,16ms

Vibration: 10~500Hz,2G 10min,/1cycle,Period for 60min,Each axes

SAFETY

Withstand voltage: Input and output internal:3KvAC,

Input and enclosure:1.5KvAC,

Output and enclosure:0.5KvAC

Isolation resistance: Input and output internal,

input and enclosure,

output and enclosure:500VDC/100M

STANDARD

Safety standards: Design refer to UL1950

EMC standards: Design refer to FCC Part 15J claa A

OTHERS

Weight :1.315kg

Packing :According to your order, we can provide different cartons for you.

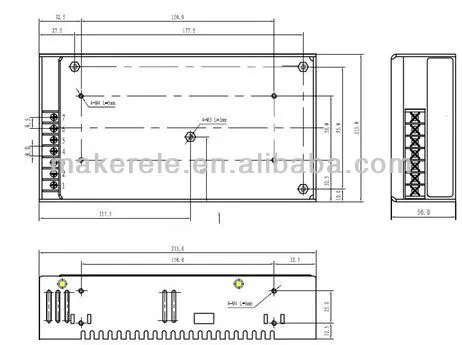

Product Size:

MingWei switching power supply factory is a set design, development, production in one of the high-tech professional manufacturers, the region is the first company to introduce Taiwan manufacturer of switch power supply technology, building in May 2001.

Notes on choosing a switching power supply?

To increase the reliability of the S.P.S., we suggest users choose a unit that has a rating of 30% more power than actual need. For example, if the system needs a 100W source, we suggest that users choose a S.P.S. with 130W of output power or more. By doing this, you can effectively boost the reliability of the S.P.S. in your system.Make sure that the model qualifies for the safety standards and EMC regulations you need.

Maker Industrial and Trading Company started to run businiess since 2006, which is located in Wenzhou Yueqing - The world-famous city for low-voltage electric apparatus.We owns followed subsidiary corporations:

Yueqing Maker electric Co., Ltd. concentrates on Import and Export.

Yueqing MINGWEI Switching power supply FactoryMore than 20 years of production experience,focus on production and research and development of switch power supply.
