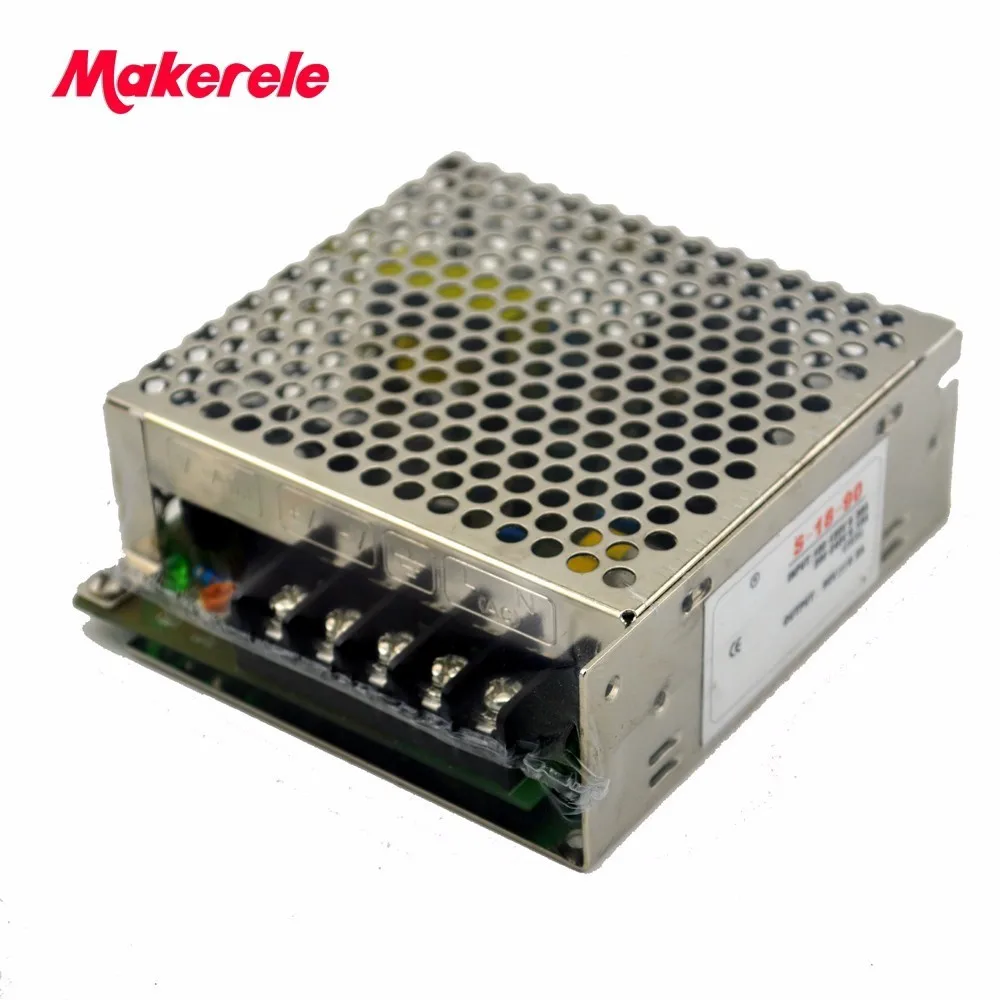

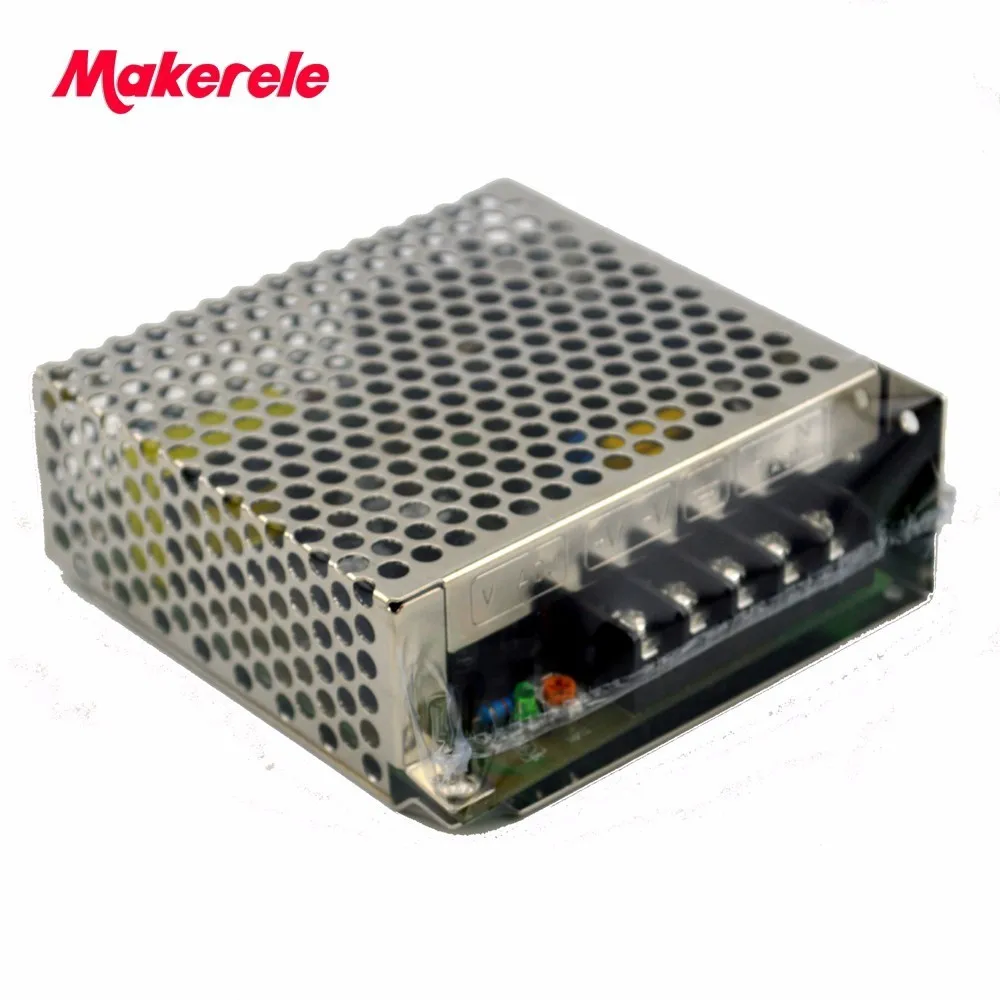

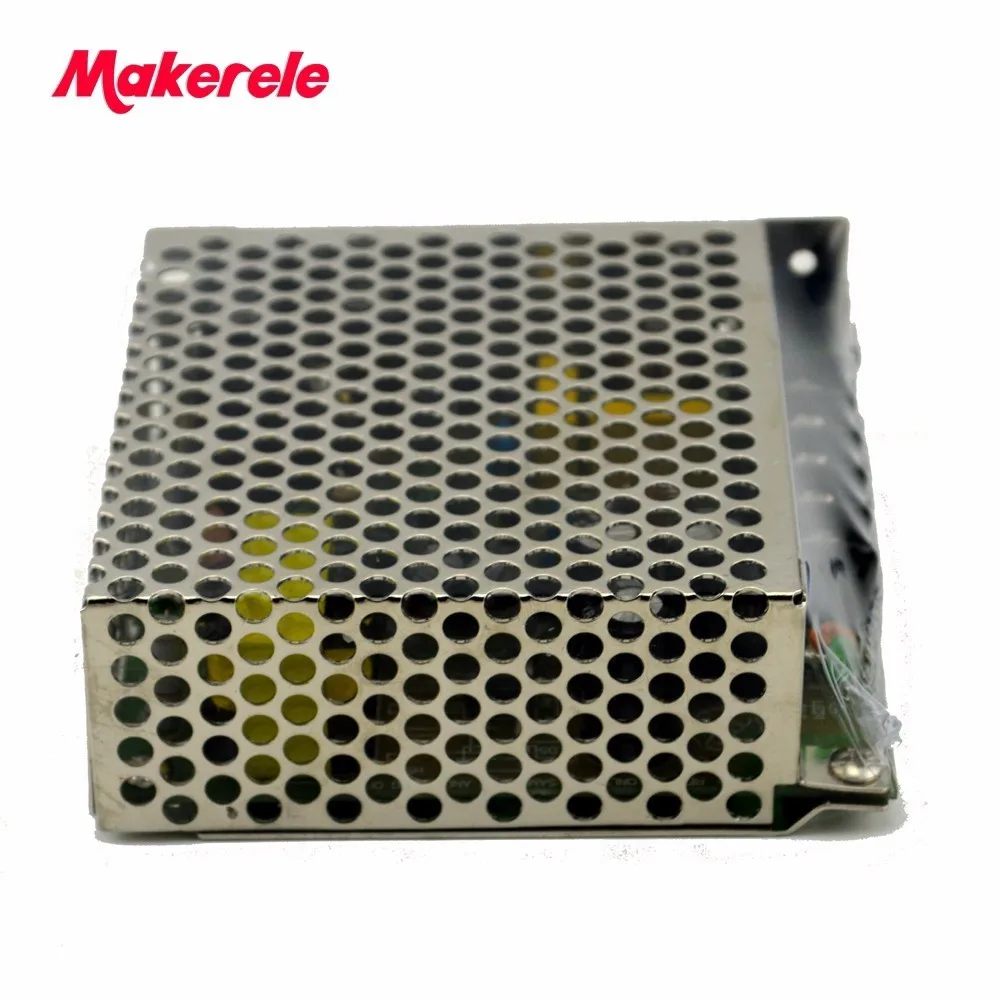

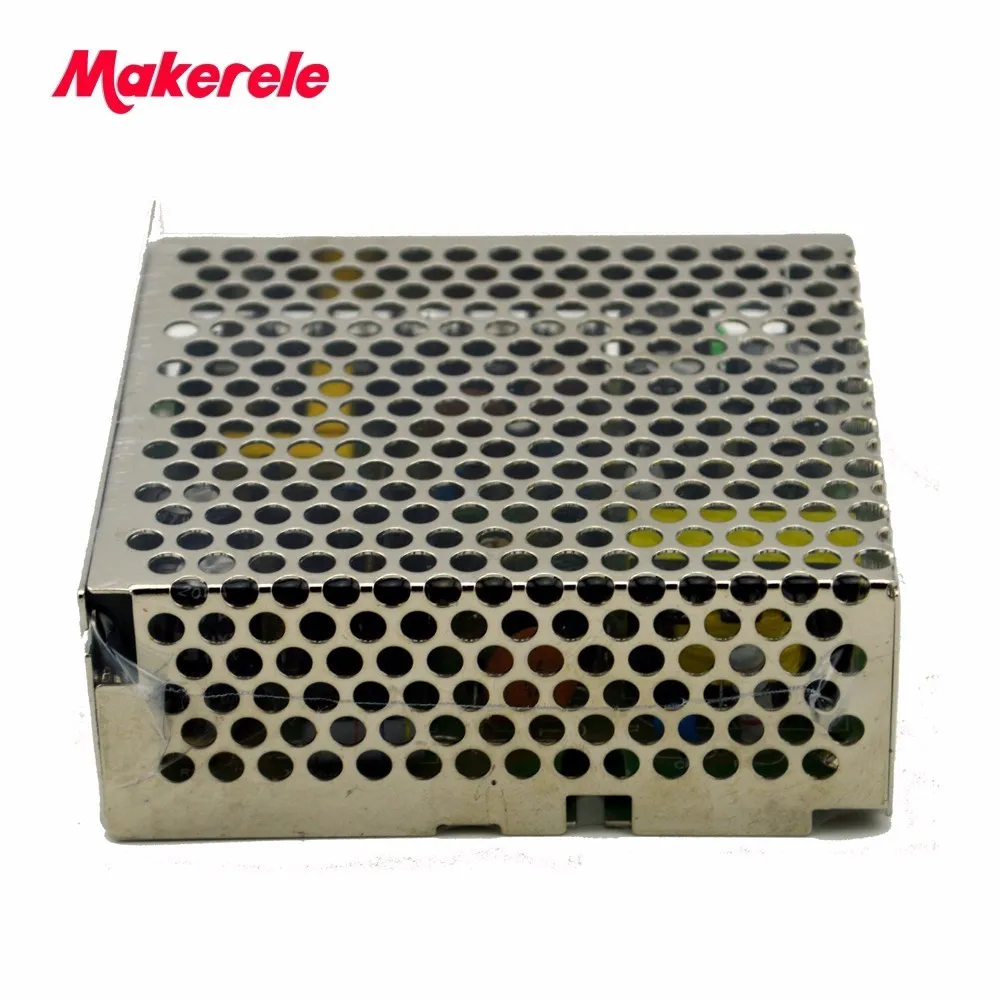

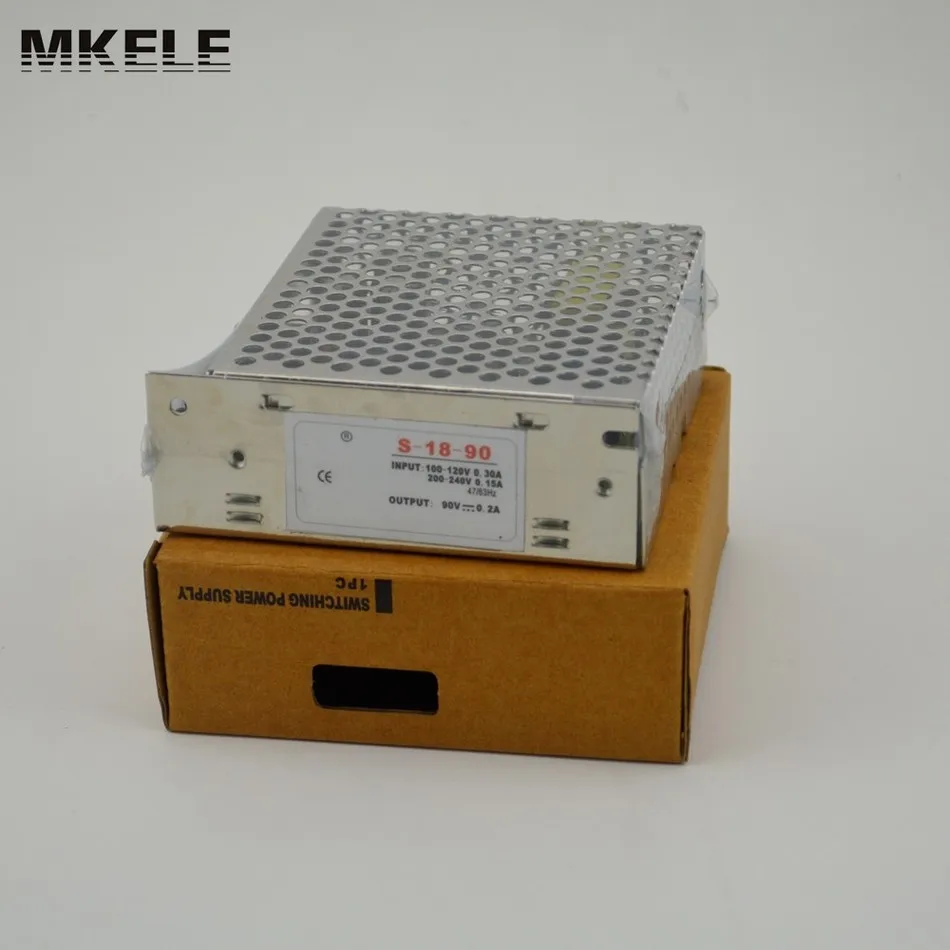

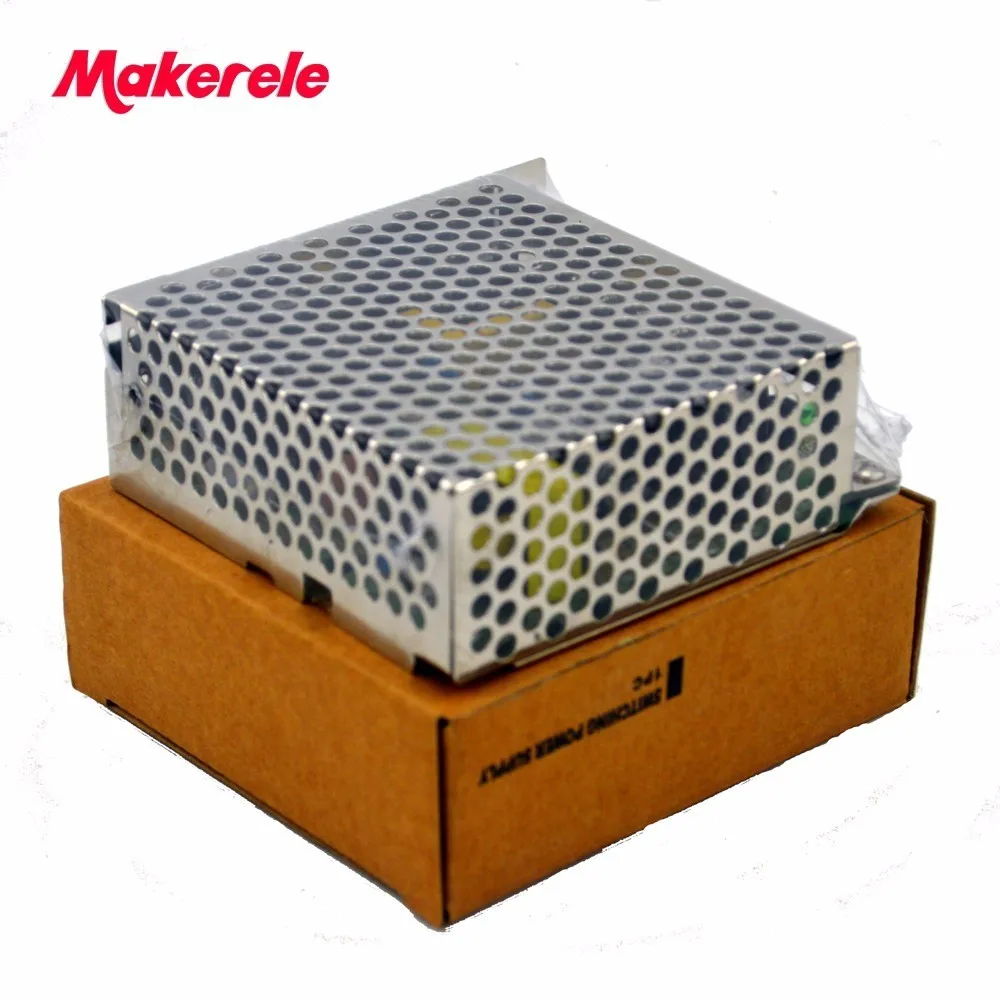

Импульсный источник питания AC DC 90 В 0.2a Meanwell постоянного тока 0.2 а 18 Вт S источники

Импульсный источник питания AC DC 90 В 0.2a Meanwell постоянного тока 0.2 а 18 Вт S источники

Notice:

Please make sure the input voltage, output voltage and current in item specs when placing orders. Or we\\\'ll arrange the one as the item specs says.

DC Voltage 90V

Voltage Tolerance 1%

Rated Current 0.2A

Current Range 0-0.2A

DC Adjustment

Range +10%

Setup,Rise,Hold Time 200ms,100ms,30ms at full load

INPUT

Voltage Range 200-240 VAC47~63 Hz

PROTECTION

Over Load 110%~160%

Protection type:Fold back current limiting, recovers automatically after fault condition is removed

ENVIRONMENT

Working Temp., Humidity -10C~+60C;20%~90 %RH

Storage Temp., Humidity -20C~+85C;10%~95 %RH

Vibration 10~500Hz,2G 10min./1cycl,period for 60min, each along X, Y, Z axes

SAFETY

Withstand Voltage I/P-O/P: 1.5KVACI/P-FG: 1.5KVACO/P-FG: 0.5KVAC

Isolation Resistance I/P-O/P, I/P-FG, O/P-FG: 100M Ohms/500VDC

STANDARD

Safety Standard Design refer to UL1012

EMC Standard Design refer to FCC Part15 J Conduction Class B

OTHERS

Weight:0.337Kgs

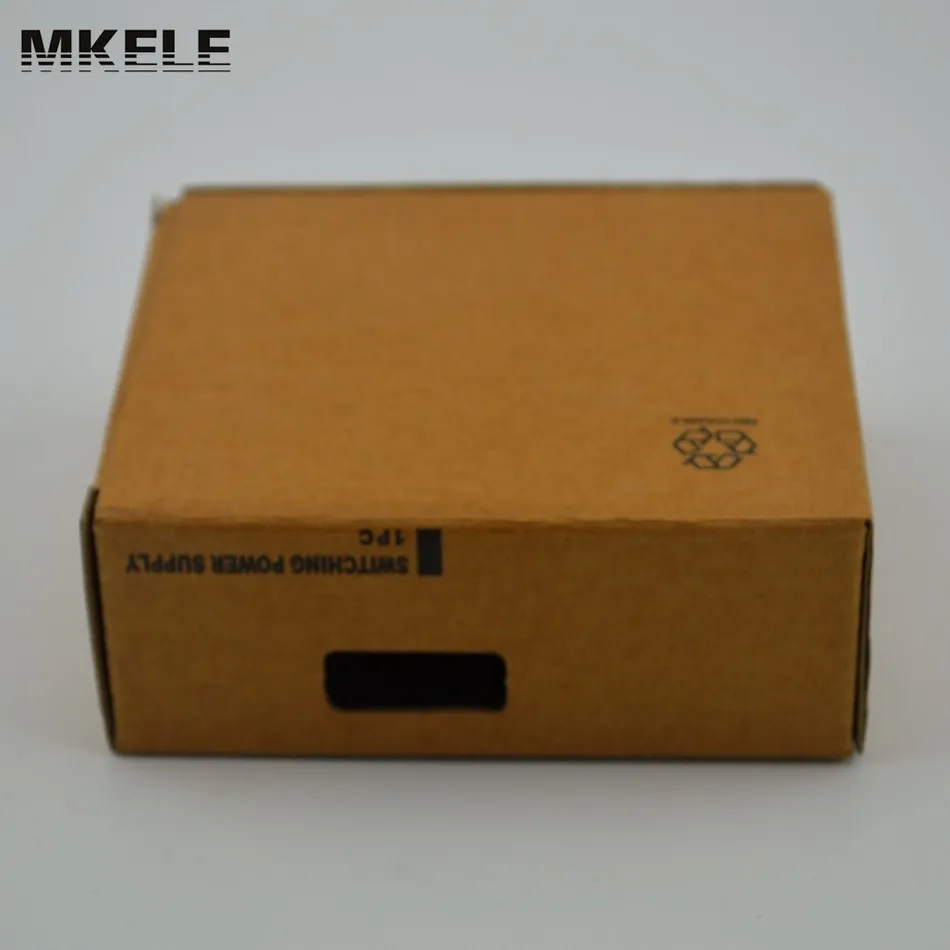

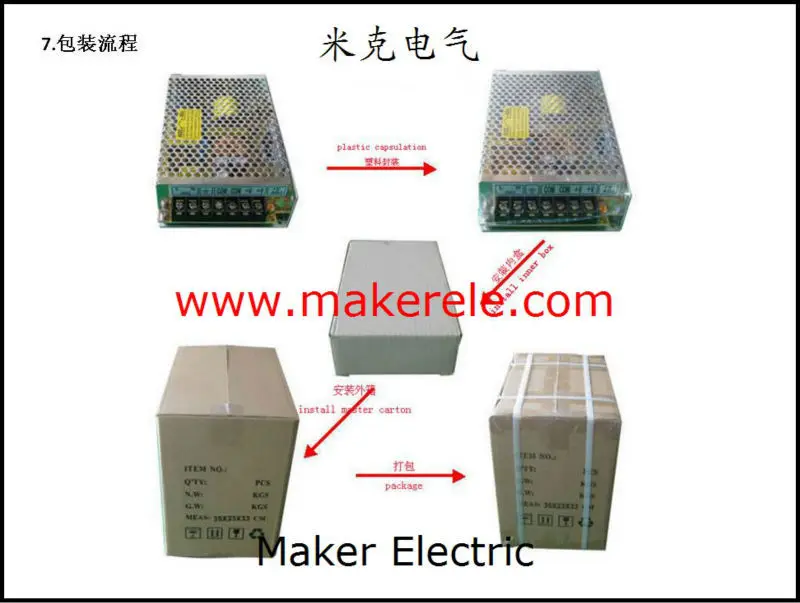

Packing:60pcs/21Kg/0.9CUFT. According to your order,we can provide different cartons for you.

NOTE

1.All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25C of ambient temperature.

2.Ripple & noise are measured at 20MHz of bandwidth by using a 12twisted pair-wire terminated with a 0.1 &47

parallel capacitor.

3.Tolerance: includes set up tolerance, line regulation and load regulation

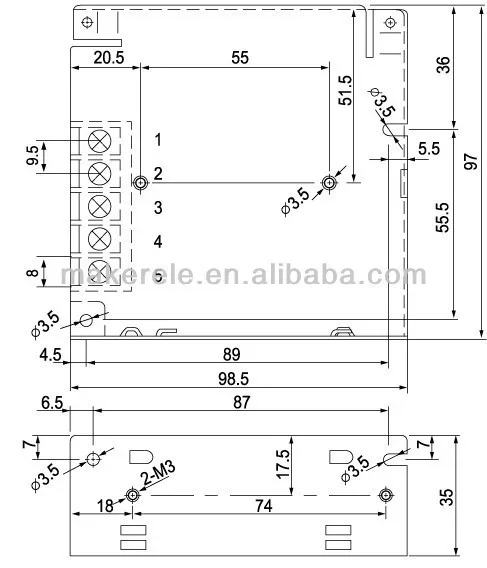

Product Size:

MingWei switching power supply factory is a set design, development, production in one of the high-tech professional manufacturers, the region is the first company to introduce Taiwan manufacturer of switch power supply technology, building in May 2001.

Notes on choosing a switching power supply?

To increase the reliability of the S.P.S., we suggest users choose a unit that has a rating of 30% more power than actual need. For example, if the system needs a 100W source, we suggest that users choose a S.P.S. with 130W of output power or more. By doing this, you can effectively boost the reliability of the S.P.S. in your system.Make sure that the model qualifies for the safety standards and EMC regulations you need.

Maker Industrial and Trading Company started to run businiess since 2006, which is located in Wenzhou Yueqing - The world-famous city for low-voltage electric apparatus.We owns followed subsidiary corporations:

Yueqing Maker electric Co., Ltd. concentrates on Import and Export.

Yueqing MINGWEI Switching power supply FactoryMore than 20 years of production experience,focus on production and research and development of switch power supply.
