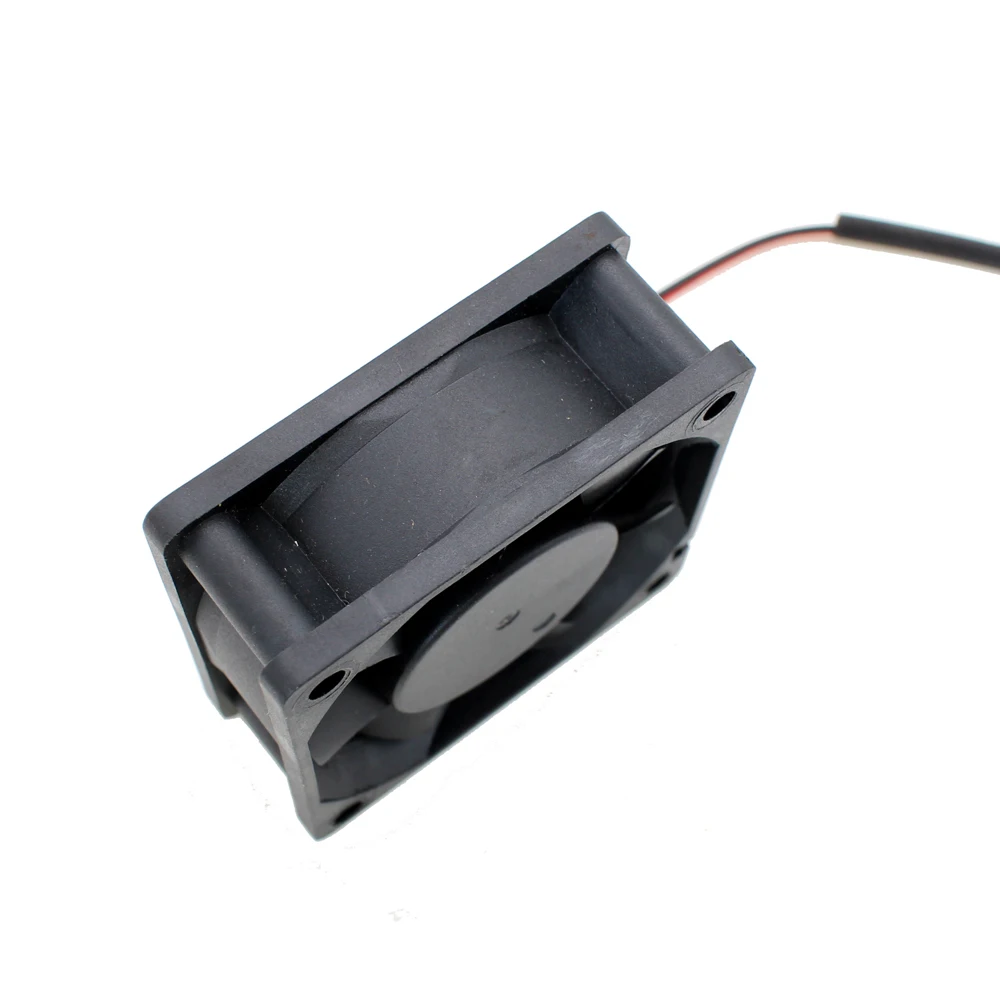

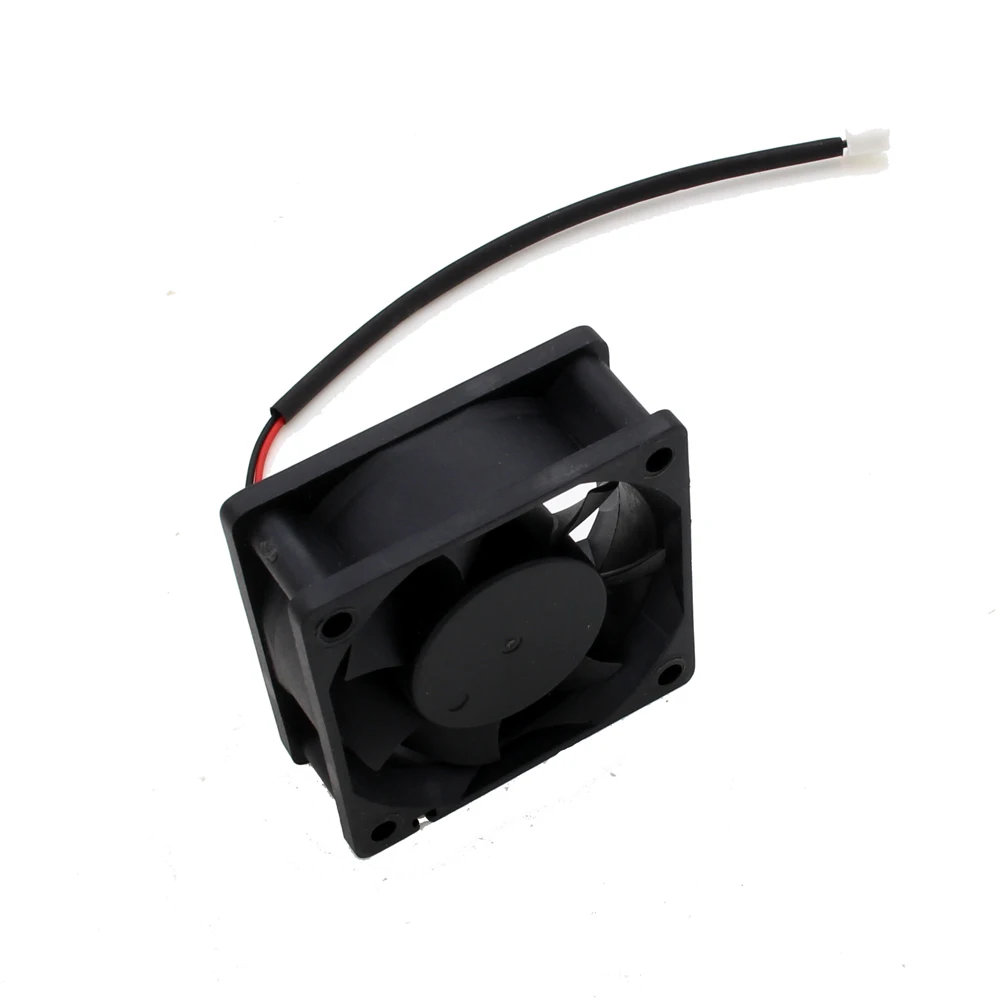

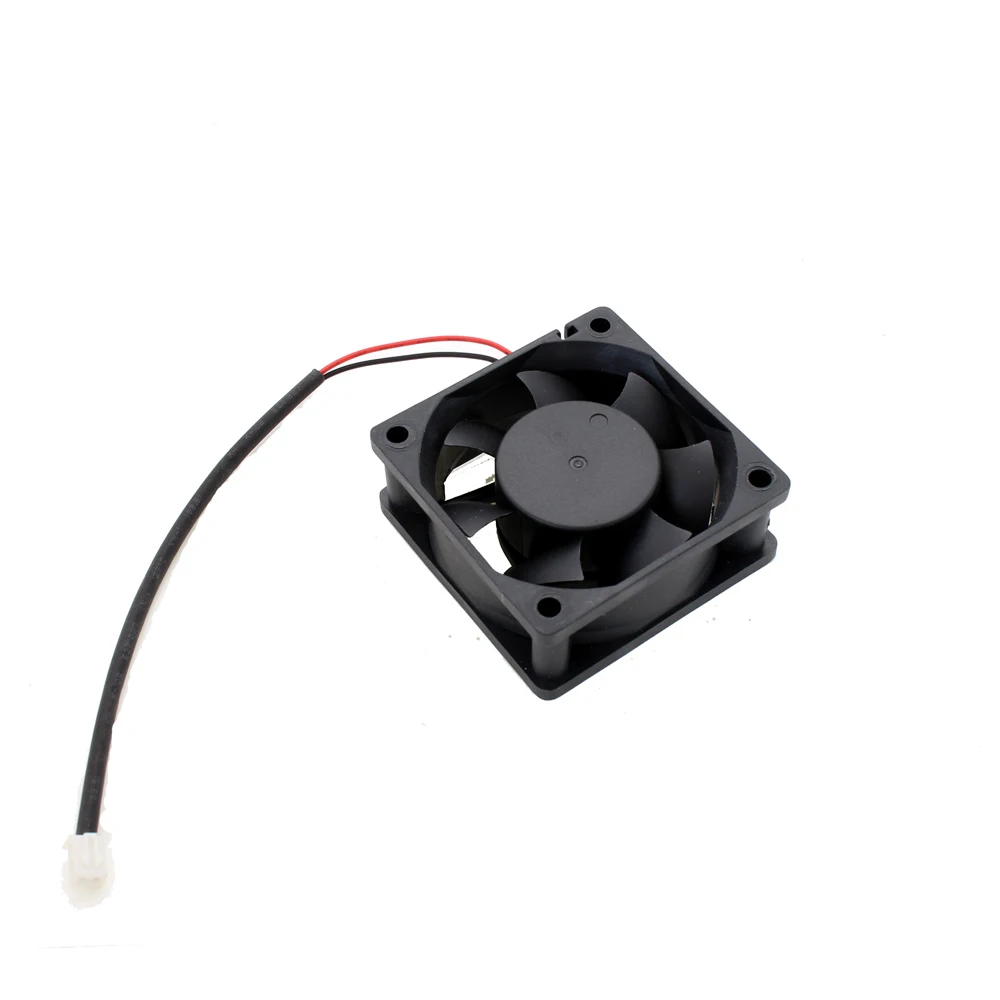

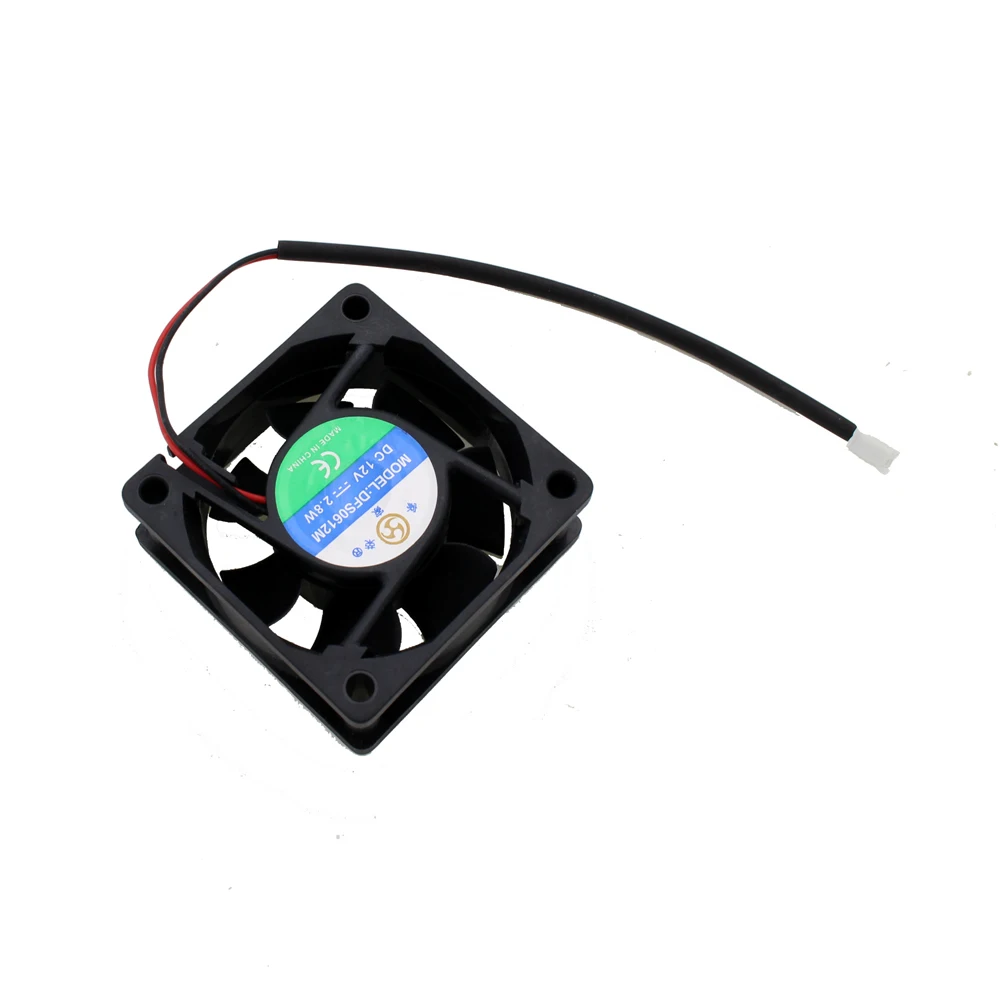

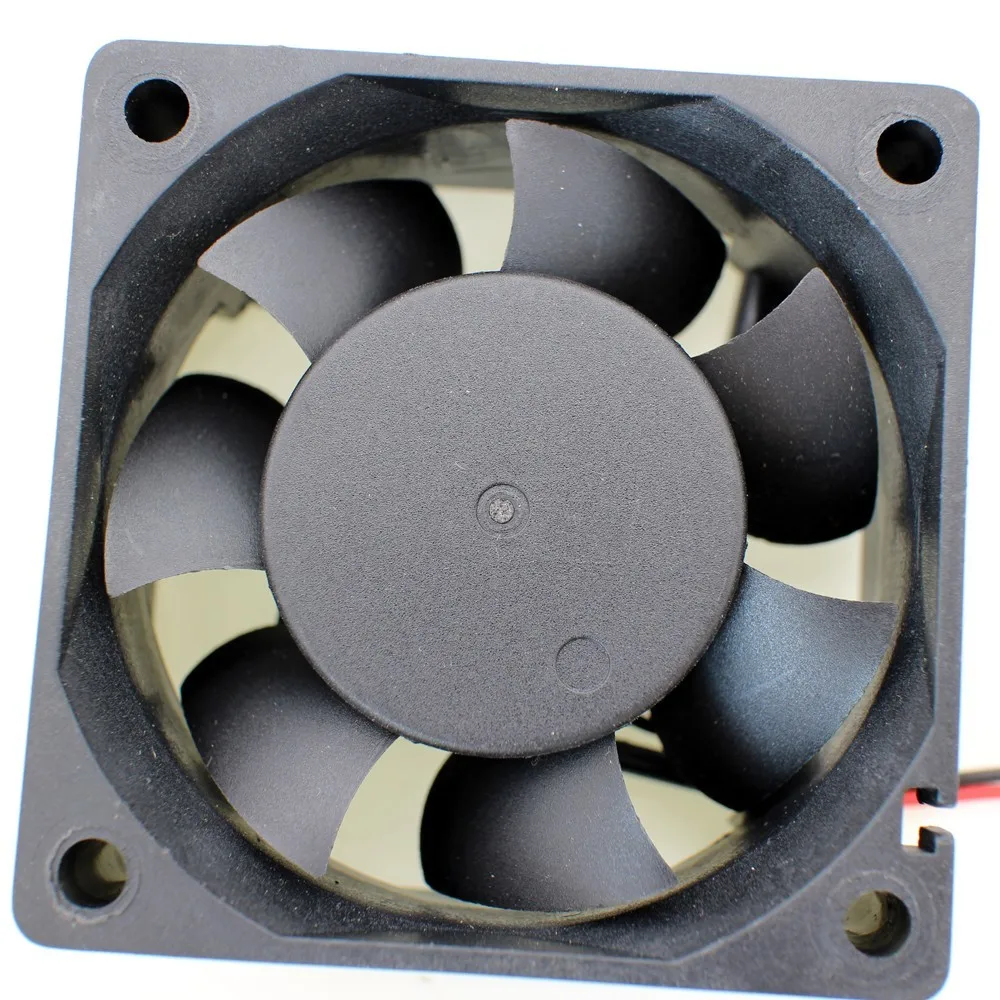

DFS0612M промышленный вентилятор охлаждения используется в 400 Вт блоки питания S

DFS0612M промышленный вентилятор охлаждения используется в 400 Вт блоки питания S

Model S-400-9 S-400-12 S-400-13.5 S-400-15 S-400-24 S-400-27 S-400-48

DC Voltage 9V 12V 13.5V 15V 24V 27V 48V

Voltage Tolerance 1% 1% 1% 1% 1% 1% 1%

Rated Current 43A 33A 28A 25A 16A 15A 8.3A

Current Range 0-43A 0-33A 0-28A 0-25A 0-16A 0-15A 0-8.3A

Rated Power 387W 348W 348.3W 348W 350.4W 351W 350.4W

Ripple & Noise 150 mVp-p 150 mVp-p 150 mVp-p 150 mVp-p 150 mVp-p 200 mVp-p 240 mVp-p

DC Adjustment

Range 10% -16%,+10% -12%,+11% -10%,+20% -16%,+10% -4%,+18% -15%,+17%

Setup,Rise,Hold Time: 200ms,50ms,20ms at full load

INPUT

Voltage Range 90~132 VAC/180~264VAC47~63 Hz;selected by switch 254~370VDC

AC Current 6.5A/115 V 4A/ 230 V

Efficiency 73%(S-400-5); 76%(S-400-7.5); 74%(S-400-12); 79%(S-400-13.5);

78%(S-400-15); 81%(S-400-24); 82%(S-400-27); 83%(S-400-48);

Inrush Current Cold start 50A/115V50A/230V

Leakage Current < 3.5 mA/240VAC

PROTECTION

Over Load 105%~135%

Protection type: Fold back current limiting, recovers automatically after fault condition is removed.

Over Voltage 115%~135%

Protection type: hiccup mode, recovers automatically after fault condition is removed.

Over Temp. RT355C FAN ON,45C FAN OFF,80C output shutdown (5~7.5V)

RT365C FAN ON,55C FAN OFF,80C output shutdown (12~15V)

RT370C FAN ON,60C FAN OFF,85C output shutdown (24~48V)

ENVIRONMENT

Working Temp., Humidity -10C~+60C;20%~90 %RH

Storage Temp., Humidity -20C~+85C;10%~95 %RH

Vibration 10~500Hz,2G 10min./1cycl, period for 60 min, each along X, Y, Z, axes

SAFETY

Withstand Voltage I/P-O/P: 1.5KVACI/P-FG: 1.5KVACO/P-FG: 0.5KVAC

Isolation Resistance I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC

STANDARD

Safety Standard Design refer to UL1012

EMC Standard Design refer to FCC Part15 J Conduction Class B

OTHERS

Weight:1.24Kgs

Packing:11pcs/14.42kg/box. According to your order,we can provide different cartons for you.

NOTE

1.All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25C of ambient temperature.

2.Ripple & noise are measured at 20MHz of bandwidth by using a 12twisted pair-wire terminated with a 0.1 &47

parallel capacitor.

3.Tolerance: includes set up tolerance, line regulation and load regulation

Product Size:

1. Item will be shipped within 5-7 business days.

2. Delivery Time:

----Via Air: Generally 1-3 working days

----Via Express: Generally 3-7 working days.

----Via China Post Air Mail: Generally 15-25 working days

----Via Sea: According to the order.

3.If you have not received your shipment within 30 days from payment,Please contact with us,We will track the shipment and get back to you as soon as possible with a reply.

MingWei switching power supply factory is a set design, development, production in one of the high-tech professional manufacturers, the region is the first company to introduce Taiwan manufacturer of switch power supply technology, building in May 2001.

Custom Product Design

OEM/ODM

Profession in export service from Maker Electric

High quality Product, Affordable Price

Notes on choosing a switching power supply?

To increase the reliability of the S.P.S., we suggest users choose a unit that has a rating of 30% more power than actual need. For example, if the system needs a 100W source, we suggest that users choose a S.P.S. with 130W of output power or more. By doing this, you can effectively boost the reliability of the S.P.S. in your system.Make sure that the model qualifies for the safety standards and EMC regulations you need.

What are switching power supplies?

Switching power supplies input a commercial AC power supply (such as 110 VAC or 220 VAC), uses a high-speed semiconductor switching process to convert the input to high-frequency electric power, and yields a direct current (such as 24 VDC).
