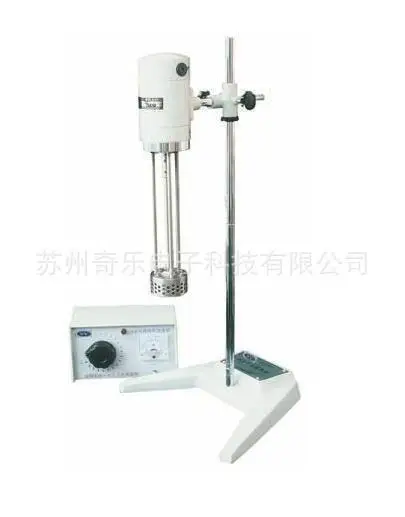

JRJ300-IHigh speed shearing emulsifying machine for shearing emulsifying mixer

Applicable to biological, physical and chemical, cosmetics, health products, food and other liquids/Mixing, emulsifying, liquid/The field of solid powder dispersion, homogenization and slurry. Scientific research, product development, quality control and production process of scientific research institutions, colleges and universities, health and epidemic prevention and product manufacturing and other ideal experimental equipment.

Product design concept, reasonable and compact structure, advanced manufacturing technology. The product is composed of stirring driving machine, running state controller, frame and so on. Stirring driving machine using high density die casting Aluminum Alloy a miniature motor, high power, high speed, safe and reliable operation; operation state control adopts stepless electronic governor, convenient speed; shear stirring head adopts high quality stainless steel, the corrosion resistance is good, the stator configuration and convenient disassembling swap, and other characteristics. The unique structure of mixing head, ensure the working head in high speed rotor motor drive, with the rotation speed is high, the liquid produced strong shearing stress and intense high-frequency mechanical effect, promote fluid material experiment suction strong mixing in the rotor area from the bottom of the container, and the centrifugal force from the stator bore out of each other impact. Stator clearance flow can prevent a large number of media rotation, and play a very high performance in a small space, the efficiency of about one thousand times higher than the average mixing. With the precision of the rotor and the stator under the action of centrifugal shear, so that the experimental material to withstand up to tens of thousands of times per minute of shear, tear, impact and mixing, so as to achieve the effect of shear emulsification. Different specifications of the work head stator configuration is designed to meet the needs of different experiments, covering a broader application of the surface - grinding, emulsification, homogenization, polymerization, suspension, dissolution and mixing, etc..

Aluminum metal case:

- ensure the mechanical accuracy of durable use;

- ensure continuous electrical performance;

- ensure stable operation and low noise.

Stepless speed control:

- arbitrary choice of experimental operating speed;

- convenient experiment and wide application field.

Mixing head:

- good corrosion resistance, high mixing efficiency;

- the application of multi - stator expansion.

Open frame:

- wide range of media containers;

- mixing and mixing.

Basic specification:

Use power:AC 220 V 50 Hz

Input power:510 W

Output power:300 W

Speed range:200~11000r/min

Mixing head diameter: diameter70 mm

Work head stator configuration:5 mm2,20 mm2,50 mm2

Maximum throughput:40 L

Outline dimension:360*280*730 mm
