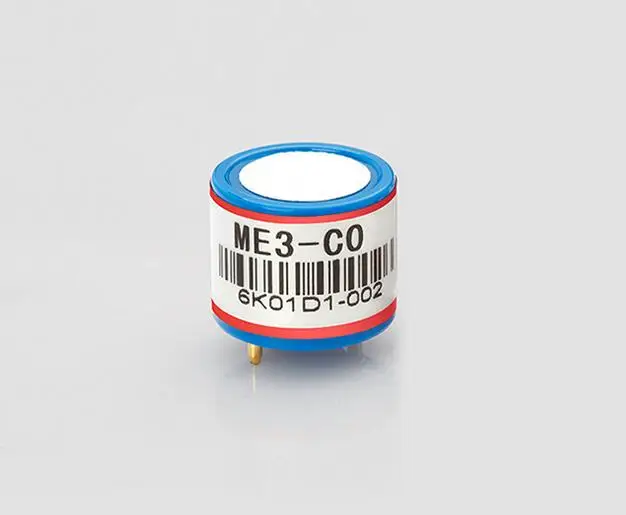

Free shipping carbon monoxide sensors electrochemical CO sensor ME3-CO 0-1000ppm | Автомобили и мотоциклы

The electrochemical sensor ME3-COAccording toElectrochemicalThe principle of work, the use of test gas electrochemical oxidation process in the electrolytic cell working electrode potential is proportional to the current and concentration of the test gas produced by the electrochemical reaction and follow Faraday\'s law, by measuring the current size can be determined to be measuring the concentration of gas.



electrochemical sensor ME3-COKey Features and Applications:

Low power consumption

High accuracy

High sensitivity

· Wide linear range

· Strong anti-jamming capability

* Excellent repeatability and stability

·Wide fitCarbon monoxide concentration detection industrial and environmental fields



electrochemical sensor ME3-COThe main technical parameters:

Measuring range

0-1000ppm

Maximum overload

2000ppm

Expected life

The air three years

Output signal

0.060 0.015uA / ppm

Filter

FilteredSOX/ NOXAndH2S

Resolution

0.5ppm

Temperature range

-20-50

Pressure range

Standard atmospheric pressure 10%

Response time (T90)

<20Second

Relative humidity range

Fifteen%-90% RH

Maximum Zero Drift (20-40)

10ppmEquivalent

Long-term drift of the output signal

<5%Signal loss/Month

Bias

No preference

Repeatability

Signal1%

Output Linearity

Linear
