1/4 inch Mist fog nozzle High / lower Pressure, 0.2 -1.8mm orifice diaFuel oil

Ethanol nozzle Net filter jetting water humidify

Item Name:High/low pressure Mist fog nozzle

Material:Stainless steel

Thread size : 1/4 Inch BSPT

male thread

Regular Hole dia:0.2 -1.8mm

Covering Area:1-2 M2/nozzle (Height 1-3meters,No wind)

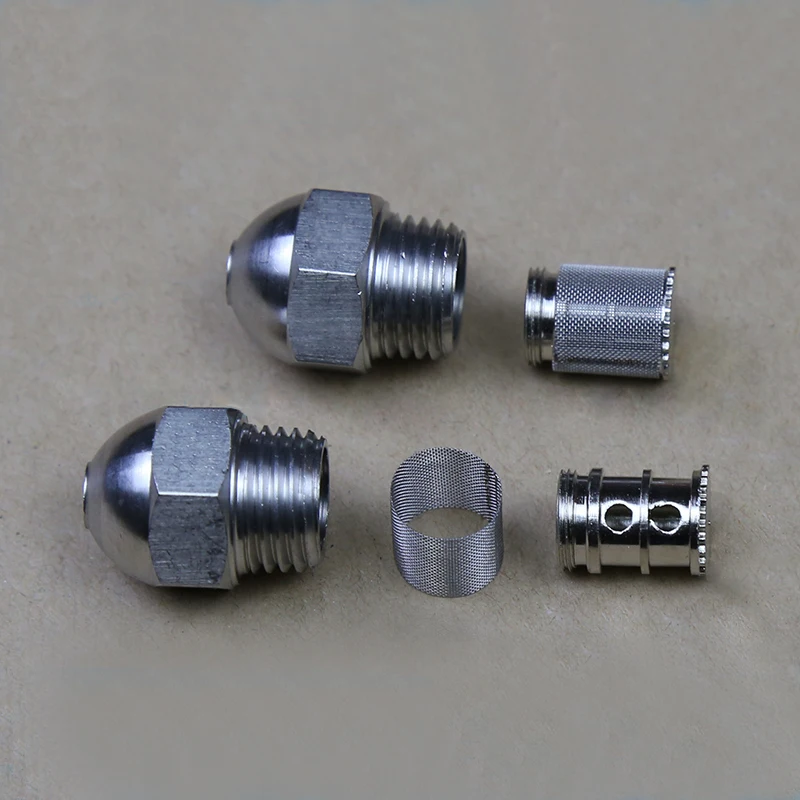

Filtering:With net filter stainless steel0.3-0.5mm dia nozzle use high pressure0.3mm dia min pressure  5Bar0.5mm dia min pressure 3 bar 0.8mm dia min pressure  1.5 bar

Liquid:City living water, Industry need purify appliance,pure water with higher pressure prefered

Main Material:Stainless steel304

Mist shape:roud or Cone shape

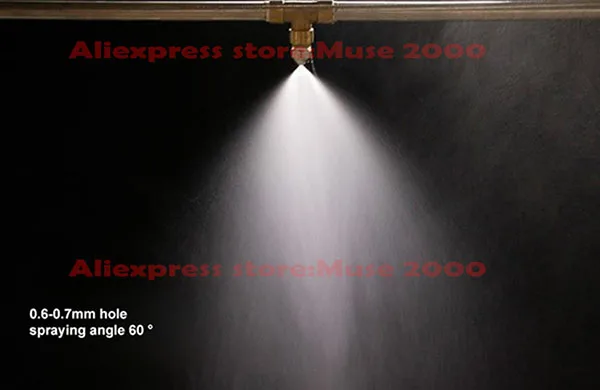

Cone angle:60 degree in normal

(usually 10-80 degree, adjusting with nozzle core)

2.The mist Particle is medium when under 2-10 kg. particle is about 50 um when under 10-20bar. the mist status is floating when pressure upto 20 kg

3 . the nozzle orifice is very small ,Hole dia between 0,2-1.8mm

4 . this nozzle is could apply for city water pressure,status under high pressure more better.maximun 50-70bar. water flow unit is L/Min.

5.Nozzle designed angle have 45-80 degree, jetting water mist shape is Ring shape. Decault angle is 60-80 degree.The covering area increasing with by distance.

6 . Cost saving, compared with Double fluid mist nozzle , this nozzle more economic , connecing by Thread , easy to disassemble and install.

7.Usually applyg for humidifying, cooling,mist View ,gasoline atomization,cleaning and disinfection.

introductiong:

The slotted Drive is for adjusting  mist Shape;Hole dia affect the Water flow, don't affect the Mist status,Mist jetting angle is about 45-80 degree.

nozzle may don't have best mist jetting when under Low pressure ,suggesting more higher pressure. innser all Steel material ,suitable high pressure upto 200 celsius.

Below for information, only selling the nozzle here, no tube joint etc;
