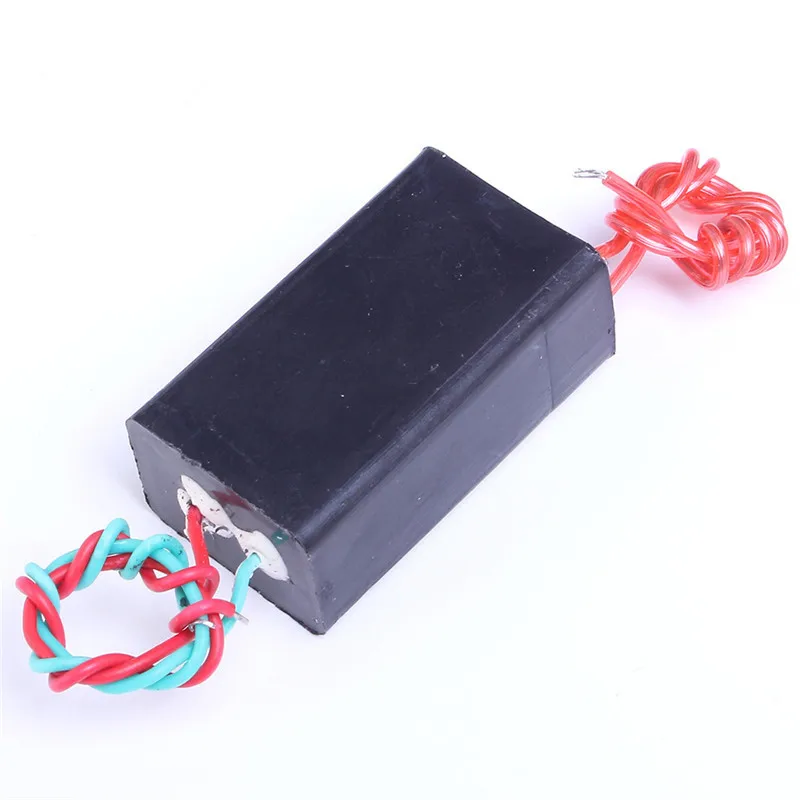

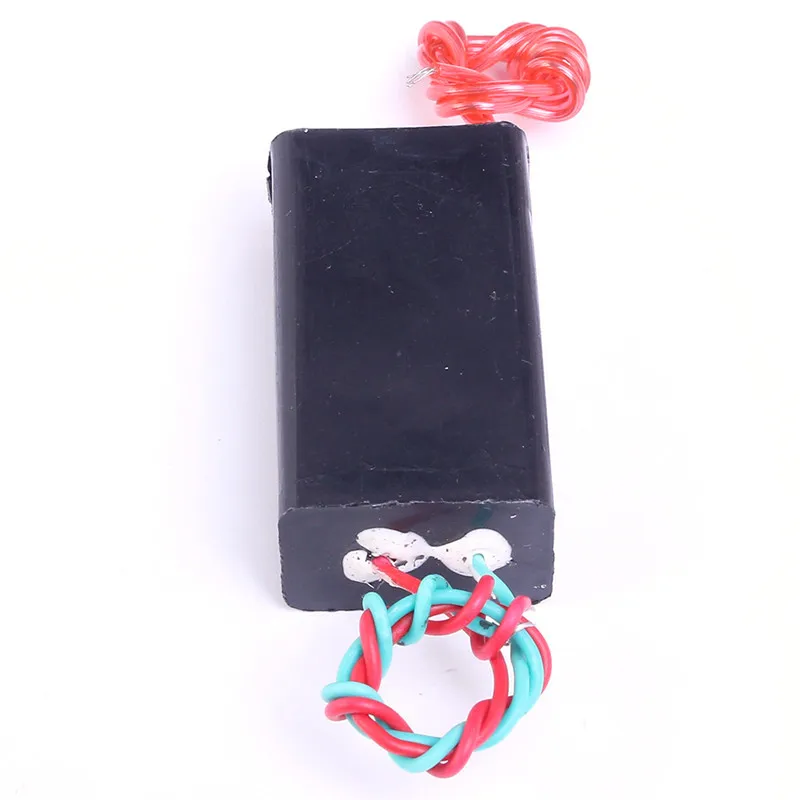

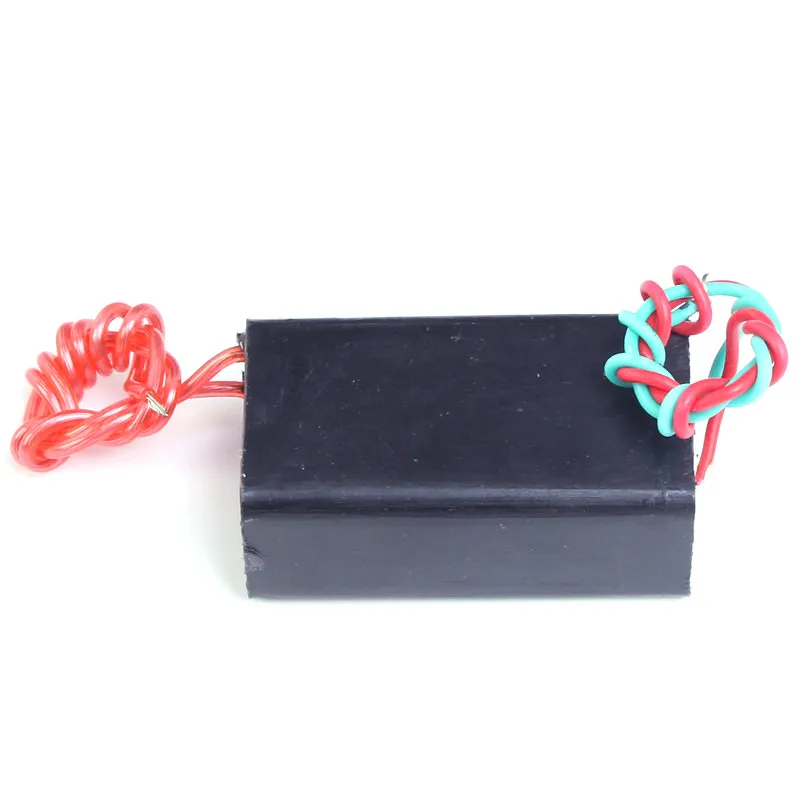

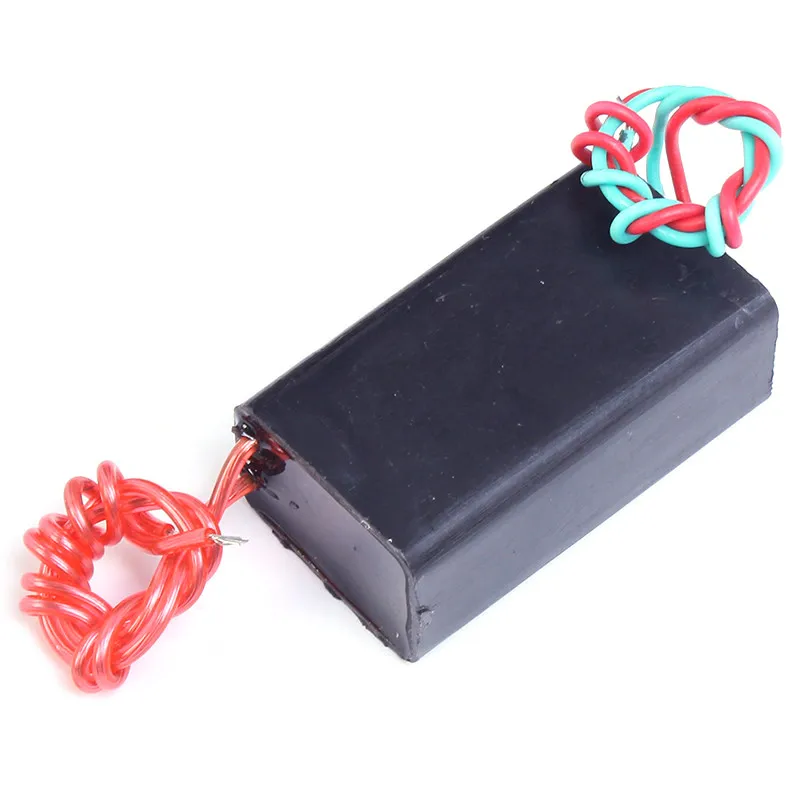

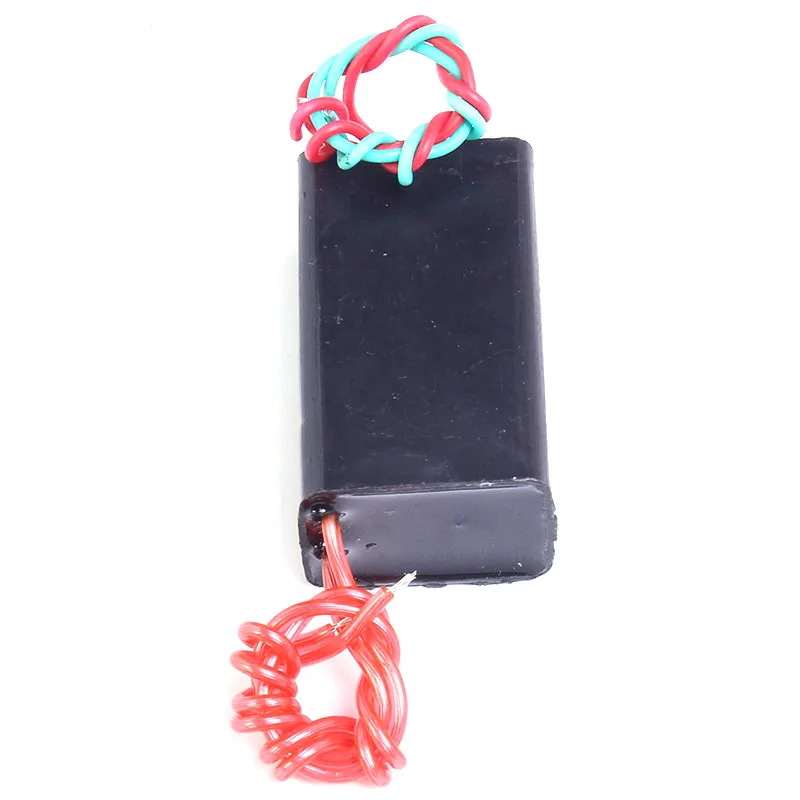

40KV FBY001 Pulse High Voltage Generator Sparking Arc Ignition Coil Inverter 3.7-6V 0.5A-1A Capacitor DC Current | Электронные

40KV FBY001 Pulse High Voltage Generator Sparking Arc Ignition Coil Inverter 3.7-6V 0.5A-1A Capacitor DC Current | Электронные

       NOTE : we have documents of most of products in our store

             If you need it , contact us :)

Product Introduction:
1.Model:FBY-001
2.Size:42.5*24*19mm
3.Input Voltage:3.7-6V
4.Input Current:0.5-1A
5.Input Wire Length:14cm
6.High Voltage Type:pulse DC type
7.Output Voltage:40kV
8.Output Current:0.5-1A
9.Output Wire Length:14cm
10.High Voltage Polarization Discharge Distance:1.5-2cm
11.Note:some products may have some remaining electricity,so let wire bring contact with the metal object can discharge remaining electricity
12.Input Power:can use single 3.7V lithium battery or 2S serial connection,such as 18650 battery idle cellphone battery (please take off the protection board,adn capacity should be over 2000mH) or nickel-cadmium battery,4V or 6V lead acid battery

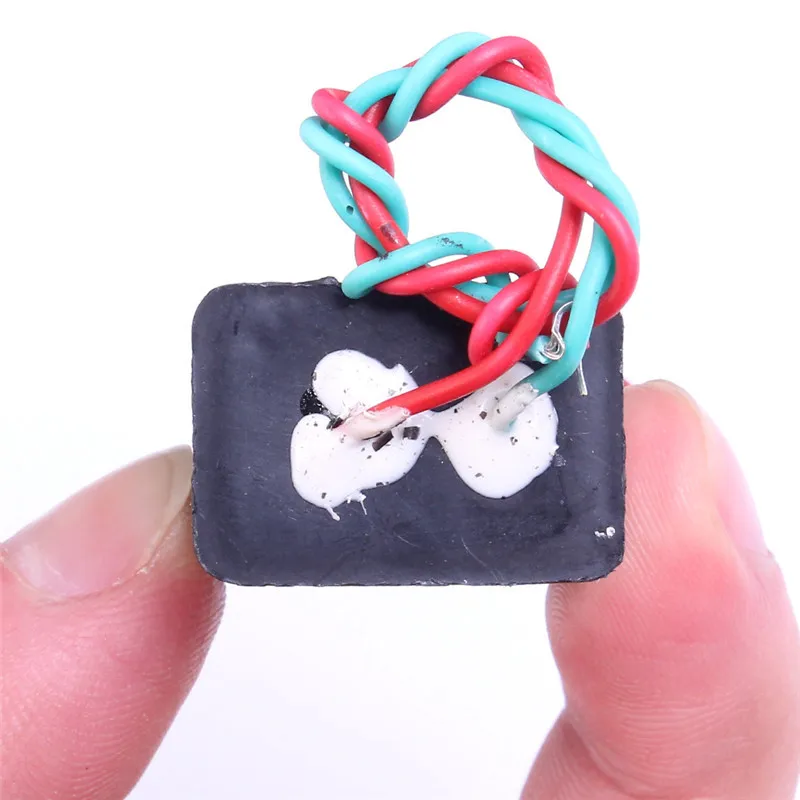

13.Using Method:red wire and green wire are input port,red one is positive,green one is negative
