Free Shipping! 1 pcs 24" Truly 10 points Transparent Capacitive touch foil film and 1 pcs Android TV Box

Capacitive Touch Foil Working Principal

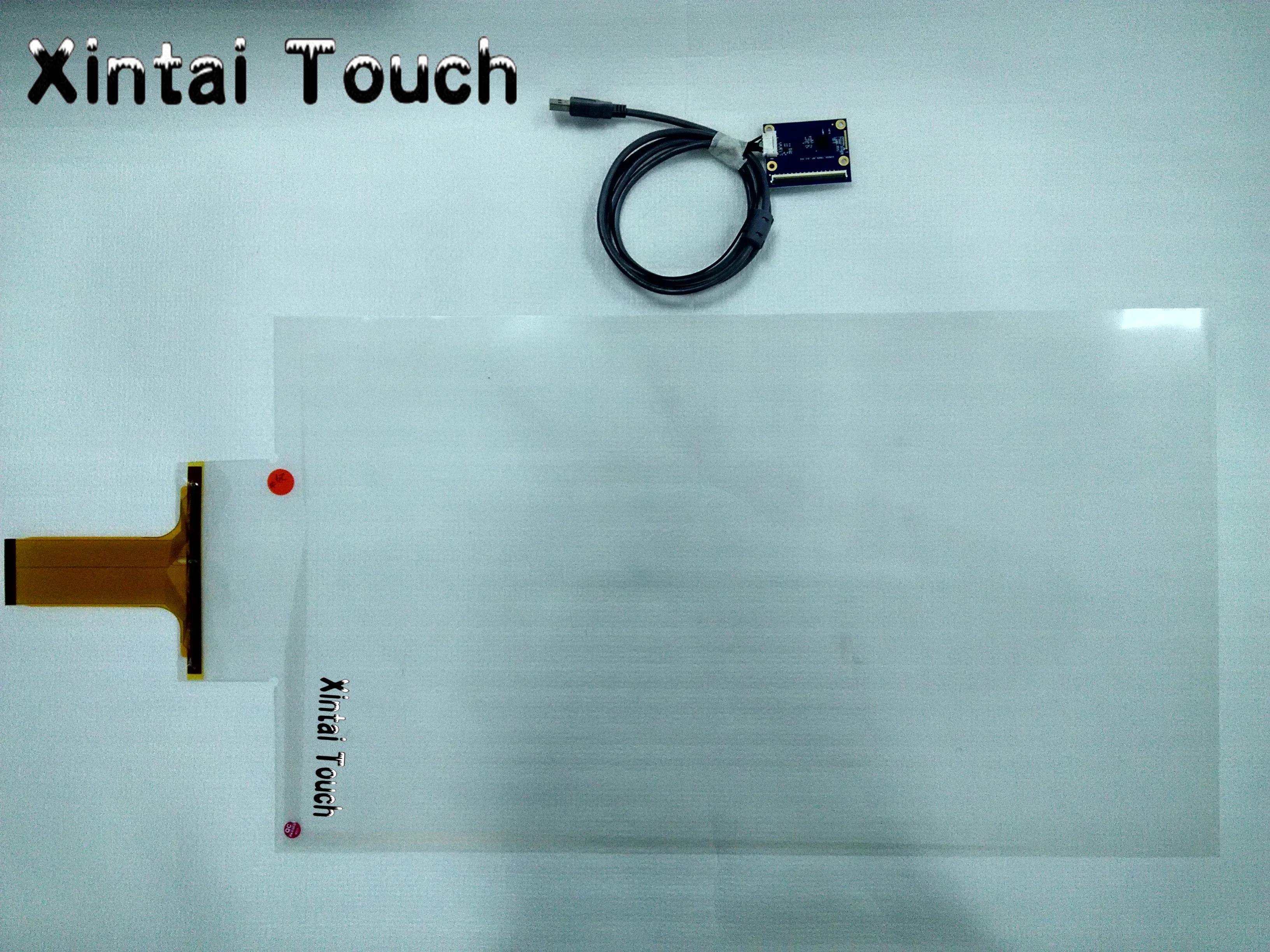

interactive touch foil will Quickly enable a touch screen in your ordinary glass world. 's large format flexible touch panel, cover from 30 to has 3 key parts. 1st is film sensor, 2nd is electronics controller, we call it eBoard, 3rd is driver. Film sensor is a green technology product, has high transparency, light and thin. It use sensing technology, easily change an to bullet­proof touch screen. eBoard use SoC architecture, so the PCB is small and strong noise filtering algorithm, It can detect weak signal that caused by hands.

Driver free support Windows 7/8/10, needs driver under Mac and Linux Ubuntu system.

It is permanent version, once you peel off the cover layer and laminate onto the glass, the sensor will be permanently fixed.



1. Projected Capacitance Touch Foil Technology
2. Works on glass up to 12mmthickness
3. Easy to use or install, and Simple to set up for touch foil
4. Durable flexible touch foil, very light and thin touch foil
5. Perfect 10-touch, Quick touch response speed
6. Fixing options: permanent
7. Can be attached to almost every surface: Shop window, Glass, Acrylic and Rear projection film and any other non-metallic material
8. Available Size: from 30 to 180 inches sheets, bigger available on request

The Interactive Touch Foil Features
Safety and robust
Anti­scratch, laminate on the back of
Waterproof, dust­proof, bullet­proof,
No expose components, safety.
No mechanical components with long life
Industrial temperature range: -20 °C to +

Art and Sci­Fi
High transparency ≥93%, glass­level transparency
No bezel of touch area
Thin and light, the sensor thickness only 0.17mm
Thru­glass touch, the maximum thickness of glass can reach 12mm.
Only hands valid, no touch action of metal, plastic, and so on.

Excellent experience
Zero pressure touch, even with glove.
Mouse function with Zoom in/out and rotation
Precise touch & real­time response

Advanced features
Low power consumption, the maximu consumption is only 0.5w
Flexible, could be applied to curve surface screen
The film sensor could be laminated on any smooth non­metallic flat
Various size from 17" to 100", lowest cost customization.

laminate on the back of glass
waterproof, Acid­proof
long life
0 °C to +80 °C level
Thin and light, the sensor thickness only 0.17mm
glass touch, the maximum thickness of glass
nly hands valid, no touch action of metal, plastic,
Zero pressure touch, even with glove.
Mouse function with Zoom in/out and rotation.


minimum power
Flexible, could be applied to curve surface touch
The film sensor could be laminated on any smooth
0", lowest cost

Interactive touch foil more specification:

 Induction method

  The improved projected sensing technology, criss-cross X, Y nanowires constitute sensing matrix

 Touch size

  17"~120" can be customized

 Touch accuracy

  No drift, the deviation is about 1~3mm

 Calibration way

  software calibration

 Induction thickness (penetration)

  Adjusted by software to adapt to various thickness of glass, even wear gloves to produce touch-sensitive, can penetrate non-metallic materials about the thickness of 12 mm

 Scanning frequency

  60Hz~130hz

 Output way

  USB 2.0 (HID public interface to USB Mini B interface)

 Compatibility system

 WIN7 /WIN8/Win 10/Mac/Linux Ubuntu

 Temperature range

  -20°C~60°C

 Humidity range

  0% RH to 95% RH (without condensation neighborhood)

 Transmittance

  >93%

 Power consumption

  Max 0.5W

 Product Certification

  CE,FCC,ROHS

 EMC

  EN61000-6-1:2007   EN61000-6-3:2007+A1:2011

Applications

1. Shop/Store window displays
2. Indoor and outdoor kiosks
3. Glass partitions
4. Corporate offices
5. Training and meeting rooms
6. Exhibitions and conferences
7. Museums and visitor attractions

 After sale service & promise:

 1.supply oem&odm order,independent  Q.C department ,3 times of quality checking,

 2.100% percent of pass  before shipping

 3.one year of warranty

 4.IS09001 ,CE,FCC,RoHs certification

Shenzhen Xintai touch Technology Group is specialized in producing Interactive Projection touch foil/film through-glass, Surface Acoustic Wave(SAW) touch screen, WaterProof SAW Touchscreen, Dustproof SAW Touch Screen, Anti-glare, Vandal-proof SAW Touch Screen, Vandal-proof SAW TOUCH SCREEN, Multi-touch Infrared touch screen/IR Touch frame, LCD Touch Kiosk, Interactive touch foil, resistive touch screen, Touch LCD Monitor, LCD touch Panel PC/ Computer / bezel Monitor, Touch Tablet PC, Optical touch screen and Capacitive touch screen, Any size of touch panel we can customized for you. Just let us know the requirement. For Multi-touch IR Panel, we can offer Dual-touch(2 points), 6 points, 8 points, 10 points, 16 points and 32 points, No ghost point. etc.

Shenzhen Xintai touch Interactive Touch Foils are supplied with an electrostatic cling layer which makes them suitable for permanent installations. The new improved touch foil have an upgraded driver with USB connection which has been digitally signed off by Microsoft (EMC approved) and are UL, FCC and CE approved (RoHS compliant). The Interactive Foils are combined with a screen technology to create an interactive touch screen display. Our main market for the Touch foils is 'thru-glass' interactive displays for store window applications, where the foil is combined with our range of projection films and high brightness LCD TFT screens. Such as interactive shop windows, trade shows, museums, meeting rooms and much more.
