Note: Please note your car model and manufacturered year when placing the order! We will send matching Strong Booster model to you.Tks!

7MODE Car Drive Electronic Throttle response Controller Strong Booster for car modification, pedal quicken start and accelerate

Sheet of some Strong Booster models with matching car models:

Part-specific models (There are nearly 300 models dedicated interface)

Etc. over 300 model!!!

Considering the different countries have different pedal models .If you could take the photo of your car pedal such as following pic, pls leave me a message of your car pedal pic.I could ensure the model  accurately.Tks

I. Product Main Features

1, Shorten the response speed of the electronic throttle

2, Improve the electronic throttle's sensitivity

3, Plug and play without external power supply

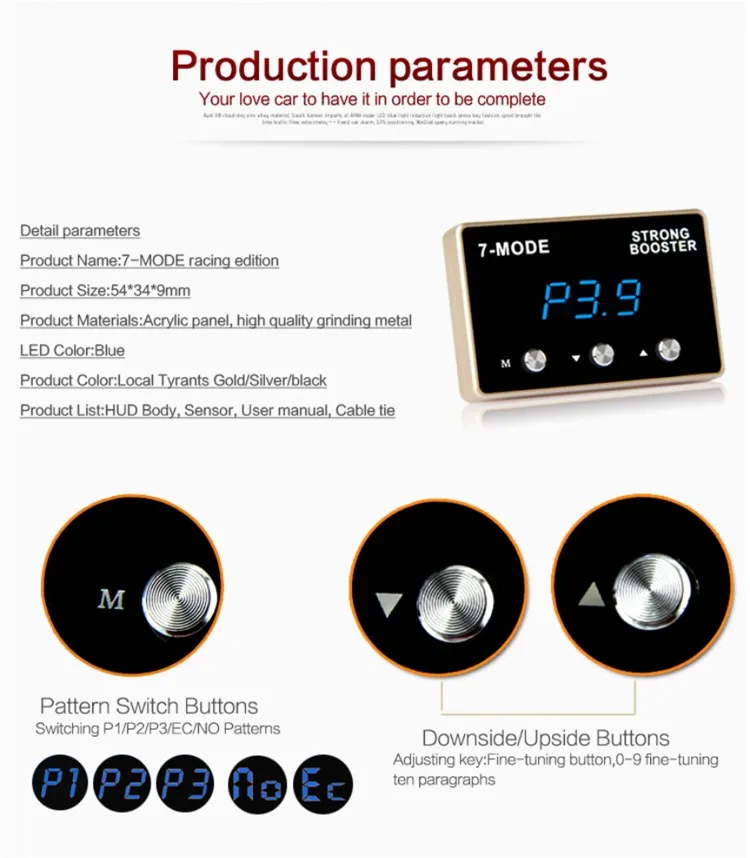

4, 7modes/0-10 degrees adjustable

5 Manual  Ec mode /Auto EC mode / Manual H1 accelerating mode/Manual H2 sport accelerating mode/AUTO H1 accelerating mode/ Auto H2 sport accelerating mode/original accelerator mode

6 It can get inio the original car mode while revsersing for optional

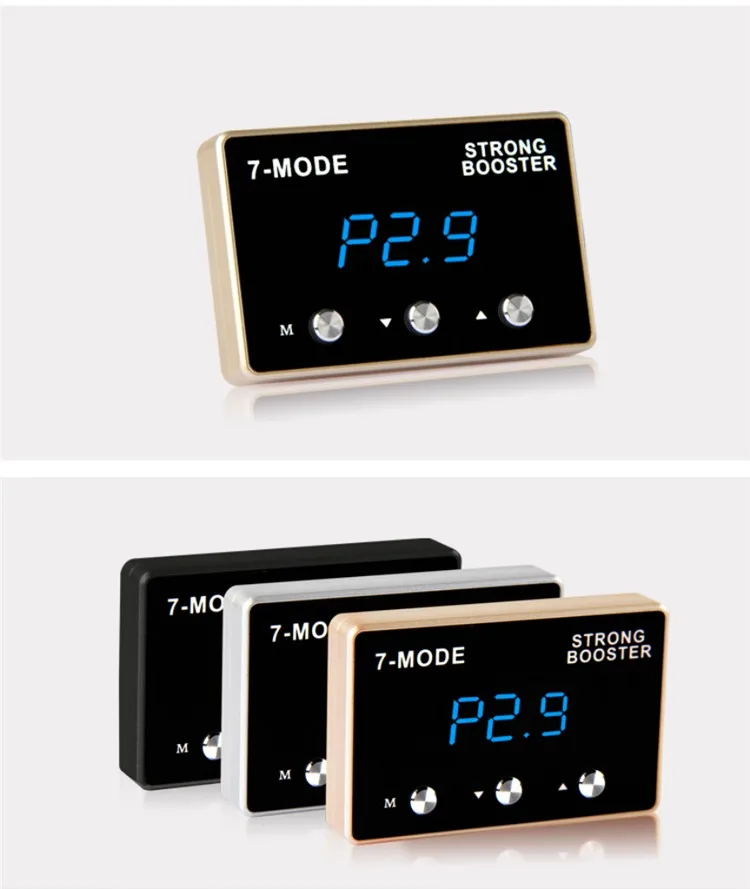

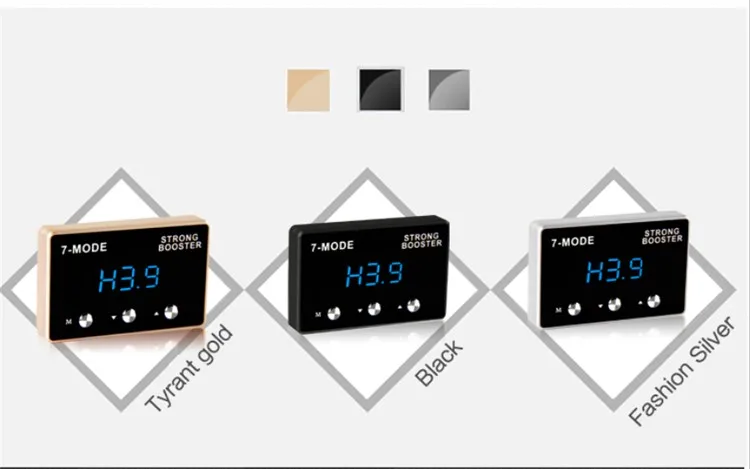

7 Super bright  digital display screen, blue / red for optional,the display has black,silver and golden color to choose.pls leave me a message abou whats color do you want.Tks

Installation steps

1  Find the original electronic throttle pedal of your car

2  When automobile is stalled and start key is off, pluck the port of electronic throttle pedal

3  Insert electronic throttle coupler into auto line port.

.Insert electronic coupler into the groove of throttle pedal and check to see whether it gets stuck in position

4  Insert electronic throttle coupler and display adjuster into each other in position.

5 Then fix display controller with self-attached glue to the central control position or any position you like.finished

IV. Working principle

1. Electronic Throttle and Fly-by-wire Throttle
Along with rapid development of auto industry, auto manufacturers in America,

Germany, Japan and other countries successively adopted electronic throttle control

system early in 1990s. Electronic throttle control system mainly consists of throttle

pedal, pedal displacement sensor, ECU (electronic control unit), data bus wire, servo

motor and choker executing mechanism. Electronic throttle is generally adopted in

fairly new models. Electronic throttle is named in comparison with fly-by-wire throttle

which features direct connection between throttle pedal and choker with thin steel

wire. The treading depth of throttle pedal directly corresponds to the opening width

of choker. Electronic throttle is free of wire. Treading depth of throttle will be converted

into resistance value after a potentiometer (with variable resistance) is mounted in

pedal. Electronic system of automobile indirectly determines the depth of pedal through

sampling of resistance value. Finally, ECU will activate stepping motor to control the

opening width of choker. It can be easily found through principle comparison that fly-

by-wire throttle features simple system and direct control, with the proportion of the

opening width of throttle and choker being 1:1. Characteristics of electronic throttle

are as follows: throttle pedal only indicates driver’s operating intention, while the

final right to control choker belongs to ECU.

2. Characteristics of Electronic Throttle Control System and ECU(ECU)
In models with electronic throttle control system, ECU will analyze the treading depth

of throttle in combination with auto conditions when controlling electronic choker, and

then calculate appropriate opening width of choker at the current time. When diver

speeds up suddenly at the time of startup (tread the pedal to the utmost), ECU will

perform analysis according to the current auto speed, opening width of choker and

other factors, appropriately restrict the opening width of choker from the perspective

of fuel saving and reasonable exhaust emission, and control fuel spray system to

restrict maximum spray of fuel injection nozzle at the same time. In this way, driver

will feel that automobile begins to start after throttle is treaded for a while, which is

the so-called throttle lagging. Therefore, throttle lagging is actually the result of ECU

operation through restricting instant output of engine, which can make automobile

more environmental-friendly and energy-saving.

3. Operating Principle of STRONG BOOSTER
(1) Accelerating choker opening and improving static response
“Acceleration” of STRONG BOOSTER is realized mainly through improving the responding

sensitivity of choker. When ECU finds that driver has the intention for acceleration, it

will activate rapid opening of choker via circuit signals to improve the responding

sensitivity of throttle.
(2) Speeding up throttle signals and improving dynamic response
When accelerator treads on throttle pedal, STRONG BOOSTER will calculate the alteration

rate of throttle signals according to treading depth and time. Alteration rate is in

proportion to accelerating requirements. STRONG BOOSTER will enhance such alteration

rate and finally realize maximum dynamic response of auto acceleration.
(3) Providing false driving style for ECU’s adjustment of engine parameters
ECU of modern engine generally has the capacity of self-adapting driving style. If

driver often treads on throttle quickly to a considerable depth (also known as pulling

speed), ECU will gradually consider that the driver’s style tends to be “violent”. In this

way, engine will slowly adjust choker and fuel spray system, etc. to obtain optimal

adjusting parameters of engine under this style. After STRONG BOOSTER is used for a

long time, even if the driver drives the car with previous “mile” driving style, engine

will still acquire experience of “violent” driving, which is equivalent to the adjustment

of ECU parameters. At the long last, engine will automatically amend its parameters

to adapt to such driving style.
