WiFi DC5V-24V WS2811/ WS2812 Controller Wireless Unicast E1.31 (sACN) to 7 ports output up 1190 pixels Easy setting. | Лампы и

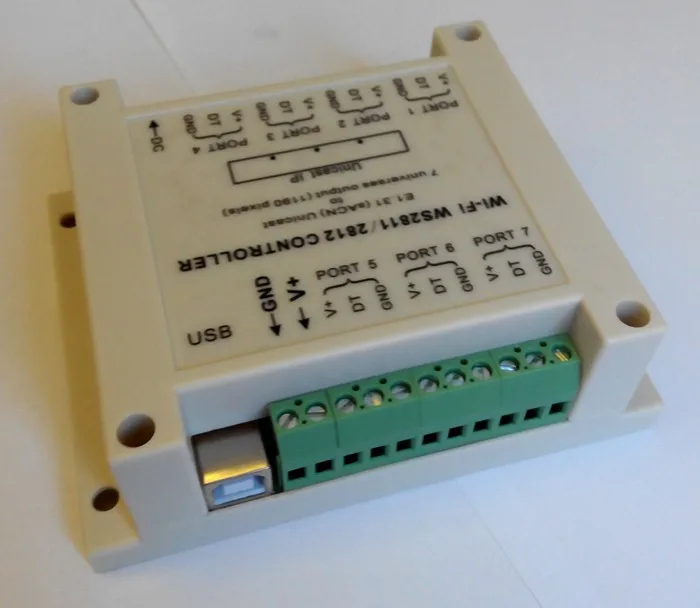

WiFi   WS2811 / WS2812   Controller



Manual Instruction can be downloaded from our website:

As AliExpress does not support external link, you need to type above link in your web browser.

 Controllable Pixel Type: DC5V-24V WS2811 / WS2812 / WS2812B

You can download the detailed manual instruction from our website (in PRODUCTS page):



If you cannot open above pdf link, you can download all files/manual for this controller from DropBox:

But because AliExpress does not support external link,

you have to manually type in your web browser's address bar, and then copy below text into your address bar to finish the whole website link input.

/s/seaua6uw95faq2c/WiFi-WS2812-Controller.zip?dl=0



Unicast Format                   Input: Wireless Unicast Format  E1.31 (sACN) data & DC5V-24V Power Output: WS2811 / WS2812 Pixel lighting signals & DC5V-24V Power Controllable Pixel Types:

WS2811 / WS2812  /  WS2812B (DC5V-24V Pixels are all controllable)

Output 7 ports (7 universes) up to 170*7=1190 pixels (Total 3570 channels)





Unit Size: L11.5cm x W9cm x H4 cm ; Package Size: 16x16x6cm ; G.W.: 300g   Accessories:  (1) Regulated DC 5V 1A Power Supply -- 1 pc      (2) One meter length USB cable -- 1 pc



Product Brief   Unicast Format E1.31 (sACN) to WS2811/2812 WiFi controller, output up to 1190 pixels (3570 channels, 170 pixels for each output port).         Max DC Current Input/Output: 30 Amp.  DC Voltage Range Input/Output: 5V-24V   Easy WiFi ID & Password setting.   Accessories in packakge: DC5V 1A adapter - 1pc ; One meter USB cable - 1pc.       Multiple controllers with different IP assigned can be used to achieve more channels output.

Compatible with any software package that supports the E1.31 (sACN) protocol output. For software output setup, just select the Unicast E1.31 / sACN / ACN output type, no need for driver installation.



Some E1.31 output softwares like Madrix only supports E1.31 sACN output in Multicast format, which does not work with our controller in Unicast format.

Please double check if your software package support E1.31 sACN output in Unicast format before buying.

Recommended softwares with E1.31 unicast output option.

(1) Vixen

(2) Nutcracker (xlights)

(3) LOR: Light-O-Rama

(4) Jinx



××× You must set the controler's IP, WiFi ID and WiFi password to match your wireless router ×××



                  You can also change the universe number assigned to each output port. Below is the default setting for universe number assigned to each output port:                       The default assigned universe No. is 1 for output Port 1.     The default assigned universe No. is 2 for output Port 2.     The default assigned universe No. is 3 for output Port 3.     The default assigned universe No. is 4 for output Port 4.     The default assigned universe No. is 5 for output Port 5.     The default assigned universe No. is 6 for output Port 6.

The default assigned universe No. is 7 for output Port 7.



Some E1.31 output softwares like Madrix only supports E1.31 sACN output in Multicast format, which does not work with our controller in Unicast format.

Please double check if your software package support E1.31 sACN output in Unicast format before buying.

Details please contact us for manual instruction.
