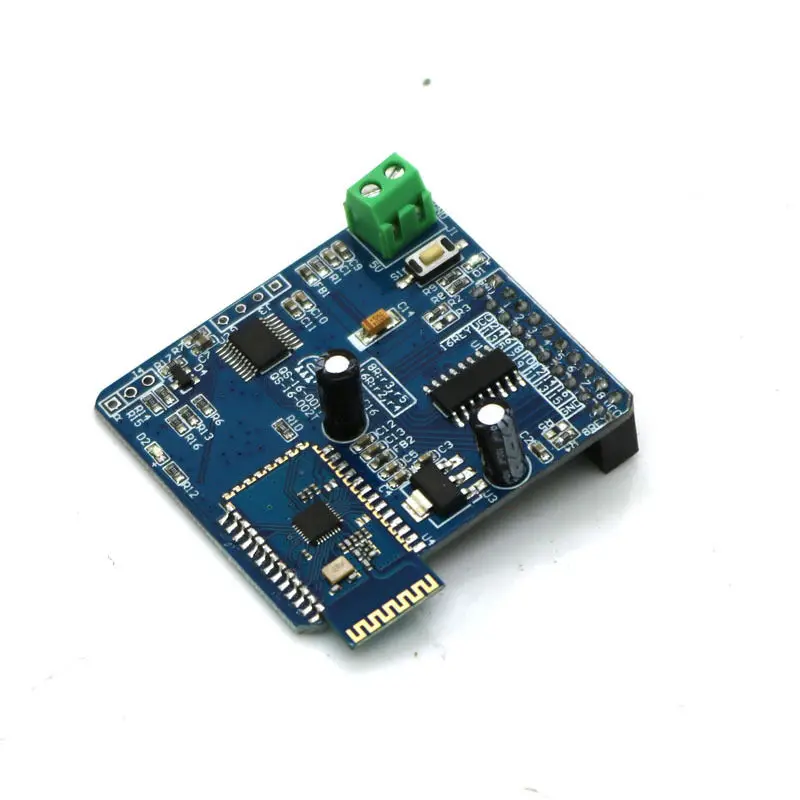

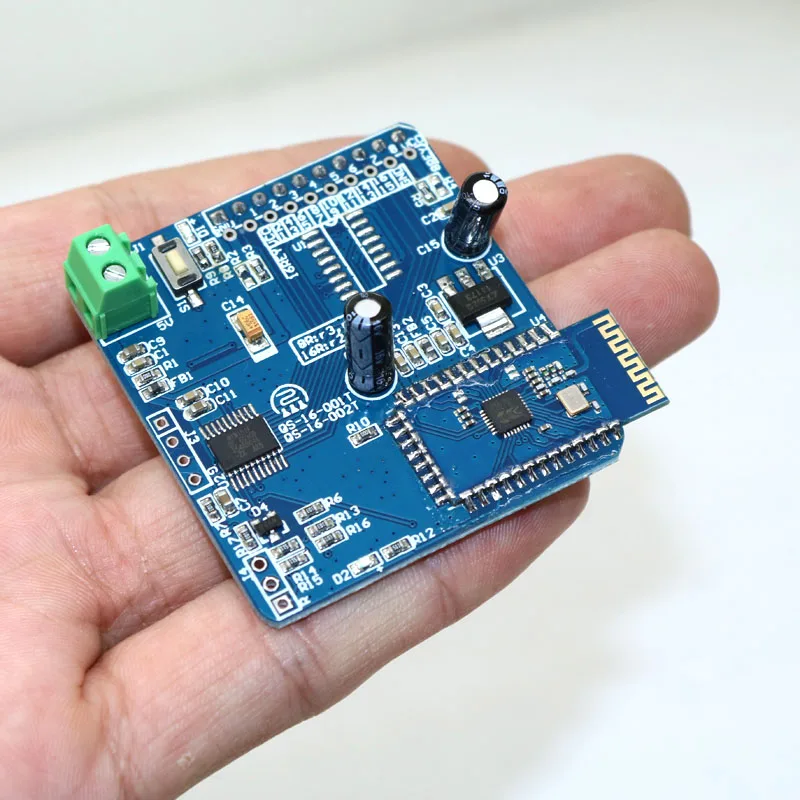

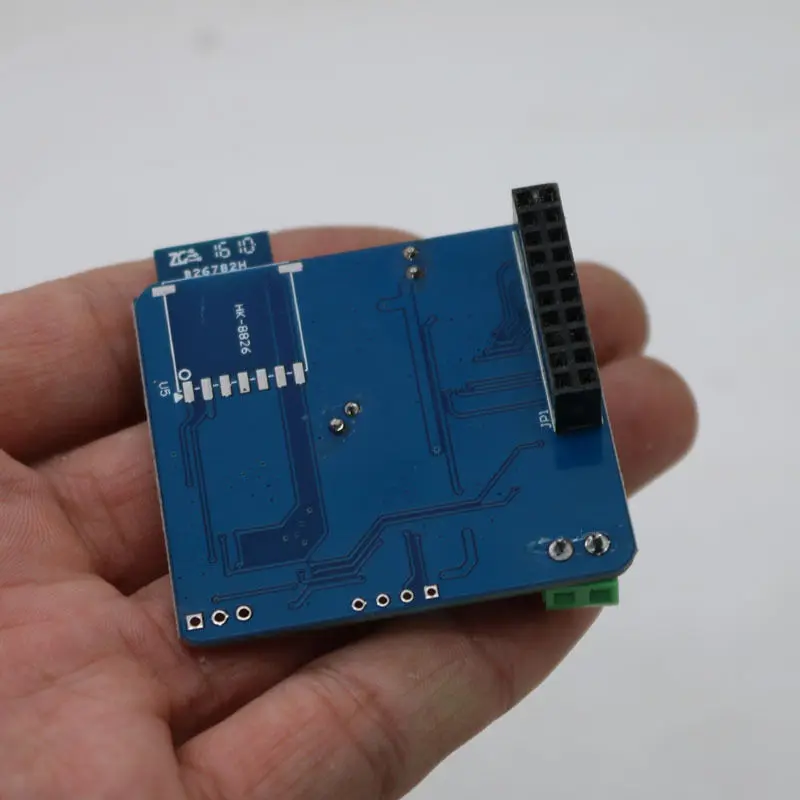

Bluetooth 16 road relay instruction
1 Before leaving the factory, hold down the button, until the D1 light is always bright, release the button, then wait for D1 out, factory setting was set up finished, Power up again.
2 The Bluetooth device 16 road relay name is QS-16RELAY, (8 road relay name is QS-8RELAY and so on) the best is only Uniquely corresponding number, password: 123456
3 Modify Bluetooth device name
fD 02 ef + Total length of 1 bytes (all bytes behind ) + length + Device name N bytes (maximum length of 10 bytes) + length + Pairing password (PIN maximum length of 6 bytes) + 5d
For example, Modify device name is QS-RELAY, Pairing code is 1234,then send FD 02 EF 0F 08 51 53 2D 52 45 4C 41 59 04 31 32 33 34 5D
After the Modify Bluetooth device name Successful is showing df ff 00 00 5d
After the Modify Bluetooth device name failed is showing df 00 00 00 5d
First APP send the device name want to Modify, Disconnect Bluetooth connection, Hardware received after reset Bluetooth module, Configure Bluetooth devices after delay a few seconds.
QS-16RELAY Control code table:
1road on: FD 02 20 01 01 5D
1road off: FD 02 20 01 00 5D
2road on: FD 02 20 02 01 5D
2road off: FD 02 20 02 00 5D
3road on: FD 02 20 03 01 5D
3road off: FD 02 20 03 00 5D
4road on: FD 02 20 04 01 5D
4road off: FD 02 20 04 00 5D
5road on: FD 02 20 05 01 5D
5road off: FD 02 20 05 00 5D
6road on: FD 02 20 06 01 5D
6road off: FD 02 20 06 00 5D
7road on: FD 02 20 07 01 5D
7road off: FD 02 20 07 00 5D
8road on: FD 02 20 08 01 5D
8road off: FD 02 20 08 00 5D
9road on: FD 02 20 09 01 5D
9road off: FD 02 20 09 00 5D
10road on: FD 02 20 0A 01 5D
10road off: FD 02 20 0A 00 5D
11road on: FD 02 20 0B 01 5D
11road off: FD 02 20 0B 00 5D
12road on: FD 02 20 0C 01 5D
12road off: FD 02 20 0C 00 5D
13road on: FD 02 20 0D 01 5D
13road off: FD 02 20 0D 00 5D
14road on: FD 02 20 0E 01 5D
14road off: FD 02 20 0E 00 5D
15road on: FD 02 20 0F 01 5D
15road off: FD 02 20 0F 00 5D
16road on: FD 02 20 10 01 5D
16road off: FD 02 20 10 00 5D

1-16road on: FD 02 20 EF FF 5D
1-16road off: FD 02 20 EF 00 5D
Return to FD XX XX 5D DF //XXXX a total of 16, Every 1 means to open, 0 means to close.
Query current status: FD 02 20 FF FF 5D
Return: DF DD 00 XX 5D , XX means that a total of several road switches.
Return at the same time: DF FD XX XX 5D //XXXX a total of 16, Every 1 means to open, 0 means to close.

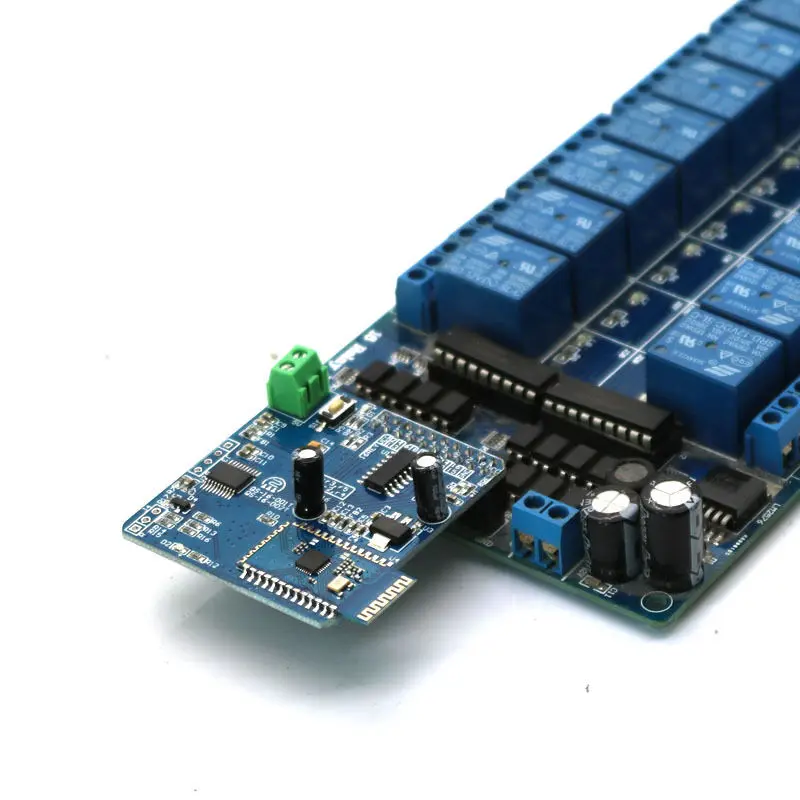

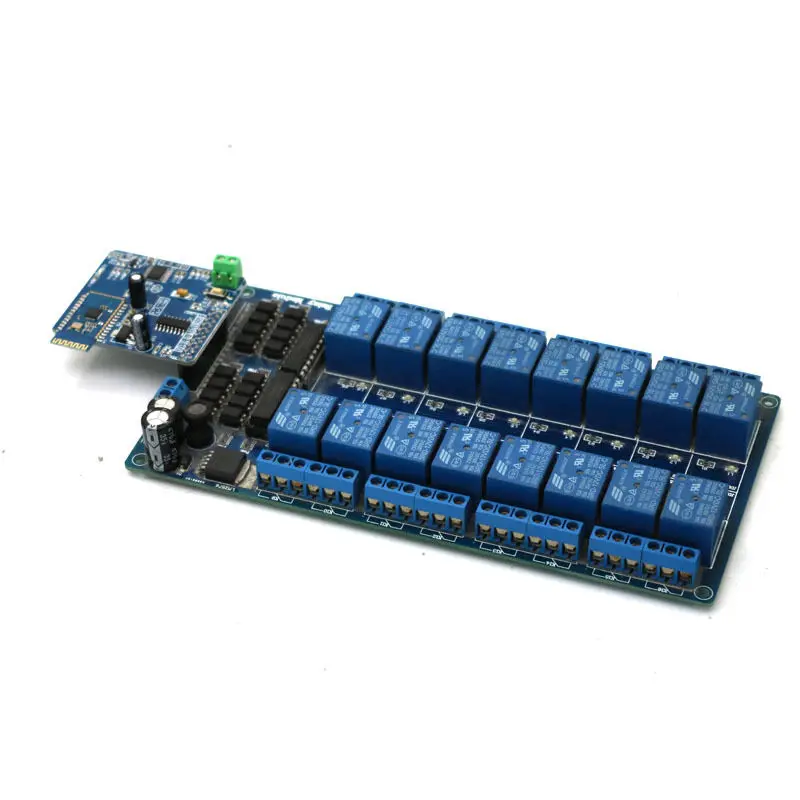

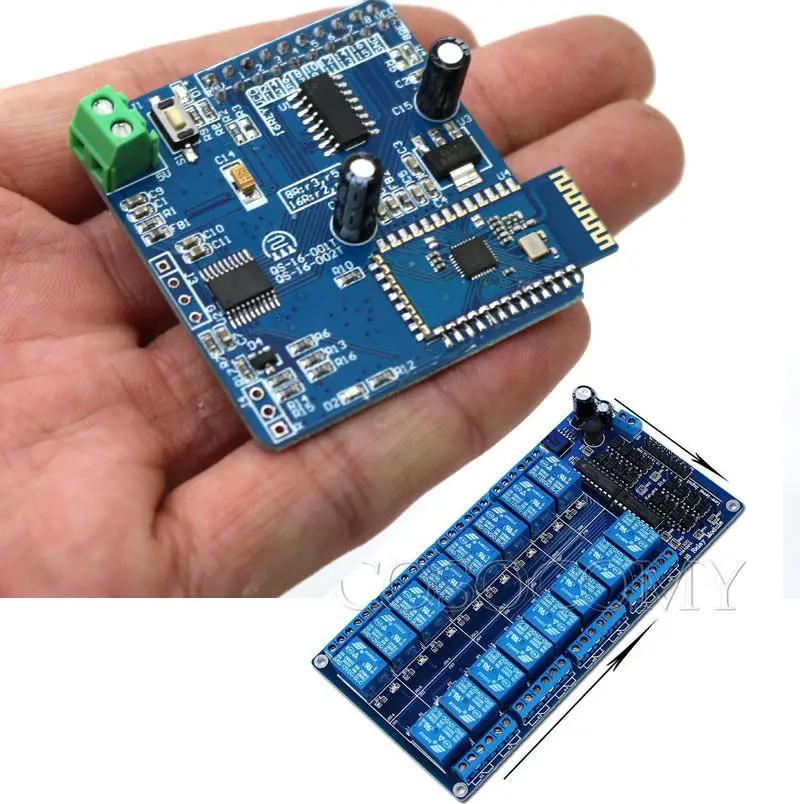

16-Channel Relay
12V 16-Channel Relay interface board, Be able to control various appliances, and other equipments with large current. It can be controlled directly by Micro-controller (Arduino , 8051, AVR, PIC, DSP, ARM, ARM, MSP430, TTL logic) .

12V 16-Channel Relay interface board, and each one needs 15-20mA Driver Current
Equiped with high-current relay, AC250V 10A ; DC30V 10A
Standard interface that can be controlled directly by microcontroller (Arduino , 8051, AVR, PIC, DSP, ARM, ARM, MSP430, TTL logic)
Indication LED’s for Relay output status
Size:18cm x 9cm x 1.8cm
