PICKIT2 Programmer PIC ICD2 PICKit 2 PICKIT 3 Programming Adapter Universal Programmer Seat

PICKIT2 Programmer Description:

ICKIT2 is inexpensive PIC development tools.Support the IC is less than KIT3/ICD2, stability is better than ICD2, also off-line batch programming. KIT2 is a good choice for beginners.
Support for PICKIT2 IC, can be viewed MPLAB IDE v8.56 software.
Open the software, configure-> select device PICKIT2 support in front of the green light.

The simulation programmer with a protective function on the basis of the original increase of self-recovery fuse with three lights so you can clearly understand the current state of the programmer many similar products online, some indicator or offline programming functions eliminating the need to please buyers seriously comparison.

The three indicators are:

Yellow light: Indicates whether the external power supply
Green: emulator power indicator
Red light: the emulator busy

PICKIT2 online programming and debugging Microchip\\\\\\\'s PIC10/12/16/18/24/32, dsPIC30/dsPIC33 almost the entire line of PIC FLASH microcontroller chip. And PICKIT2 to programming the Microchip the KEELOQ of HCS series of chips, MCP250xx CAN chips EEPROM memory chip. (Detailed models see Schedule)

The PICkit2 support device models table:
Devices, the PIC10F the Series:
The PIC10F200, PIC10F202, the PIC10F204, PIC10F206, the PIC10F220, PIC10F222

Devices, PIC12F the Series:
PIC12F508, PIC12F509, PIC12F510, PIC12F519, PIC12F609, PIC12HV609, PIC12F615, PIC12FHV615
PIC12F629, the PIC12F635, on PIC12F675 and the PIC12F683\\\\\\\'s

Devices, PIC16F the Series:
PIC16F505, PIC16F506, PIC16F526,
, PIC16F54, PIC16F57, PIC16F59,
PIC16F610, PIC16FHV610, PIC16F616, PIC16FHV616
PIC16F627, PIC16F628, PIC16F627A, PIC16F628A, PIC16F648A, PIC16F630, PIC16F631, PIC16F636, PIC16F639, PIC16F676
PIC16F677, PIC16F684, PIC16F685, PIC16F687, PIC16F688, PIC16F689, PIC16F690,
PIC16F72, PIC16F73, PIC16F74, PIC16F76, PIC16F77, PIC16F722, PIC16F723, PIC16F724, PIC16F726, PIC16F727, PIC16F716,
PIC16F737, PIC16F747, PIC16F767, PIC16F777, PIC16F785, PIC16FHV785,
PIC16F84A, PIC16F87, PIC16F88, PIC16F818, PIC16F819, PIC16F870, PIC16F871, PIC16F872, PIC16F873, PIC16F874,
PIC16F876, PIC16F877, PIC16F873A, PIC16F874A, PIC16F876A, PIC16F877A, PIC16F882, PIC16F883, PIC16F884, PIC16F886, PIC16F887,
PIC16F913, PIC16F914, PIC16F916, PIC16F917, PIC16F946, PIC16F1933, PIC16F1934, PIC16F1936, PIC16F1937,
PIC16F1938, PIC16F1939, PIC16LF1933, PIC16F1934, PIC16F1936, PIC16F1937, PIC16LF1938, PIC16LF1939

Devices, the PIC18F the Series:
The PIC18F242, a PIC18F252 The PIC18F442 is, the PIC18F452
PIC18F248, PIC18F258, PIC18F448, PIC18F458
PIC18F1220, PIC18F1320, PIC18F2220, PIC18F2320
PIC18F1230, PIC18F1330
PIC18F2221, PIC18F2321
PIC18F2331, PIC18F2410, PIC18F2420, PIC18F2431
PIC18F2423
PIC18F2450, PIC18F2455, PIC18F2458, PIC18F2480
PIC18F2510, PIC18F2515, PIC18F2520, PIC18F2523
PIC18F2525
PIC18F2550, PIC18F2553, PIC18F2580, PIC18F2585
PIC18F2610, PIC18F2620, PIC18F2680
PIC18F2682, PIC18F2685
PIC18F4220, PIC18F4221
PIC18F4320, PIC18F4321, PIC18F4331
PIC18F4410, PIC18F4420, PIC18F4423
PIC18F4431, PIC18F4450, PIC18F4455
PIC18F4458, PIC18F4480
PIC18F4510, PIC18F4515, PIC18F4520, PIC18F4523
PIC18F4525 and the PIC18F4550, PIC18F4553, PIC18F4580
PIC18F4585
PIC18F4610, PIC18F4620, PIC18F4680
PIC18F4682, PIC18F4685
PIC18F6310, PIC18F6390, PIC18F6393
PIC18F6410, PIC18F6490, PIC18F6493
PIC18F6520, PIC18F6525, PIC18F6527, PIC18F6585
PIC18F6620, PIC18F6621, PIC18F6622, PIC18F6627
PIC18F6628, PIC18F6680
PIC18F6720, PIC18F6722, PIC18F6723
PIC18F8310, PIC18F8390, PIC18F8393
PIC18F8410, PIC18F8490, PIC18F8493
PIC18F8520, PIC18F8525, PIC18F8527, PIC18F8585
PIC18F8621, PIC18F8620, PIC18F8622, PIC18F8627
PIC18F8628, PIC18F8680
The PIC18F8720, The PIC18F8722, PIC18F8723

PIC18F24J10, F25J10, F44J10, F45J10
PIC18LF24J10, LF25J10, LF44J10, LF45J10
PIC18F24J11, F25J11, F44J11, F45J11
PIC18LF24J11, LF25J11, LF44J11, LF45J11
PIC18F26J11, F46J11
PIC18LF26J11, LF46J11
PIC18F24J50, F25J50, F44J50, F45J50
PIC18LF24J50, LF25J50, LF44J50, LF45J50
PIC18F26J50, F46J50
PIC18LF26J50, LF46J50
PIC18F63J11, 63J90, 64J11, 64J90
PIC18F65J10, 65J11, 65J15
PIC18F65J50, 65J90
PIC18F66J10, 66J11, 66J15, 66J16
PIC18F66J50, 66J55, 66J60, 66J65
PIC18F66J90
PIC18F67J10, 67J11, 67J50, 67J60
PIC18F67J90
PIC18F83J11, 83J90, 84J11, 84J90
PIC18F85J10, 85J11, 85J15, 85J50
PIC18F85J90
PIC18F86J10, 86J11, 86J15, 86J16
PIC18F86J50, 86J55, 86J60, 86J65
PIC18F86J90
PIC18F87J10, 87J11, 87J50, 87J60
PIC18F86J90
PIC18F96J60, 96J65
PIC18F97J60

PIC18F13K22, LF13K22, F14K22, LF14K22
PIC18F13K50, 14K50
PIC18F23K20, 24K20, 25K20, 26K20
PIC18F43K20, 44K20, 45K20, 46K20


The PIC24 the Series Devices,:
PIC24F04KA200, 04KA201
PIC24F08KA101, 08KA102
PIC24F16KA101, 16KA102

PIC24FJ16GA002, 16GA004
PIC24FJ32GA002, 32GA004
PIC24FJ32GA102, 32GA104
PIC24FJ32GB002, 32GB004
PIC24FJ48GA002, 48GA004
PIC24FJ64GA002, 64GA004
PIC24FJ64GA102, 64GA104
PIC24FJ64GB002, 64GB004
PIC24FJ64GA006, 64GA008, 64GA010
PIC24FJ64GB106, 64GB108, 64GB110
PIC24FJ96GA006, 96GA008, 96GA010
PIC24FJ128GA006, 128GA008, 128GA010
PIC24FJ128GA106, 128GA108, 128GA110
PIC24FJ128GB106, 128GB108, 128GB110
PIC24FJ192GA106, 192GA108, 192GA110
PIC24FJ192GB106, 192GB108, 192GB110
PIC24FJ256GA106, 256GA108, 256GA110
PIC24FJ256GB106, 256GB108, 256GB110

PIC24HJ12GP201, 12GP202
PIC24HJ16GP304
PIC24HJ32GP202, 32GP204
PIC24HJ32GP302, 32GP304
PIC24HJ64GP202, 64GP204
PIC24HJ64GP206, 64GP210, 64GP506
PIC24HJ64GP502, 64GP504, 64GP510
PIC24HJ128GP202, 128GP204
PIC24HJ128GP206, 128GP210, 128GP306
PIC24HJ128GP310
PIC24HJ128GP502, 128GP504
PIC24HJ128GP506, 128GP510
PIC24HJ256GP206, 256GP210, 256GP610

The dsPIC30 Series Devices,
dsPIC30F1010
dsPIC30F2010, 2011, 2012
dsPIC30F2020, 2023
dsPIC30F 3010, 3011, 3012
dsPIC30F3013, 3014
dsPIC30F4011., 4012, 4013
dsPIC30F5011, 5013, 5015, 5016
dsPIC30F6010A, 6011A, 6012A
dsPIC30F6013A, 6014A, 6015


The dsPIC33 Series Devices,:

dsPIC33FJ12GP201, 12GP202
dsPIC33FJ16GP304
dsPIC33FJ32GP202, 32GP204
dsPIC33FJ32GP302, 32GP304
dsPIC33FJ64GP202, 64GP204
dsPIC33FJ64GP206, 64GP306, 64GP310
dsPIC33FJ64GP706, 64GP708, 64GP710
dsPIC33FJ64GP802, 64GP804
dsPIC33FJ128GP202, 128GP204
dsPIC33FJ128GP206, 128GP306, 128GP310
dsPIC33FJ128GP706, 128GP708, 128GP710
dsPIC33FJ128GP802, 128GP804
dsPIC33FJ256GP506, 256GP510, 256GP710

dsPIC33FJ06GS101, 06GS102, 06GS202
dsPIC33FJ16GS402, 16GS404
dsPIC33FJ16GS502, 16GS504

dsPIC33FJ12MC201, 12MC202
dsPIC33FJ16MC304
dsPIC33FJ32MC202, 32MC204
dsPIC33FJ32MC302, 32MC304
dsPIC33FJ64MC202, 64MC204
dsPIC33FJ64MC506, 64MC508, 64MC510
dsPIC33FJ64MC706, 64MC710
dsPIC33FJ64MC802, 64MC804
dsPIC33FJ128MC202, 128MC204
dsPIC33FJ128MC506, 128MC510
dsPIC33FJ128MC706, 128MC708, 128MC710
dsPIC33FJ128MC802, 128MC804
dsPIC33FJ256MC510, 256MC710


Devices, the PIC32 the Series:

PIC32MX320F032H, 320F064H
PIC32MX320F128H, 320F128L
PIC32MX340F128H, 340F128L
PIC32MX340F256H
PIC32MX340F512H
PIC32MX360F256L, 360F512L
PIC32MX420F032H
PIC32MX440F128L, 440F128H
PIC32MX440F256H
PIC32MX440F512H
PIC32MX460F256L, 460F512L

11 the Series Serial EEPROM Devices,:

11LC/AA010
11LC/AA020
11LC/AA040
11LC/AA080
11LC/AA160


24 Series Serial the EEPROM Devices,

24LC/AA/C00
24LC/AA01B, 02B, 04B, 08B
24LC/AA16B, 32A
24LC/AA/FC64, 128, 256, 512
24LC/AA/FC1025


25 the Series Serial the EEPROM Devices,

25LC/AA010A, 020A, 040A
25LC/AA080A, 080B, 160A, 160B
25LC/AA320A, 640A
25LC/AA128, 256, 512, 1024


93 the Series Serial the EEPROM Devices,

25LC/AA/C46A, 46B, 46C
25LC/AA/C56A, 56B, 56C
25LC/AA/C66A, 66B, 66C
25LC/AA/C47A, 76B, 76C
25LC/AA/C48A, 86B, 86C


MCP250xx CAN Devices

MCP25020, 25025
MCP25050, 25 055

Universal Programmer Seat Description:

Instructions for use:

Installing the microcontroller, 28-pin, 40-pin microcontroller left aligned 28/40P (A) This flag line short-circuit cap on the A position.

The 8,14,18,20-pin microcontroller aligned on the left 8P/14P/18P/20P flag line (B), shorting cap on the B position.

The ICD2, KIT2, KIT3 crystal head or 6Pin Block programming connection for programming the programming operation. (Note: a separate program of the seat can not be programmed the chip is programmed functions)

The seat supports the following programming microcontroller:

PIC16/18XX 40PIN Series devices (except 16F59)

PIC16/18XX 28PIN Series devices (except 16F57)

PIC16/18XX 18PIN Series devices

The PIC 8PIN/14PIN/20PIN family of devices (except 10FXX)

Package Included:

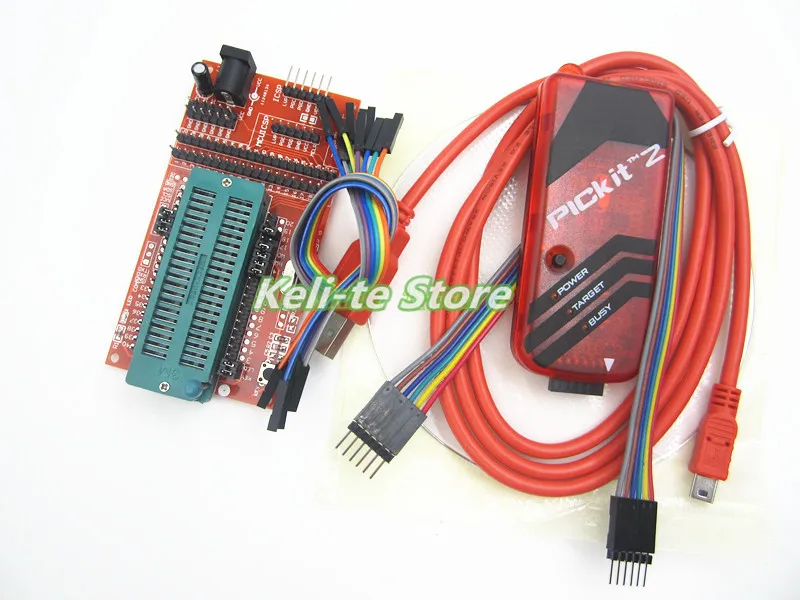

1 X PICKIT2 Simulator

1 X USB cable

1 X 6pin cable

1 x Universal Programmer Seat
