dual swing gate opener complete all in one package

The shipping cost listed by the system is only for reference and if you really wanna buy this item, please contact the seller first to check the possible discount for shipping before paying this order. Thank you..

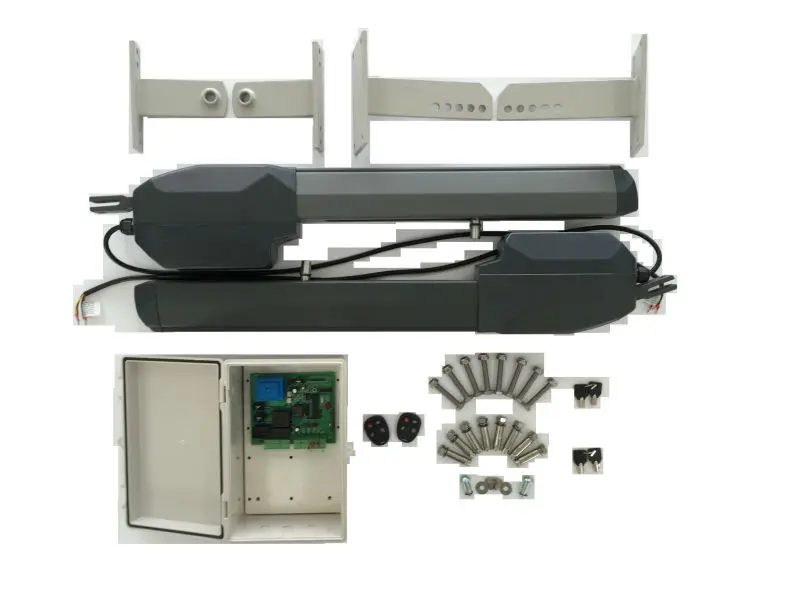

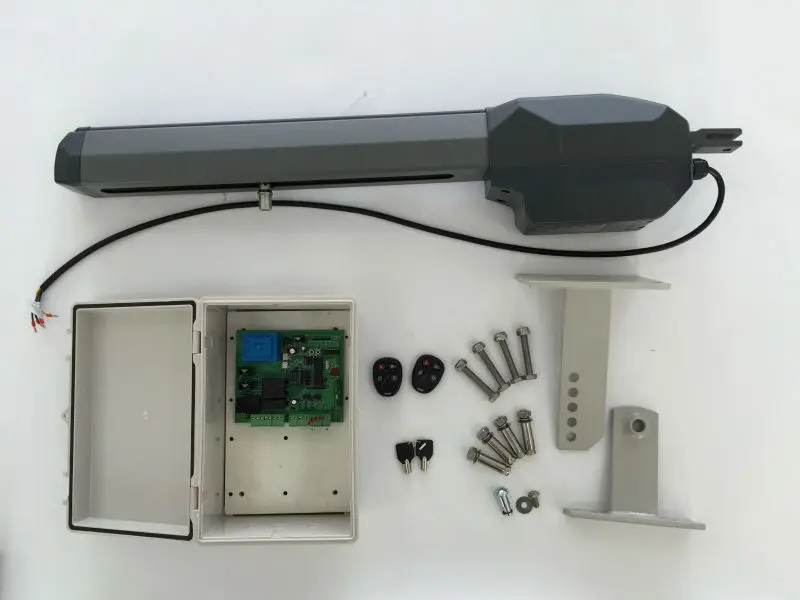

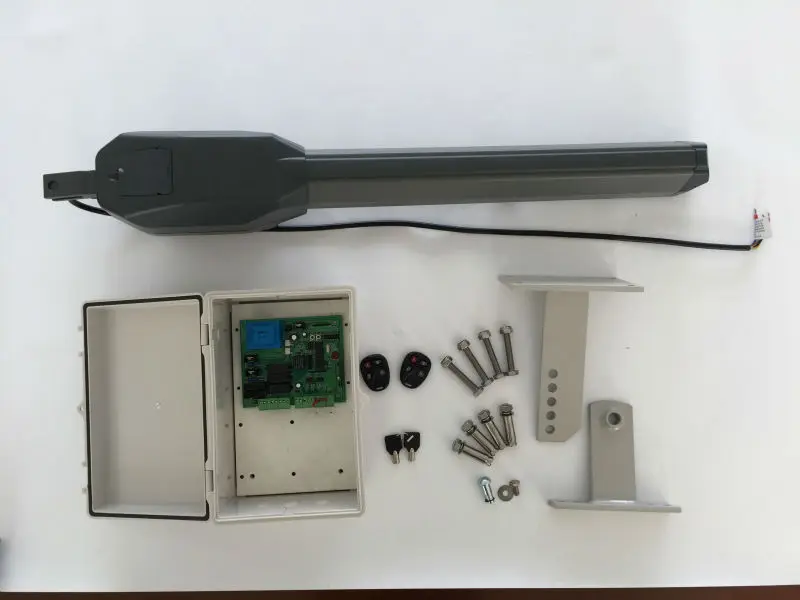

Product package includes: a pair of motor, two remote controls, circuit board and mounting parts;

Notes:

1. for this shipment, the seller will send the goods with a quicker and suitable express (as DHL, UPS, TNT, FEDEX) if the buyer chooses ESM; this is because the ali-express default express is EMS. So please do not worry for the delivery time. Also for the shipment cost, there is a possibility of discount and please contact the seller if the buyer needs to get this possible discount.

 2. We can deliver the goods to all of the countries in the world; please just contact the seller if the aliexpress system does not support to send the goods to your nation. This is because the system default setup has a limited function.

3. For any special requirements, please leave notes for the seller.

Technical data:

Motor:24 V DC, 50W per actuator, 4A current

Power supply: 110V/60Hz (or 220V/50Hz)

Actuator speed: 1.6 cm/second (.63”/second)

Actuator travel: 485mm

Max.Weight of each gate: 400 kgs

Max.Width of each gate: 4 m

Open/closing running time: programmable (from 0 to 99 seconds)

Autoclosing duration: programmable (from 0 to 99 seconds)

Ambient temperature: -22c- +55c

Protection class: IP44

Product Features

Solar Powered (Solar Panel and Batteries are optional and not included in this kit)

Open and close the gate by remote control and keypad

Soft start/close

Emergency release key in case of power failure

Dual/Single gate running mode

Optional master and slave gate running

Adjustable opening/closing interval between master and slave gate

Stop/Reverse in case of obstruction during gate opening/closing.

The force of the motor can be programmed

Optional photocell protection

Built in adjustable auto-close (programmable from 0-99 sec)

Digital display indicates the running situation and setting menu

Reliable electromagnetism limit for easy to adjust

One year warranty directly from our company

this picture not showing the real product and it is for installation view;

Optional parts are loop detectors, photocells, alarm lights, push buttons, key pads or extra remote control available:

push button

remote control

key pad
