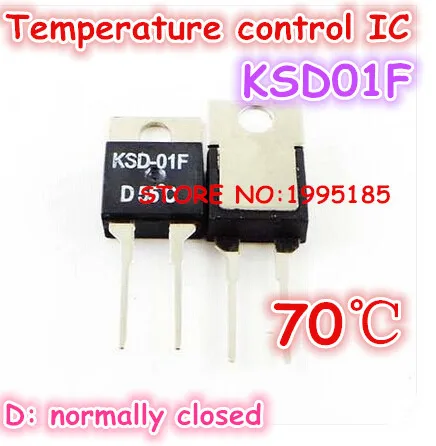

5pcs/lot KSD01F D70 70 degree C Temperature control IC TO220 | Обустройство дома

5pcs/lot KSD01F D70 70 degree C Temperature control IC TO220 | Обустройство дома

KSD-01F, temperature control switch product introduction:

Technical parameters:

Contact load: 220vac 1A or 24VDC 3A

Overall dimensions (length * width * thickness) : 29.7 * 10.2 * 10.2 mm

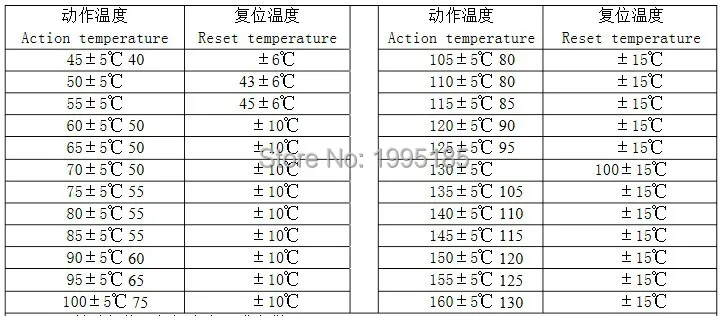

Temperature range: 0 C to 130 C (5 C) a specification

Contact type: normally closed (3-d) or normally open (-h) two kinds

Packaging forms: the TO - 220 metal base plate

Contact resistance: 50 m or less Ω

Insulating value: 100 m or more Ω (500 VDC)

Dielectric strength: 1500 v/DC, 60 hz

Standard tolerance: + / - 5 C

Working environment temperature: 55 C to 160 C (short-term maximum temperature: 260 C for 10 seconds)

The weight of 2 g or less

Working principle:

KSD - 01 f temperature control switch is in the form of the TO - 220 encapsulation, kick, unipolar/single throw of the 100% of the contact conduction structure, when the ambient temperature is too high, passed TO the correction of the bimetallic strip quickly action, so cut off or connect circuits (normally closed normally open or two), when the temperature drops TO reset temperature, bimetallic strip quickly reset again, repeat work TO ensure the safety of the product temperature protection.

Product use:

PC board applies to save space. Typical USES include circuit overheat alarm or shut down the system; Computer and computer peripheral equipment, electrical equipment; Electronic products; Power supply; Planes, cars, medical equipment and test equipment; Household appliances and circuit boards in the charged with mild thermal overload protection
