Popular Outdoor IR Camera Fisheye AHD 360 Degree 1080P 2.0 Megapixel 1.2mm wide angle fisheye lens Security 30pcs LEDs | Безопасность и

Popular Outdoor IR Camera Fisheye AHD 360 Degree 1080P 2.0 Megapixel 1.2mm wide angle fisheye lens Security 30pcs LEDs | Безопасность и

Replace Multiple Cameras Using Super Wide Angle Camera

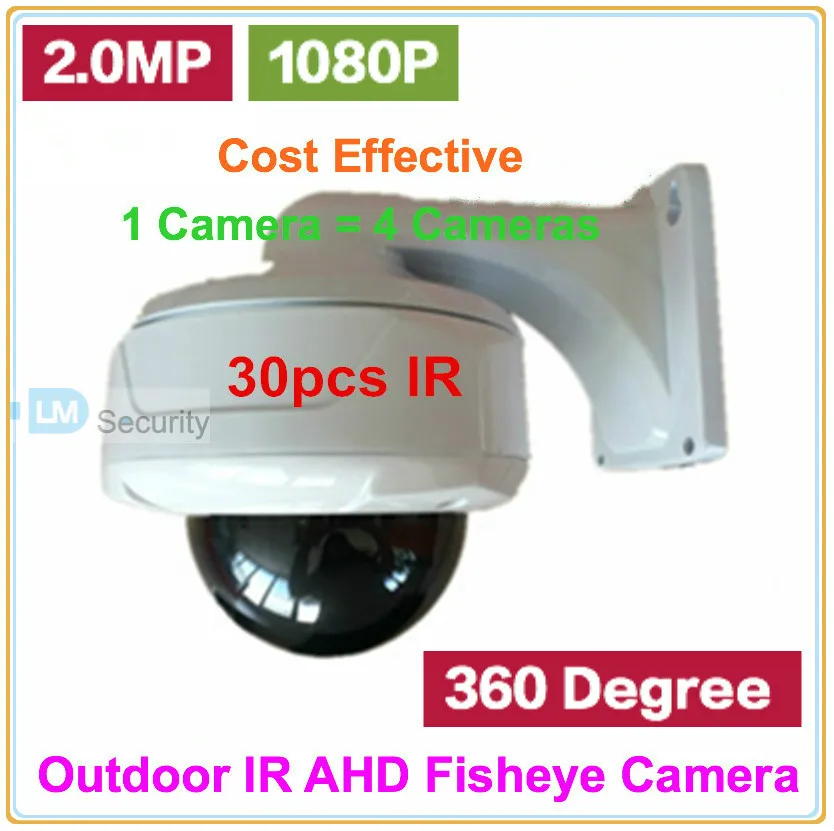

AHD 2.0MP 360 Degree Outdoor IR Wide Angle Fisheye Camera

-----Camera Selling with Bracket for water-poof IP66, 30pcs IR leds.

LM-AHD360CDVRH is an outdoor panoramic mini dome designed to provide optimal surveillance coverage for both homes and businesses. Equipped with a 360° overview, the LM-AHD360CDVRH is perfect for monitoring wide spaces such as sales floors, warehouses, office cubicles, small shops, buses, and other vulnerable areas like showrooms, living rooms, master bedrooms, and more.

Three Big Advantage of this Camera:

1.Only need 1 camera in a 10 x 10 m room, full surveillance without any blind spot.

2. 1 Camera can replace 4 cameras, cable saved, work saved, time saved, money saved.

3. 360 degree full room monitor, everything is under control.

4. Outdoor Housing, Water-proof IP66.

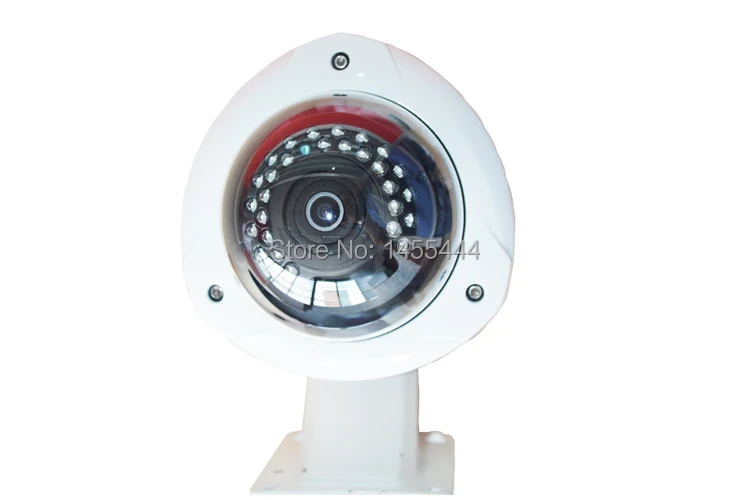

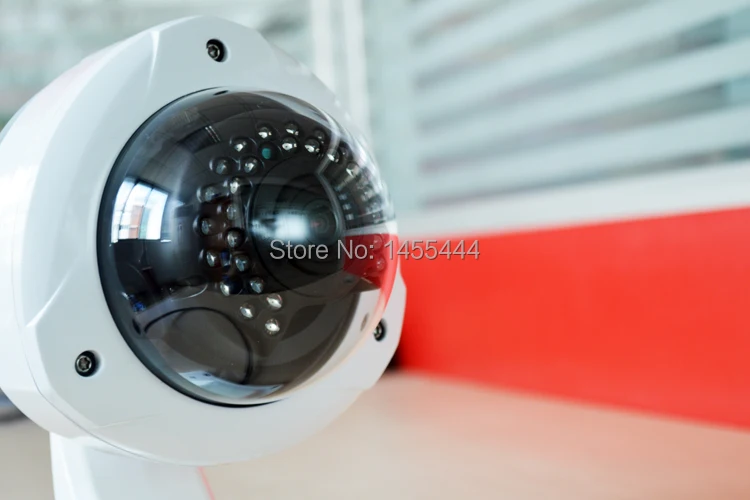

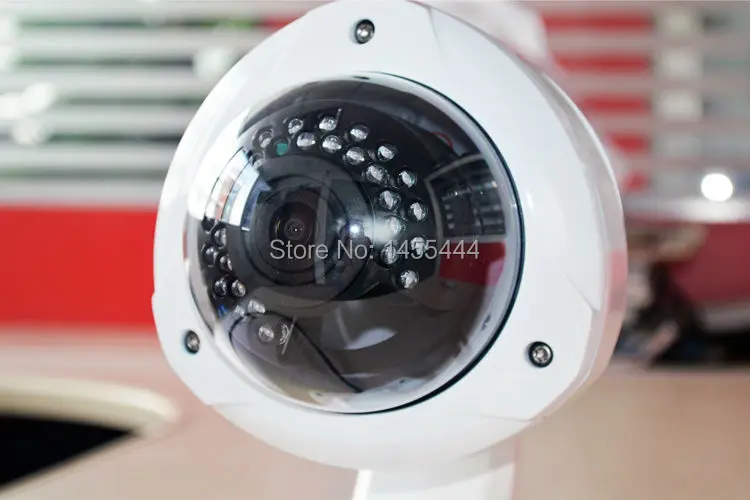

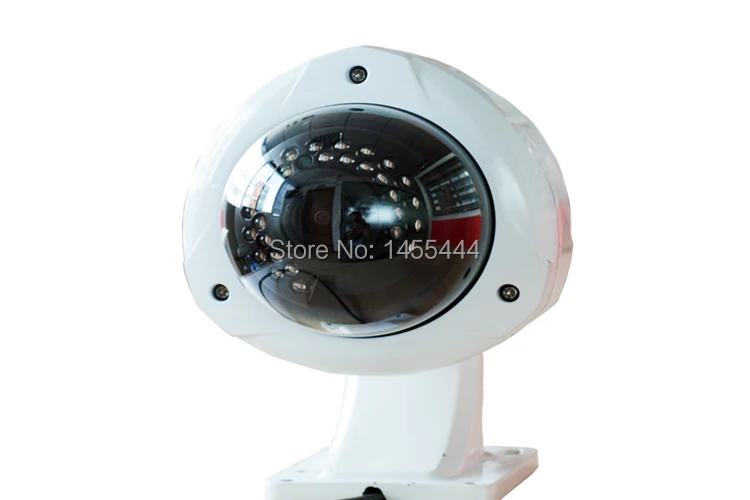

Outdoor IR Fish-Eye 360° AHD Vandalproof camera

1. Vandal-proof housing
2. 1/2" CMOS, 2.0Megapixel, Low Lux, AHD-M output
3. 360 degree wide lens
4. DC12V, Image without warping

5. With 30pcs IR LEDS, 35m IR Distance

Data Sheets:

Lens

360 degree fisheye lens

Video

Compression

H.264

Pixels

PAL: 976 H x 582 V / NTSC: 976 H x 494 V

Scanning

2:1 Interlace

Sync Mode

Internal

Horizontal and Vertical Frequency

PAL:15.625 kHz, 50.00 HZ /  NTSC :15.734kHZ,59.94HZ

Video Output

1.0Vp-p/75Ω Composite video signal

S/N Ratio

>60dB  AGC Off

AGC

Auto

E-shutter

PAL:1/50-1/100,000 s / NTSC:1/60-1/100,000s

Illumination

0.005lux

Common

Power

12VDC(±10%)

Consumption

1W(Max)

Operating Temperature and humidity

-10c-50c,20%-90% RH

Dimension

135*115mm

Weight

1.5Kg

Why Choose AHD Fisheye Camera?

1. Pls check AHD Camera Resolution Comparision  :

2. Pls see Fisheye Camera Different Viewing Angle Comparision:

3. 360 Degree Wide Angle View, Full Room Surveillance without blind spot.

Package:

By intellisecure in CCTV News

Posted

August 8, 2014 at 9:28 pm

Fisheye cameras; The best view?

Having eyes in the back of your head — an attribute relegated to vigilant parents, strict librarians, and more than a few teachers — is a condition that would serve the security industry well. After all, who doesn’t want the ability to have eyes on the action, wherever it’s happening?

Since such forms of sight are a physical impossibility, security personnel have turned to cameras to be their all-seeing counterparts. The problem, however, is that even cameras don’t always capture every movement and moment in a critical scenario. Many cameras have fixed views and pan-tilt-zooms, and even with their wider range, can sometimes be looking in the wrong direction when they really need to be focused elsewhere.

Thus, the industry developed the fisheye technology or 360-degree cameras to provide that all-seeing viewpoint. As camera resolutions increase, the fisheye is turning out to be an especially advantageous choice for situational awareness within the retail industry, not only because these cameras fit their coverage needs, but also because stores can now lower their camera count and save a bit of money as well.

That’s not to say that the fisheye is limited to retail settings. These cameras, with their sweeping views (for example, 360 degrees if ceiling mounted or 180 degrees if wall mounted), are also ideal for university lecture halls, elevator banks, indoor parking areas, hospitals and casinos. As with all camera installations, it is important that camera selection is based on the combination of surveillance system needs and camera capabilities. For 360° cameras, the resolution “sweet-spot” for a 5MP fisheye capturing sufficient details is 20-25 feet. Due to the extreme wide angle lens, objects in the camera’s field of view beyond this distance will become too small to capture details. Thus, other types of cameras would better serve a large, outdoor parking lot application.

As with any component in a surveillance set up, the fisheye is at its best when used in concert with other cameras. For instance HD fixed cameras might be a better choice over the cash drawers, or multiple fisheyes could be used together to surround an HD PTZ unit that can zoom in and closely track events or suspicious individuals identified in the fisheye video. In some cases, however, a single fisheye can cover an entire room, such as classroom, without missing anything.

One challenge with the fisheye is the reality of image distortion at the edges, due to the ultra-wide field of view. Dewarping technology within the camera, as well as within the client, can address this problem and produce a corrected, flat view.

For security personnel, there can also be a learning curve as they become comfortable with navigating around the normalised or warped view. However, in an active surveillance situation, officers will want to work with the normalised view that can be produced on the edge by the camera or on the client-side with dewarping completed on the server.

The 360-degree fisheye camera expands the line of vision and takes surveillance into far corners not easily seen before. Over time, working with the views from this latest entrant into the video field will become second nature to surveillance system operators, and security personnel will relish having a new tool in their arsenal as they look to achieve all-seeing status.

Production Process

Company Profile

Certificates

If you have any questions about our products, please don't hesitate to contact us! We are looking forward to your orders!

Thank you for your attention. :-)))
