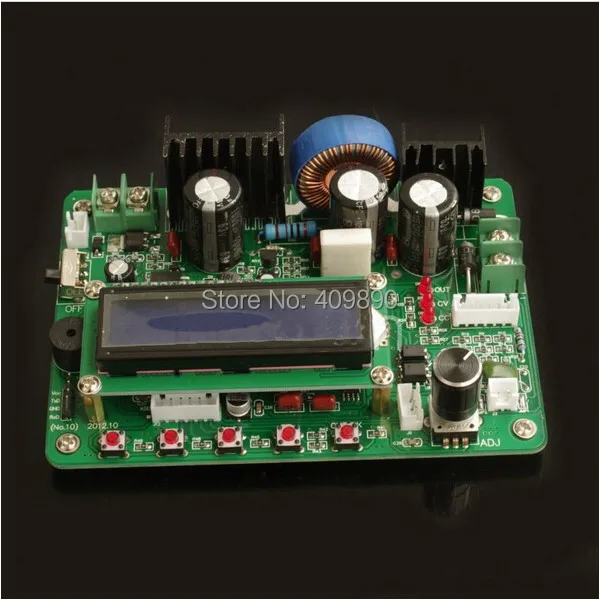

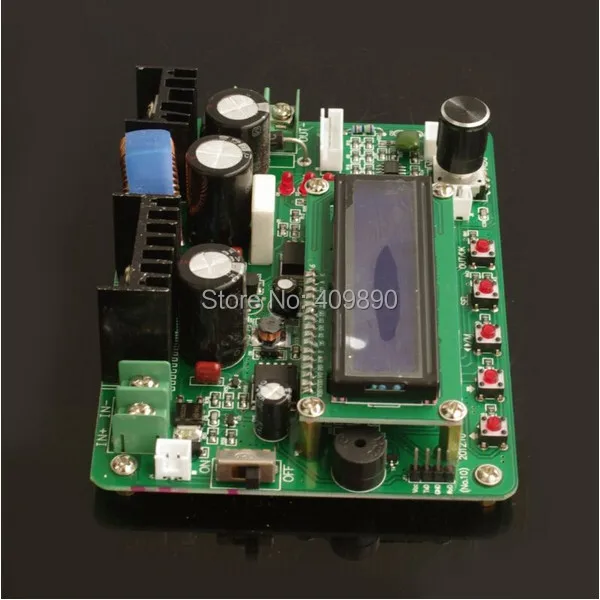

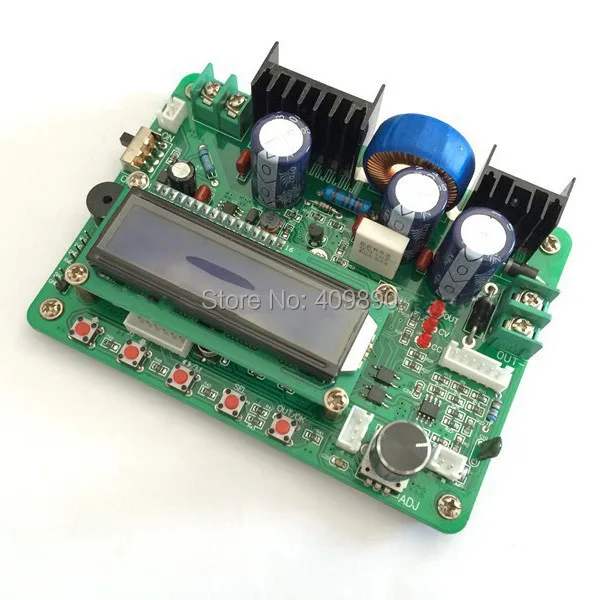

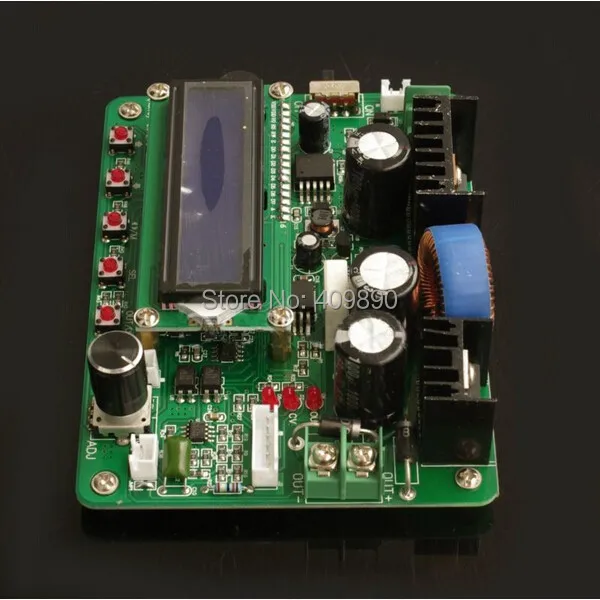

ZXY6005S NC DC-DC Power Supply Module Programmable 60V 5A 300W Constant Voltage Current

Introduction:

ZXY-6005S is single output programmable switch power supply. Its specification is 60V, 5A, 300W. It designed by DC-DC modularization ,has a small size and a high output power. Besides, it has equipped with TTL serial interface, provide a serial communication protocol, allows user to secondary development, we can according to your design and test requirements to provide versatile solutions.

Main special features and advantages:

Based on BUCK structure of switch power supply technology, the work frequency reach up to150 KHz
DC input voltage range : 13V- 62V, which is suitable for multiple kinds of pre-stage input power supplies
Operation key and multi-function encoder combine for the operation, it is convenient and easy to use
High accuracy and high resolution: 10 mV / 10 mA
Low ripple and low noise
Indicator light: Constant current( CC) ,constant voltage (CV) and output state (ON)
LCD1602 display
Adjust voltage and current by adjustment knob and keys
Support measuring and displaying output voltage, output current, output power, output electric quantity (AH) and working time
Intelligent temperature detection, can connect an external DC12V fan,and control its speed in level 5
The minimum voltage difference 2V can still work steadily
With output turn off function key ,flexible turn on or off output
10 groups of parameter settings of M0-M9, which can be conveniently called out at any moment
Prompt for operation or alarm function of onboard buzzer
Convenient and simple three-phase charge intelligent control function of storage battery
With TTL serial communication, and improved communication protocol so as to be convenient for centralized control

Parameter:

Input voltage: 13V-62V
Output voltage: 0-60V
Output current: 0-5A
Output power: 0-300W
Setup resolution of output voltage: 10mV
Setup resolution of output current: 10mA
Source regulation: CV is less than 0.5% + 10 mV CC is less than 1% + 5 mA
Load regulation: CV is less than 0.5% + 10 mV CC is less than 1% + 5 mA
Output ripple: < 50mVpp (Input 54 V, 12 V output, current 3A)
Volatility transmission ratio of 100 Hz: < 1/10000
Typical Efficiency: Input 54 V, 36 V, output current 3A
The Voltage / Current display precision: 10mV, 10mA
Display error of Voltage: ±1%+50mV
Display error of Current: ±2%+20mA
Response time: < 50ms
Memory operation: 10 groups of parameter storage of M0-M9
Protection type: OVP, OCP, OPP, OAH, OFT
Heat sink method: Heat sink and fan (optional)
Operating ambient temperature: 0 to 40°C
Storage ambient temperature: -20 to 70°C
Use ambient: For indoor use , maximum humidity of 80%
Dimension: 130 x 95 x 43mm

Note:

Significant improvements in this product is that all control displays are reserved for the interface, which means that users do not weld out any components on the board, you can add lines to external connect switches, buttons, LCD, CC-CV-OUT indicator, coding, etc., here is the detail cable interface definition and modification recommendations!

Package included:

1 x ZXY6005S power supply module
