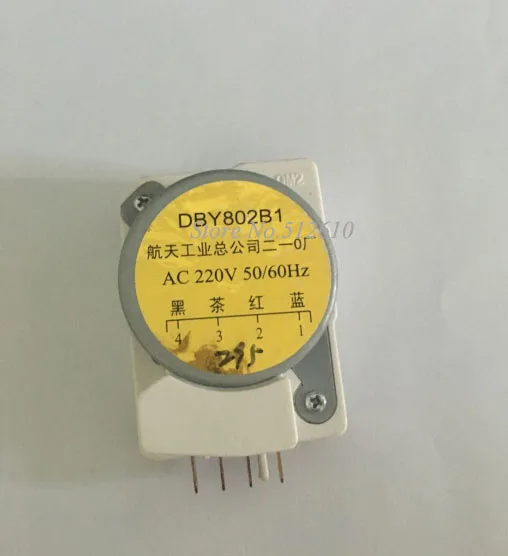

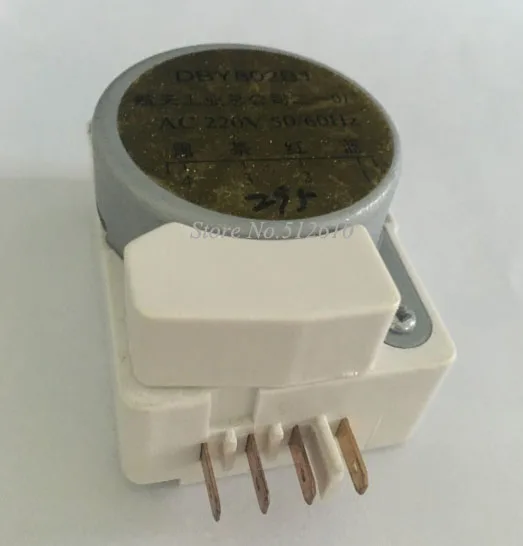

Aerospace Genuine DBY-802A DBY802B1 Universal Defrost Refrigerator Timer Refrigeration Accessories | Бытовая техника

1. defrost timers introspection as long as you plug in electric motor powered it up, while the motor coil and two heaters (drainage and defrost) are powered up, but the motor itself   Coil has 8K Europe, far greater than the two parallel heaters formed by the 300 Ohm resistor so two heater does not work. You can enter the refrigerator cooling state but does not defrost.   2. powered compressor did not start, the timer starts counting, this is the normal operating performance. You do not solve it ?? afraid defrost timers work?   It is attached to the rear defrost thermostat. It is on the evaporator surface. If the room temperature is open. (Neither pass, infinite resistance), even if you defrost timers defrost time to (cumulative compressor in addition to eight hours a cream), because it is not open defrost thermostat defrost defrosting temperature of -5 degrees to degrees was turned on. If you do not start the refrigerator compressor refrigeration, it can not get turned on temperature, never work. 3 defrost timers four pins. Neutral (N) connected to the corner (there is a corner angle and the other three pins are not together side by side) the other is a three-pin FireWire, one is through the refrigerator thermostat is out of the line of control (thermostat opened before the compressor work) with a multimeter to measure its normal state and FireWire that pin is capable of. the last pin is connected to the defrost thermostat defrost when it thermostat pin is through   Type 1: DBY802A1 (1-3 foot motor leads) Type 2: DBY802B1 (1-4 foot motor leads) I do not know what their pins, you can see for yourself defrost circuit diagram of the refrigerator is connected to the motor will be 1-3 or 1-4   The above as an example, that is 1-3 pins, may be used instead by DBY-802A1! !
