Digital RKC PID Temperature Controller  Thermostat REX-C400 (SSR Output)+K type thermocouple+Max 40A SSR relay
Features:
1.Dual display for  set temperature and process temperature
2.Universal digital programmable temperature controller that supports many type of thermocouple sensor. It can be powered by 85-265V AC, Comsumption5VA. DIN 1/16.
3.Displays temperature in Celsius
4.Four digits LED display can go up to "9999"
5.Powered by either DC or AC power source
6.Used for Kiln,Furnace,Oven,Incubator temperature control
7.Used it in heating control as well as for cooling control
8.Used in various industries to control and monitor process temperatures
Specifications:
REX-C400 (SSR) temperature controller
Display: Dual display for Celsius (C)
Range: -0-400C (Only when with the factory K type thermocouple)
Output: SSR
PID cooling/heating control
1 RELAY alarm: Normal open, capacity 250V/3A AC or 30V/3A DC
7 different Dual Output  combinations with: high / low / high deviation / low deviation /interval / out of interval / breakage alarm
Accuracy: 0.5%
Input: Thermo Resistor: PT100, Cu50
Thermocouple: J,S,K,E,Wre3 ~ Wre25
Dimension: DIN: 1/8 (48mm x 96mm x 110mm)
Weight: about 300g
K type Thermocouple Probe Cable
1.Length: 1M
2.Sensor diameter:5mm
3.Temperature rang :0-400
4.Internal Insulation: Fiberglass
5.External Shielding: Insulated Shielding

Max.40A SSR
1.Output Current:40A
2.Input Voltage:DC 3-32V
3.Output Voltage:24-380V AC
4.Output Voltage Range:Standard Type

Package Included:
1 X PID Temperature Controller
1 X K Type Probe Sensor
1 X Max.40A SSR

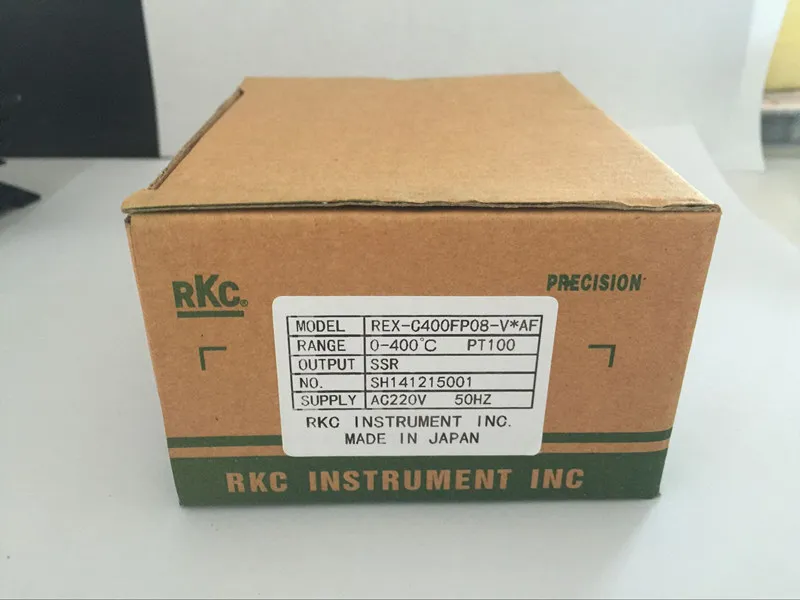

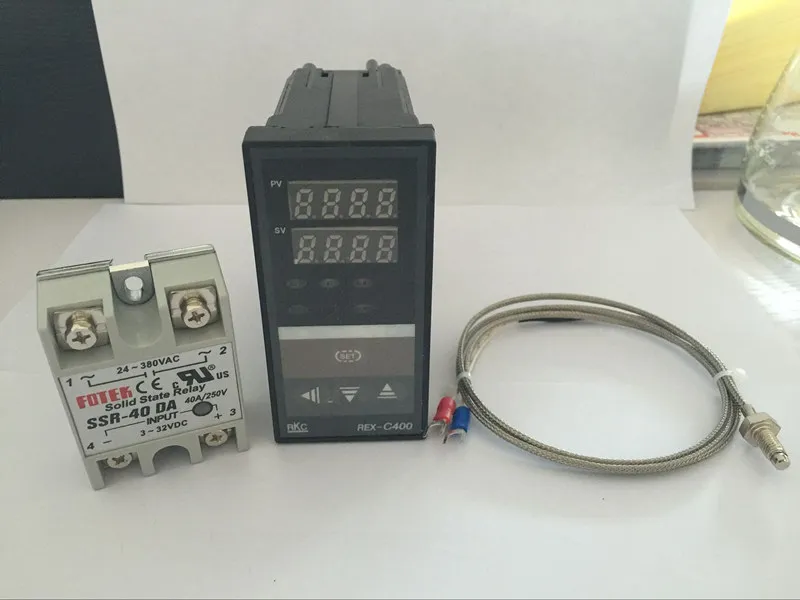

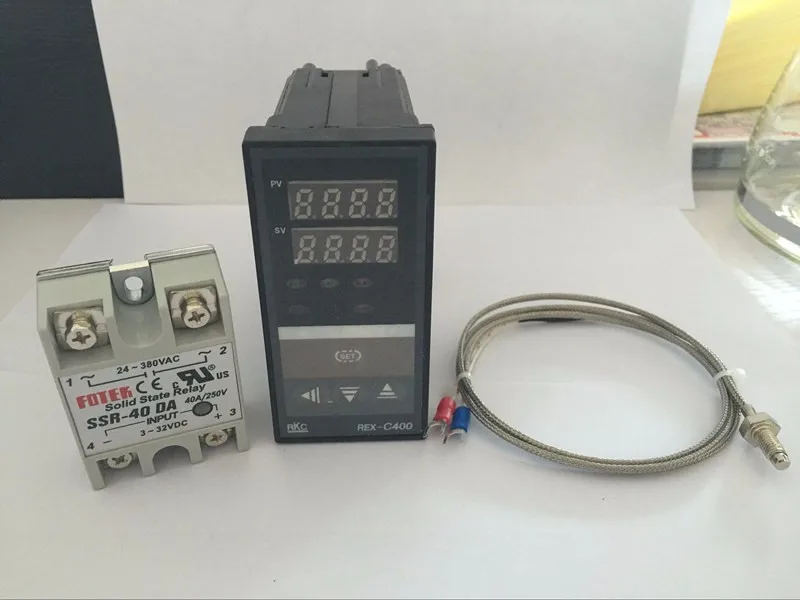

Detailed Images:
Note: the image is for reference.   These image are REX-400 relay output, not SSR type.  REX-400 relay output has nearly same output as SSR type   . Only different in output. So we use same pictures.
